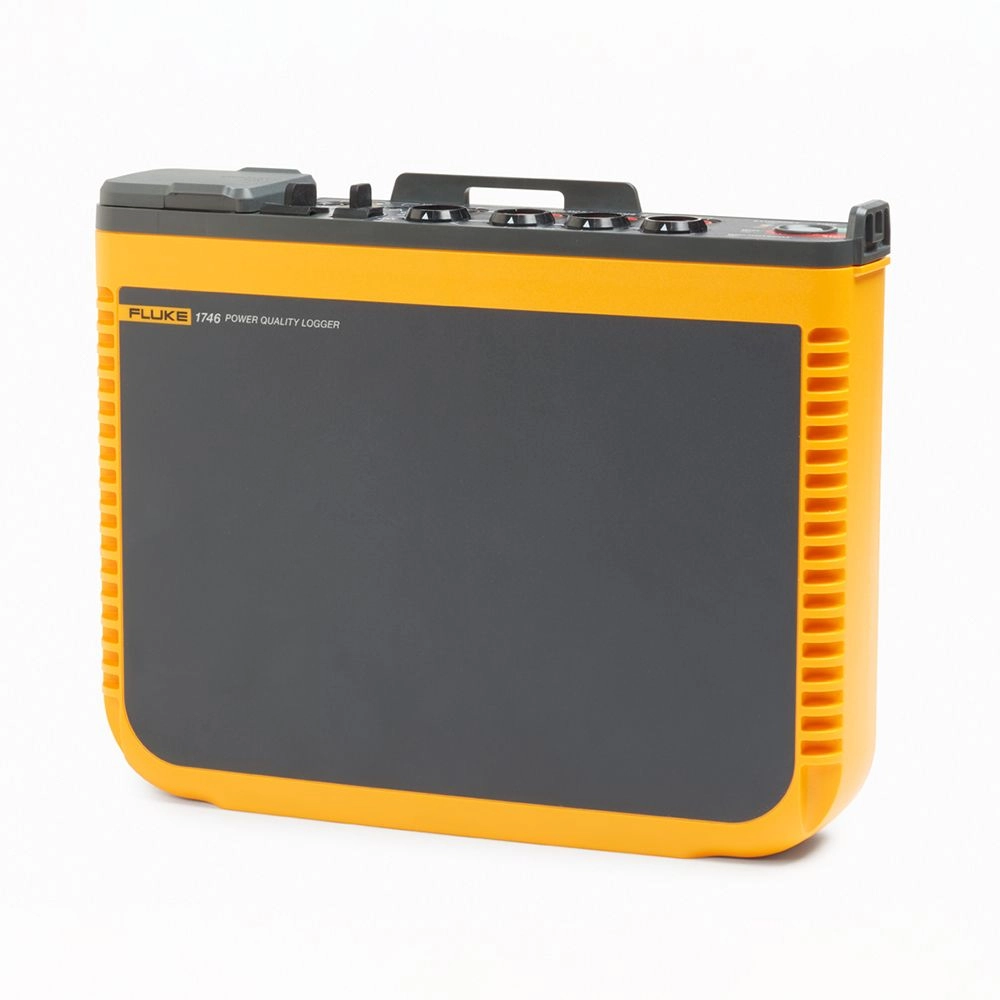

Fluke 1742/30/INTL Power Quality Logger With 60cm 3000A iFlex, Intl

Features

• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'
• Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord

Technical Information

• Voltage range100 V to 500 V using safety plug input when powering from the measurement circuit 100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
• Power consumptionMaximum 50 VA (max. 15 VA when powered using MA-C8 adapter)
• Efficiency68.2% (in accordance with energy efficiency regulations)
• Maximum no-load consumption< 0.3 W only when powered using IEC 60320 input
• Mains power frequency50/60 Hz ±15%
• Sampling frequency10.24 kHz at 50/60 Hz, synchronized to mains frequency
• Input signal frequency50/60 Hz (42.5 to 69 Hz)
• Operating temperature-25 °C to +50 °C (-13 °F to 122 °F)1
• Storage temperature without battery-25 °C to +60 °C (-13 °F to 140 °F)
• Storage temperature with battery-20 °C to +50 °C (-4 °F to 122 °F)
• Operating altitude2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)

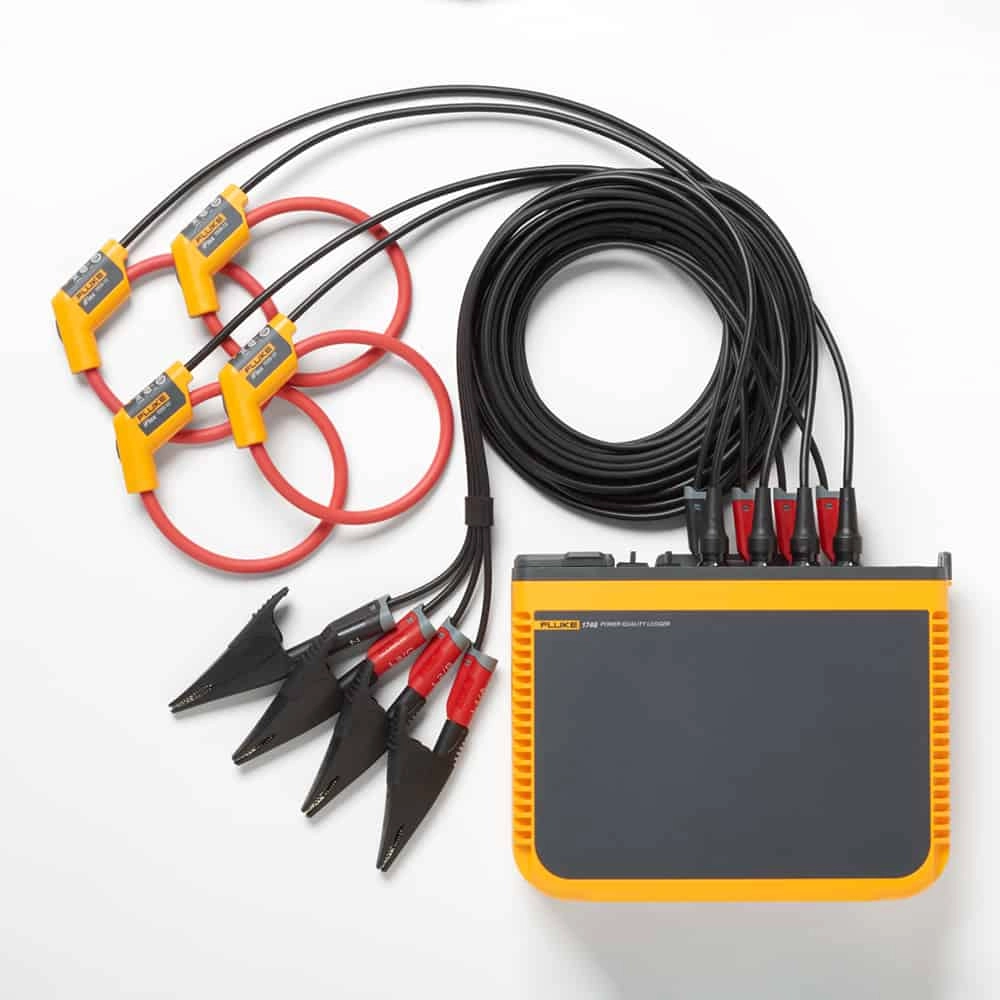

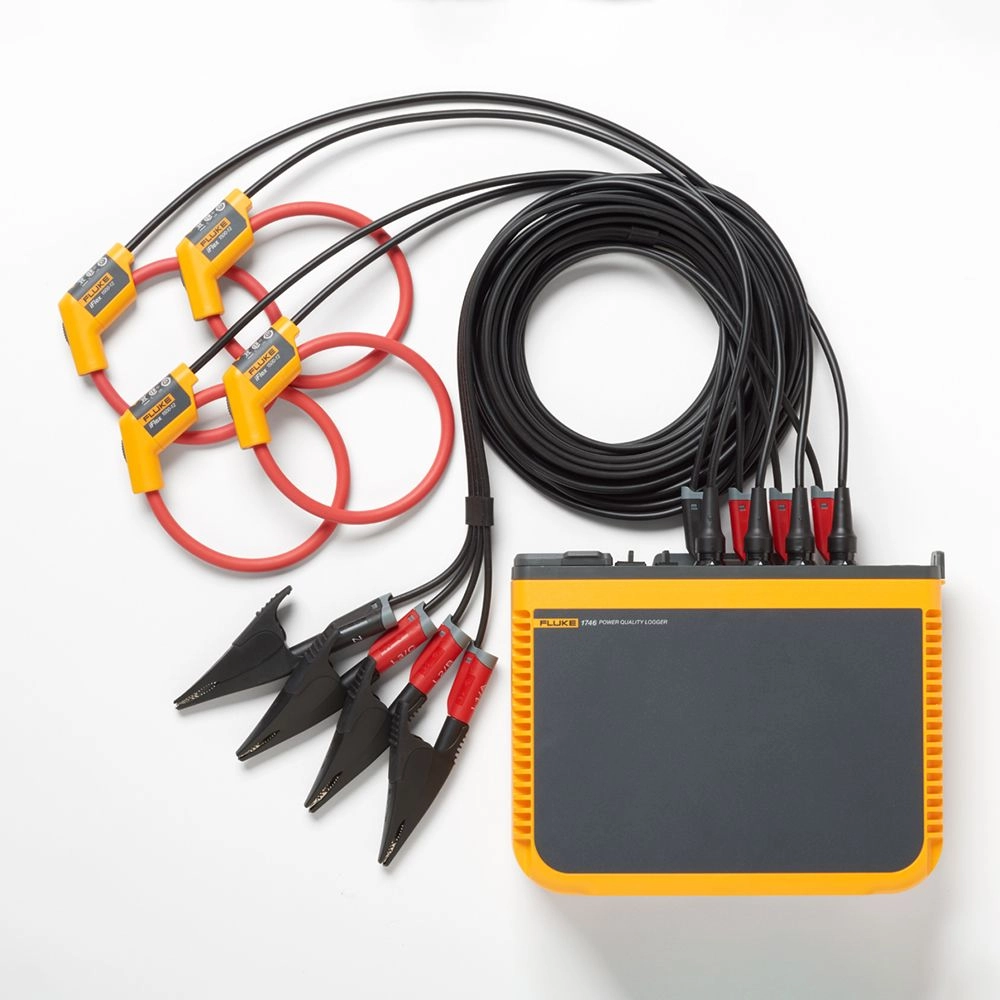

Items Included

• Fluke 1742 Logger
• Soft storage bag/case
• Voltage test lead (3-phase + N)
• Alligator clips (blue) (x2)
• Alligator clips (black) (x4)
• Set of cable markers
• Mains power cable
• Mains adapter MA-C8
• Set of 2 test leads (stack and non-stackable, blue, 7 in.)
• Set of 2 test leads (non-stackable, blue, 79 in.)
• USB Cable
• i17xx-flex3000IP 24 inch current probes (x4)
• WiFi/BLE-to-USB Adapter
