Fluke 1738/EUS 3-Phase Advanced Power Quality Logger (EU/US Version)

Features

• Versatile, three-phase power loggers for conducting energy, load and power quality studies.
• Automatically capture and log voltage, current, power, harmonics and associated power quality values, and capture dips, swells, and inrush currents with event waveform snapshots and high-resolution RMS profiles.
• Convenient instrument powering directly from the measured circuit
• Download and analyze every detail of energy consumption and power quality state of health with our automated reporting.
• Includes event waveform snapshot and high-resolution RMS profile with date, timestamp and severity to capture dips, swells, and inrush currents and help pinpoint potential root causes of power quality issues
• Provides fast insight into overall electrical system health with a Power Quality Health Summary

Technical Information

• Voltage range (Using safety plug)100 V to 500 V
• Voltage range (Using standard power cord)100 V to 240 V
• Power consumptionMaximum 50 VA
• Efficiency≥ 68.2%
• Maximum no-load consumption< 0.3 W
• Mains power frequency50/60 Hz ±15%
• BatteryLi-ion 3.7 V, 9.25 Wh (replaceable)
• Resolution16-bit synchronous sampling
• Sampling frequency10.24 kHz at 50/60 Hz, synchronized to mains frequency

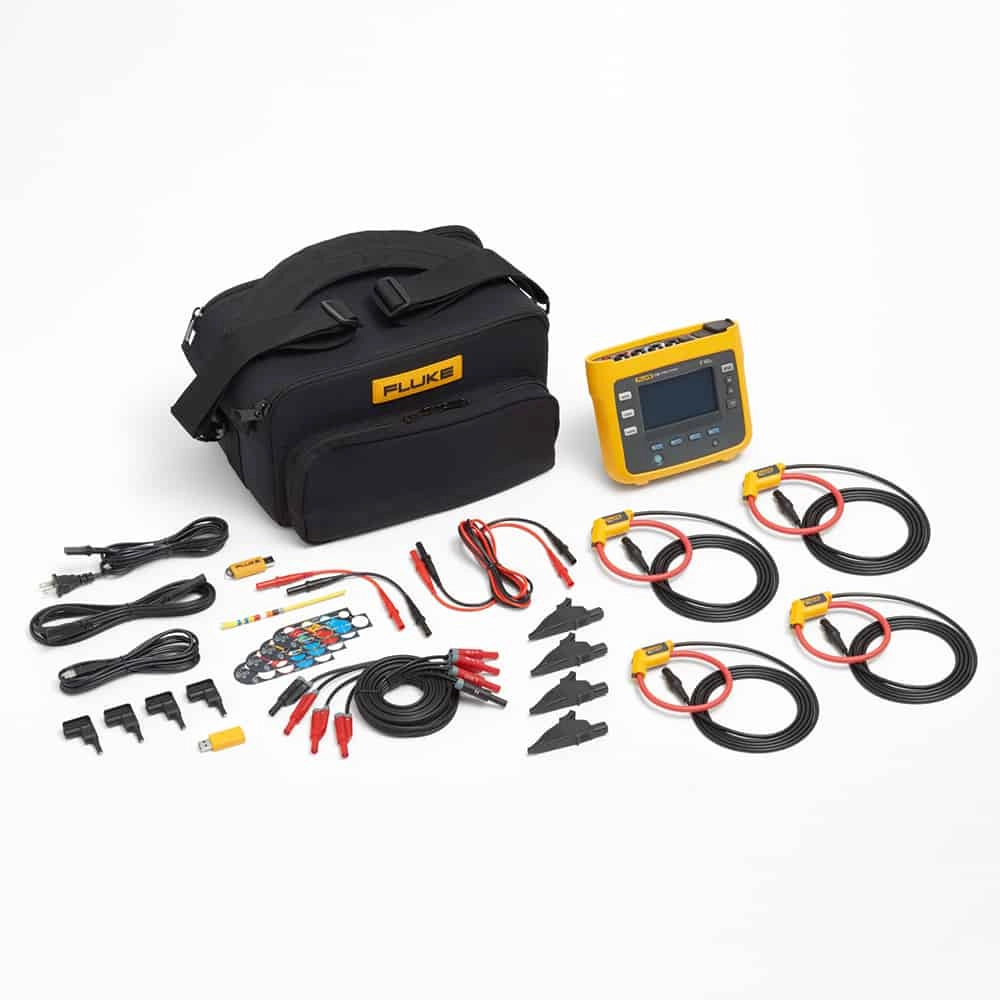

Items Included

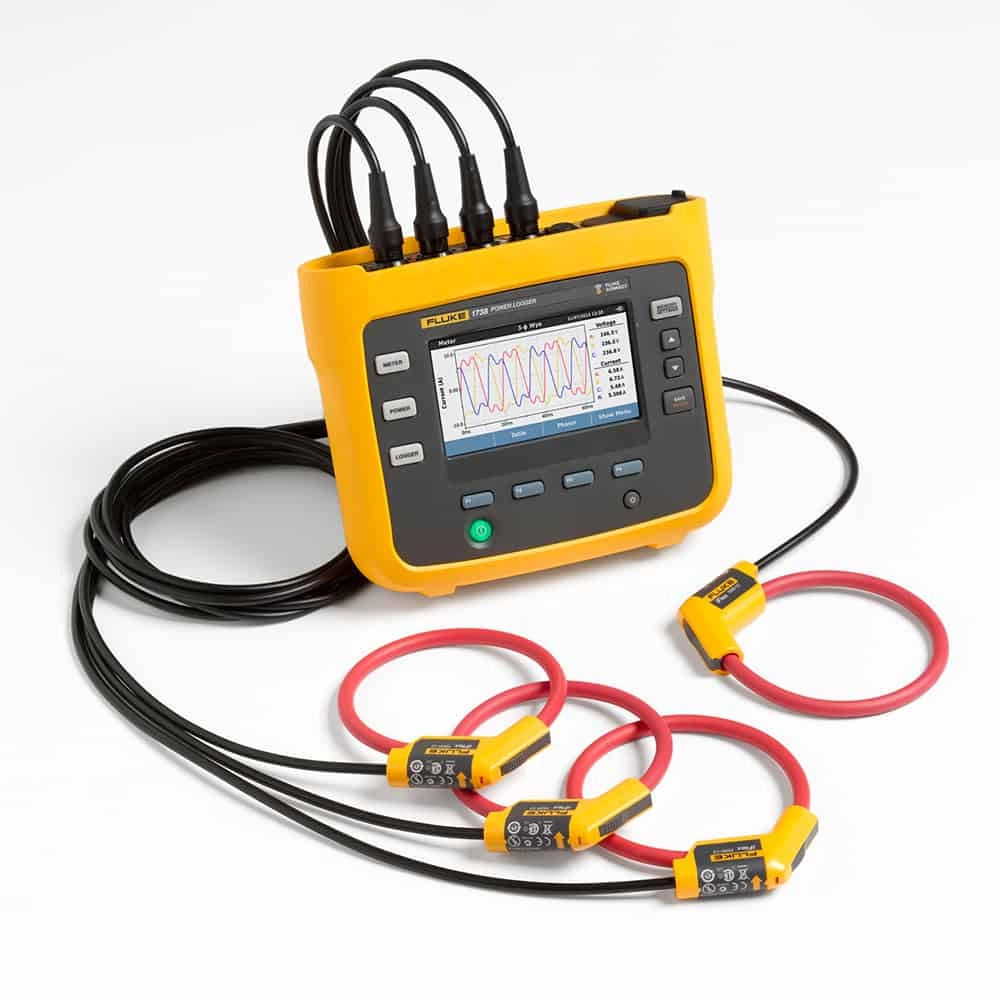

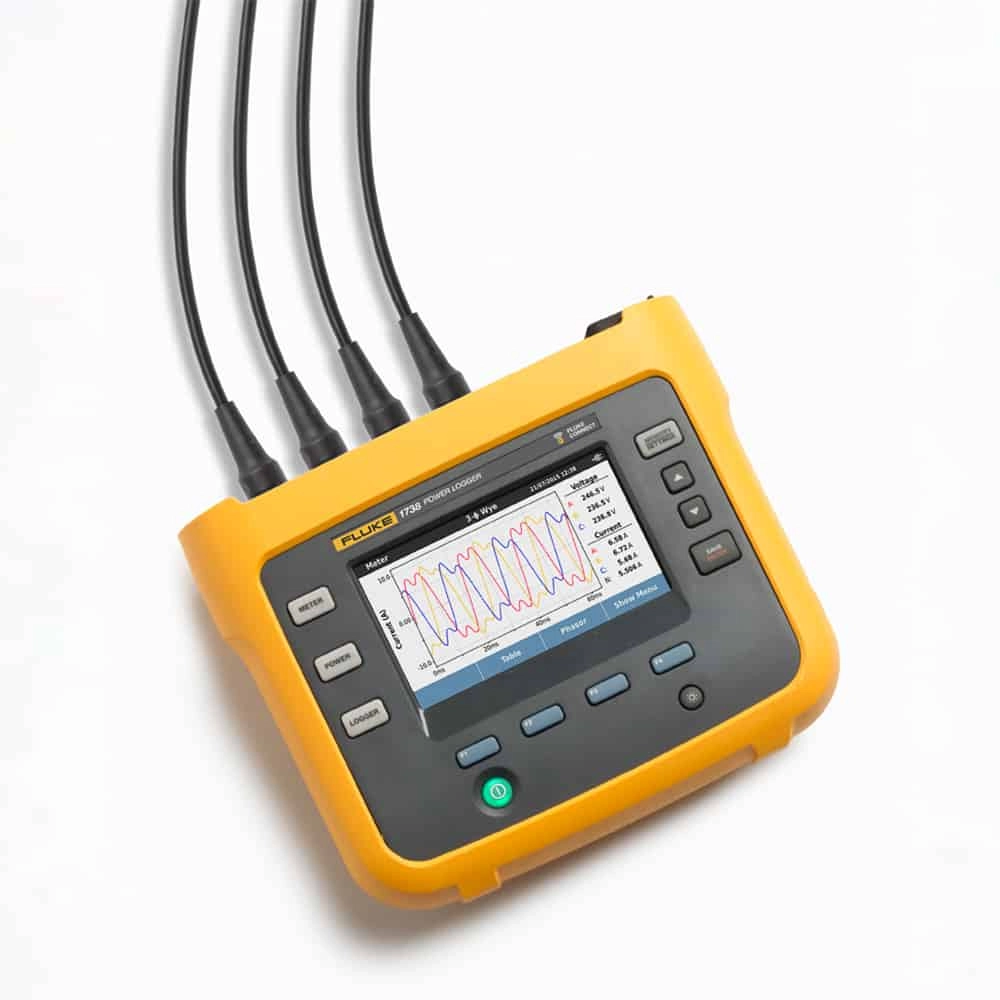

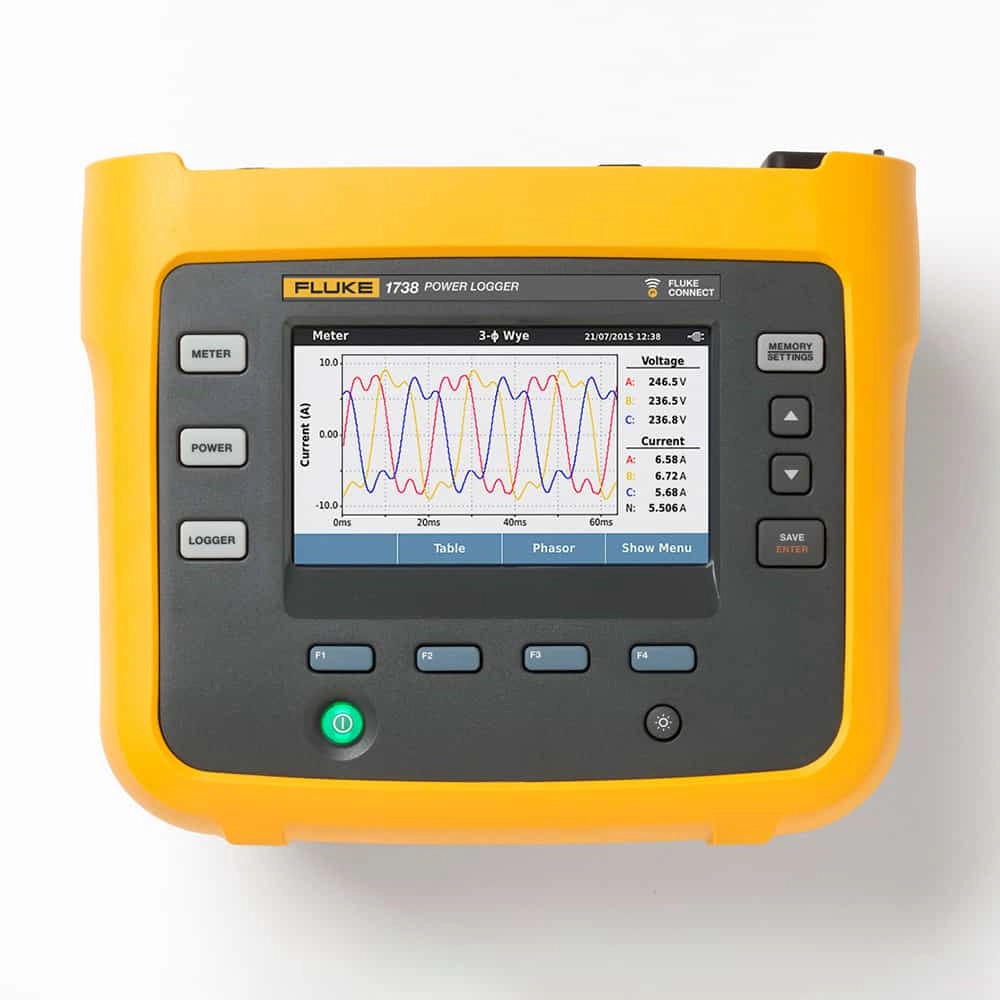

• 1738 Power Logger
• Power supply
• Voltage test leads
• Alligator clips (x4)
• 12 in 1,500A flexible current probe (x4)
• Soft case
• Energy Analyze Plus software
• Magnetic hanging strap
• Magnetic voltage probes (x4)
• WiFi/BLE adapter
• Line cords
• Color coding set
