Fluke 1736/EUS 3-Phase Power Logger

Features

• Versatile, three-phase power logger for conducting energy, load and power quality studies.
• Automatically capture and log voltage, current, power, harmonics and associated power quality values, and capture dips, swells, and inrush currents with event waveform snapshots and high-resolution RMS profiles.
• Convenient instrument powering directly from the measured circuit
• Download and analyze every detail of energy consumption and power quality state of health with our automated reporting.

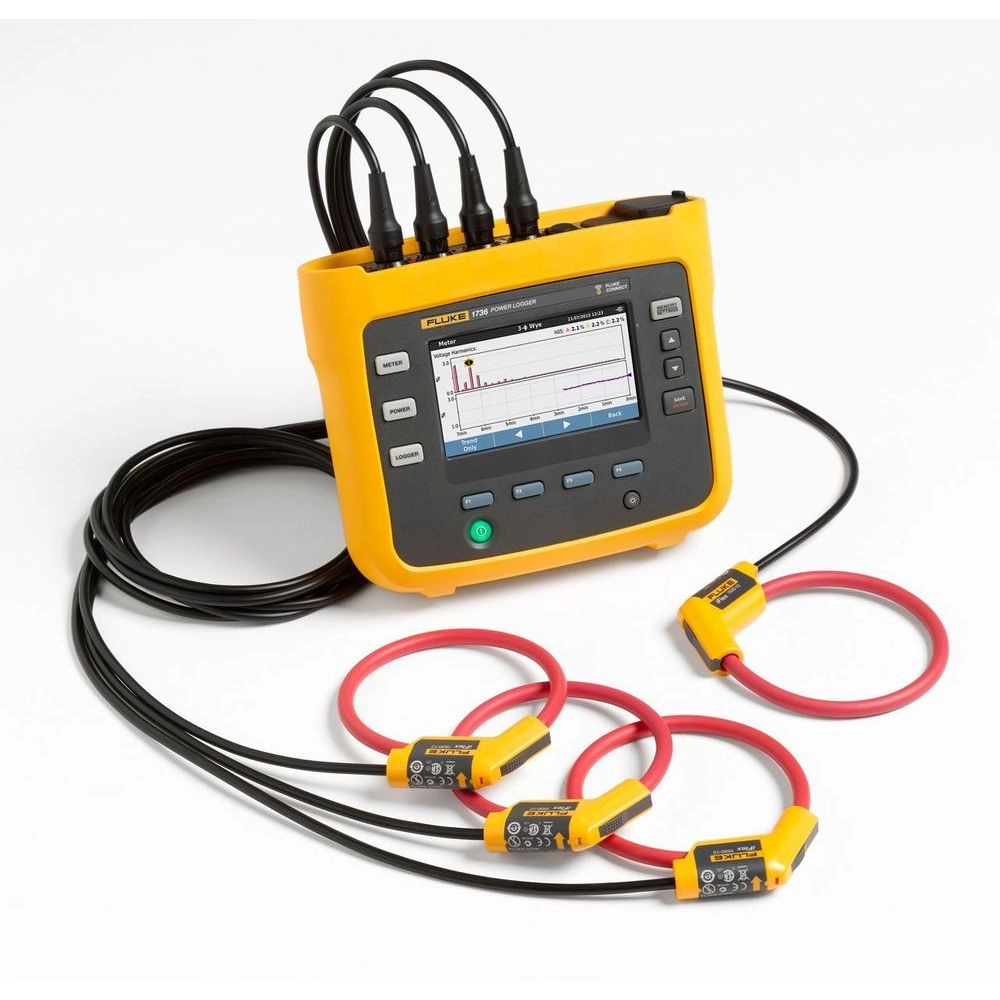

• Measure all three phases and neutral with four flexible current probes (included)
• Power the instrument directly from the measured circuit
• Review measured values during logging sessions and before downloading for real-time analysis

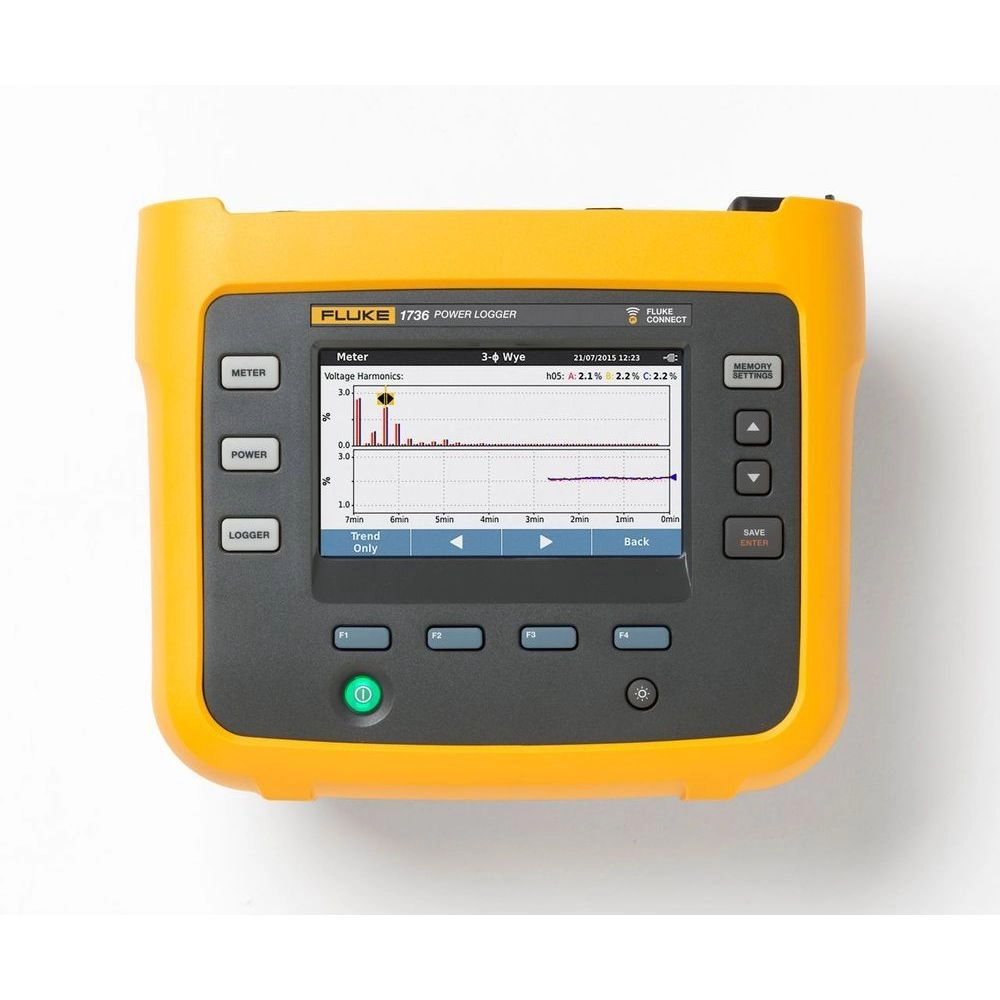

• Offers a bright, color touch-screen display for convenient field analysis and data checks
• Helps you capture the right data every time with a quick, guided, graphical user interface
• Reduces uncertainty about your connections with the intelligent verification function

Technical Information

• Voltage min/max1000V
• Input Signal Frequency42.5 - 69 Hz
• Auxillary Input+/- 10 V DC
• THD on voltage1000%
• THD on current1000%
• Unbalance100%
• Resolution16-bit synchronous sampling
• Sampling frequency10.24 kHz at 50/60 Hz, synchronized to mains frequency
• Operating temperature-10 °C to +50 °C

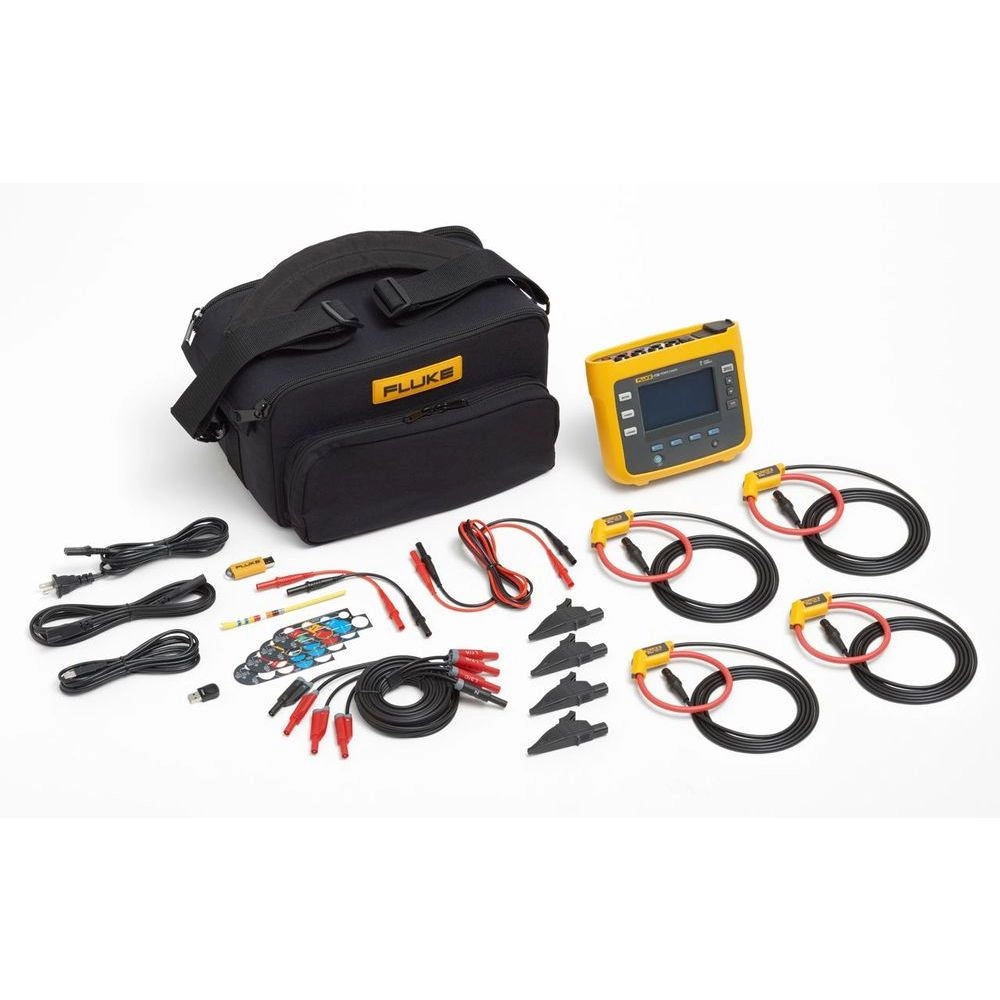

Items Included

• 1738 Power Logger
• Power supply
• Voltage test leads
• Alligator clips (x4)
• 12 in 1,500A flexible current probe (x4)
• Soft case
• Energy Analyze Plus software
• Magnetic hanging strap
• Magnetic voltage probes (x4)
• WiFi/BLE adapter
• Line cords
• Color coding set

Downloads

DatasheetUser ManualUser Manual
