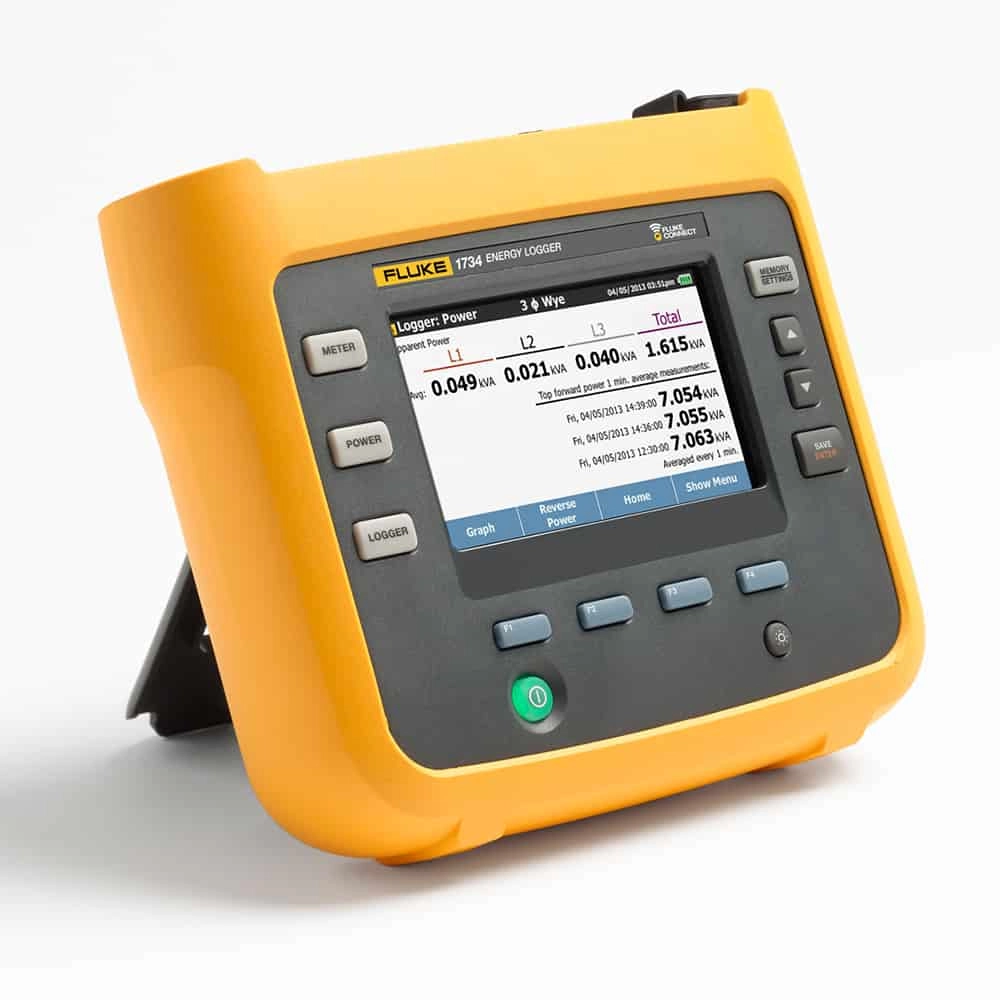

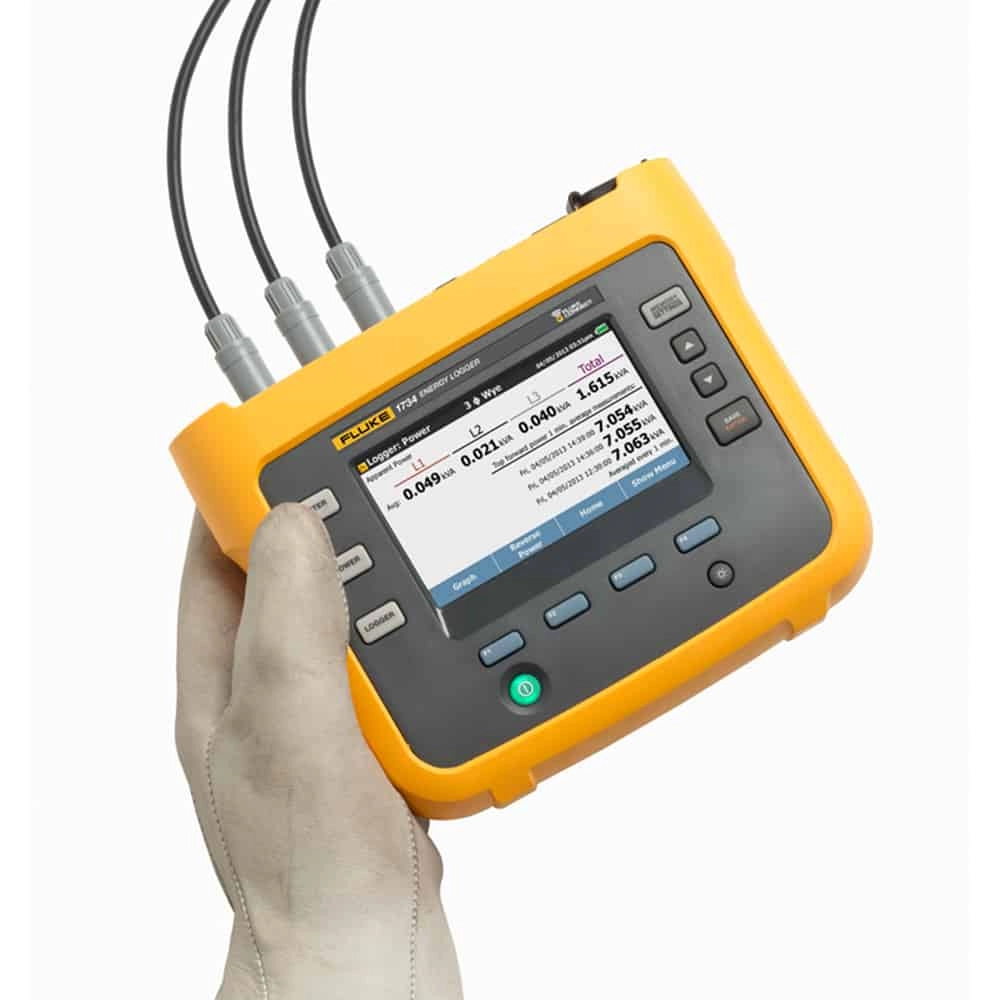

Fluke 1734/EUS Electrical Energy Logger, 3 Phase, 1000V
Model # 1734/EUSKey Features
?
Question about this product?
Features
- Key measurements: voltage, current, power, power factor and associated values enable energy saving strategies to be implemented

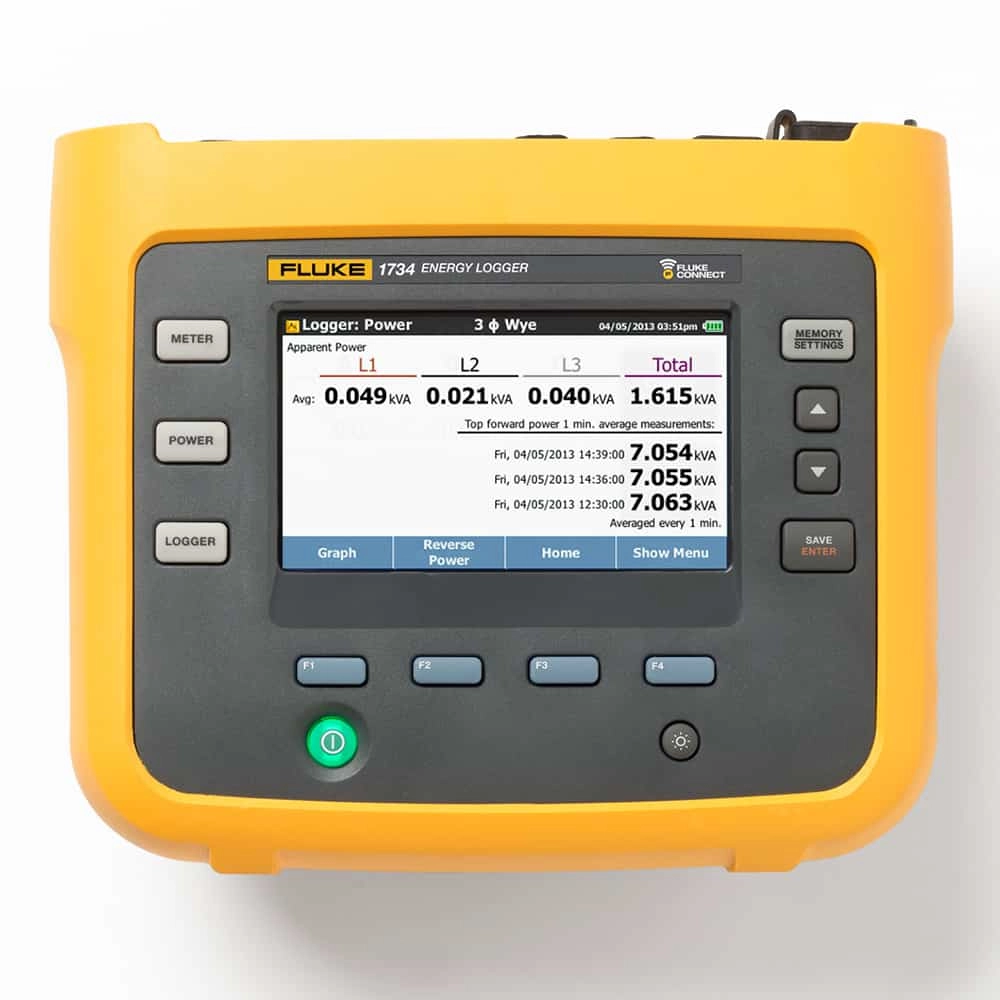

- Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
- Comprehensive logging: all measured values are automatically logged and can be reviewed during logging and before downloading for on the-go analysis. More than 20 separate logging sessions can be stored on the instrument
- Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
- Complete 'in-the-field' setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel
- Fluke Connect Enabled: Connect to up to two FC modules for associated analog values and view live data wirelessly for the Fluke 1734

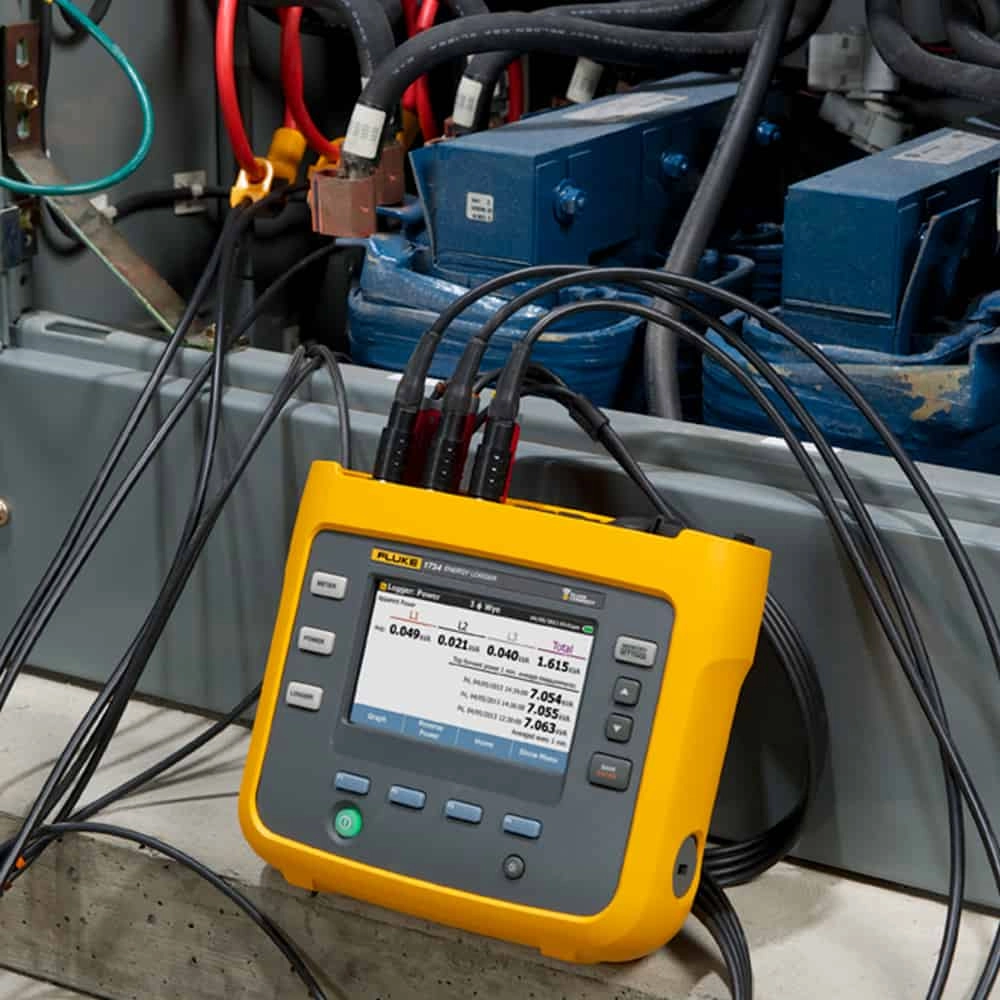

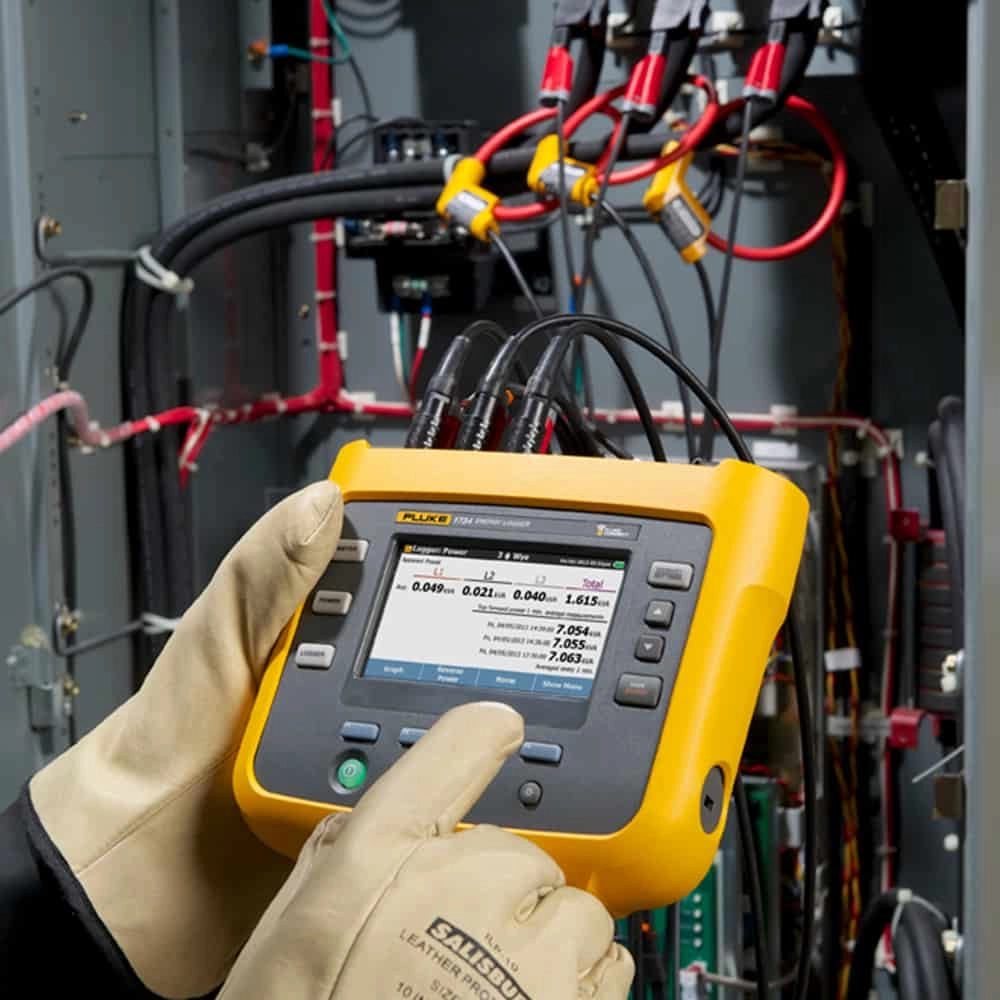

- Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
- Compact size: designed to fit in tight spaces and panels
Technical Information
- Voltage1000 V
- Voltage Resolution0.1 V
- Frequency Range42.5 to 69 Hz
- Frequency Resolution0.01 Hz
- Power ConsumptionMaximum 50 VA (max. 15 VA when powered using IEC 60320 input)
- Voltage Inputs4 (3 phases and neutral)
- Current Inputs3, mode selected automatically for attached sensor
- Auxiliary Inputs2
- Operating Temperature14 to 122°F (-10 to 50°C)
- Storage Temperature −4 to 140°F (-20 to 60°C) With battery−4 to 122°F (-20 to 50°C)
- SafetyCAT IV 600 V/CAT III 1000 V
Items Included
- Energy Logger
- Voltage Test Leads 4 x Alligator Clips
- 3 x Flexible Current Probe
- Energy Analyze Plus Software
- Line Cords
- Carrying Case
- Power Supply Color Coding Set
- and Documentation on USB Flash Drive
