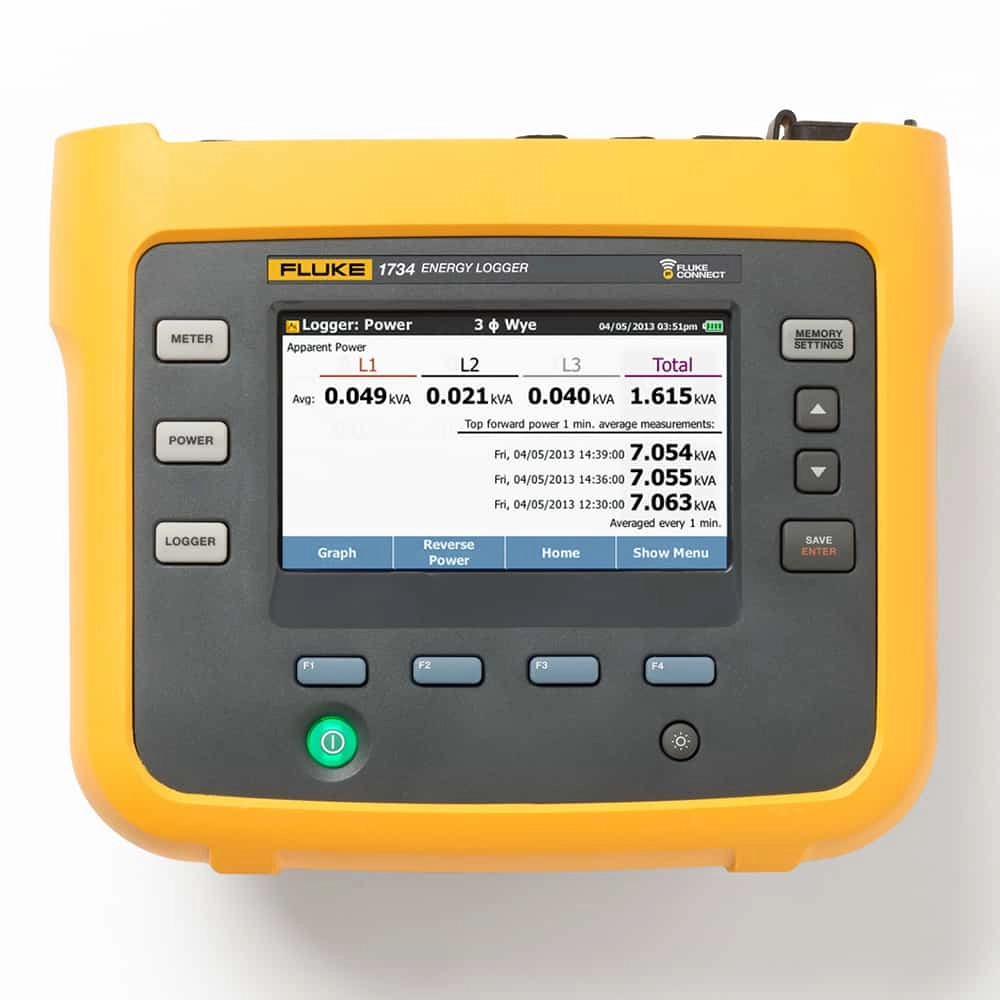

Fluke 1734/INTL Electrical Energy Logger, 3 Phase, 1000V

Name: Electrical Energy Logger, 3 Phase, 1000V
Rating: 4.8 (19 reviews)

Model # 1734/INTL

Discontinued

Key Features

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

Question about this product?

Measure all three phases: With included 3 flexible current probes.
Comprehensive logging: More than 20 separate logging sessions can be stored on the instruments. In fact; all measured values are automatically logged so you never loose measurement trends. They can even be reviewed during logging sessions and before downloading for real-time analysis.
Optimized user interface: Quick; guided; graphical setup ensures you’re capturing the right data every time; and the intelligent verification function indicates correct connections have been made; reducing user uncertainty.
Bright; color touch screen: Perform convenient in-the-field analysis and data checks with full graphical display.
Complete 'in-the-field' setup through the front panel: no need to return to the workshop for download and setup or to take a computer to the electrical panel
Fluke Connect Enabled: Connect to up to two FC modules for associated analog values and view live data wirelessly for the Fluke 1734
Wide range power: power instrument directly from the measured circuit eliminating the need to find a power outlet while allowing the instrument to be secured safely inside electrical panels
Compact size: designed to fit in tight spaces and panels

Voltage1000 V
Voltage Resolution0.1 V
Frequency Range42.5 to 69 Hz
Frequency Resolution0.01 Hz
Power ConsumptionMaximum 50 VA (max. 15 VA when powered using IEC 60320 input)
Voltage Inputs4 (3 phases and neutral)
Current Inputs3, mode selected automatically for attached sensor
Auxiliary Inputs2
Operating Temperature14 to 122°F (-10 to 50°C)
Storage Temperature −4 to 140°F (-20 to 60°C) With battery−4 to 122°F (-20 to 50°C)
SafetyCAT IV 600 V/CAT III 1000 V
