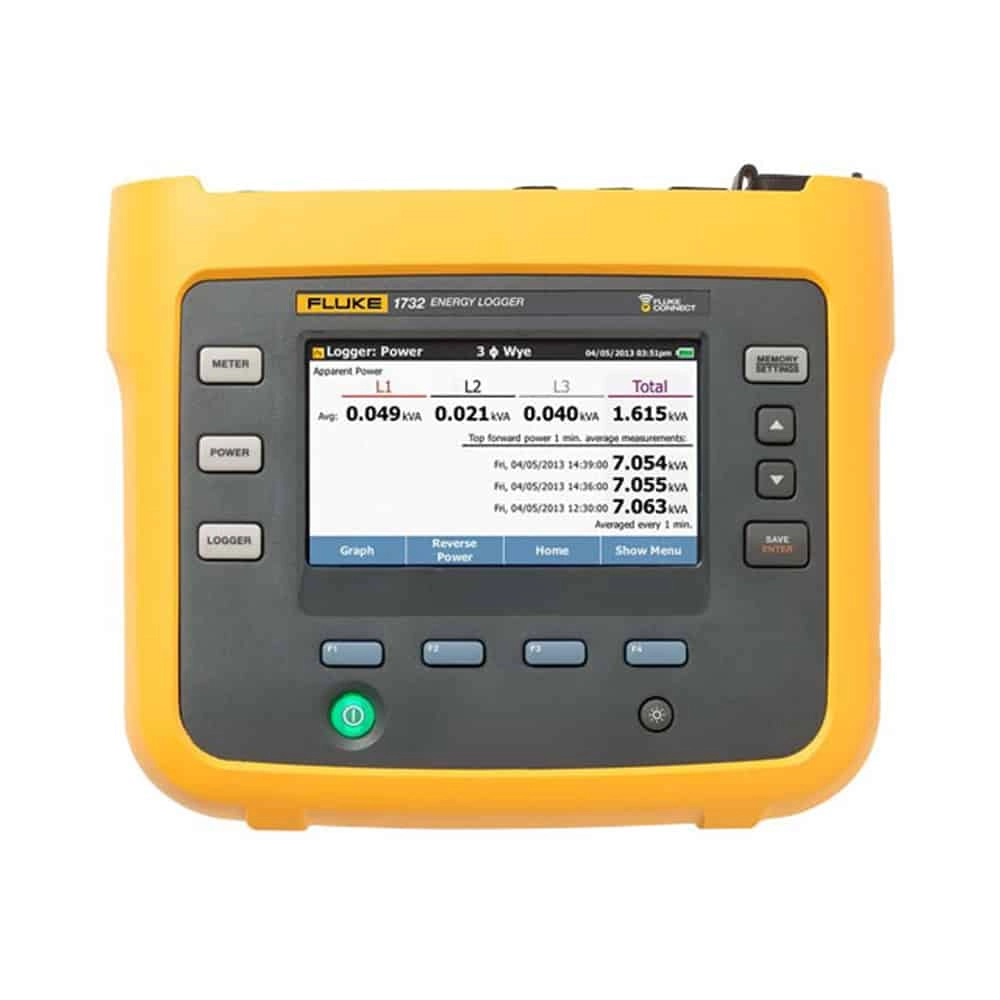

Fluke 1732/EUS Electrical Energy Logger With Current Probes, 3 Phase, 1000V

Features

• Key measurements: Automatically capture and log voltage, current, power, power factor, energy and associated values
• Convenient instrument powering: You can power the instrument directly from the measured circuit instead of mains outlets
• Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance and downstream
• Measure all three phases
• Comprehensive logging: more than 20 separate logging sessions can be stored on the instruments
• Optimized user interface: quick, guided, graphical setup ensures you're capturing the right data every time, and the intelligent verification function indicates correct connections have been made, reducing user uncertainty
• Bright, color touch screen: perform convenient in-the-field analysis and data checks with full graphical display
• Optimized user interface: capture the right data every time with quick, guided, graphical setup and reduce uncertainty about your connections with the intelligent verification function
• Complete "in-the-field" setup through the front panel or Fluke Connect: no need to return to the workshop for download and setup or to take a computer to the electrical panel

Technical Information

• Voltage1000 V
• Voltage Resolution0.1 V
• Frequency Range42.5 to 69 Hz
• Frequency Resolution0.01 Hz
• Power ConsumptionMaximum 50 VA (max. 15 VA when powered using IEC 60320 input)
• Voltage Inputs4 (3 phases and neutral)
• Current Inputs3, mode selected automatically for attached sensor
• Auxiliary Inputs2
• Operating Temperature14 to 122°F (-10 to 50°C)
• Storage Temperature −4 to 140°F (-20 to 60°C) With battery−4 to 122°F (-20 to 50°C)
• SafetyCAT IV 600 V/CAT III 1000 V

Items Included

• Energy Logger
• Voltage Test Leads 4 x Alligator Clips

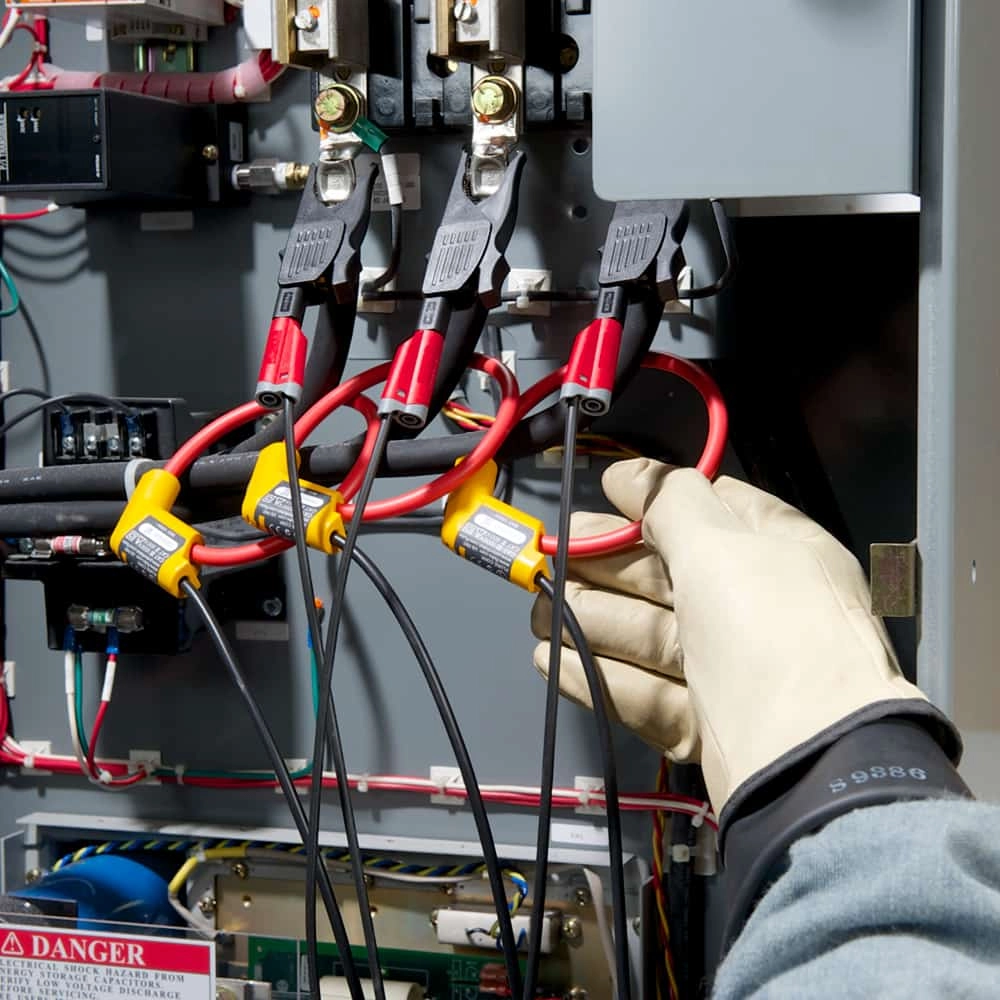

• 3 x Flexible Current Probe
• Energy Analyze Plus Software
• Line Cords
• Carrying Case
• Power Supply Color Coding Set
• and Documentation on USB Flash Drive

Downloads

Datasheet
