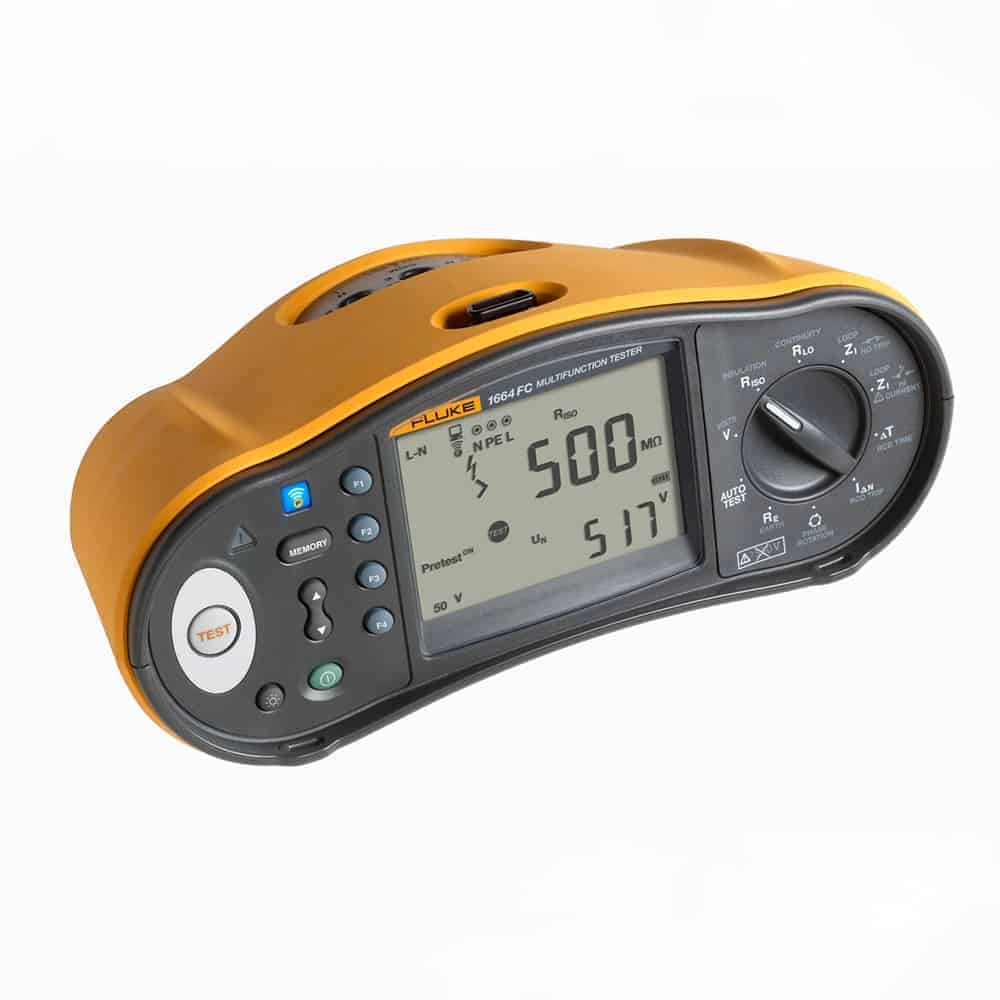

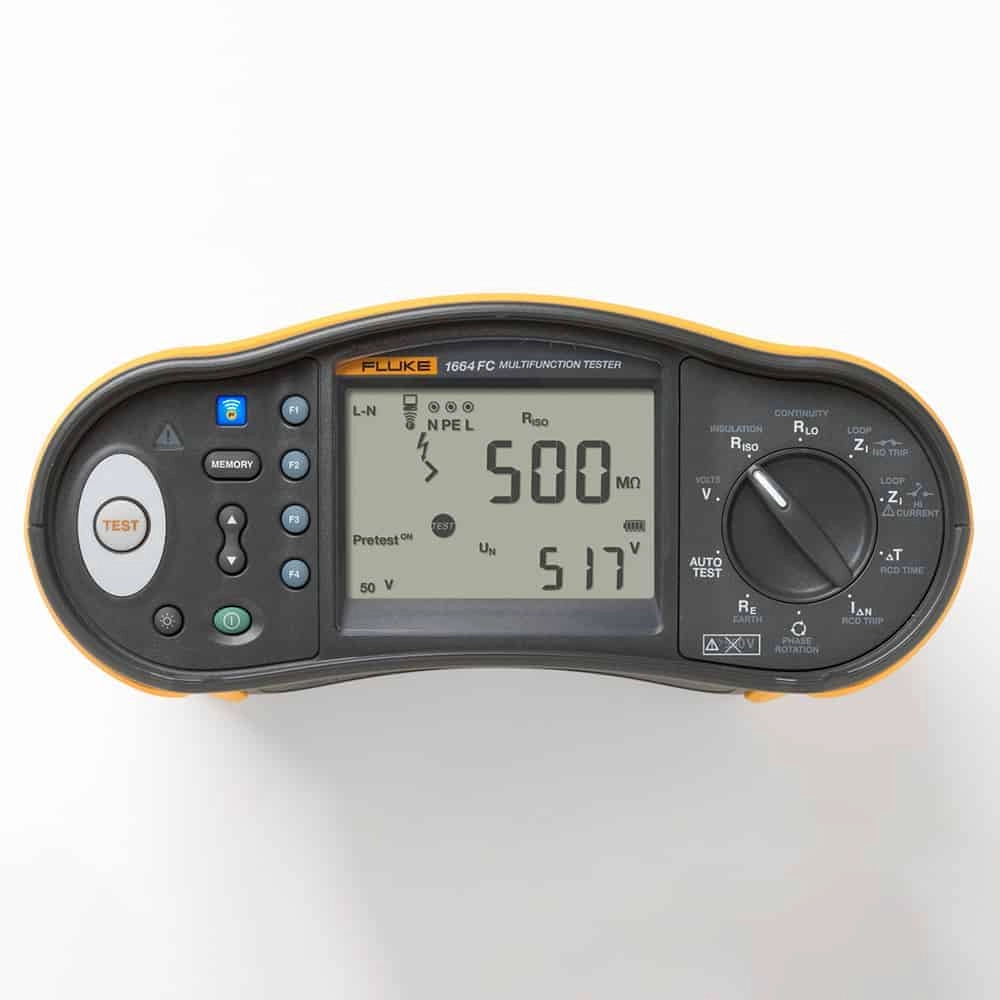

Fluke 1664FC UK Multifunction Installation Tester, 500V

Features

• Z-max memory for loop tests – easy evaluation of the highest loop test value.
• Unique zero adapter for fast; always reliable and accurate test lead and mains cord compensation.
• Fast voltage measurement between L-N; L-PE and N-PE using the mains cord. No need to change measurement connections.
• Measure RCD trip current & trip time in parallel (RCD type AC and A).
• Two measurements at once and a dual display. PEFC or PSC and loop impedance are measured and displayed in parallel; saving you time.

Technical Information

• AC voltage measurement Range 500 V
• Resolution 0.1 V
• Accuracy 45 Hz – 66 Hz 0.8% + 3
• Input impedance 360 kΩ
• Overload protection 660 V rms
• Range (autoranging) 20 / 200 / 2000 Ω
• Resolution 0.01 / 0.1 / 1 Ω
• Test voltages 50-100-250-500-1000 V
• Accuracy of tTest voltage (at rated test current) +10%, -0%
• Range 10 / 0.001 / High current mA mode
• Resolution 0.01 / 0.1 / 1 Ω
• Range 1000 A / 10 kA (50 kA)

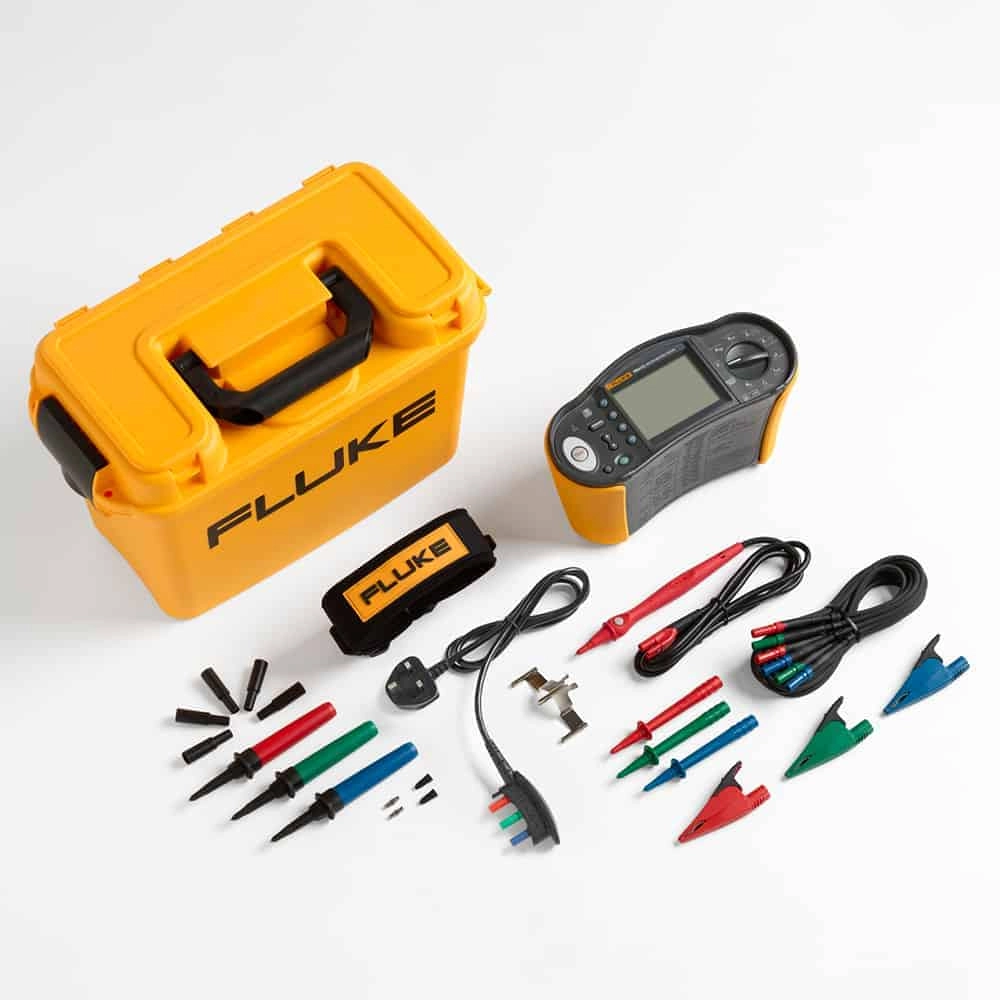

Items Included

• 6x AA (IEC LR6) cell batteries
• C1600 hard carrying case
• Zero adapter
• Heavy duty mains cord
• STD standard test lead set
• Padded carrying and waist strap
• Quick reference guide
• TP165X remote control probe and lead
• User’s manual on CD-ROM
