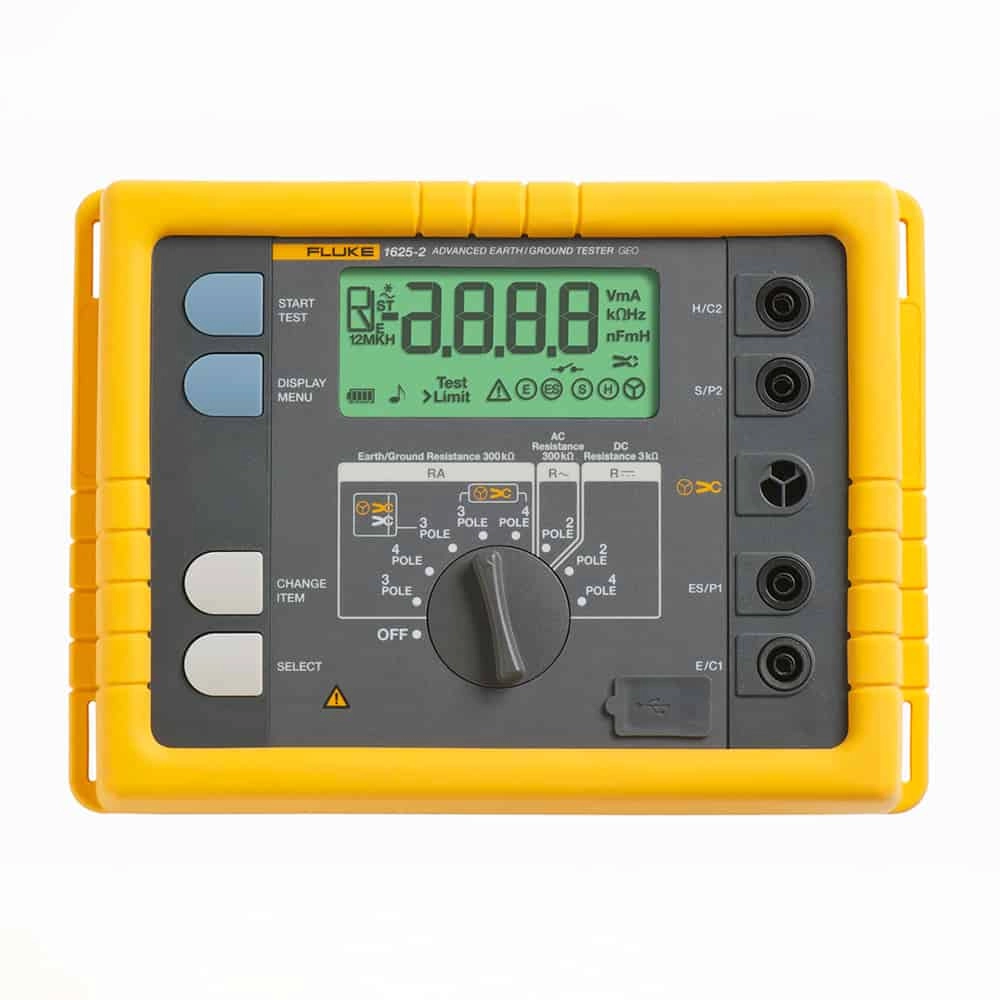

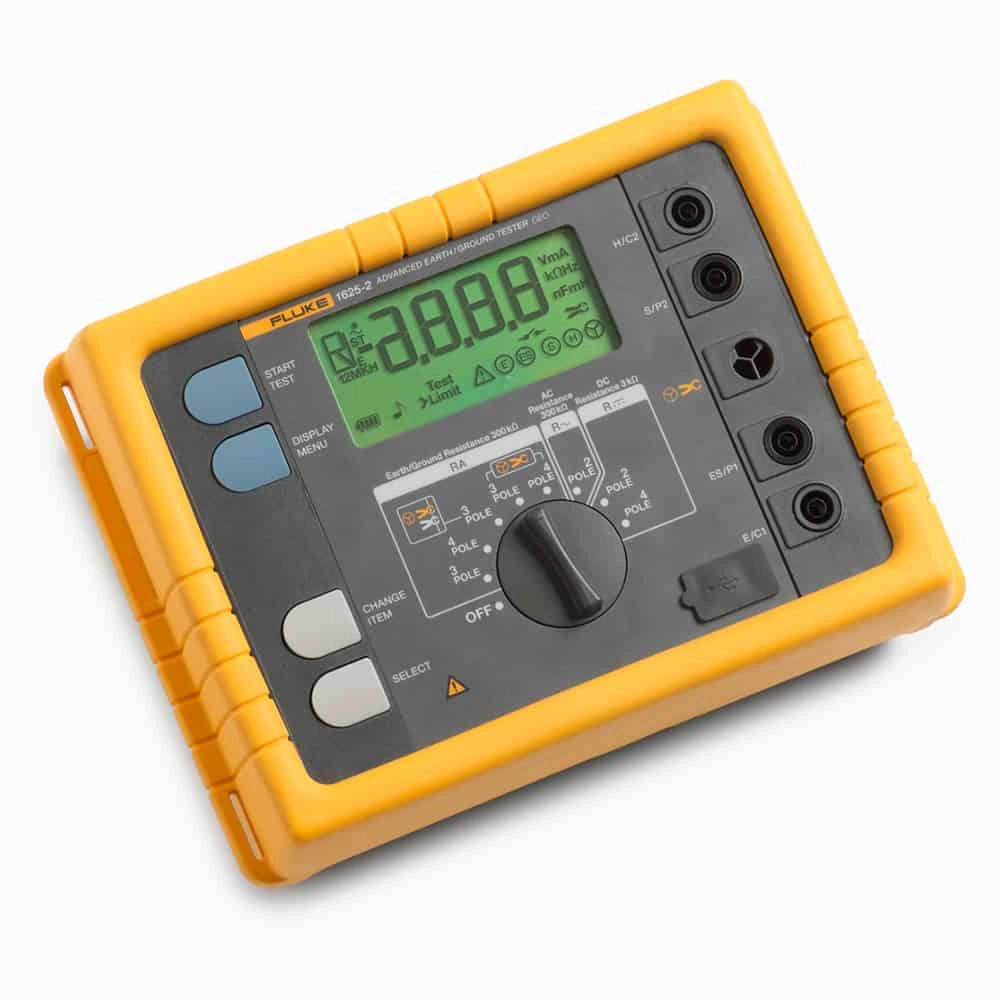

Fluke 1625-2 Geo Earth Ground Tester, 300kΩ, 50V, 128Hz

Features

• 3- and 4-pole Fall-of-Potential; earth resistance loop testing
• A unique earth ground tester that performs testing with and without stakes
• Selective earth ground rod testing using 1 clamp
• Stakeless earth ground rod testing using 2 clamps
• Features Automatic Frequency Control (AFC) to minimize the effect of interference
• Provides R* measurement that calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see
• Includes USB port for data storage and transfer
• Features IP56 rating for outdoor use
• Offers adjustable limits for quicker testing

Technical Information

• Interference Voltage1V to 50V
• Resolution0.1 V
• Accuracy±(5% of rdg + 5 digit)
• Resistance0.020 Ω to 300 kΩ
• Interference Frequency6Hz - 400Hz
• Resolution0.1Hz to 1Hz
• Accuracy±(1% of rdg + 2 digit)
• Frequency128Hz
• Noise Rejection120 dB
• Max. Overload250V
• Display4 digit (2999 Digit) - 7 segment liquid crystal display, with improved visibility
• Operating temperature-10°C to 50°C (14°F to 122°F)
• Storage temperature-30°C to 60°C (-22°F to 140°F)
• Temperature coefficient±0.1% of reading/°C < 18°C > 28°C
• OperationCentral rotary switch and function keys
• Dimensions (W x H x D)250 x 133 x 187 mm (9.75 x 5.25 x 7.35 in)
• Case materialPolyester

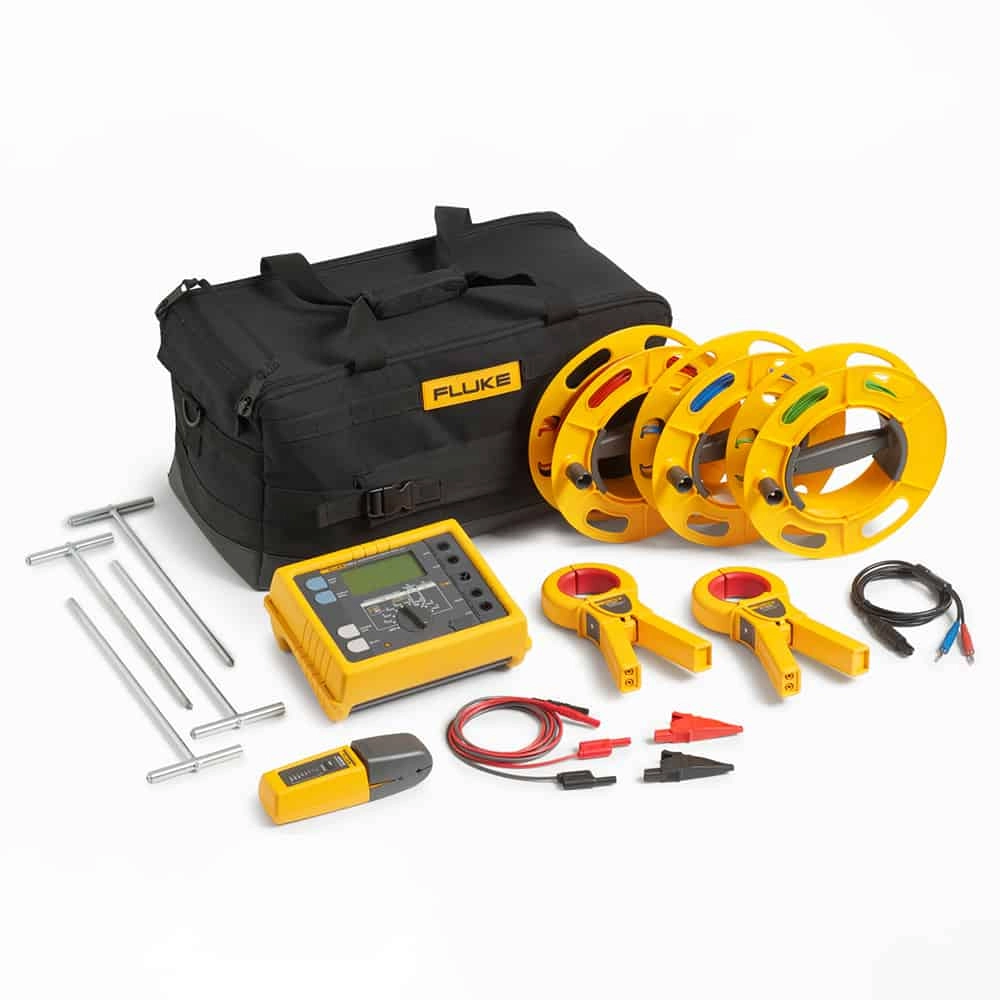

Items Included

• GEO Earth Ground Tester
• User's Manual
• Batteries
• Quick Reference Guide
• USB Cable
