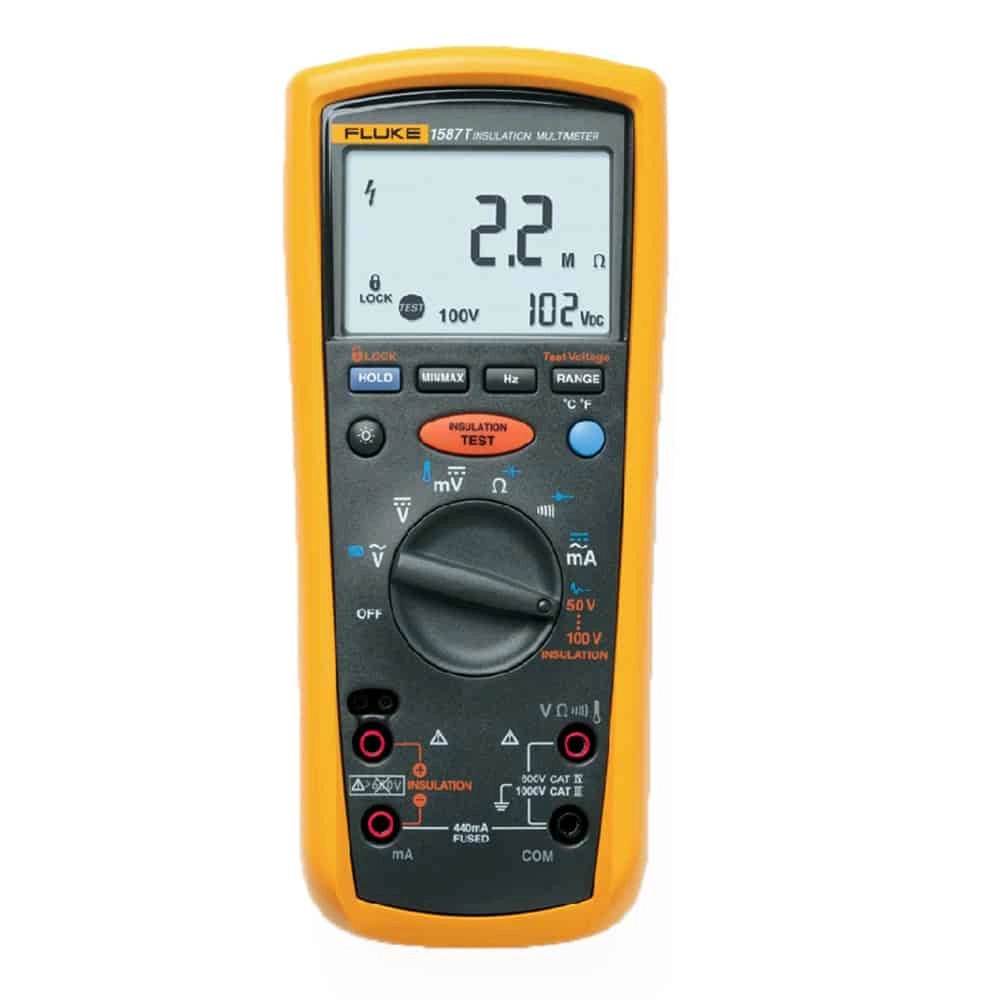

Fluke 1587T Insulation Multimeter, CAT IV 600V, 50V - 1000V

Features

• Insulation test voltages (50 V and 100 V only) for telecom applications
• Insulation test (0.1 MΩ to 100 MΩ)
• Insulation test (0.1 MΩ to 100 MΩ)
• AC/DC voltage, DC milliVolts, AC/DC milliamps, Resistance (Ω), Continuity
• Safety first. Connect the insulation tester then keep yourself out of harm's way by monitoring your test measurements remotely.
• Prove your job is done right by quickly seeing and sharing insulation resistance test results wirelessly with your smartphone.
• Quickly find problems by saving and comparing measurements over time on a wireless device.
• PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
• Temperature compensation to establish accurate baselines and relevant historical comparisons

Technical Information

• AC Voltage600.0mV, 6.000, 60.00, 600.0, 1000V
• Resolution0.1mV, 0.001, 0.01, 0.1, 1V
• Accuracy 50 to 60 Hz ±(% of Rdg + counts)600.0mV, 6.000, 60.00, 600.0V: ±(1% + 3) 1000V: ±(2% + 3)
• DC Voltage600mV - 1000V
• DC Current400mA
• AC Current400mA
• Resistance600Ω to 50MΩ
• Frequency99.99Hz to 99.99kHz
• Capacitance1000nF to 9999μF
• Temperature-40°C to 537°C
• Insulation Resistance0.01MΩ to 2GΩ
• Operating Temperature-4 to 131°F (-20 to 55°C)
• Power Supply4 x "AA" Batteries (NEDA 15A or IEC LR6)
• Size5.0 x 10.0 x 20.3cm (1.97 x 3.94 x 8.00")

Items Included

• Remote Probe
• Test Lead Set
• Alligator Clip Set
• K-Type Thermocouple
• Hard Carrying Case
• User Manual

Downloads

Datasheet
