Fluke 1587MDT-FC Advanced Motor And Drive Troubleshooting Kit

Features

• With the Fluke 1587 FC, perform insulation tests, plus a wide-range of DMM tasks with confidence and ease
• Use the Fluke i400 with your Fluke 1587 FC to accurately measure AC current without breaking the circuit
• Check the rotation of three-phase motors easily and safely with the Fluke 9040

Technical Information

• DC Voltage600mV - 1000V
• AC Voltage600mV - 1000V
• DC Current400mA to 60mA
• AC Current400mA to 60mA
• Resistance600Ω to 50MΩ
• Frequency99.99Hz - 99.99kHz
• Capacitance1000nF - 9999μF
• Temperature-40 ° C to 537 ° C
• Insulation Resistance0.01 MΩ to 2 GΩ
• Test Voltages50, 100, 250, 500, 1000 V
• Maximum voltage applied to any terminal and common1000 V
• Storage temperature40 °C to 60 °C (-40 °F to 140 °F)
• Operating temperature-20 °C to 55 °C (-4 °F to 131 °F)
• Temperature coefficient0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)

Items Included

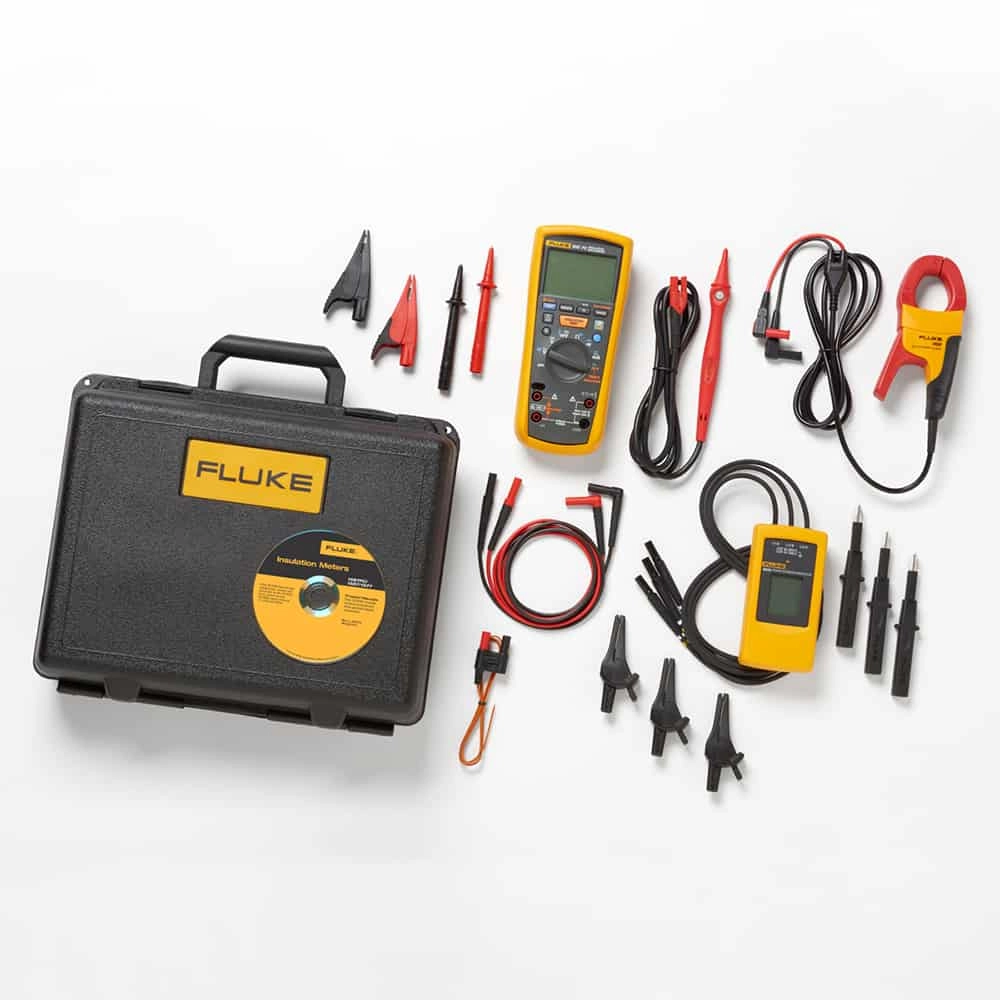

• Fluke 1587 FC 2-in-1 Insulation DMM Fluke i400 Current Clamp Fluke 9040 Phase Rotation Indicator
