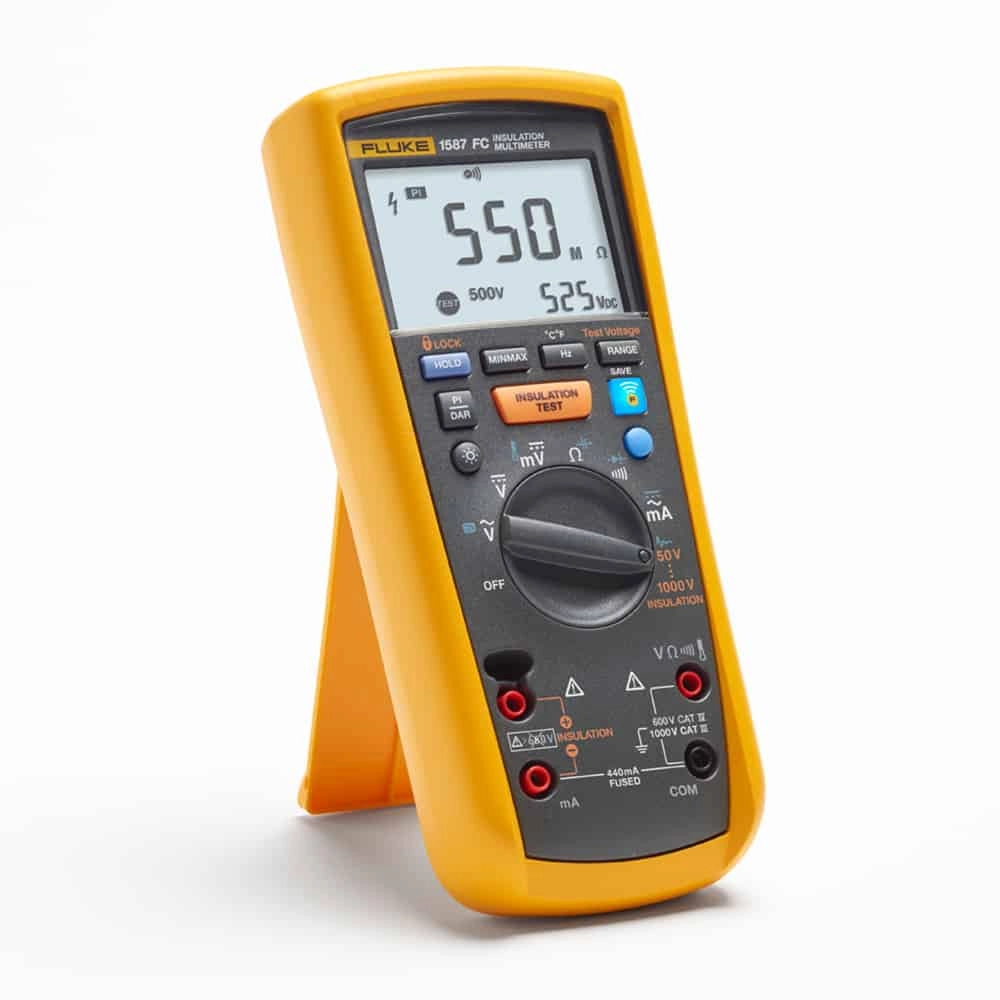

Fluke 1587FC Insulation Tester, CAT IV 600V, 600mV - 1000V

Features

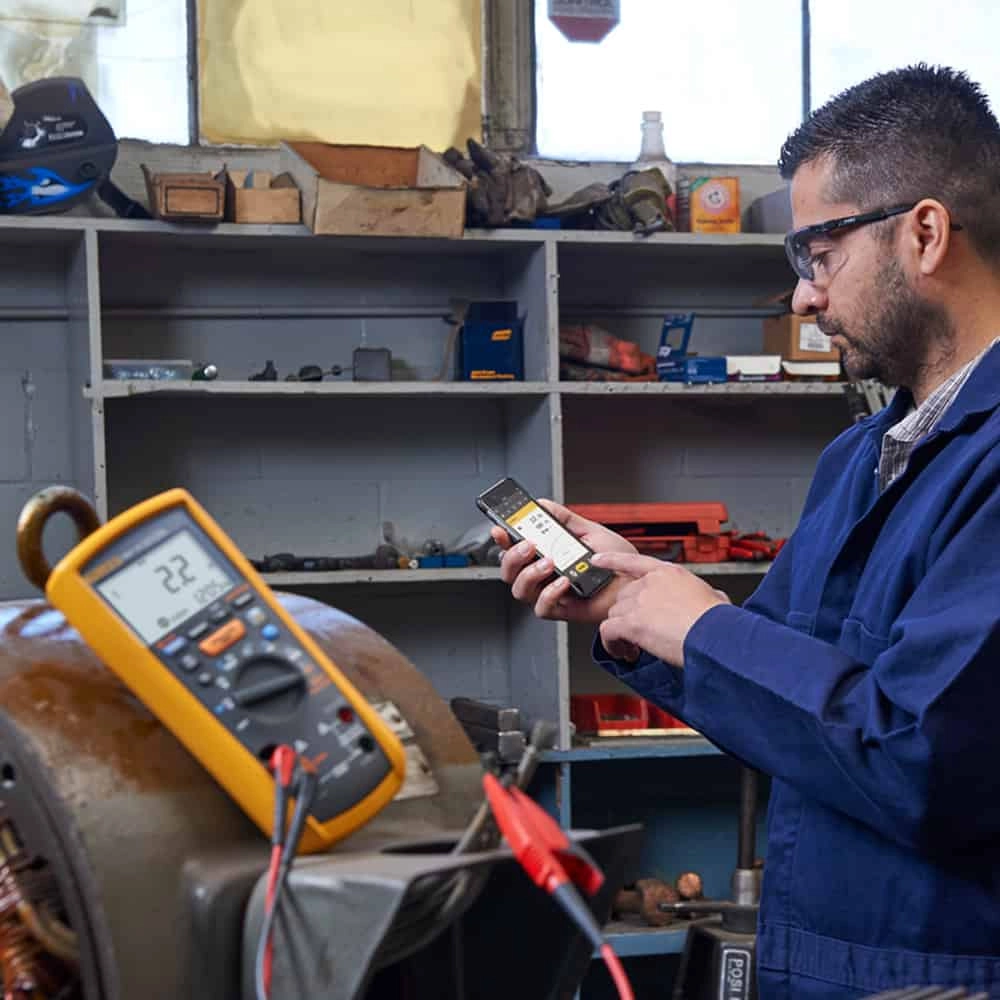

• Safety first. Connect the insulation tester then keep yourself out of harm's way by monitoring your test measurements remotely.

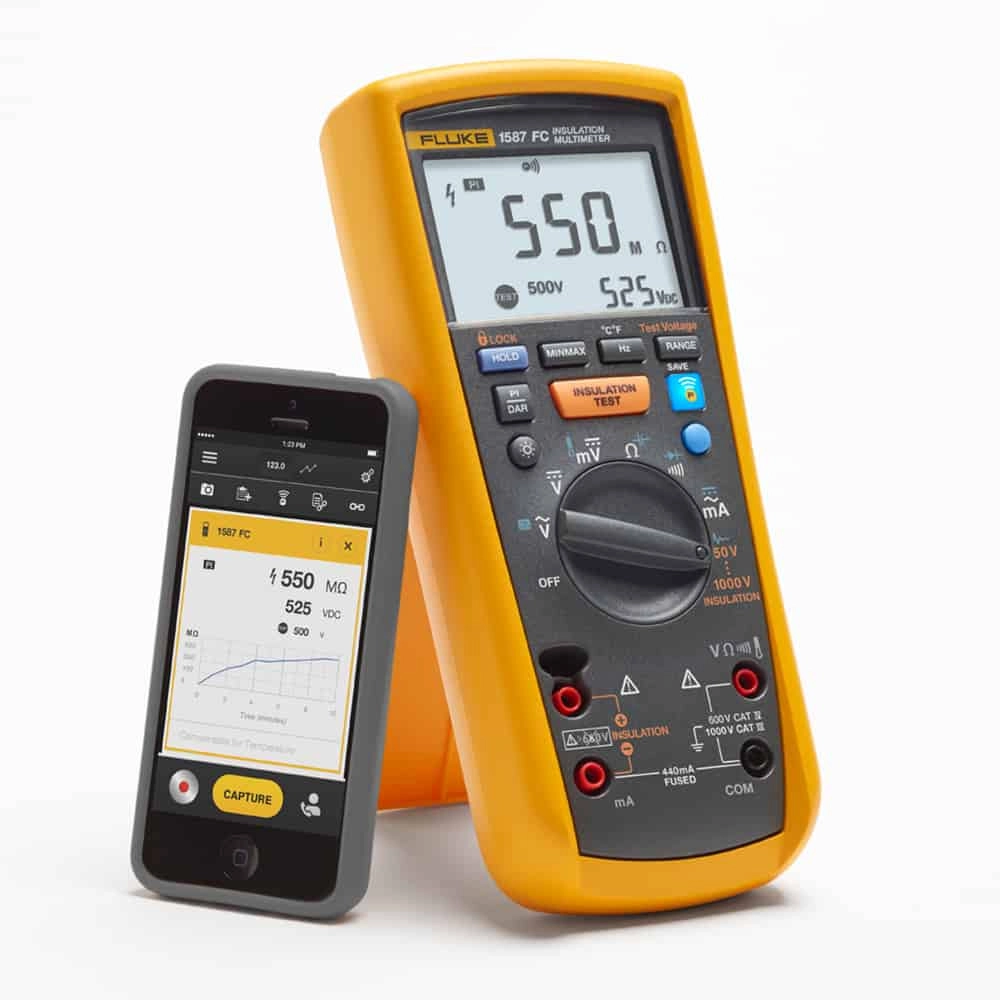

• Prove your job is done right by quickly seeing and sharing insulation resistance test results wirelessly with your smartphone.
• Quickly find problems by saving and comparing measurements over time on a wireless device.
• VFD low-pass filter for accurate motor drive measurements
• PI/DAR timed ratio tests with TrendIt™ graphs to identify moisture and contaminated insulation problems faster
• Memory storage through Fluke Connect that saves measurements to your phone or the cloud and eliminates the need to write down results. Reduces errors and saves data for historical tracking over time
• Temperature compensation to establish accurate baselines and relevant historical comparisons
• Provides memory storage through Fluke Connect Measurements to eliminate the need to write down results
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected

Technical Information

• DC Voltage6V - 1000V
• AC Voltage600mV - 1000V
• DC Current400mA (45 to 1000 Hz)
• AC Current400mA (45 to 1000 Hz)
• Resistance600Ω to 50 MΩ
• Frequency99.99Hz - 99.99kHz
• Capacitance1000nF - 9999μF
• Temperature-40 to 537°C
• Insulation Resistance0.01MΩ - 2GΩ
• Safety RatingCAT IV 600V, CAT III 1000V
• Storage temperature-40 °C to 60 °C (-40 °F to 140 °F)
• Operating temperature-20 °C to 55 °C (-4 °F to 131 °F)
• Temperature coefficient0.05 x (specified accuracy) per °C for temperatures <18 °C or >28 °C (<64 °F or >82 °F)
• Relative humidityNoncondensing; 0% to 95% @ 10 °C to 30 °C (50 °F to 86 °F) 0% to 75% @ 30 °C to 40 °C (86 °F to 104 °F) 0% to 40% @ 40 °C to 55 °C (104 °F to 131 °F)

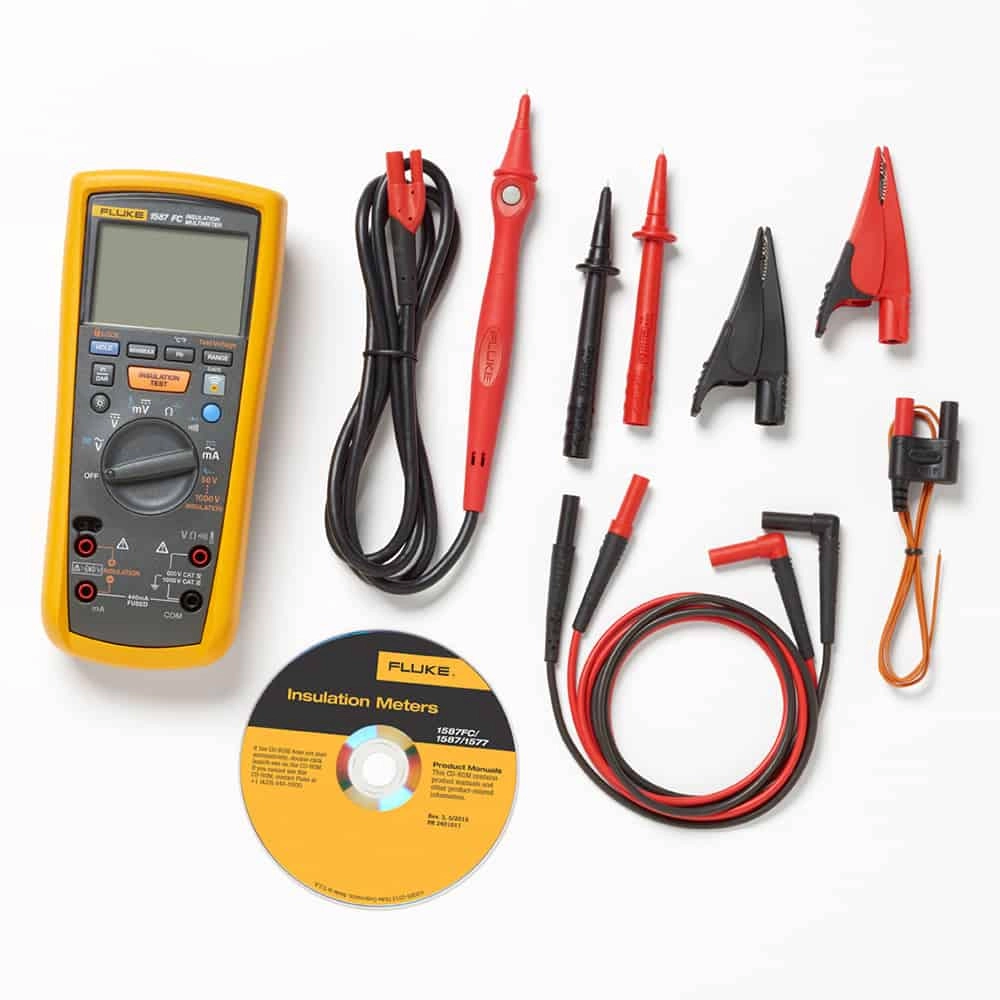

Items Included

• Remote probe
• Test leads
• Alligator clips
• K-type thermocouple
• Hard case
• User documentation

Downloads

Datasheet
