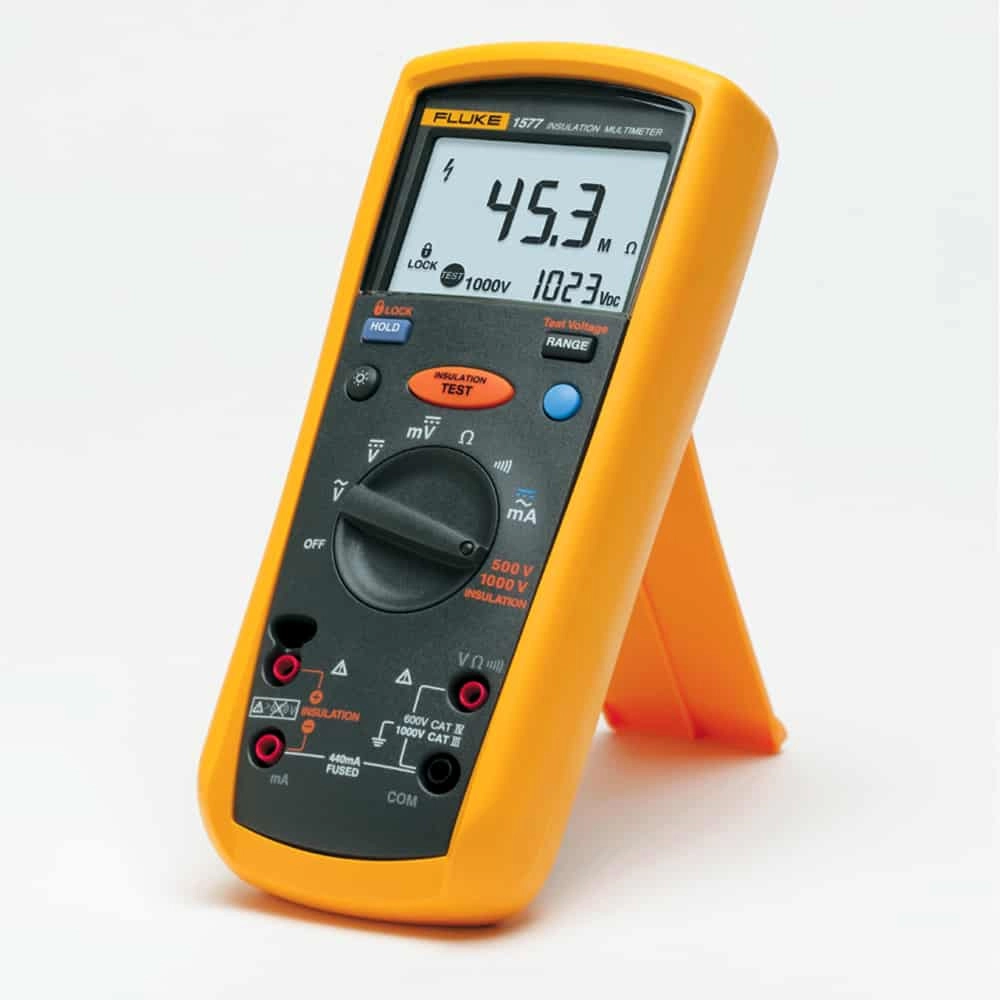

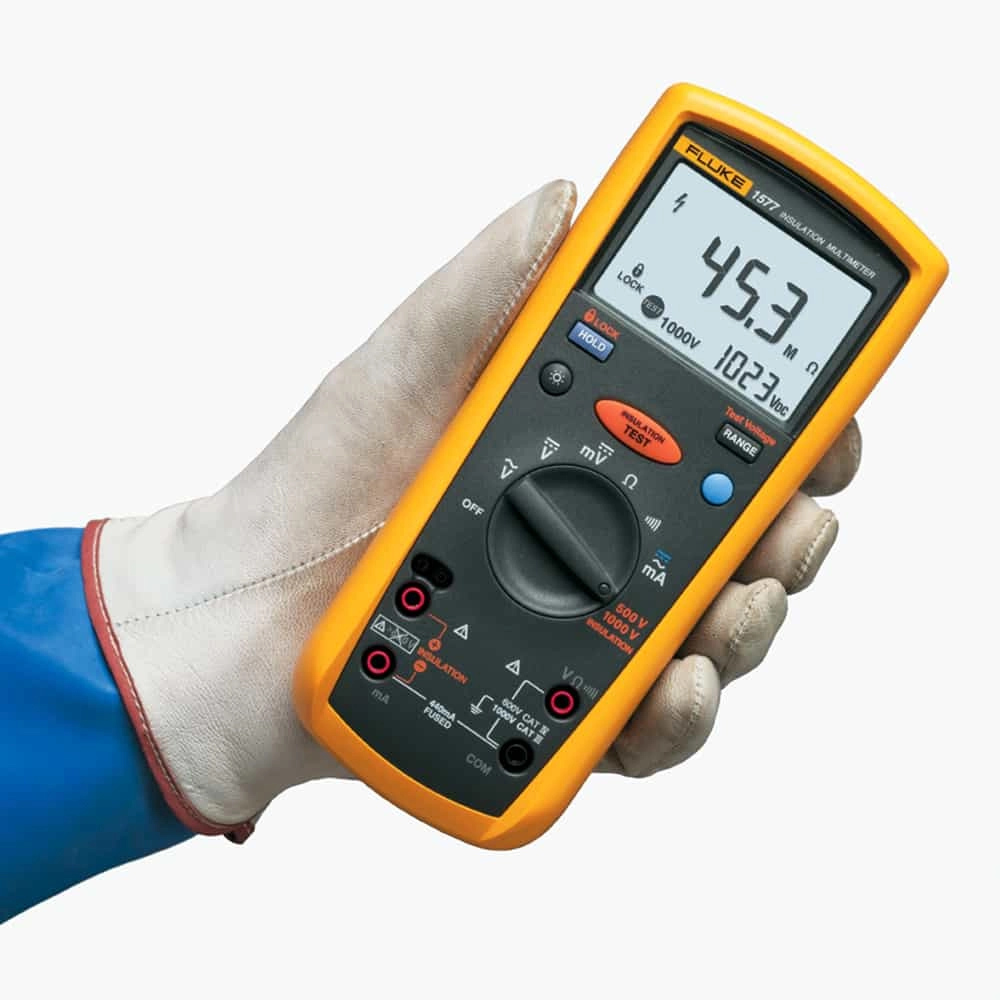

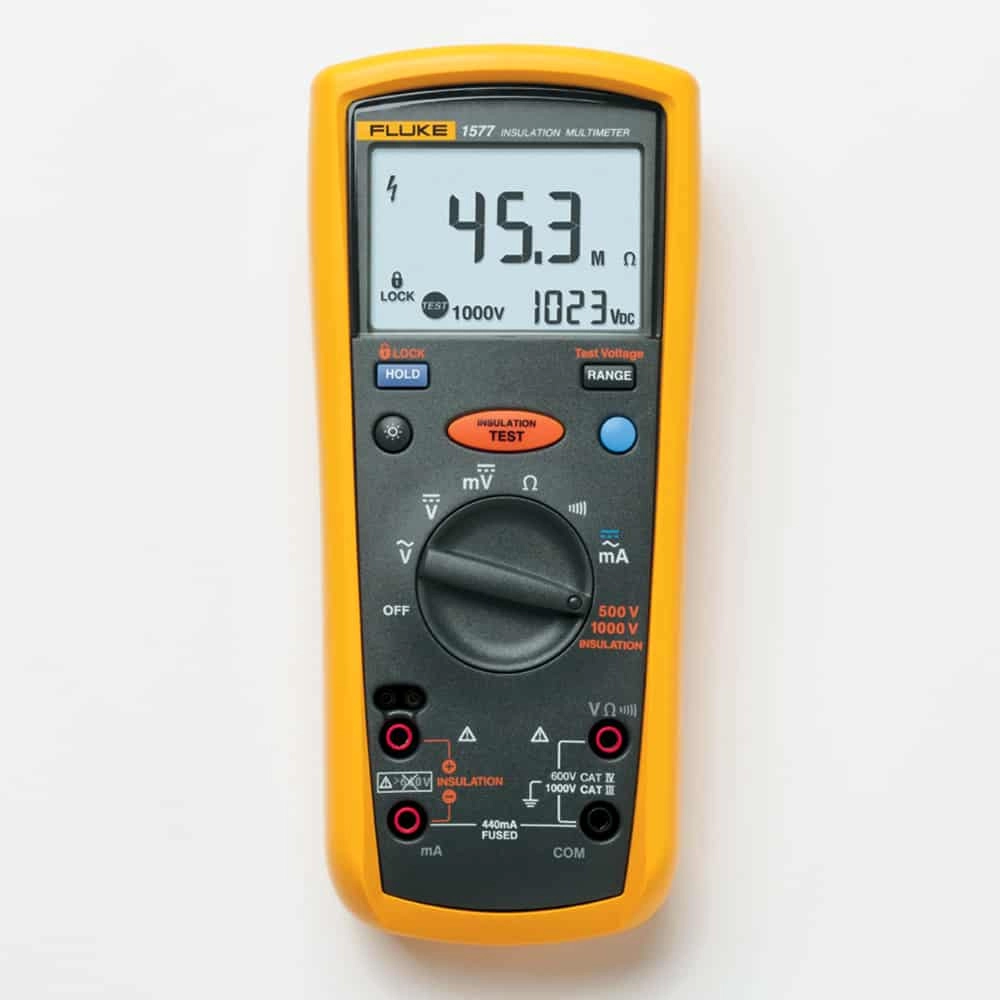

Fluke 1577 Insulation Tester, CAT IV 600V, 500V - 1000V

Features

• Insulation test voltages 500 V; 1000 V
• Insulation test: 0.1 MΩ to 600 M
• Auto discharge of capacitive voltage
• AC/DC Voltage
• Continuity
• Remote probe, test leads, alligator clips
• Rugged, utility hard case
• Auto power off to save battery power
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection

Technical Information

• DC Voltage1000V
• Accuracy±(0.2%+2)
• AC Voltage1000V
• DC Current400mA
• AC Current400mA
• Resistance50 MΩ
• Maximum resolution0.001 V
• Minimum test current @ 1kA/V1 mA
• Test voltages500, 1000 V
• Operating temperature–20°C to +55°C
• Storage temperature-40°C to +60°C
• Humidity (without condensation)0% - 95% (10°C – 30°C)
• Operating altitude2000 m
• Size203 x 100 x 50 mm (with holster)

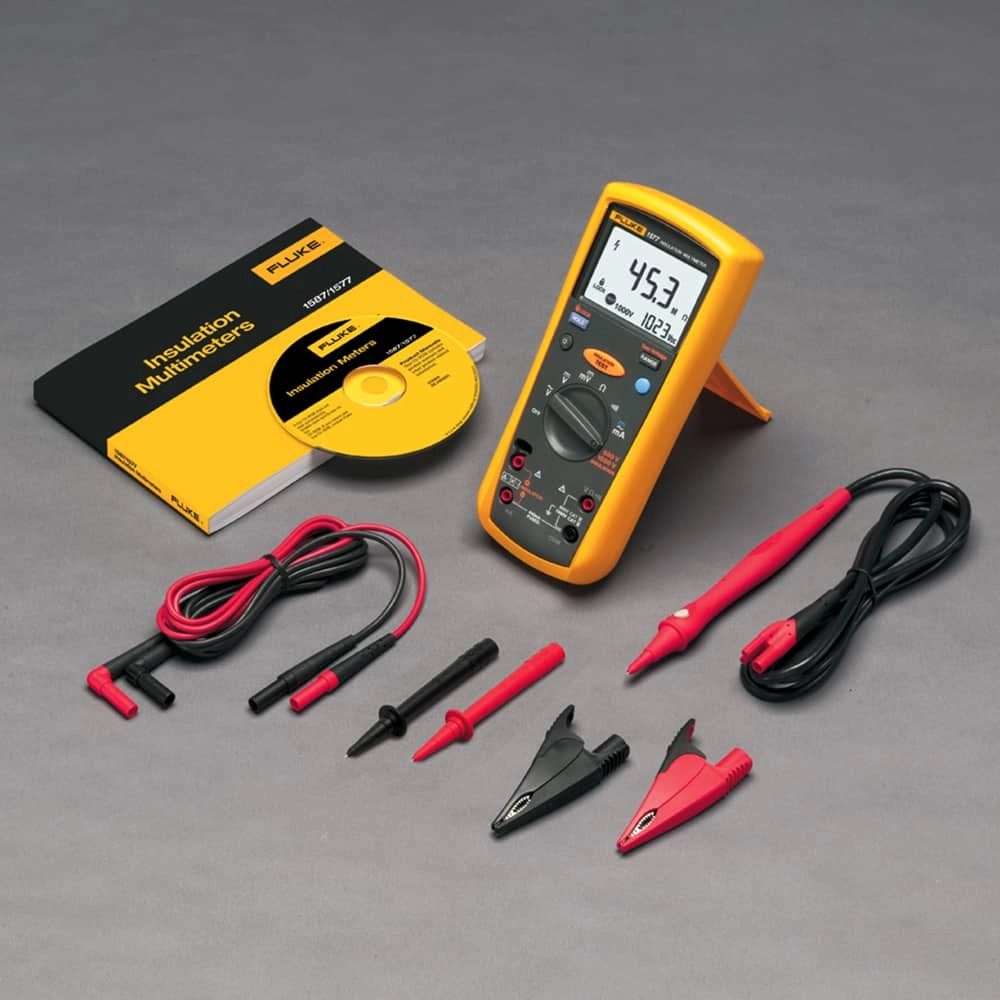

Items Included

• Remote probe Test leads
• Alligator clips
• Hard case
• Four AA alkaline batteries
• Quick reference guide CD rom with manual

Downloads

Datasheet
