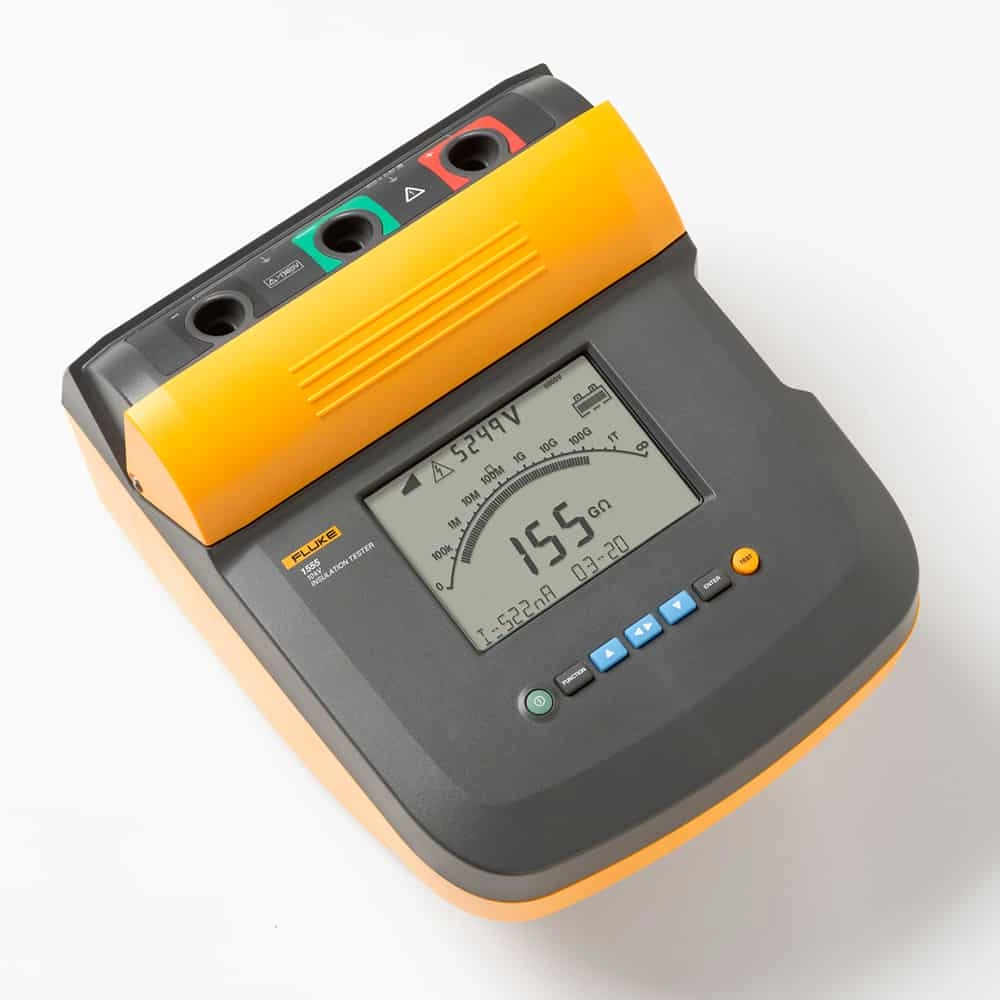

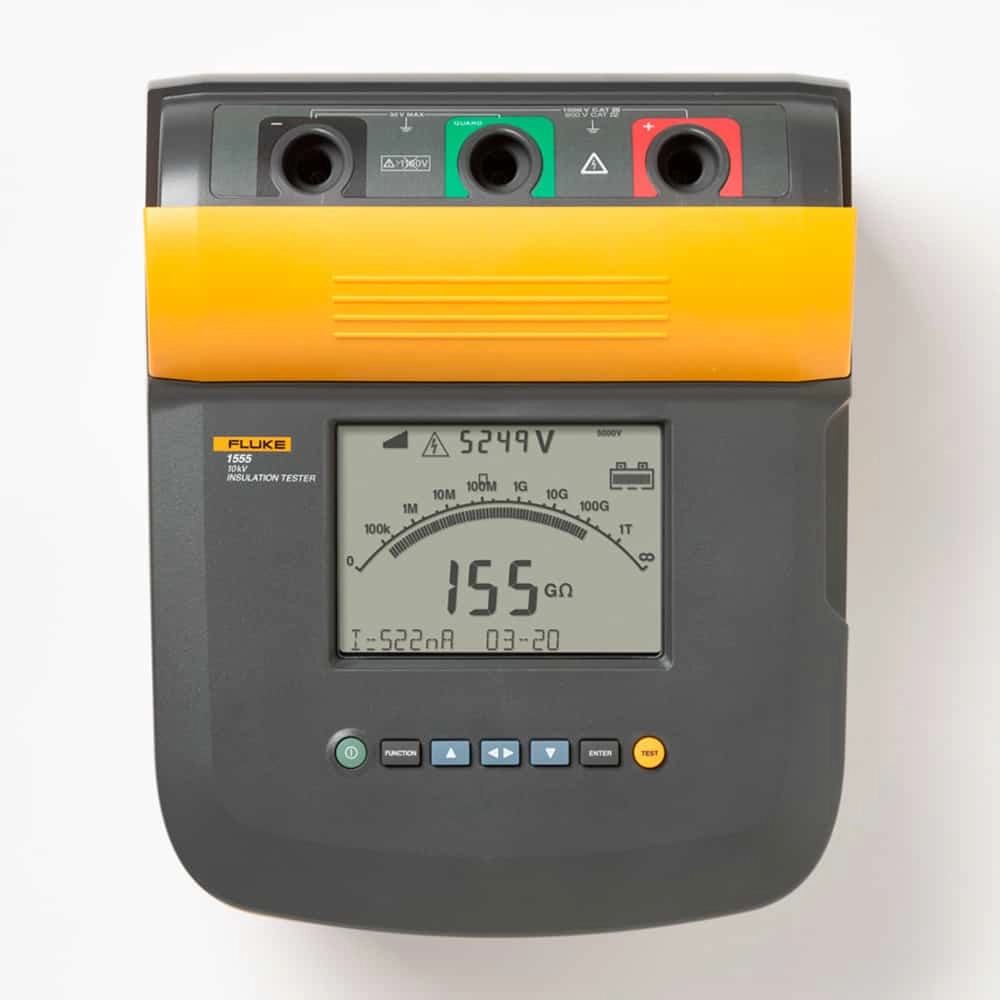

Fluke 1555 Insulation Resistance Tester, CAT IV 600V, 250V - 10000V
Model # 1555Key Features
?
Question about this product?
Features
- Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
- CAT III 1000 V; CAT IV 600 V safety rating
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Selectable test voltages in 50 V steps from 250 V to 1000 V; and 100 V steps above 1000 V
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
Technical Information
- Insulation test voltage accuracy-0%, +10% at 1 mA load current
- Display75 x 105 mm
- Power12 V lead-acid rechargeable battery, Yuasa NP2.8-12
- Charger Input (AC)85 V to 250 V AC 50/60 Hz 20 VA
- Dimensions269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
- Temperature (storage)-20°C to 65°C (-4°F to 149°F)
- Humidity80% to 31°C decreasing linearly to 50% at 50°C

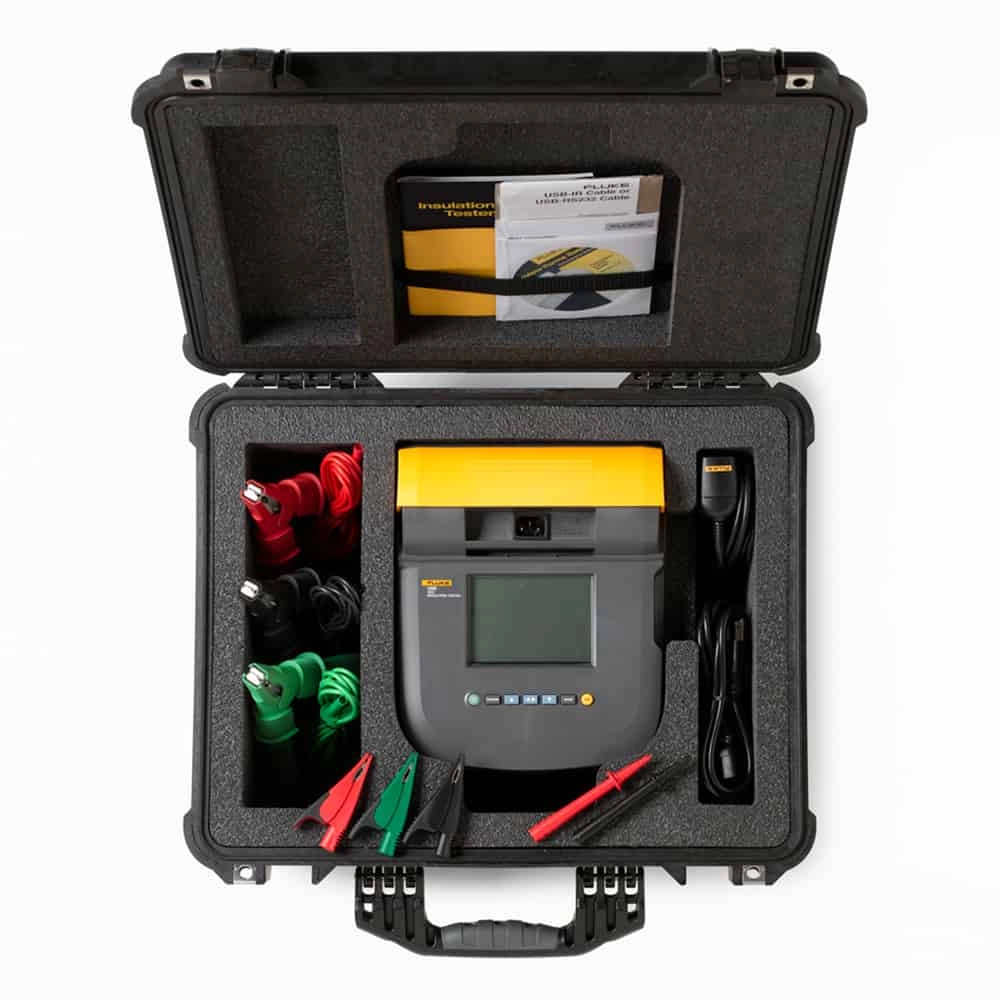

Items Included
- Test cables with alligator clips (red
- black
- green)
- Infrared adapter with interface cable
- FlukeView Forms Basic CD-ROM
- AC power cord
- Soft carrying case
- English manual
- User’s manual on CD-ROM
- Quick reference card
- Software license agreement
- Registration card
- FlukeView¨ Forms installation guide
- USB-IR cable installation guide
- Heavy duty alligator clip leads
