Fluke 1555/Kit Insulation Resistance Tester Kit, CAT IV 600V, 250V - 10000V
Model # 1555/KitKey Features
?
Question about this product?
Features
- Test voltages to up 10 kV and save time by trending on the spot only with Fluke Connect™
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user-defined label for easy recall
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
- Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
Technical Information
- Test Voltage DC250V, 500V, 1000V, 2500V, 5000V, 10000V
- Insulation Resistance0 to 2 TΩ
- Insulation test voltage accuracy-0%, +10% at 1 mA load current
- Induced AC mains current rejection2 mA maximum
- Leakage current measurementRange; 1 nA to 2 mA
- Accuracy±(5% + 2 nA)
- Capacitance measurementRange; 0.01 μF to 15.00 μF
- Accuracy±(15% rdg + 0.03 μF)
- Display75 x 105 mm
- Temperature (storage)-20°C to 65°C (-4°F to 149°F)
- Humidity80% to 31°C decreasing linearly to 50% at 50°C

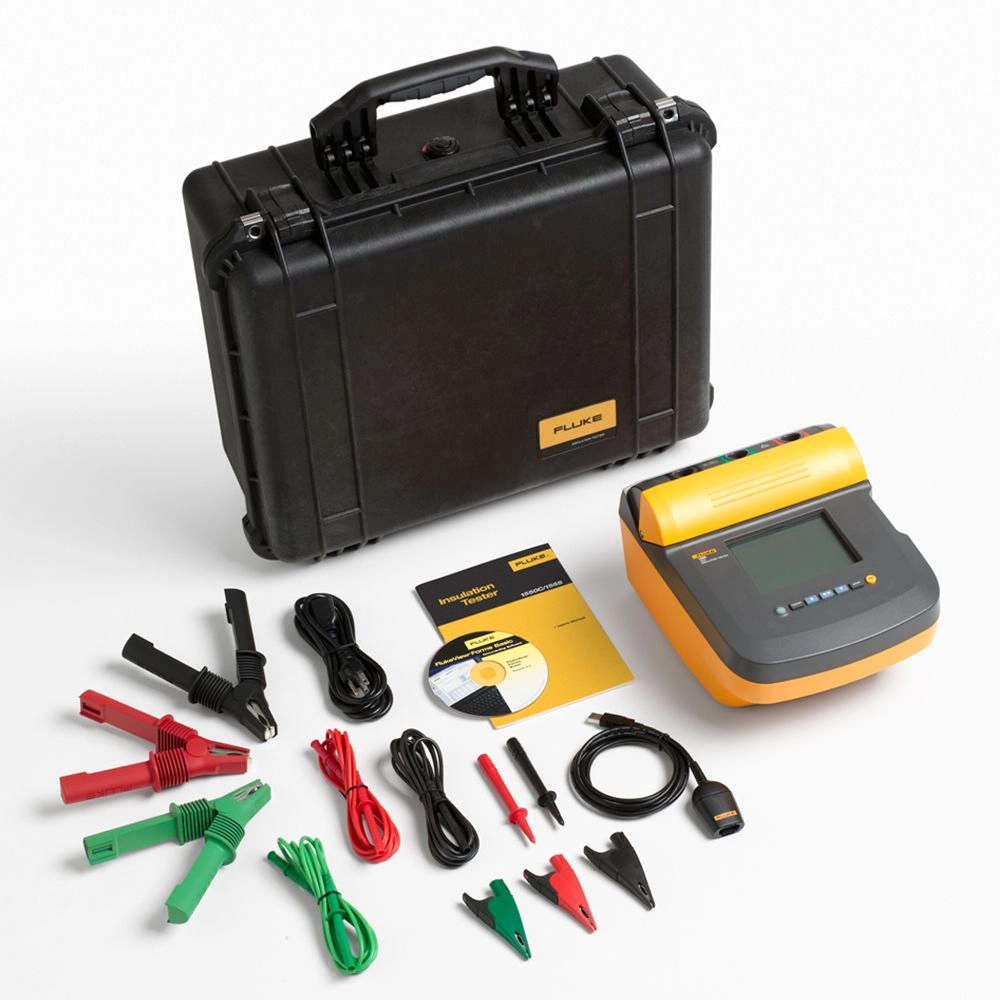

Items Included
- 1555 Insulation Tester
- Test Cables with Alligator Clips (red, black, green)
- Infrared adapter with interface cable
- AC Power Cord
- Quick Reference Card
- USB-IR Cable Installation Guide
- IP67 Hard Case
- Certificate of Calibration
- Heavy Duty Alligator Clip Leads
