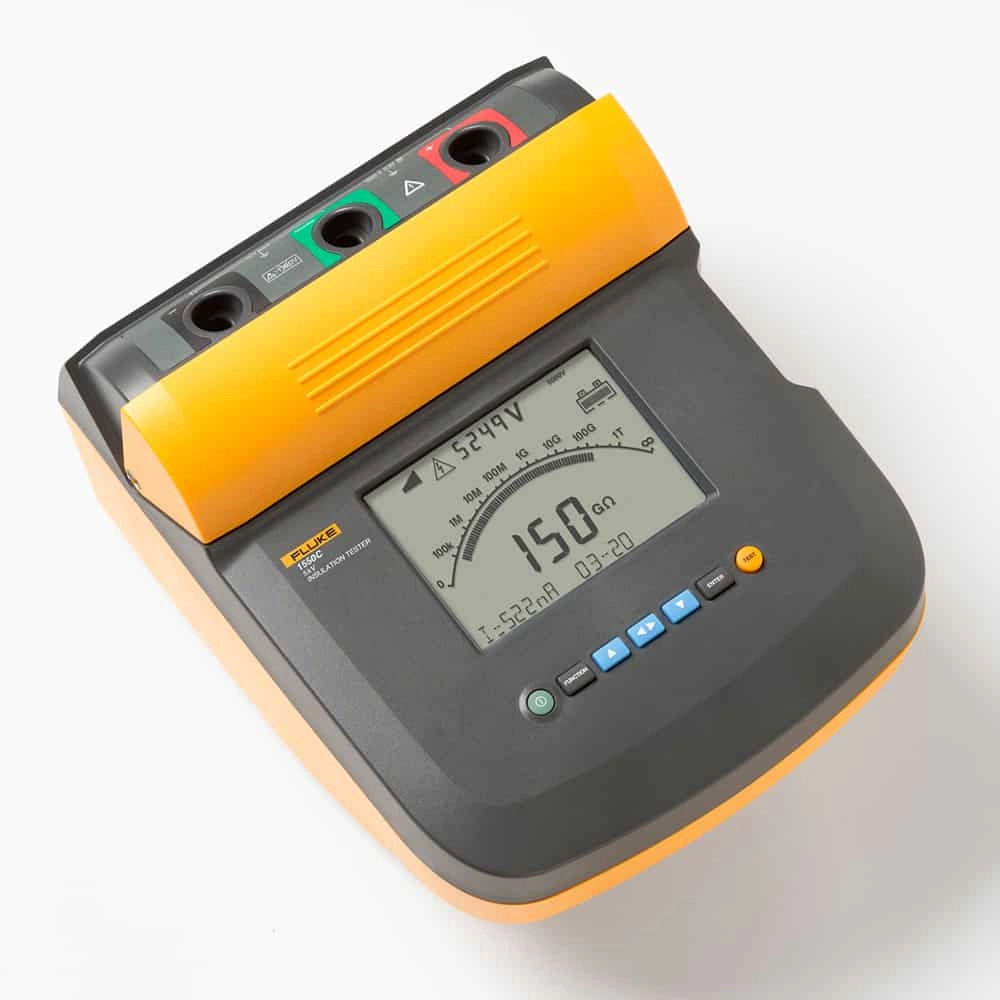

Fluke 1550C Insulation Resistance Tester, CAT IV 600V, 250V - 5000V

Features

• Quickly configure, start and stop tests on the 1550C remotely, a safe distance away from any operating, energized equipment, using Fluke Connect® and a smart phone
• Real time trending gives you easy-to-see visual cues, rather than hard to read, rapidly changing values
• Report creation using Fluke Connect desktop saves time and makes test results easier to understand
• Fluke Connect saves test results to the cloud for analysis and preventive maintenance
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
• Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall

Technical Information

• Bar graph range0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555)
• Insulation test voltage accuracy-0%, +10% at 1 mA load current
• Induced AC mains current rejection2 mA maximum
• Leakage current measurementRange; 1 nA to 2 mA
• Accuracy± (5% + 2 nA)
• Capacitance measurementRange; 0.01 μF to 15.00 μF
• Accuracy± (15% rdg + 0.03 μF)
• Dimensions269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
• Weight3.7 kg
• Temperature (operating)-20°C to 50°C (-4°F to 122°F)
• Temperature (storage)-20°C to 65°C (-4°F to 149°F)
• Charger Input (AC)85 V to 250 V AC 50/60 Hz 20 VA
• Dimensions269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in)
• Temperature (operating)-20°C to 50°C (-4°F to 122°F)

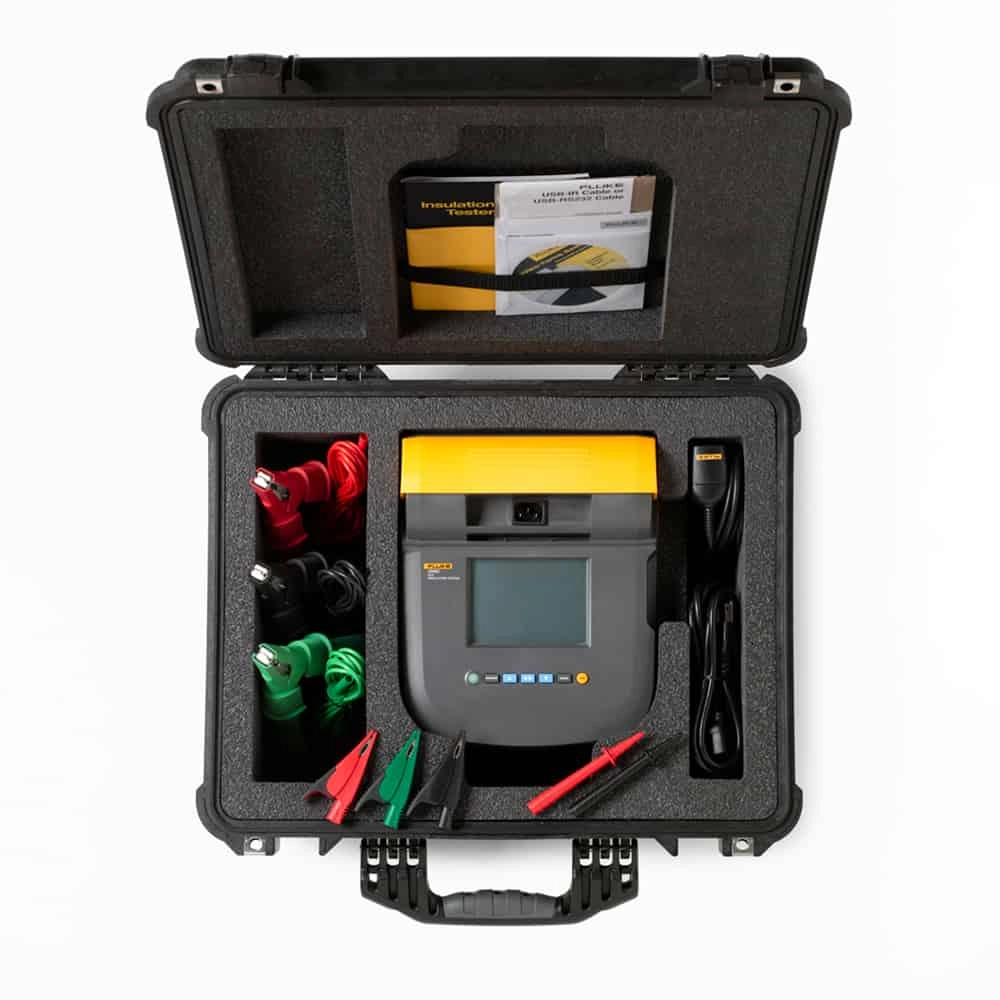

Items Included

• Test cables with alligator clips (red
• black
• green)
• Infrared adapter with interface cable
• Basic CD-ROM
• AC power cord
• Soft carrying case
• English manual
• User’s manual on CD-ROM
• Quick reference card
• Software license agreement
• Registration card
• Forms installation guide
• USB-IR cable installation guide
• Heavy duty alligator clip leads
