Fluke 1550C/Kit Insulation Resistance Tester Kit, CAT IV 600V, 250V - 5000V

Features

• Test voltages to up 5 kV and save time by trending on the spot only with Fluke Connect™
• CAT III 1000 V; CAT IV 600 V safety rating
• Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Selectable test voltages in 50 V steps from 250 V to 1000 V; and 100 V steps above 1000 V
• Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
• Guard system eliminates the effect of surface leakage current on high-resistance measurements
• Selectable test voltages in 50 V steps from 250 V to 1000 V, and 100 V steps above 1000 V
• Warning function alerts the user that line voltage is present and gives the voltage reading up to 600 V AC or DC for increased user safety
• Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall

Technical Information

• Bar graph range0 to 1 TΩ (1550C) – 0 to 2 TΩ (1555)
• Insulation test voltage accuracy-0%, +10% at 1 mA load current
• Induced AC mains current rejection2 mA maximum
• Leakage current measurementRange; 1 nA to 2 mA
• Accuracy± (5% + 2 nA)
• Capacitance measurementRange; 0.01 μF to 15.00 μF
• Accuracy± (15% rdg + 0.03 μF)
• Display75 x 105 mm
• Charger Input (AC)85 V to 250 V AC 50/60 Hz 20 VA
• Temperature (operating)-20°C to 50°C (-4°F to 122°F)
• Temperature (storage)-20°C to 65°C (-4°F to 149°F)
• Humidity80% to 31°C decreasing linearly to 50% at 50°C

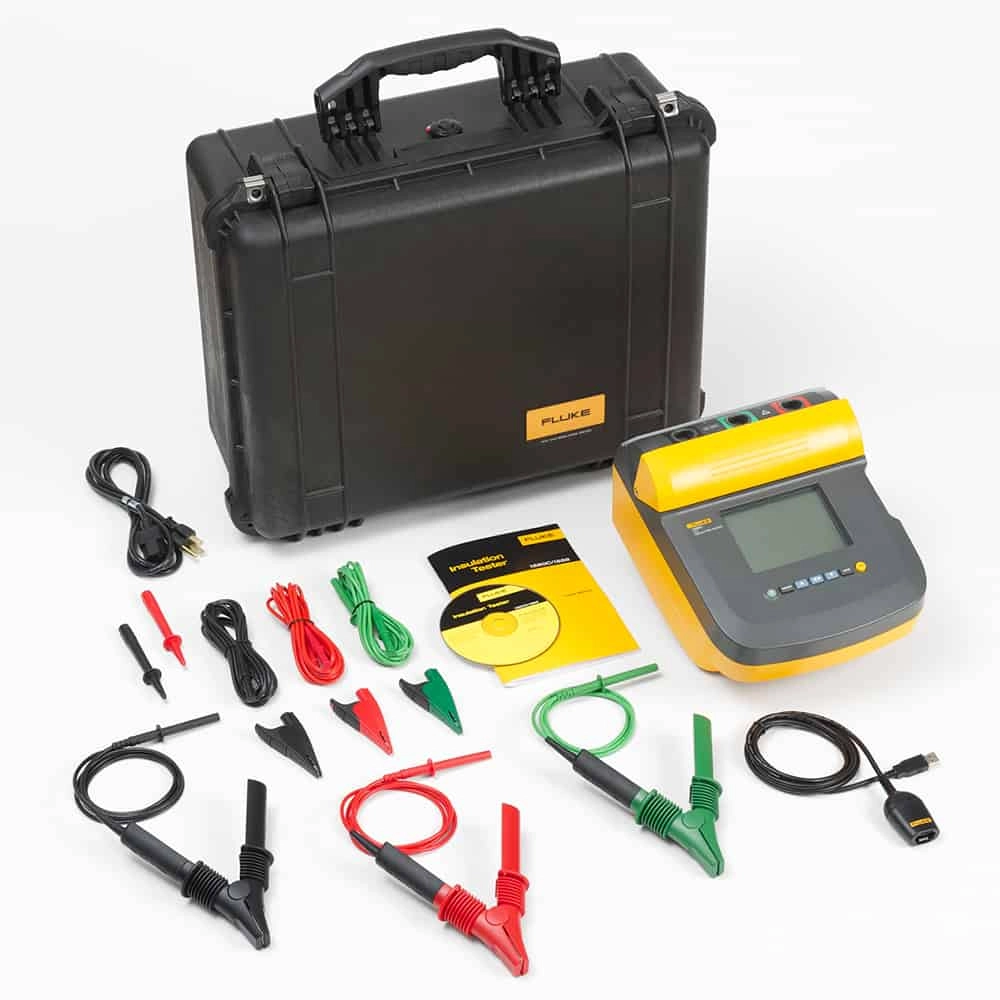

Items Included

• Fluke 1550C/KIT Insulation Resistance Tester Kit
• Test cables with alligator clips (red
• black
• green)
• Infrared adapter with interface cable
• FlukeView¨ Forms Basic CD-ROM
• AC power cord
• Soft carrying case
• English manual
• User’s manual on CD-ROM
• Quick reference card
• Software license agreement
• Registration card
• FlukeView¨ Forms installation guide
• USB-IR cable installation guide
• Heavy duty alligator clip leads

Downloads

DatasheetDatasheet
