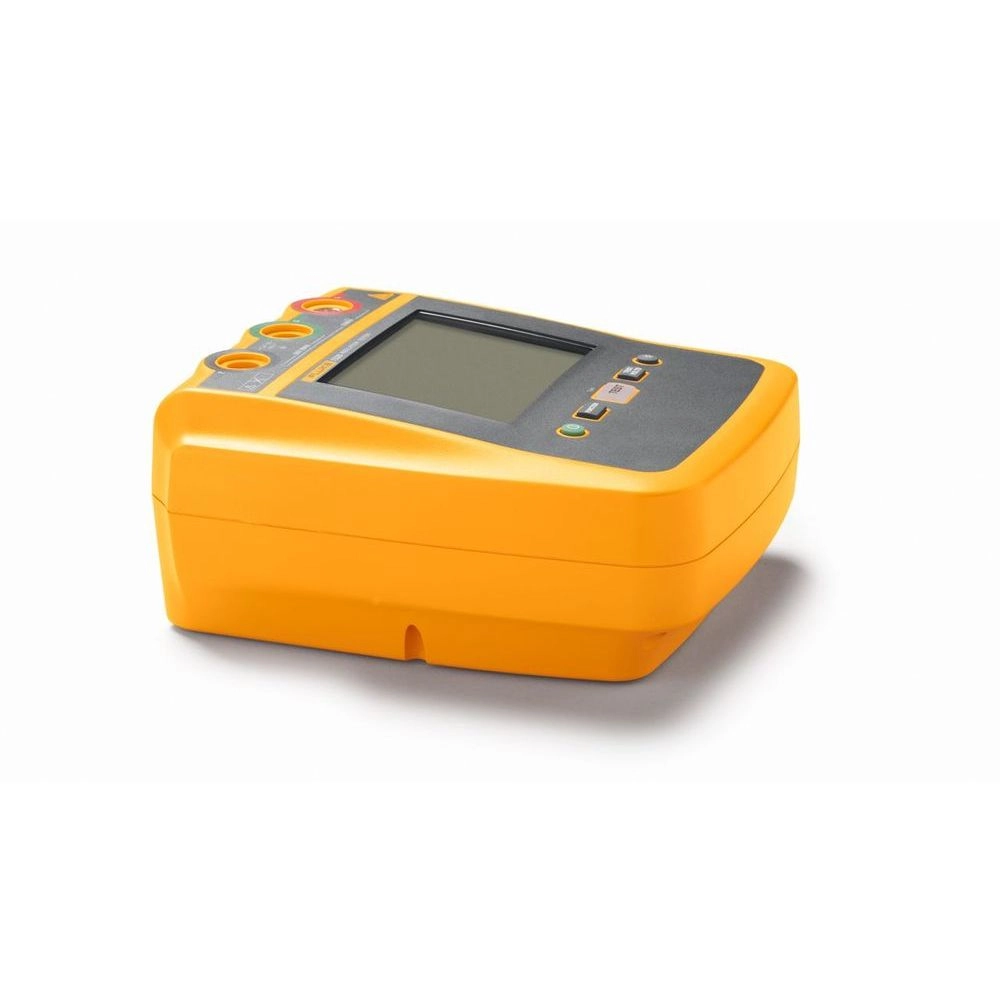

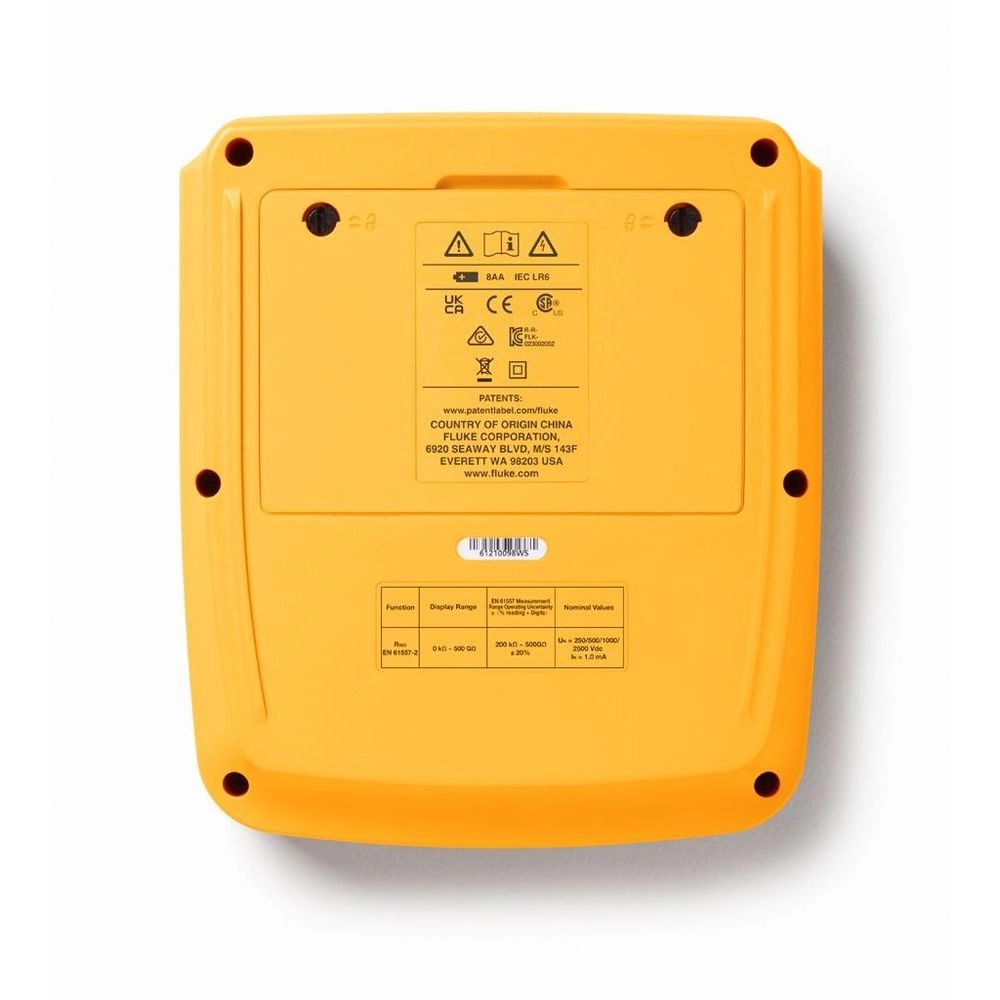

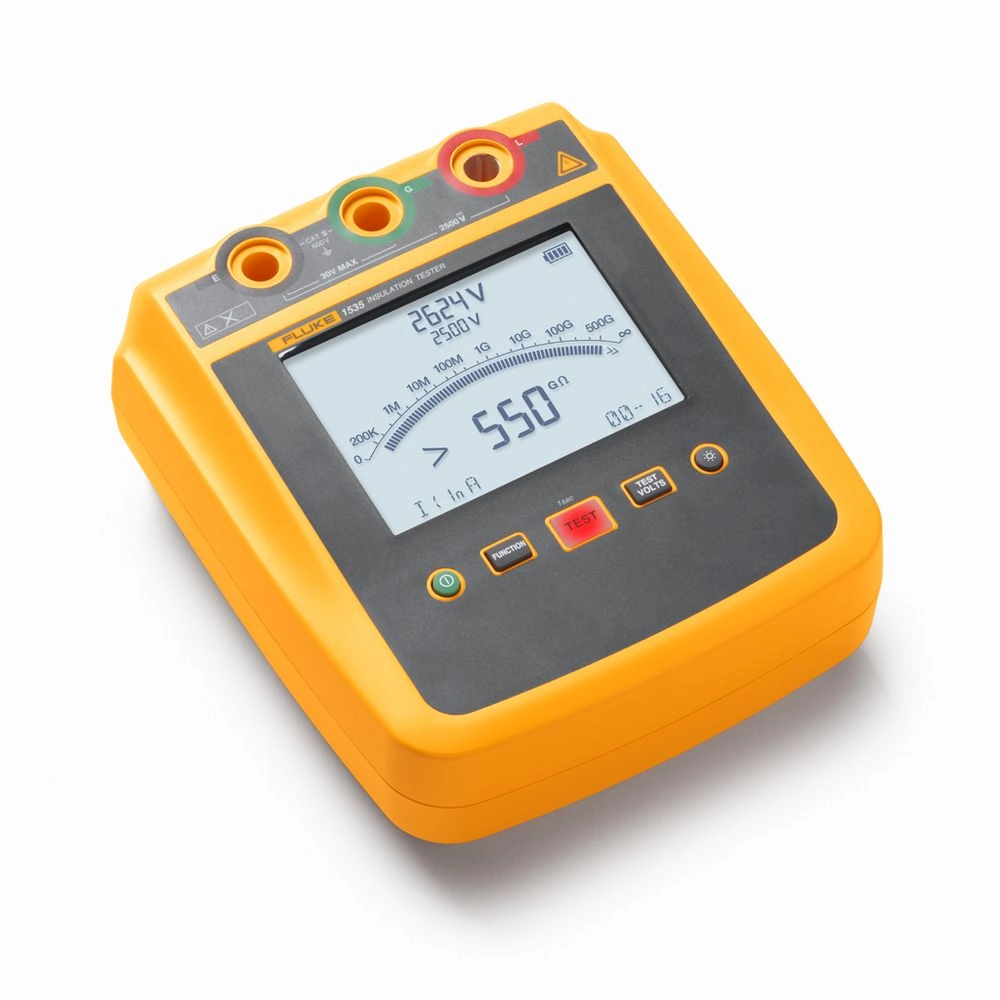

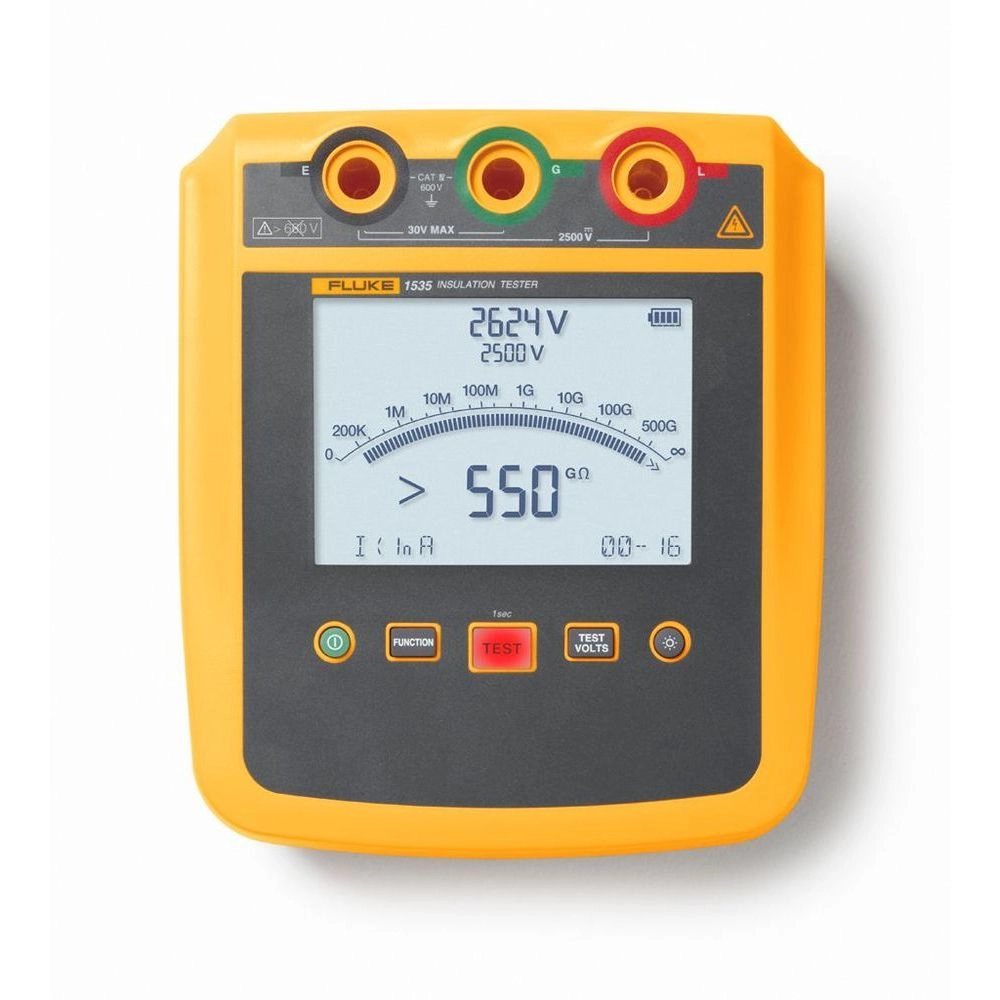

Fluke 1535 Insulation Resistance Tester and Megohmmeter, 250-2500V, 500 GΩ

Features

• User-selectable voltages of 250 V-2500 V
• Up to 500 GΩ insulation resistance measurement
• Short circuit current up to 5mA for fast, stable measurements
• Automatically calculate PI and DAR
• Perform 1,300+ insulation tests on a single charge

Technical Information

• Test voltage for insulation resistance250/500/1000/2500V
• Resistance Ranges200 kΩ to 50/100/200/500 GΩ
• Leakage current measurement1 nA to 2 mA
• Capacitance measurement0.01 μF to 2.00 μF
• Short circuit current>2 mA
• Overvoltage categoryCAT IV 600 V
• Dimensions (H x W x L)184 mm x 211 mm x 93 mm
• Weight1.3 kg

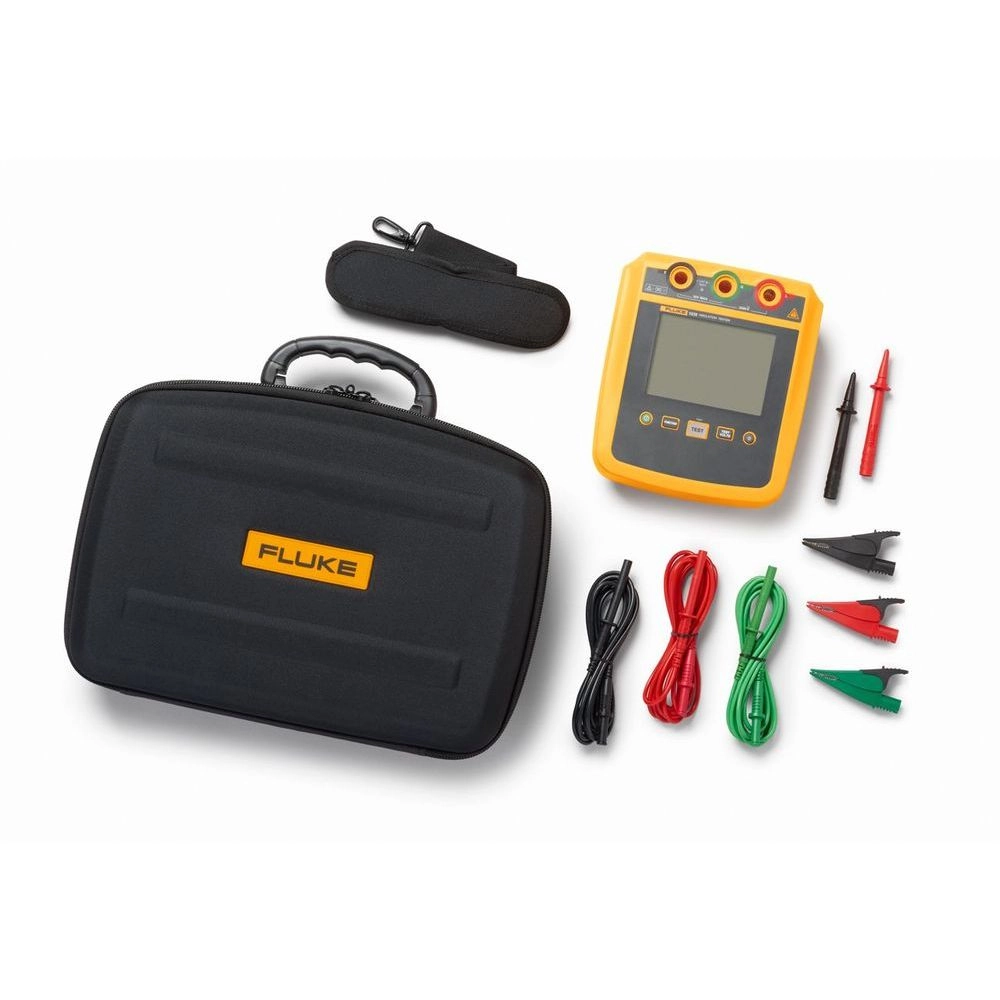

Items Included

• Fluke 1537 Insulation Reistance Tester
• Test leads with alligator clips (red, black, green)
• Probe (red, black)
• Soft carrying case
