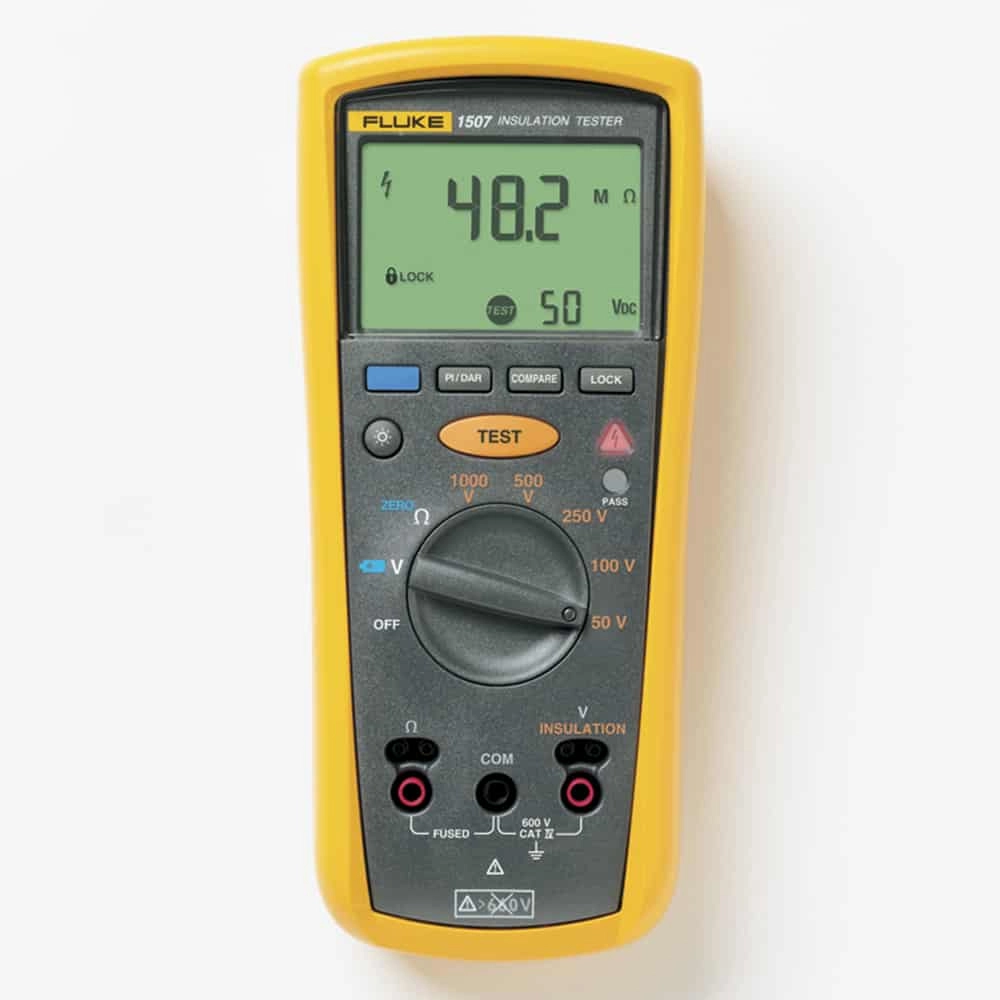

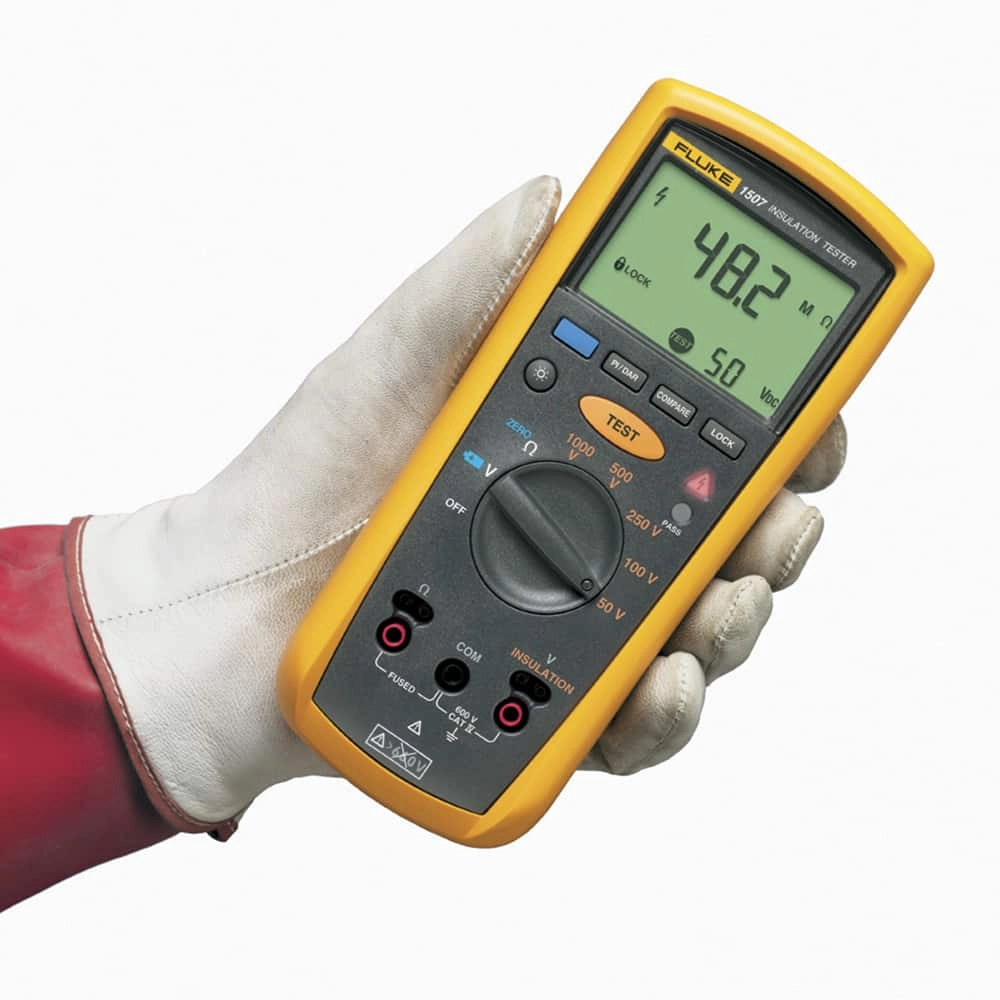

Fluke 1507 Insulation Resistance Testers, CAT IV 600V, 50V - 1000V

Features

• Insulation test range: 1507: 0.01 MΩ to 10MΩ
• Insulation test voltages: 1507: 50 V; 100 V; 250 V; 500 V; 1000 V
• Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio
• Make repetitive tests simple and easy with the 1507’s Compare (Pass/Fail) function
• Includes live circuit detection to prevent insulation test if voltage >30 V is detected
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power of

Technical Information

• DC Voltage600 V
• AC Voltage600 V
• Resistance20Ω to 20kΩ
• Insulation Test Voltages50V, 100V, 250V, 500V, 1000V
• Insulation Resistance0.01MΩ - 10GΩ
• Input impedance3 MΩ (nominal), < 100 pF
• Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
• Overload protection600 V rms or DC
• Accuracy±(1.5% + 3)
• Storage temperature-40°C to 60°C (-40°F to 140°F)
• Operating temperature-20°C to 55°C (-4°F to 131°F)
• Size (H x W x L)5.0 x 10.0 x 20.3 cm (1.97 x 3.94 x 8.00 in)

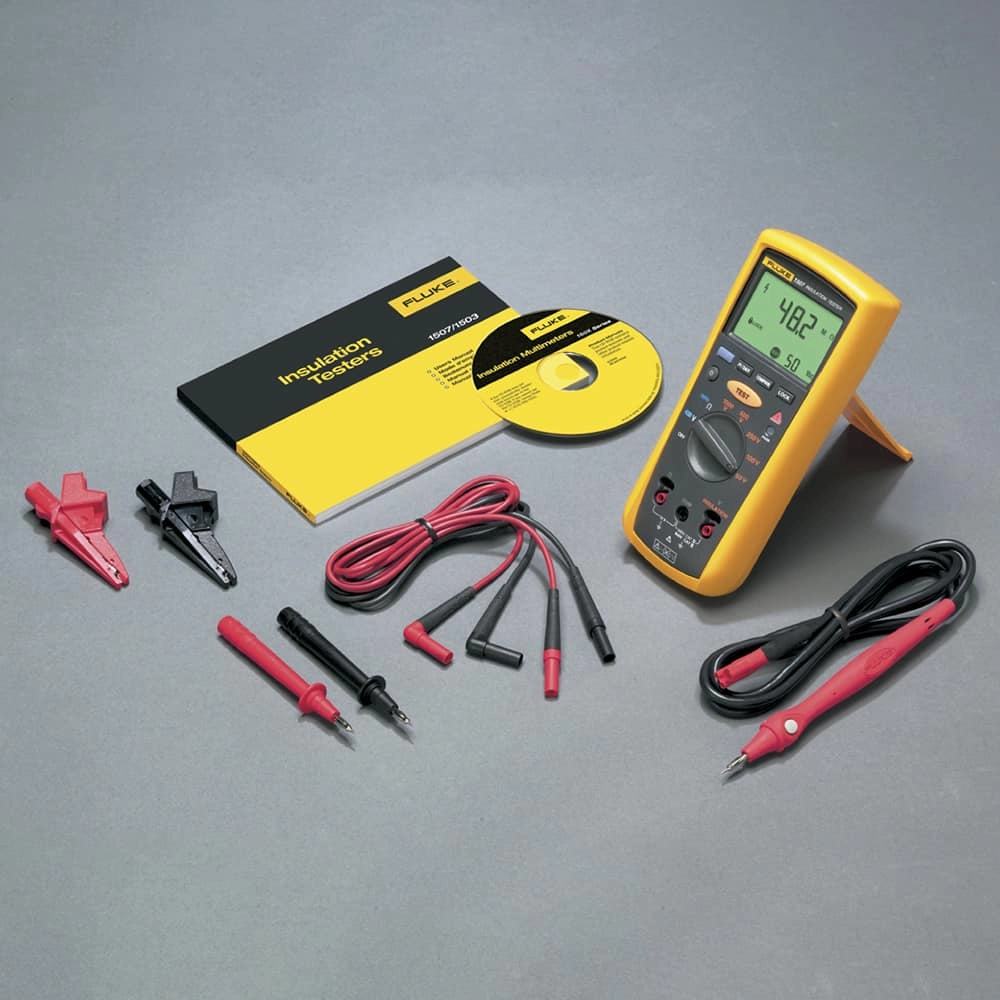

Items Included

• TL224 Test Leads
• TP74 Test Probes
• Clips PN 1958654 (red) and PN 1958646 (black)
• Holster
• Remote probe

Downloads

Datasheet
