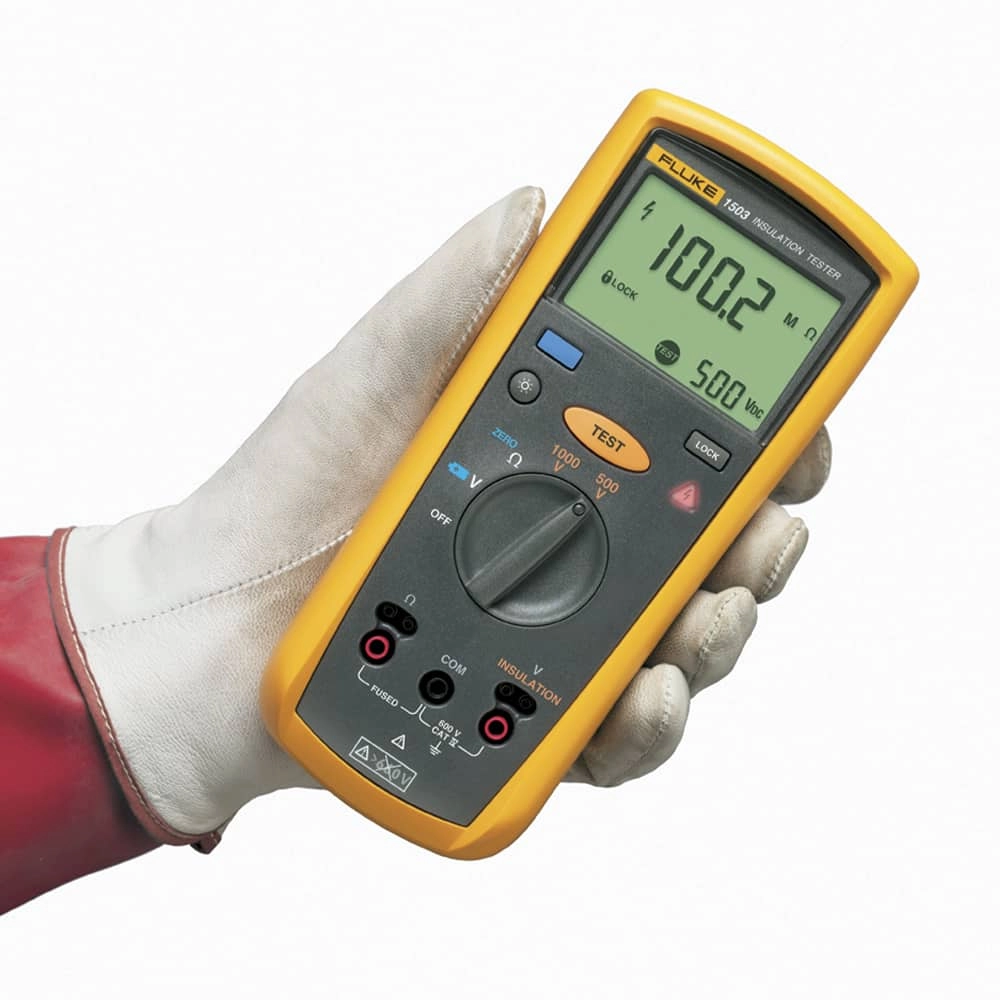

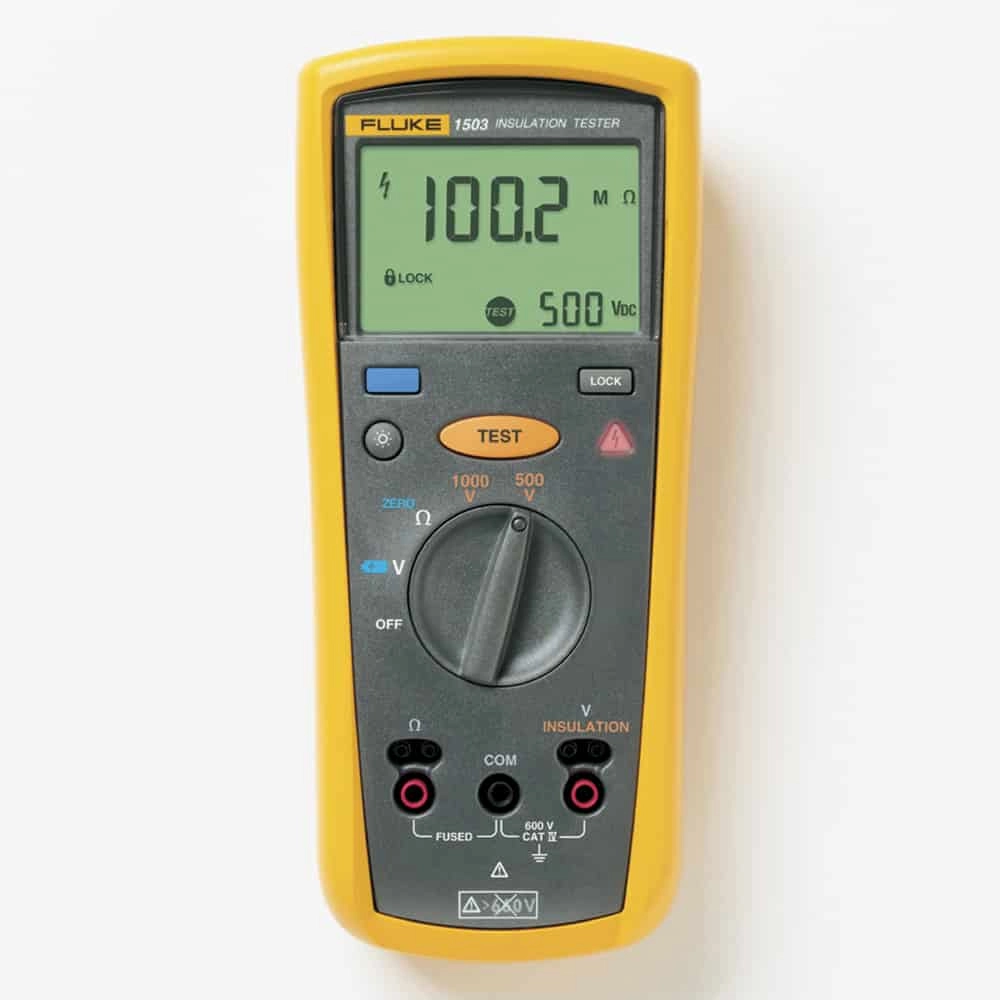

Fluke 1503 Insulation Resistance Tester, CAT IV 600V, 500V - 1000V

Features

• Insulation test range: 0.1 MΩ to 2000 MΩ
• Insulation test voltages: 500 V; 1000 V
• Repetitive or hard-to-reach testing is easy with the remote test probe
• Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection
• Measures AC/DC voltage from 0.1 V to 600 V
• Includes auto-discharge of capacitive voltage for added user protection
• Provides lo-ohms earth-bond continuity (200 mA)
• Simplifies repetitive or hard-to-reach testing with the remote test probe
• Saves battery power with auto power of

Technical Information

• DC Voltage600.0 V
• AC Voltage600.0 V
• Resistance20Ω to 20kΩ
• Insulation Test Voltages500V, 1000V
• Insulation Resistance0.01MΩ - 2000MΩ
• Resolution0.1 V
• Input impedance3 MΩ (nominal), < 100 pF
• Common mode rejection ratio (1 kΩ unbalanced)> 60 dB at DC, 50 or 60 Hz
• Overload protection600 V rms or DC
• Range/Resolution20.00 Ω
• Maximum voltage applied to any terminal600 V AC rms or DC
• Storage temperature-40°C to 60°C (-40°F to 140°F)
• Operating temperature-20°C to 55°C (-4°F to 131°F)
• Temperature coefficient0.05 x (specified accuracy) per °C for temperatures < 18°C or > 28°C (< 64°F or > 82°F)

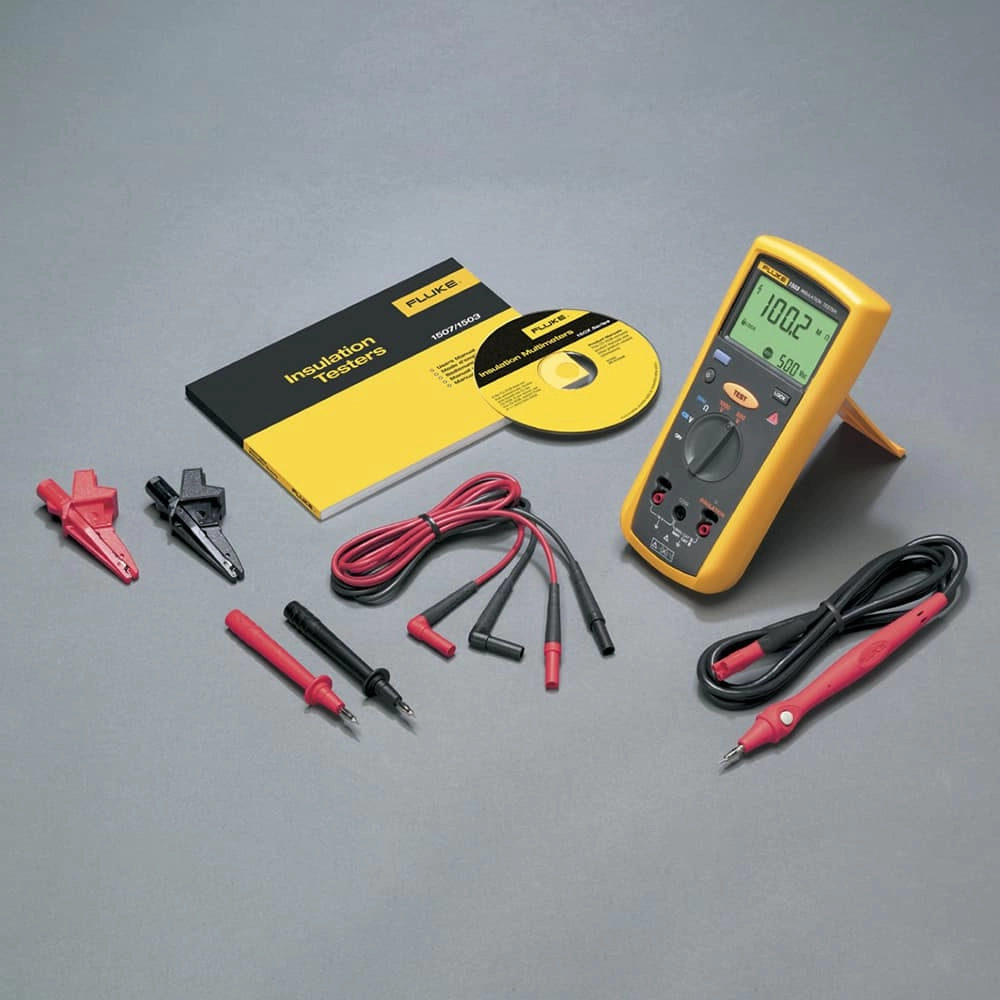

Items Included

• Remote probe
• Test leads
• Test probes
• Alligator clips
• User documentation
