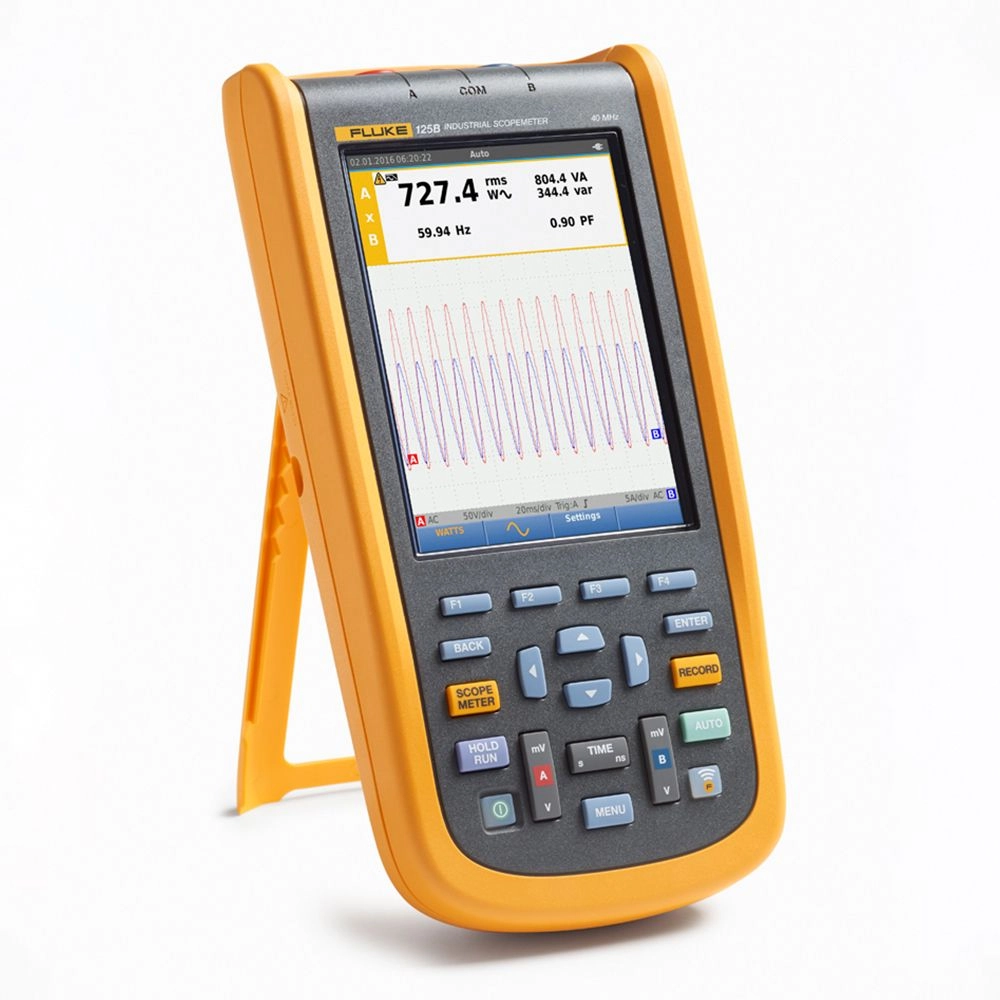

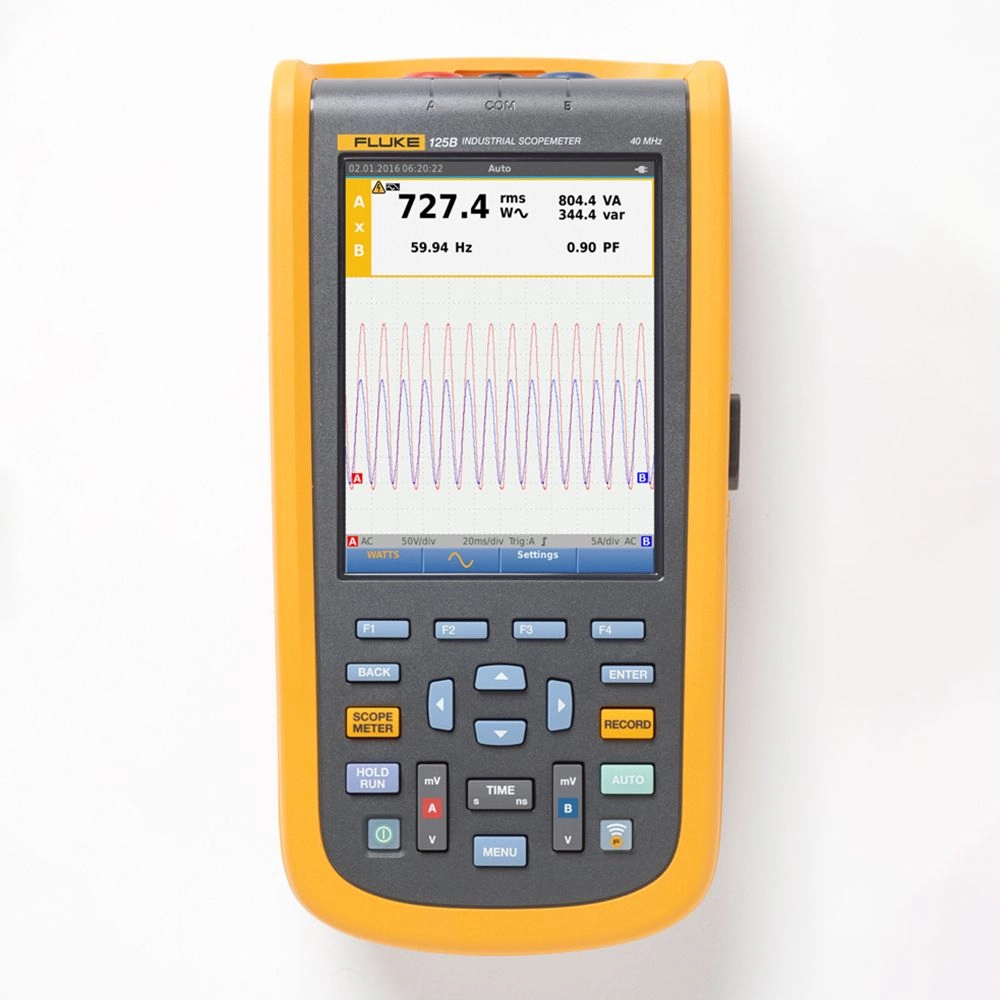

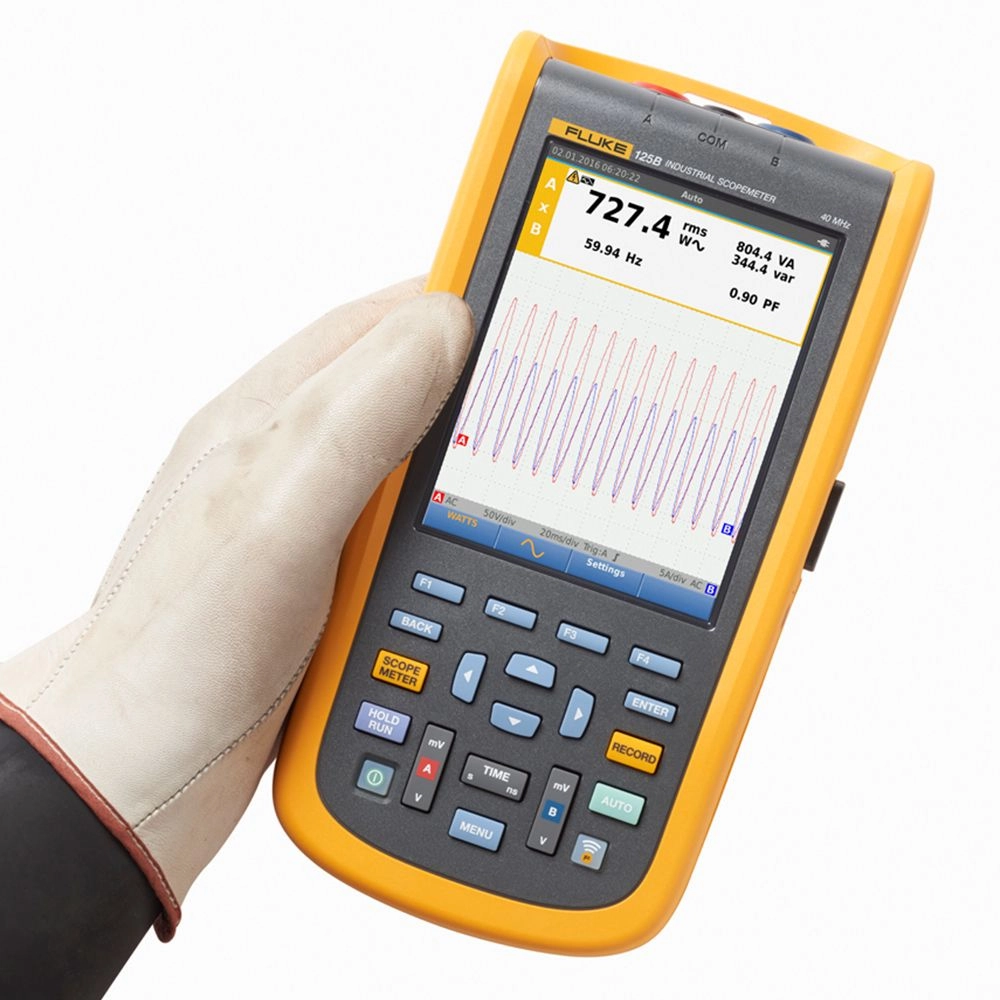

Fluke 125B/EU Industrial Scopemeter, 40 MHz

Features

• Dual-input digital oscilloscope and multimeter in a ScopeMeter® test tool
• Available with a 40 MHz or 20 MHz oscilloscope bandwidth
• Features Connect-and-View™ trigger simplicity for hands-off operation
• IntellaSet technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Power measurements (W, VA, VAR, PF, DPF, Hz)
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
• Save or recall data and instrument setups
• Resistance, continuity, diode and capacitance meter measurements

Technical Information

• Time base10 ns - 500 s/div
• Input impedance1 MΩ
• DC Voltage500 mV, 5 V, 50 V, 500 V, 750 V
• Duty Cycle2 % to 98 %
• Pulse Width15 Hz (1 Hz) to 30 MHz in continuous autoset
• Capacitance50 nF, 500 nF, 5 μF, 50 μF, 500 μF
• Safety RatingIEC 61010-2-033: CAT IV 600 V/CAT III 750 V
• Input couplingAC, DC
• Power supply (details)Li-ion battery 10.8 V
• Weight1.4 kg

Items Included

• Fluke 125B Hand-Held Oscilloscope
• Shielded Test Leads with Black Ground Leads
• Test Lead Black (for Grounding)
• Hook Clips (red, blue)
• Banana-to-BNC Adapters (black, x1)
• 10:1 Voltage Probe
• i400s AC Current Clamp
• USB Angled Adapter
• WiFi USB Adapter*
• Switch Mode Power Supply, Adapter/Battery Charger
• Rechargeable Li-ion Battery Pack

Downloads

Datasheet
