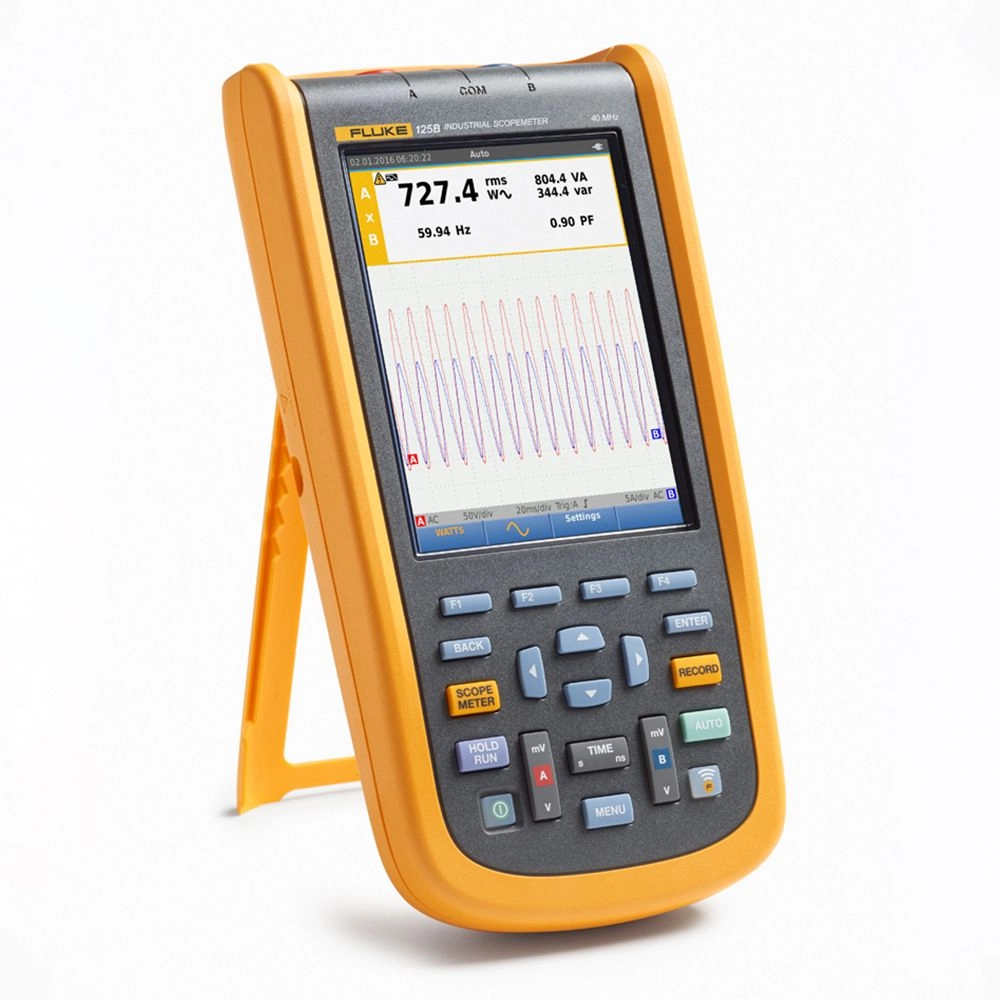

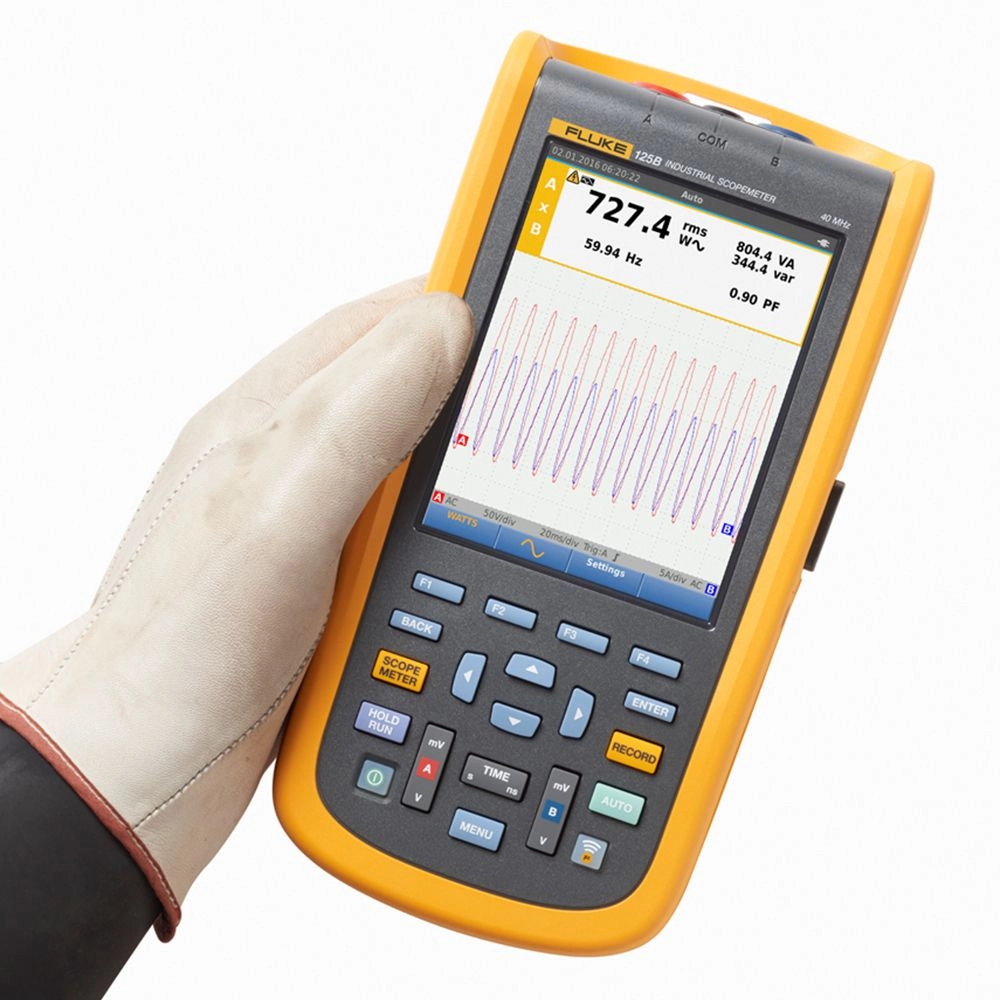

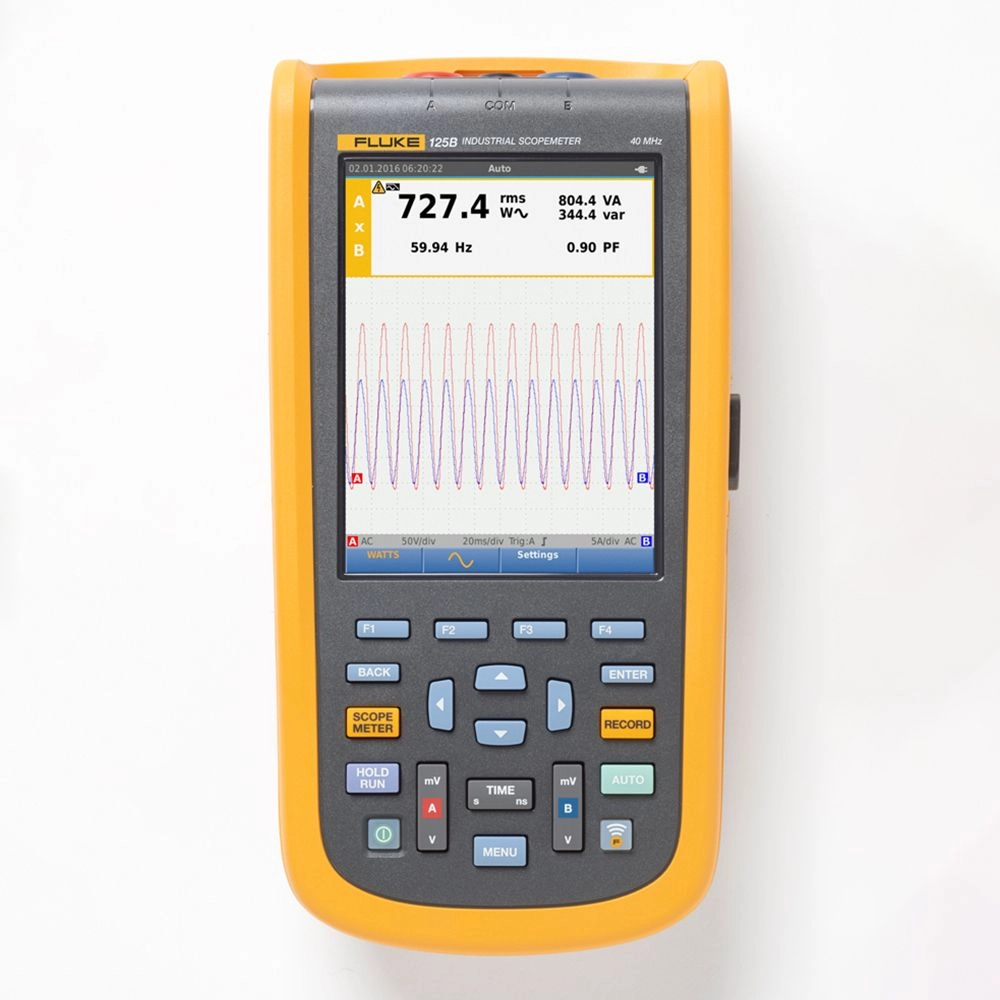

Fluke 125B/EU/S Industrial Scopemeter, 40 MHz

Features

• Dual-input 40 MHz digital oscilloscope with Bus Health Test and SCC Kit
• Features two 5000 counts true-RMS digital multimeters
• Automatic measurements
• A dual-input Trend Plot recorder
• IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
• Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures

Technical Information

• Bandwidth40 MHz
• Number of Channels2 channels
• Time base10 ns - 500 s/div
• Input impedance1 MΩ
• DC Voltage500 mV, 5 V, 50 V, 500 V, 750 V
• Duty Cycle2 % to 98 %
• Pulse Width15 Hz (1 Hz) to 30 MHz in continuous autoset
• Capacitance50 nF, 500 nF, 5 μF, 50 μF, 500 μF
• Safety RatingIEC 61010-2-033: CAT IV 600 V/CAT III 750 V
• Input couplingAC, DC
• Input voltage10 V/DC up to 21 V DC
• Power supply (details)Li-ion battery 10.8 V
• Weight1.4 kg

Items Included

• Fluke 125B Hand-Held Oscilloscope
• Shielded Test Leads with Black Ground Leads
• Test Lead Black (for Grounding)
• Hook Clips (red
• blue)
• Banana-to-BNC Adapters (black
• x1)
• 10:1 Voltage Probe
• i400s AC Current Clamp
• USB Angled Adapter
• WiFi USB Adapter*
• Switch Mode Power Supply
• Adapter/Battery Charger
• Rechargeable Li-ion Battery Pack
• Soft Carrying Case
• Magnetic Hanger
• FlukeView¨ ScopeMeter¨ Software for Windows¨
• Screen Protector

Downloads

Datasheet
