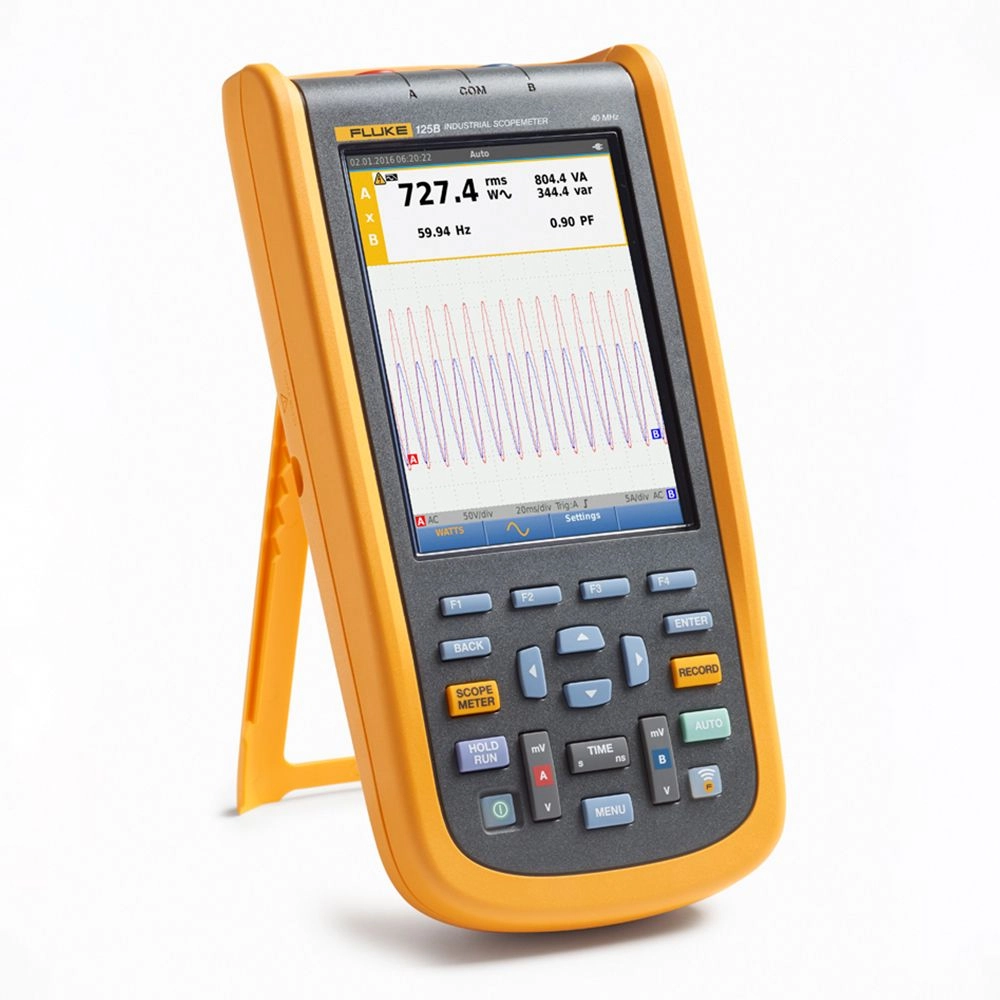

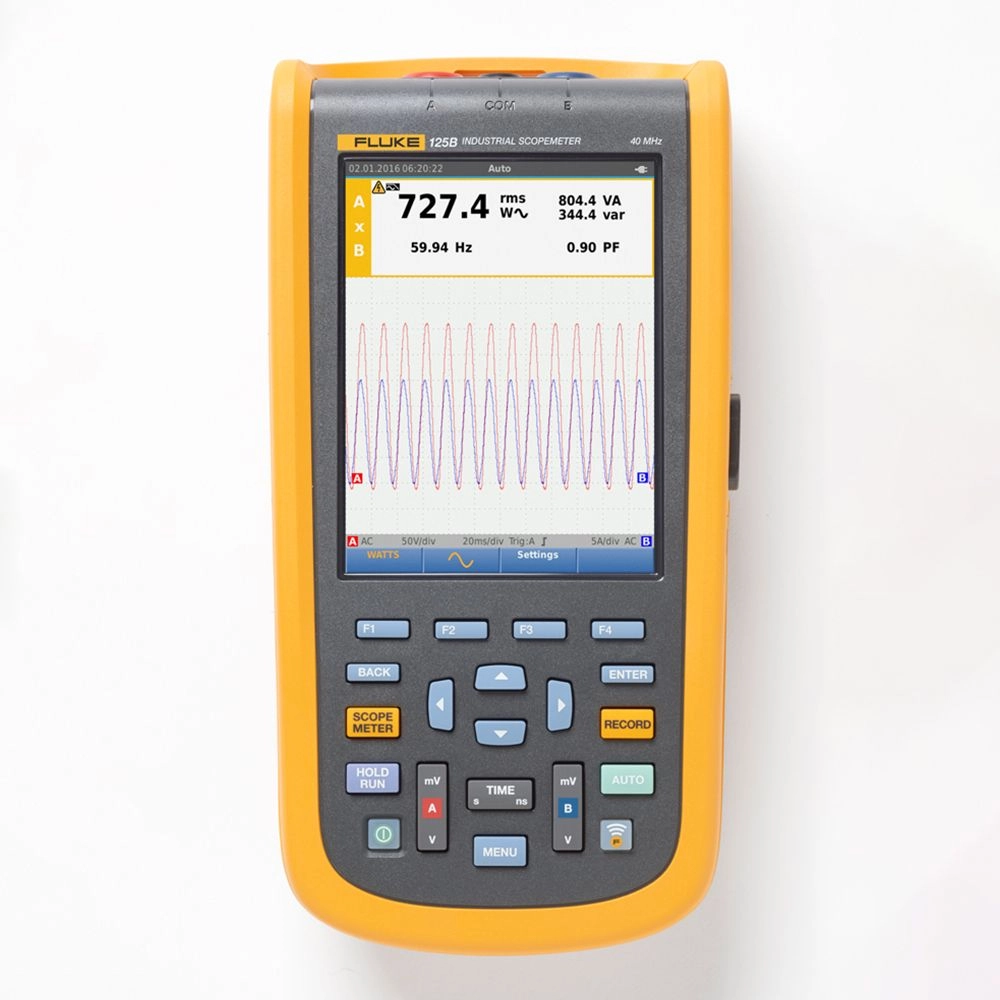

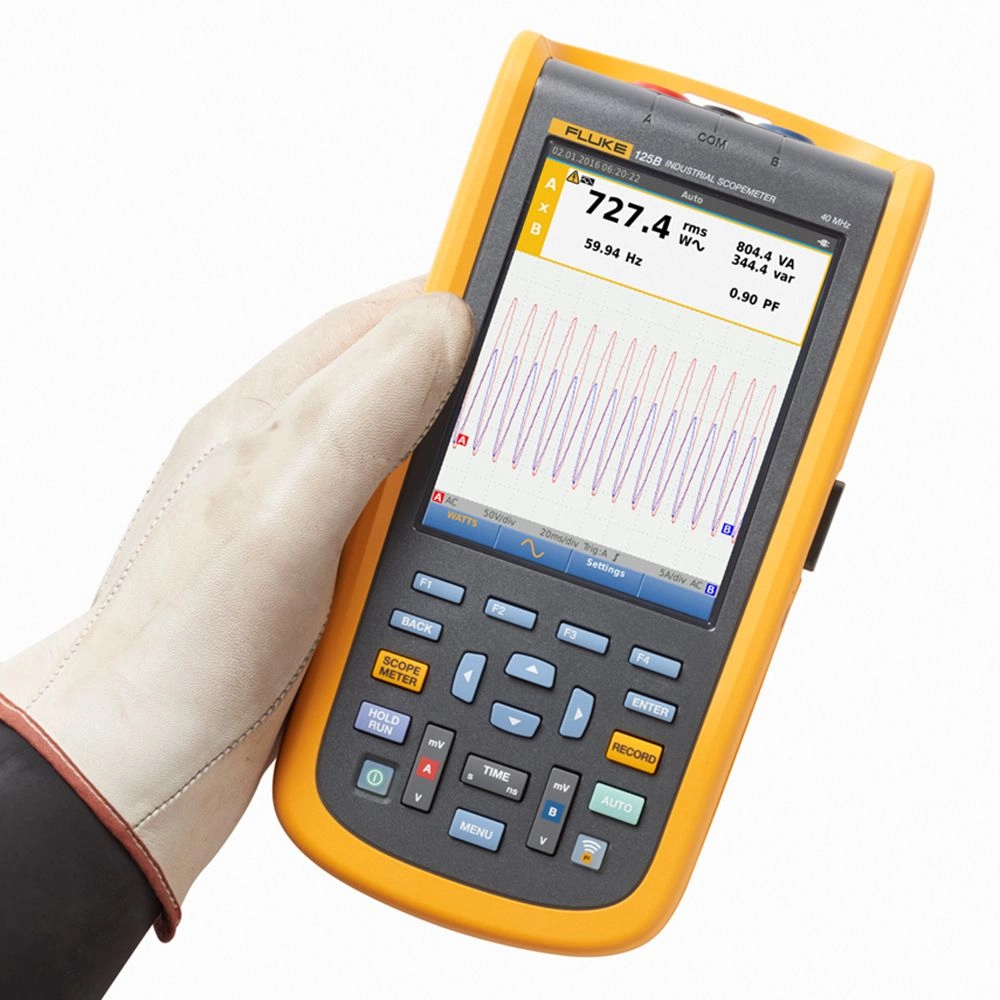

Fluke 124B/EU/S Industrial Scopemeter, 40 MHz

Features

• Dual-input 40 MHz digital oscilloscope and SCC Kit
• Features two 5000 counts true-RMS digital multimeters
• Automatic measurements
• A dual-input Trend Plot recorder
• IntellaSet™ technology automatically and intelligently adjusts numerical readout based on the measured signal
• Dual-input waveform and meter reading recorder for trending data over extended periods
• Recorder Event Detect captures elusive intermittent signals on repetitive waveforms up to 4 kHz
• Store instrument setups defined by a test sequence for routine maintenance or most often used test procedures

Technical Information

• Bandwidth40 MHz
• Number of Channels2 channels
• Displays640 x 480 pixels
• Time base10 ns - 500 s/div
• Vertical deflection5 mV - 200 V/div
• Frequency1 Hz, 10 Hz, 100 Hz, 1 kHz, 10 kHz, 100 kHz, 1 MHz, 10 MHz, and 70 MHz
• RPM50.00 kRPM
• Duty Cycle2 % to 98 %
• Pulse Width15 Hz (1 Hz) to 30 MHz in continuous autoset
• Capacitance50 nF, 500 nF, 5 μF, 50 μF, 500 μF
• Safety RatingIEC 61010-2-033: CAT IV 600 V/CAT III 750 V
• Input couplingAC, DC
• Input voltage10 V/DC up to 21 V DC
• Power supply (details)Li-ion battery 10.8 V
• Weight1.4 kg

Items Included

• Fluke 124B/S hand held oscilloscope
• Shielded test leads with black ground leads
• Black test lead (for grounding)
• Hook clips (red
• blue)
• Banana to BNC adapters (black
• x1)
• 10:1 voltage probe
• USB angled adapter
• Wi-Fi USB adapter
• Switch mode power supply
• Adapter/battery charger
• Rechargeable Li-ion battery pack
• Soft carrying case
• Magnetic hanger
• FlukeView ScopeMeter software for Windows
• Screen protector.

Downloads

Datasheet
