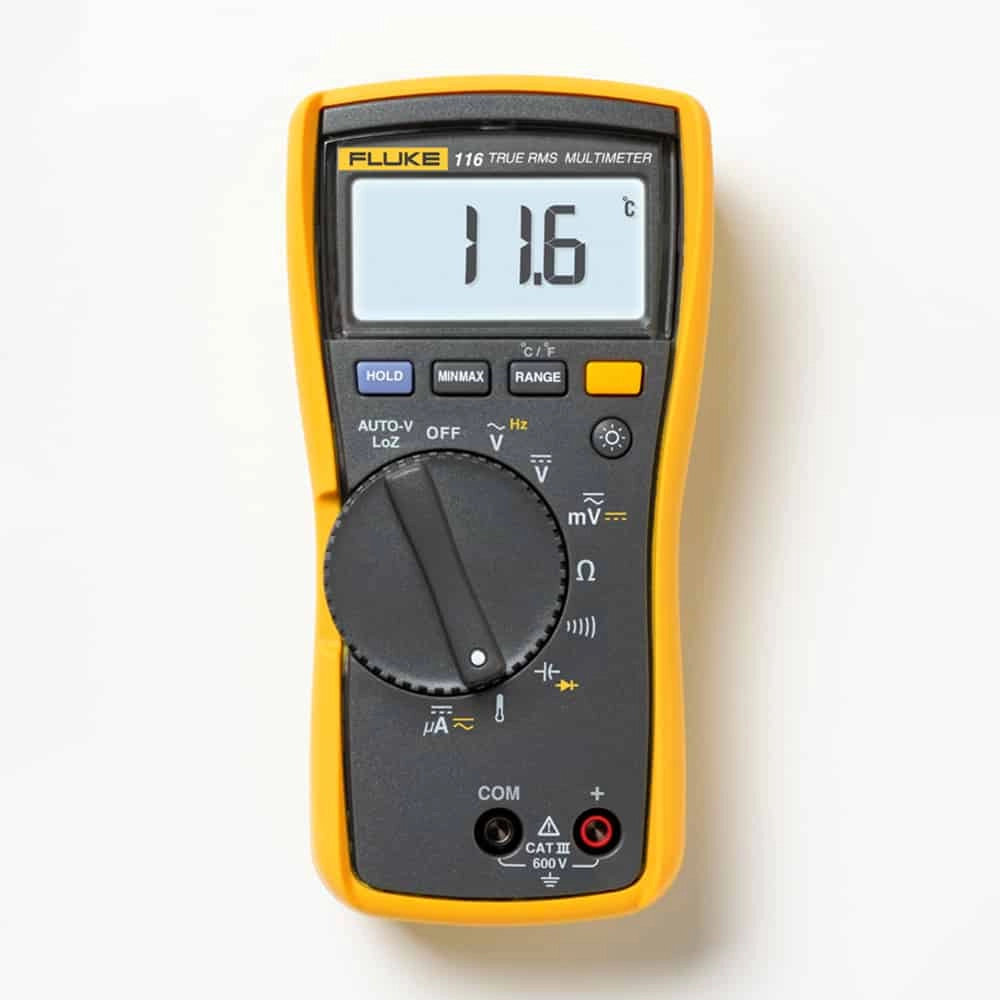

Fluke 116 Digital HVAC Multimeter, CAT III 600V, -40°C to 400°C, 600μA

Features

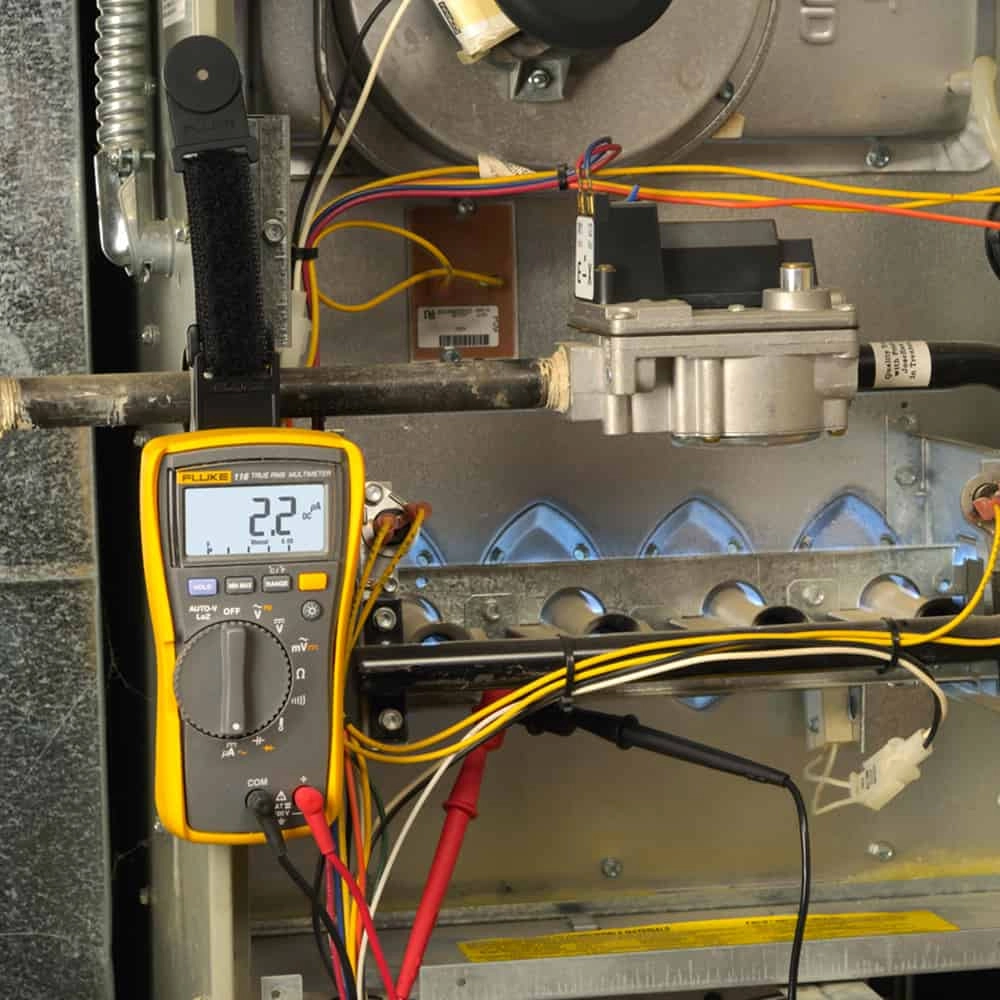

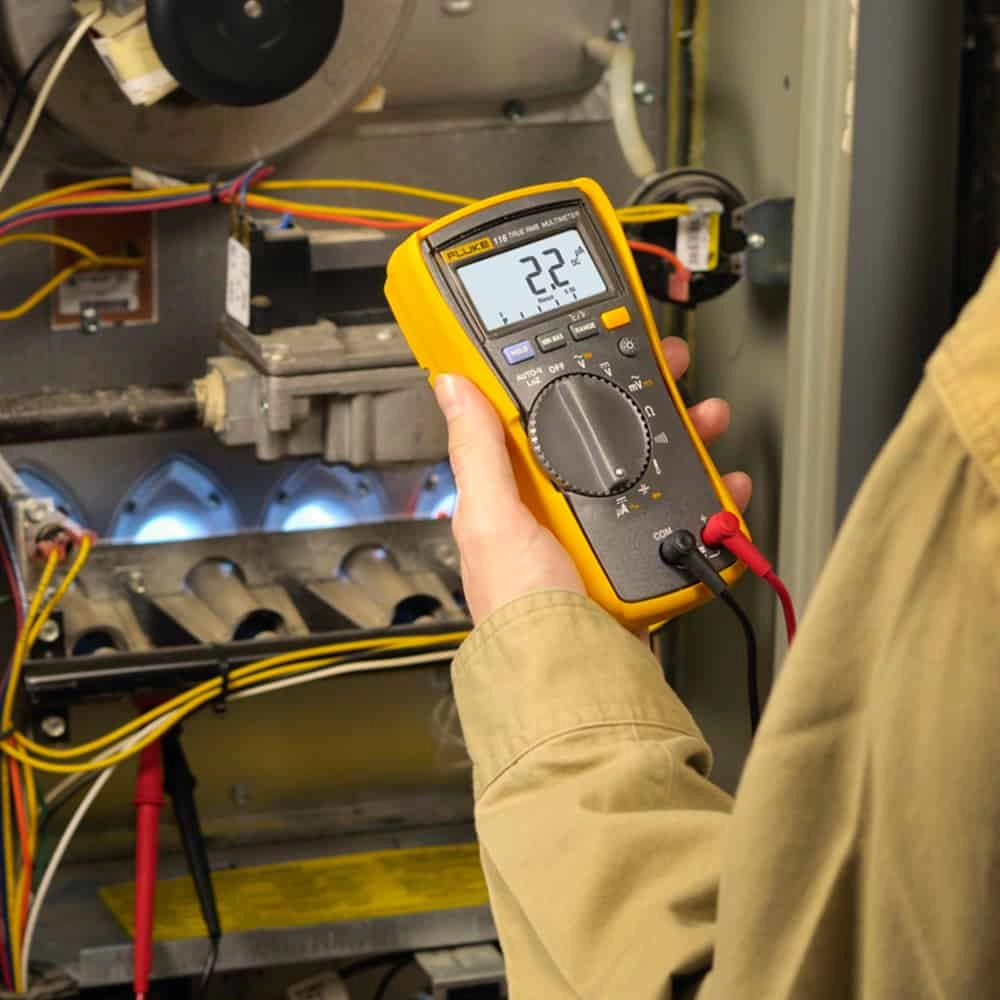

• Built-in thermometer for HVAC applications
• Microamps to test flame sensors
• Low input impedance: helps prevent false readings due to ghost voltage
• Large white LED backlight to work in poorly lit areas
• Measures resistance, continuity, frequency, and capacitance
• Provides Min/Max/Average to record signal fluctuations
• Features a compact ergonomic design for one-handed operation

Technical Information

• DC voltage600V
• AC voltage600V
• DC current600mA
• AC current600mA
• Resistance600Ω to 6MΩ
• Capacitance100nF to 1000 μF
• Frequency99.99Hz to 50 kHz
• Temperature-40°C to 400°C
• Safety Rating6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• DisplayDigital: 6,000 counts, updates 4 per second
• Operating temperature-10°C to + 50°C
• Storage temperature-40°C to + 60°C
• Battery type9 volt Alkaline, NEDA 1604A/ IEC 6LR61
• Battery life400 hours typical, without backlight
• Accuracy SpecificationsDC millivolts; Range/resolution; 600.0 mV / 0.1 mV
• Accuracy; ±([% of reading] + [counts])0.5% + 2
• Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

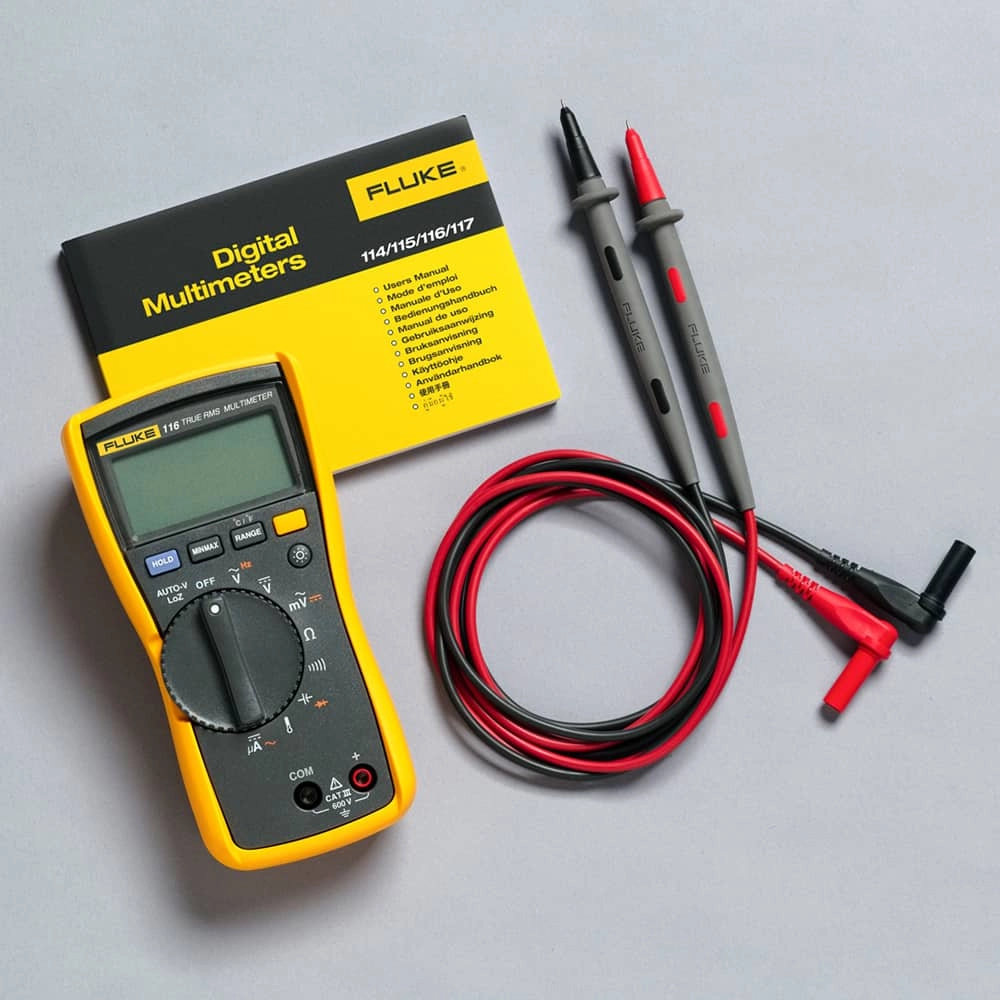

Items Included

• 4 mm silicone test lead set
• 80BK Integrated Temperature probe
• Holster
• Installed 9 V battery
• User manual

Downloads

Datasheet
