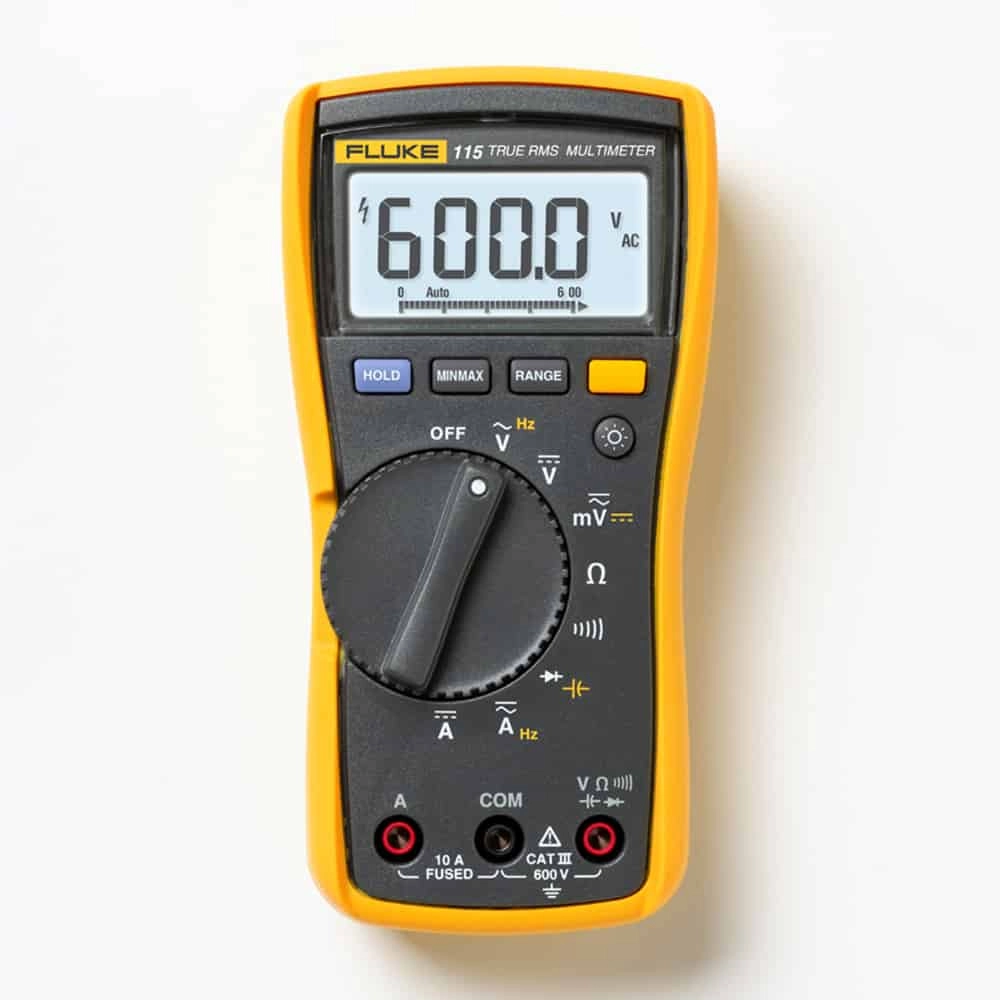

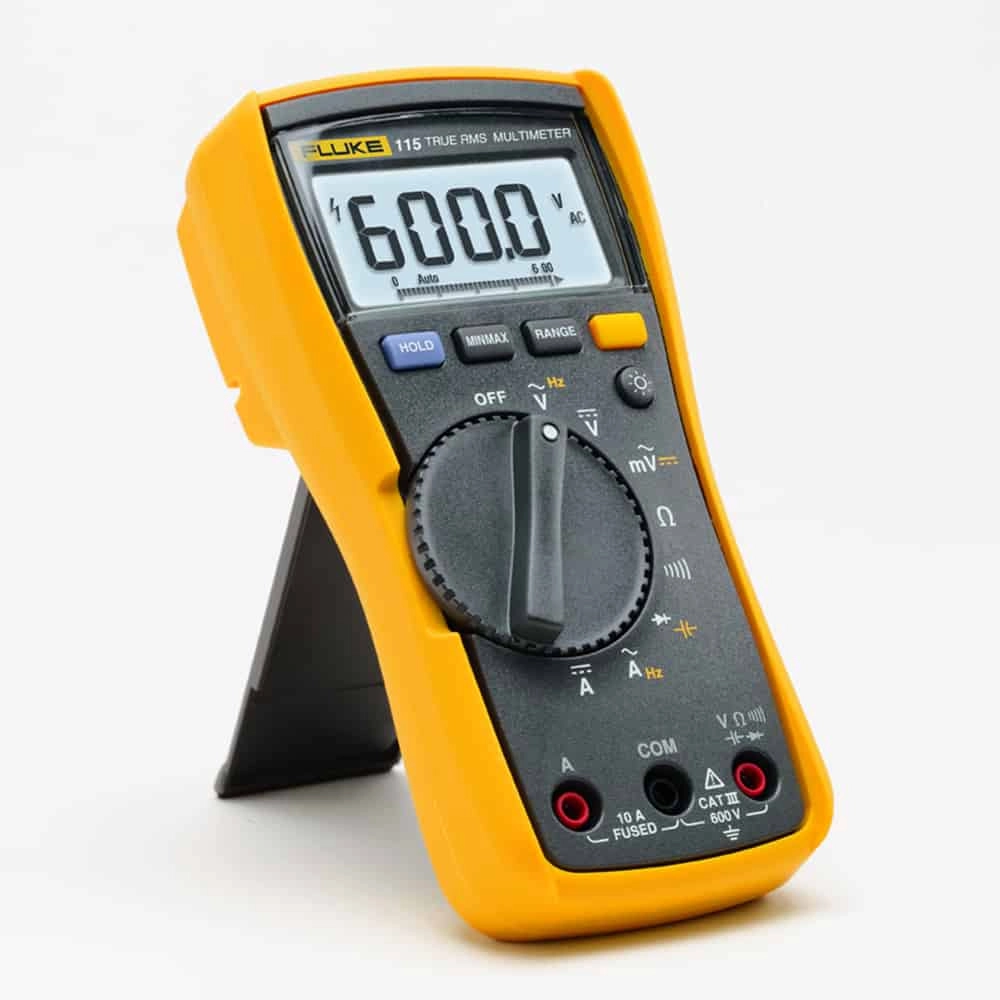

Fluke 115 True RMS Digital Multimeter, CAT III 600V, 10A

Features

• True RMS technology - ensures measurements remain as accurate as possible at all times
• Basic accuracy of 0.07%
• 6000 count digital display
• AC/DC voltage measurements to 600V

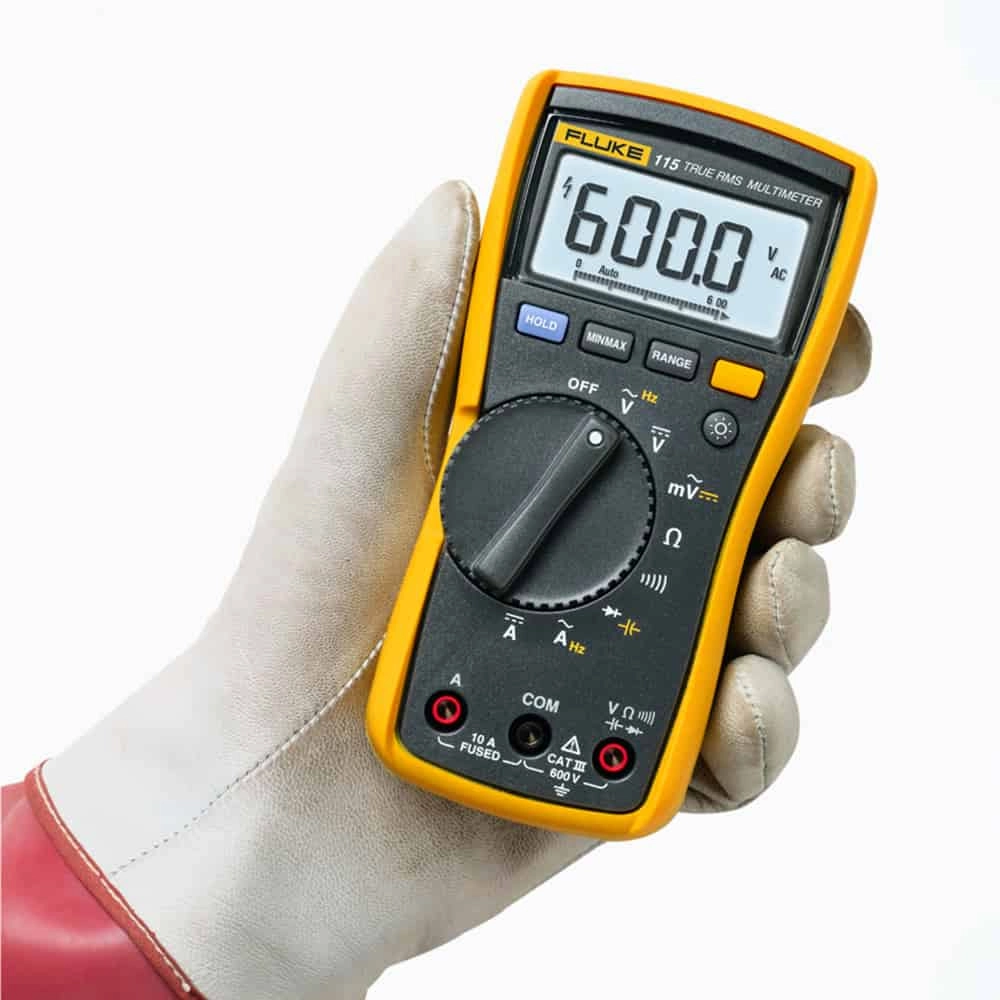

• The 115 digital multimeter offers the users one-handed operation and a backlit display
• The large, easy-to-read digits offer a 6000-count resolution.

Technical Information

• DC voltage600V
• AC voltage600V
• DC current10A
• AC current10A
• Resistance600Ω to 6MΩ
• Capacitance100nF to 1000 μF
• Frequency99.99Hz to 50 kHz
• Safety Rating6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2
• DisplayDigital: 6,000 counts, updates 4 per second
• Operating temperature-10°C to + 50°C
• Battery type9 volt Alkaline, NEDA 1604A/ IEC 6LR61
• Battery life400 hours typical, without backlight
• Accuracy SpecificationsDC millivolts; Range/resolution; 600.0 mV / 0.1 mV
• ContinuityRange/resolution; 600 / 1
• Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Accuracy; ± ([% of reading] + [counts])0.5% + 2

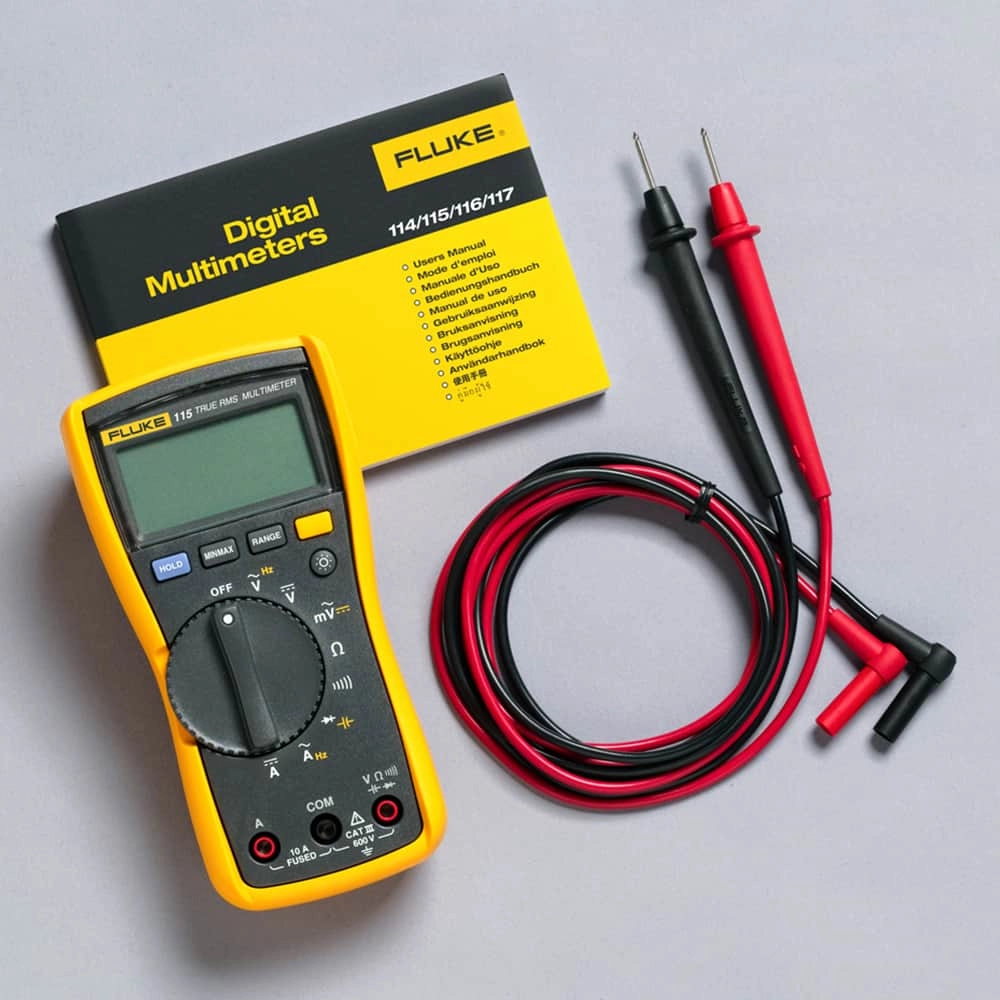

Items Included

• Holster
• Installed 9 V battery
• 4 mm silicone test lead sets
• User manual

Downloads

Datasheet
