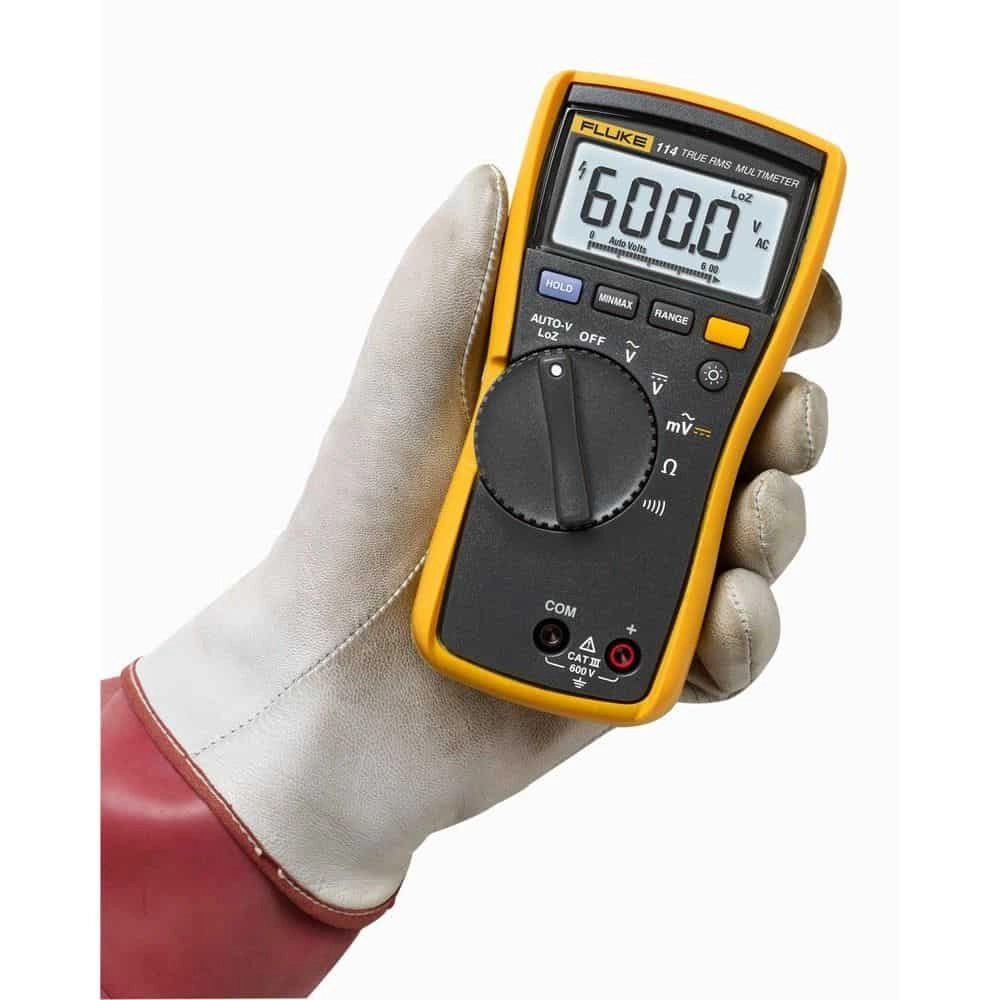

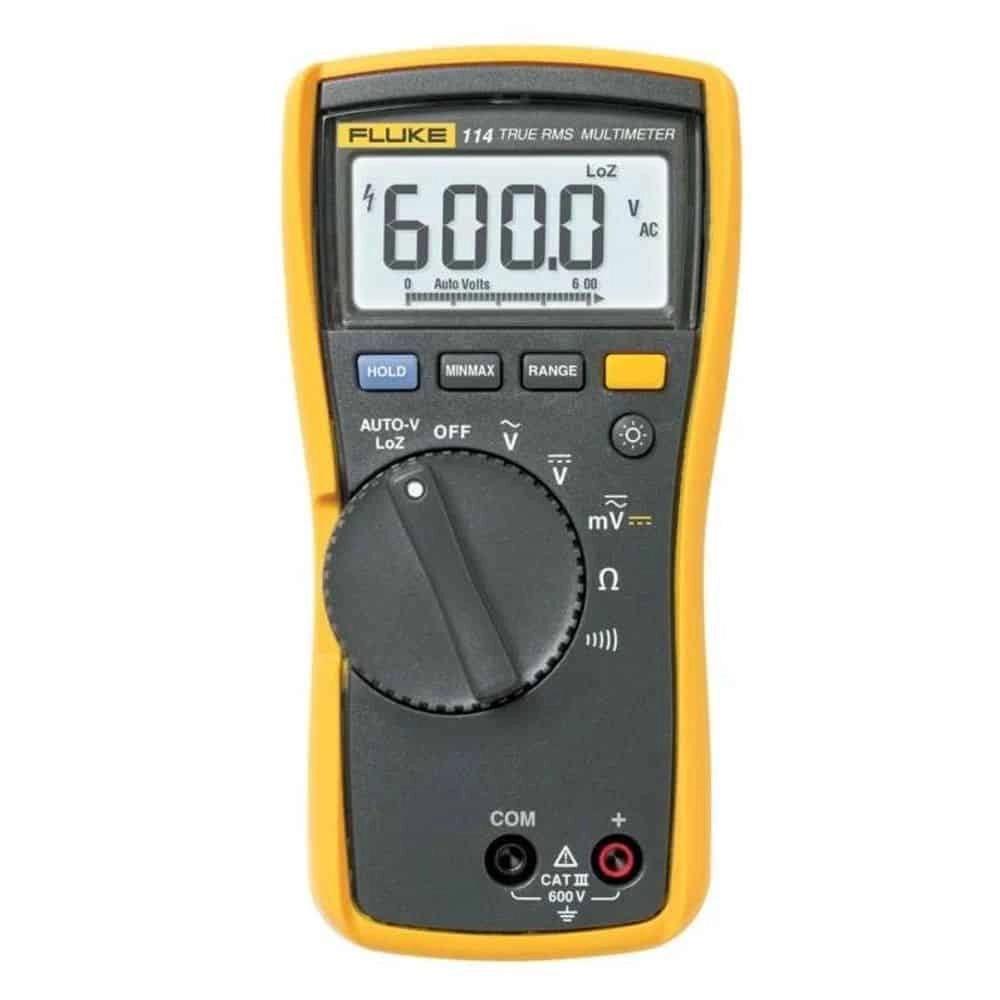

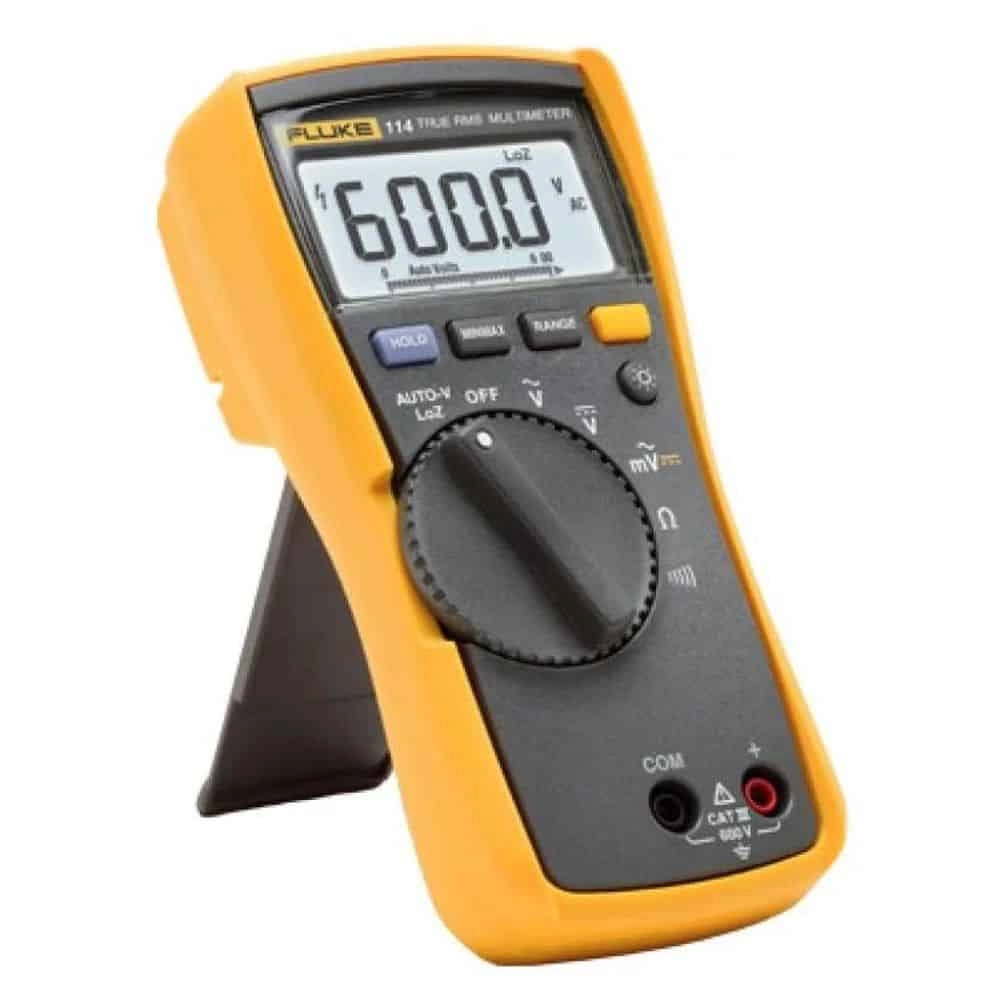

Fluke 114 True RMS Digital Multimeter With Autovolt, CAT III 600 V

Features

• AutoVolt: automatic ac/dc voltage selection
• Large white LED backlight to work in poorly lit areas
• Resistance and continuity
• Min/Max/Average to record signal fluctuations
• Features a compact ergonomic design for one-handed operation
• Features manual and automatic ranging
• Comes with an holster with probe holders for easy storage

Technical Information

• DC voltage600V
• AC voltage600V
• Resistance600Ω to 6MΩ
• DisplayDigital: 6,000 counts, updates 4 per second
• Safety Rating6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2
• Operating temperature-10°C to + 50°C
• Storage temperature-40°C to + 60°C
• Battery type9 volt Alkaline, NEDA 1604A / IEC 6LR61
• Battery life400 hours typical, without backlight
• DC millivoltsRange/resolution; 600.0 mV / 0.1 mV
• Size167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)
• Accuracy ;± ([% of reading] + [counts])0.5% + 2

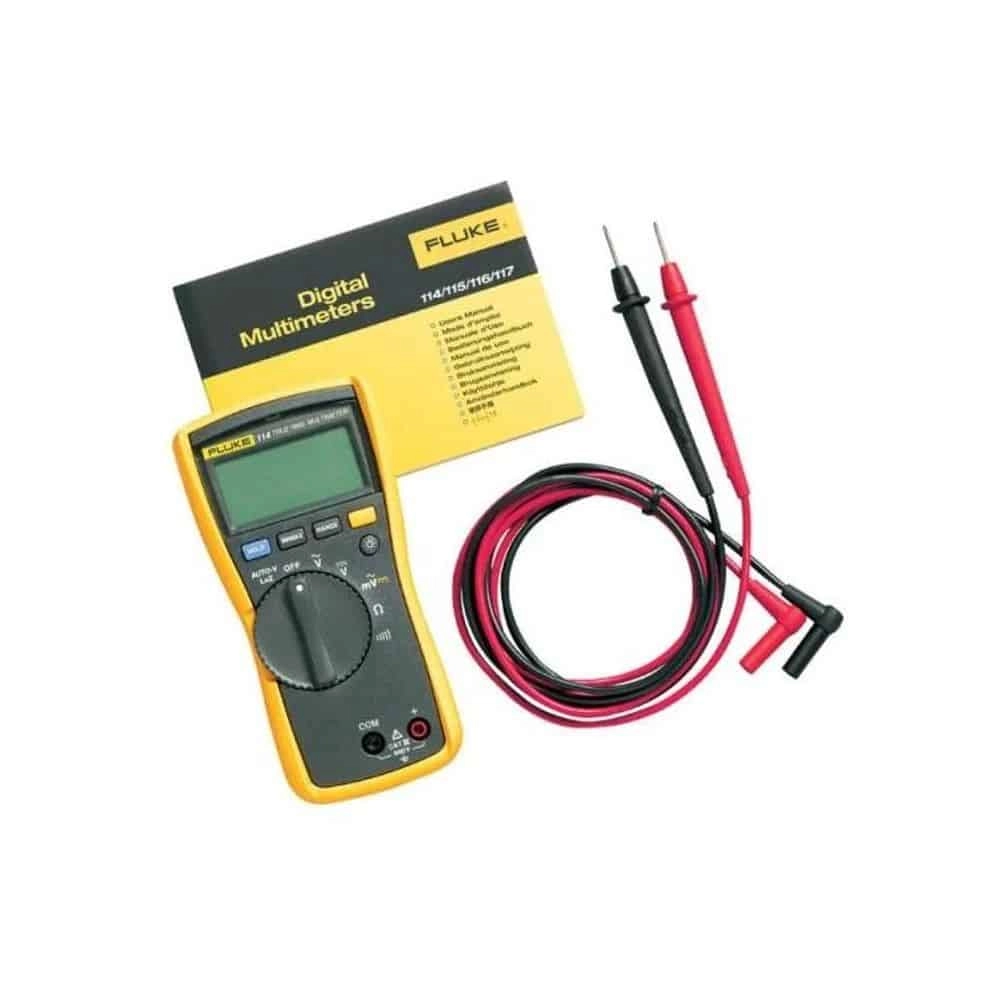

Items Included

• Holster
• Installed 9 V battery
• Test leads
• User manual

Downloads

Datasheet
