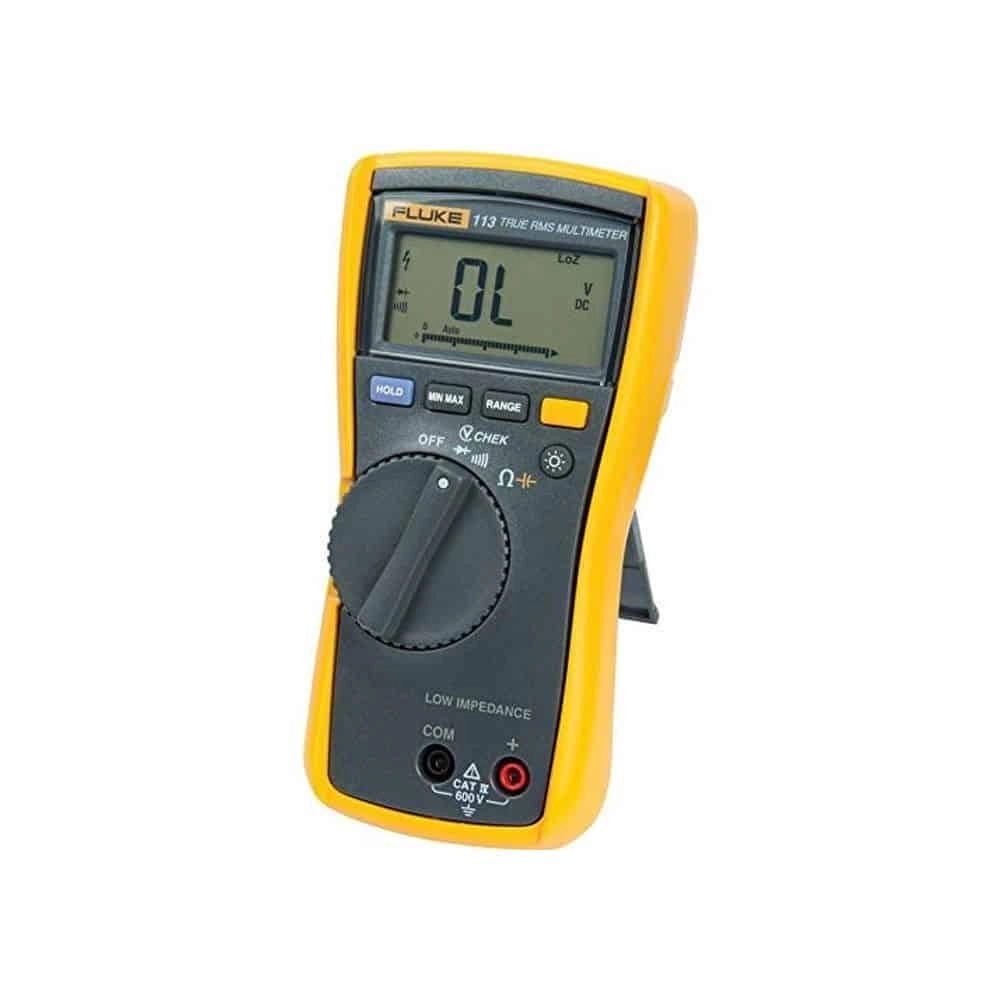

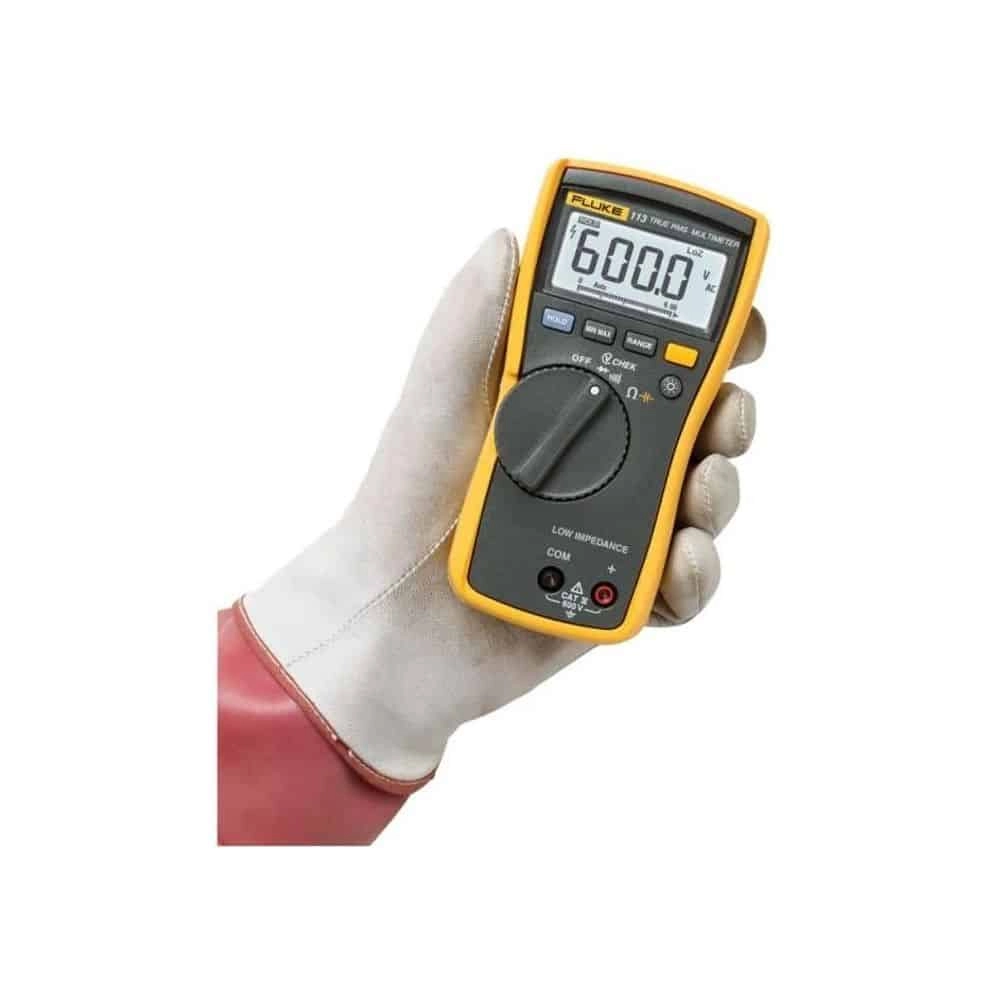

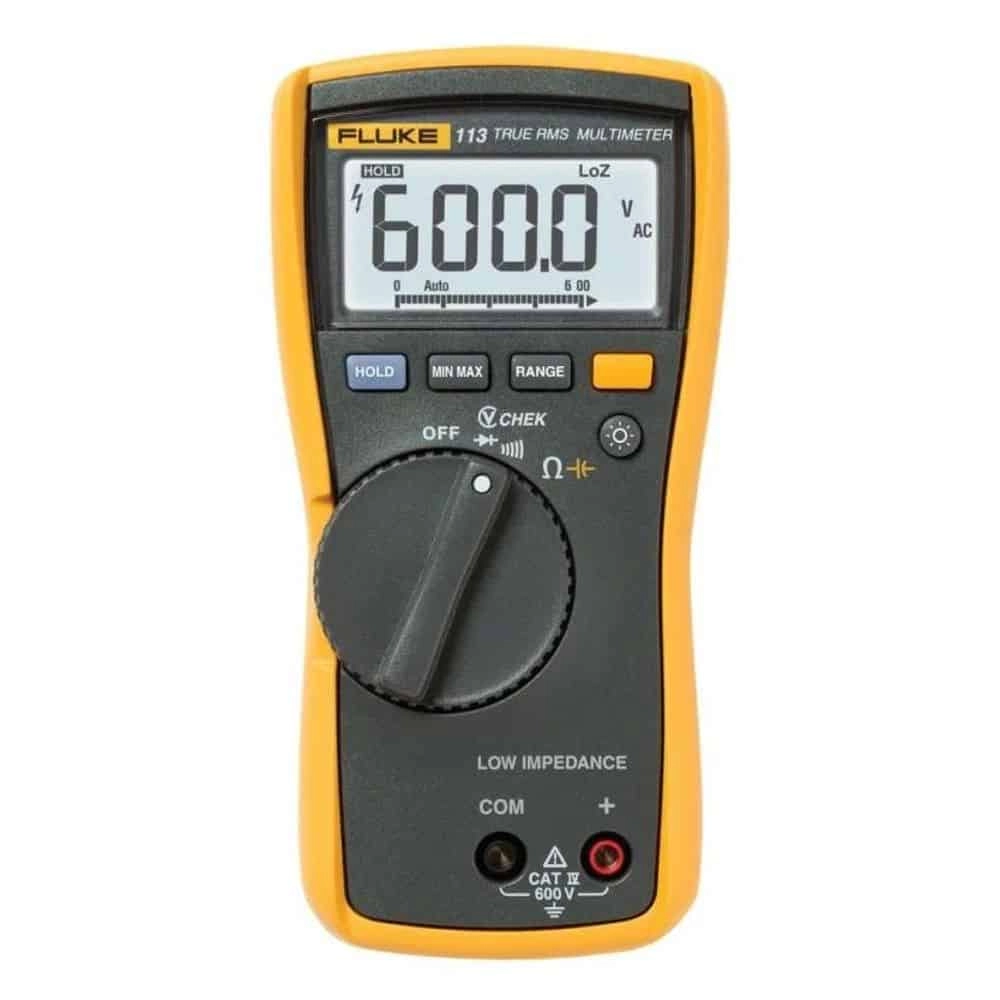

Fluke 113 True RMS Multimeter With Vchek, CAT III 600V, 20A

Features

• VCHEK™ LoZ low impedance measurement function to simultaneously test for voltage or continuity*
• True RMS for accurate AC measurements on non-linear loads
• A large backlit display allows for easy visibility in low-lit areas
• Record signal fluctuations using the Min/Max function

Technical Information

• DC Voltage1000V
• AC Voltage750V
• DC Current20A
• AC Current20A
• Resistance0.1Ω to 40MΩ
• Capacitance0.01nF to 100µF
• Frequency0.001Hz to 10MHz
• Temperature-20 to 750°C
• Display3 3/4-digits, 6000 counts, updates 4/sec
• Duty Cycle0.1% to 99.9%
• Safety RatingCAT III 600V
• Operating temperature-10°C to 50°C (14°F to 122°F)
• Storage temperature-40°C to 60°C (-22°F to 140°F)
• Temperature coefficient0.1 x (specified accuracy) / °C (< 18°C or > 28°C)
• Operating altitude2,000 m
• Storage altitude10,000 m
• Relative humidity95% to 30°C
• Size (H x W x L)167.1 x 85.1 x 46.0 mm (6.58 x 3.35 x 1.81 in)

Items Included

• Fluke TL75 test leads
• Holster
• Users manual
• 9 V battery (installed)

Downloads

Datasheet
