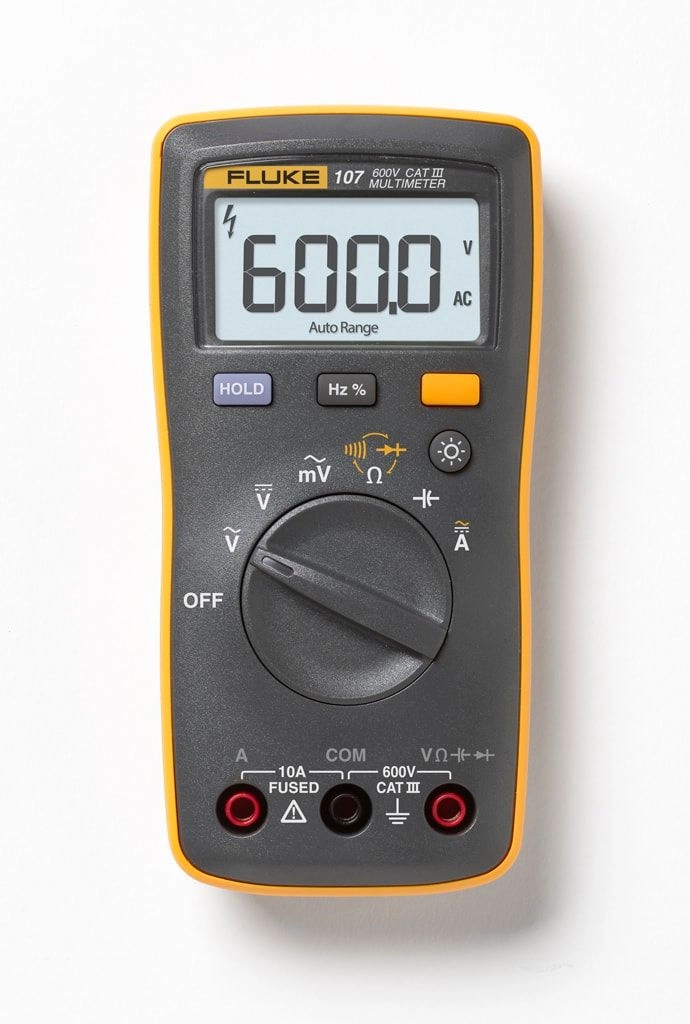

Fluke 107 Palm-Sized Digital Multimeter, Cat III 600V, 10A

Features

• Enabled with current and voltage measurement functions, in a compact size
• Measures resistance & continuity to check for broken wires
• Data hold & backlit display to keep you working safe and fast
• The Fluke 107 is a compact, palm size easy-to-use digital multimeter made to fit the way you work. It is the perfect first-pass troubleshooting tool
• With a CAT III 600 V safety rating, you don’t need to compromise safety. The Fluke 107 offers a comfortable grip, weighs only 200 g, and is easy to carry.

Technical Information

• DC Voltage600V
• AC Voltage600V
• DC Current10A
• AC Current10A
• Resistance400Ω to 40MΩ
• Capacitance50nF - 1000μF
• Frequency50Hz to 100 kHz
• Display (LCD)6000 counts, updates 3/sec
• Battery Type2 AAA, NEDA 24A, IEC LR03
• Battery Life200 hours minimum
• Operating Temperature0 °C to 40 °C
• Storage Temperature-30 °C to 60 °C
• Temperature Coefficient0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
• Size (HxWxL)142 mm x 69 mm x 28mm
• Weight200g
• Safety RatingIEC 61010-1: 600 V CAT III, pollution degree 2

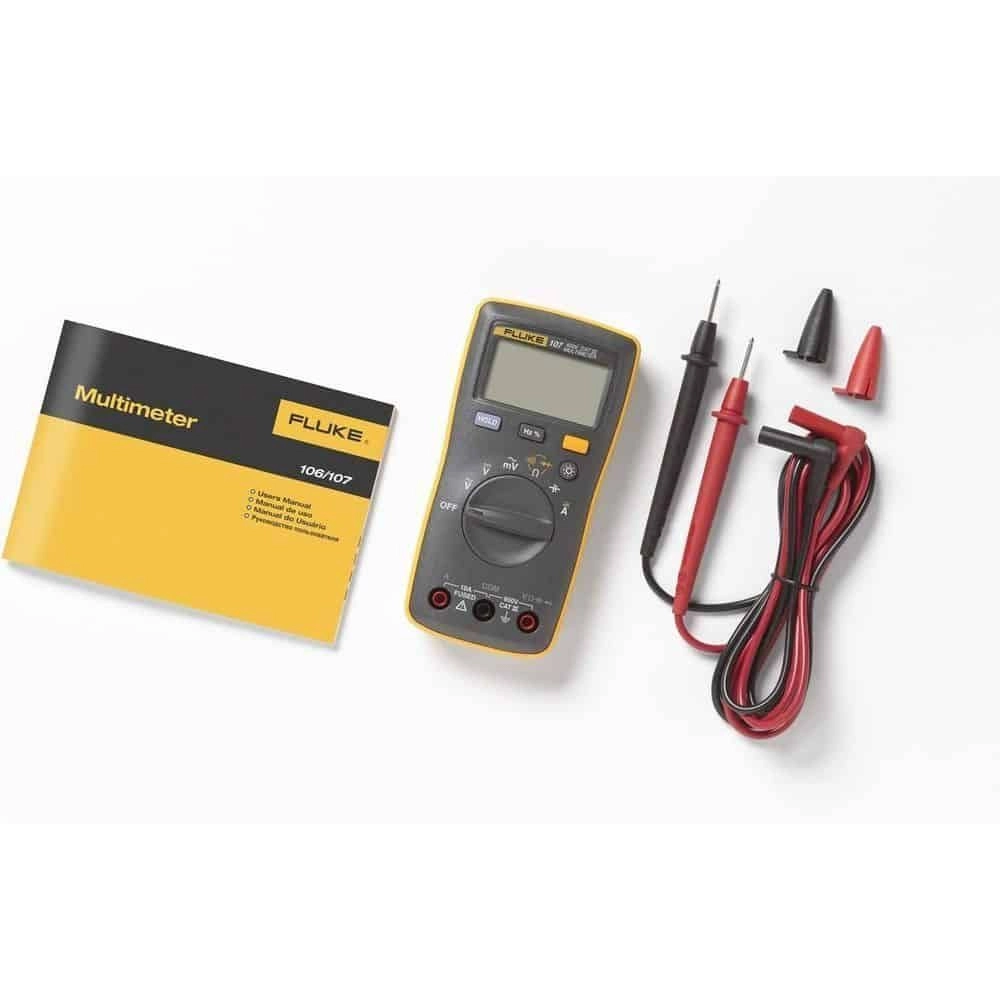

Items Included

• Fluke 107 Palm-sized Digital Multimeter with Frequency
• Diode Test
• Tl75 Hard Poin Test Lead Set
• 2 AAA Batteries (Installed)
• User’s Manual

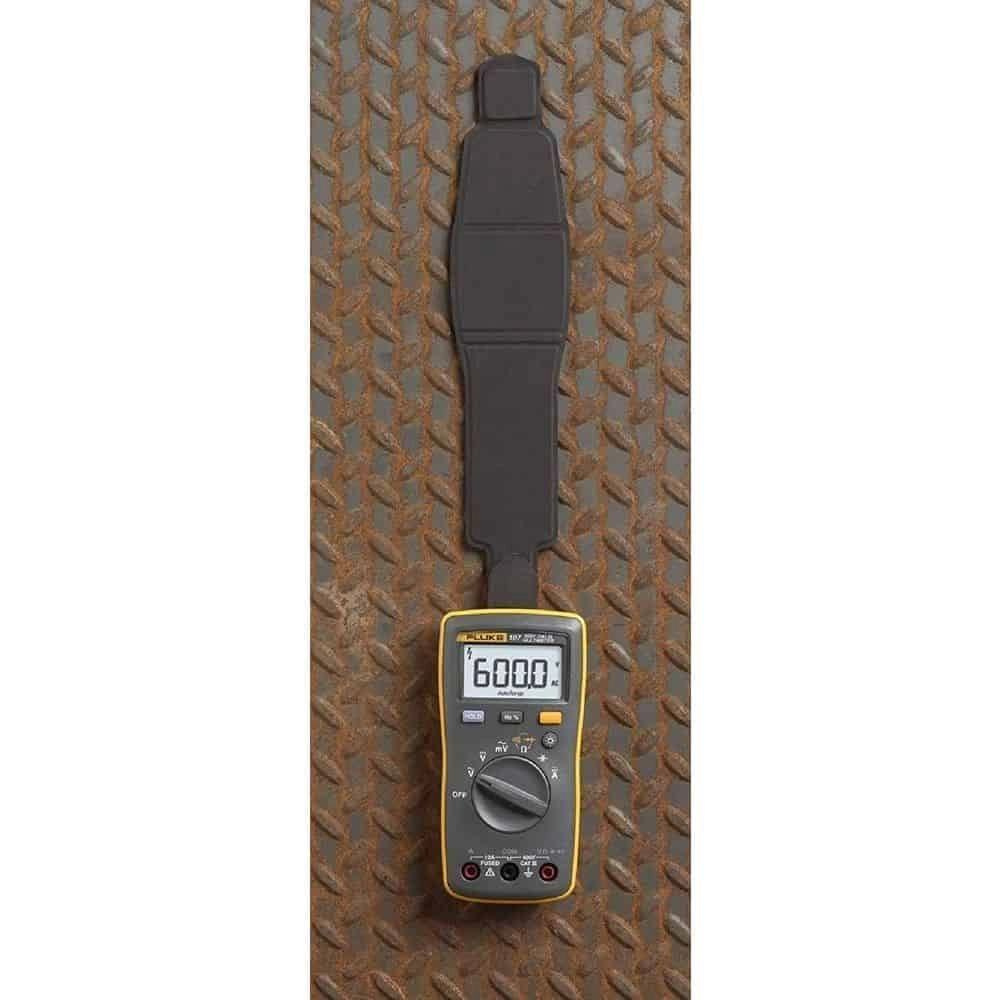

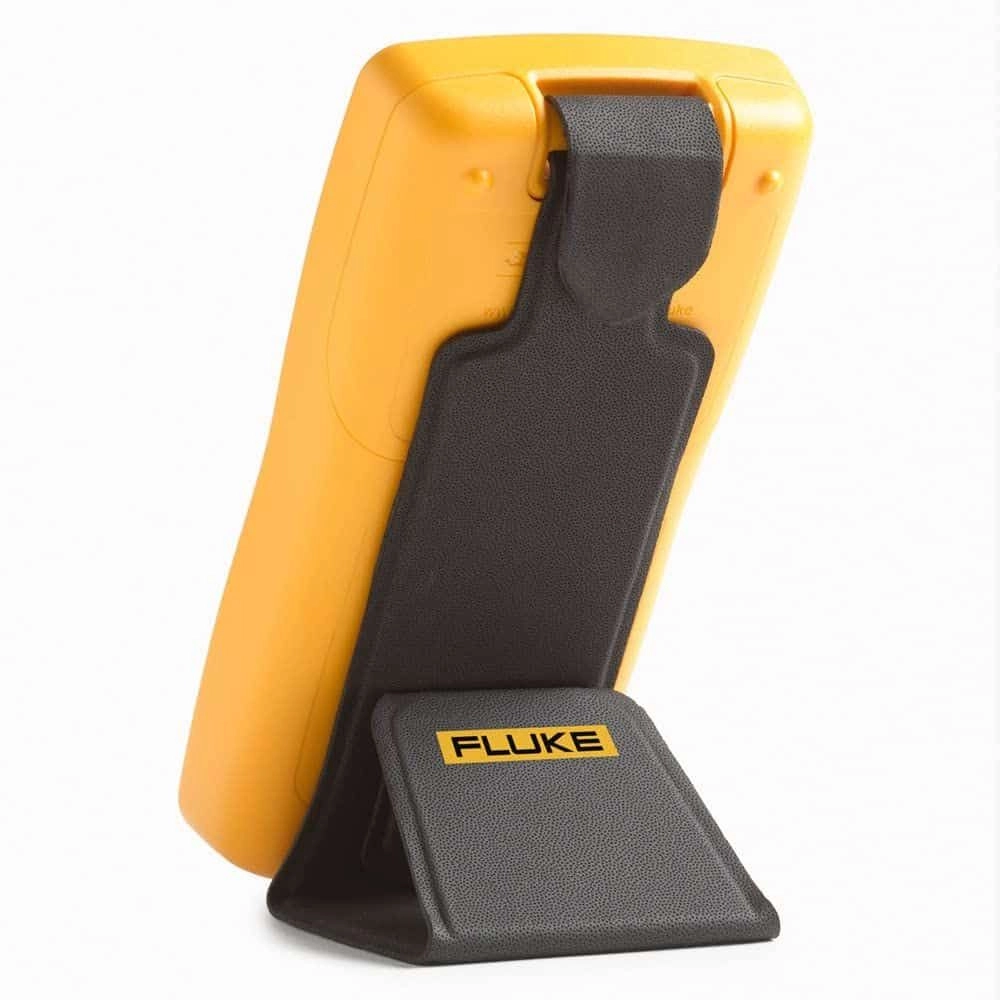

• Smart Strap

Downloads

Datasheet
