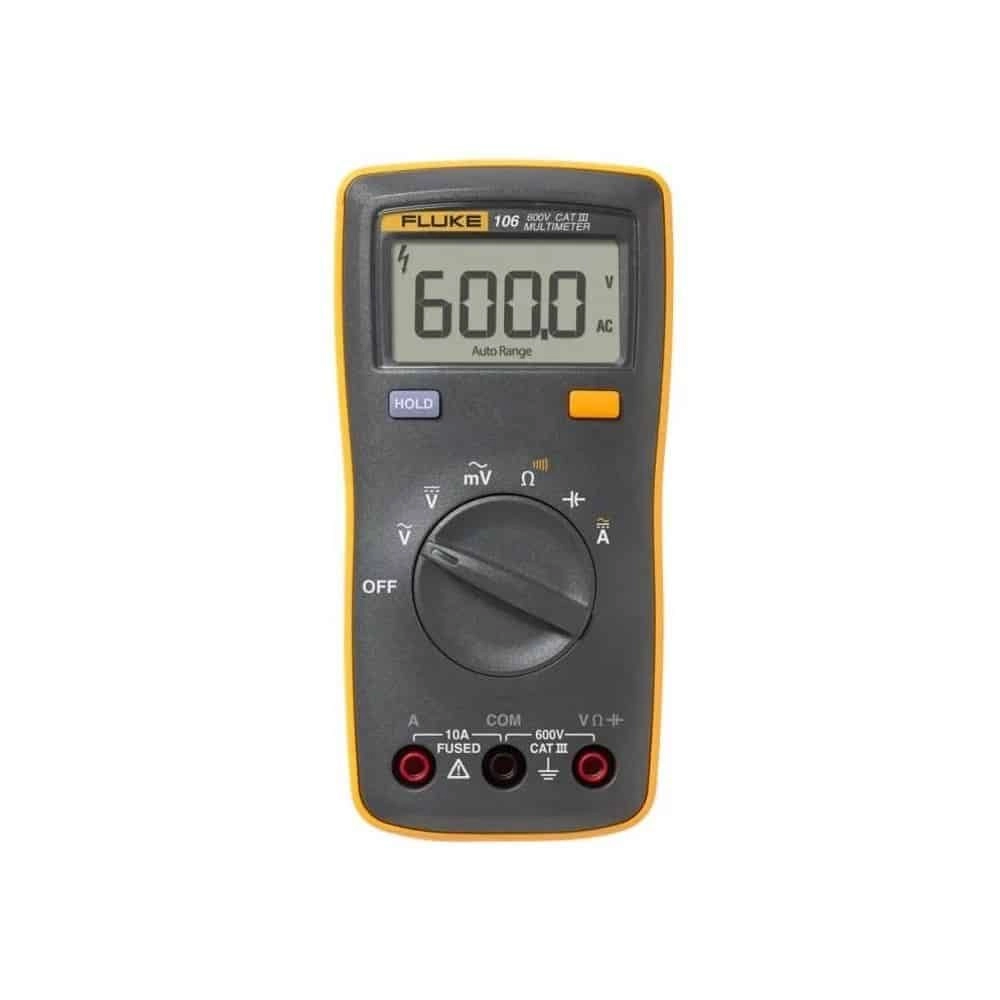

Fluke 106 Palm-Sized Digital Multimeter, CAT III 600V, 10A

Features

• Voltage, resistance, continuity, capacitance
• Input terminal for ac and dc current measurements to 10 A and current
• Data hold

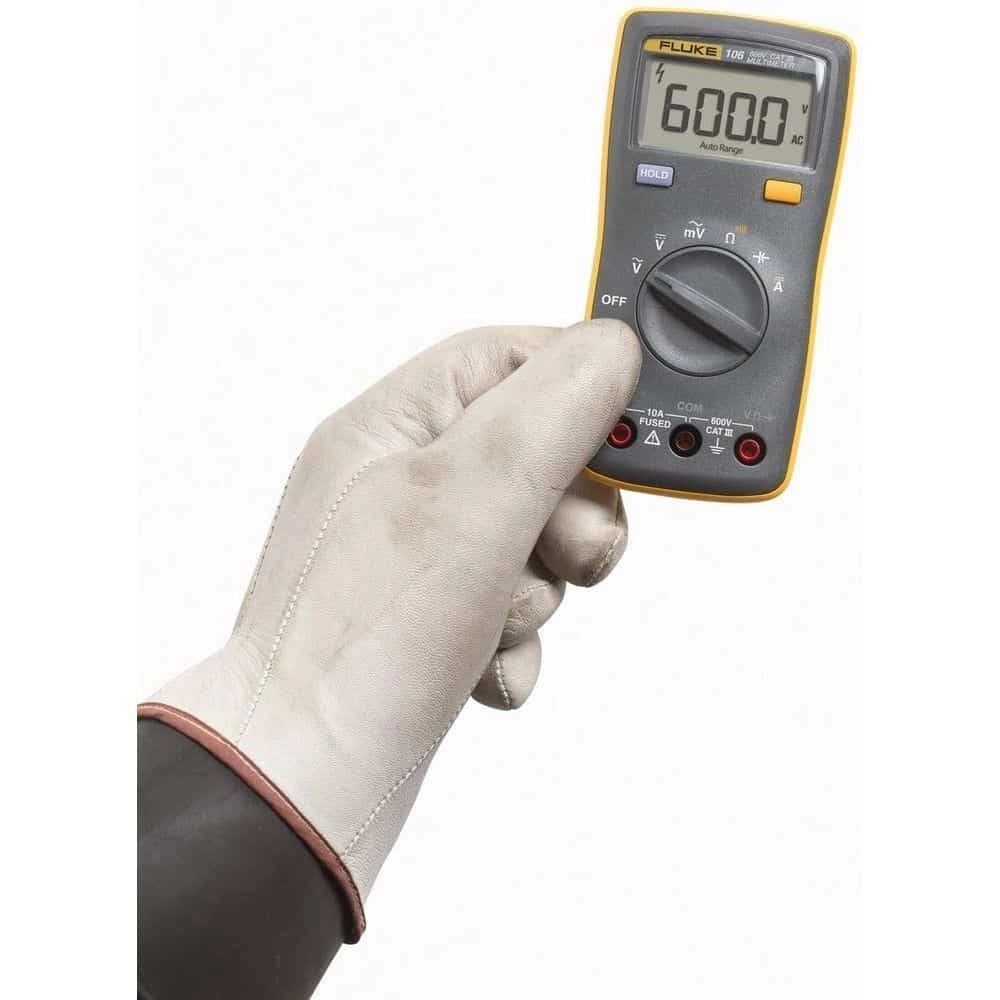

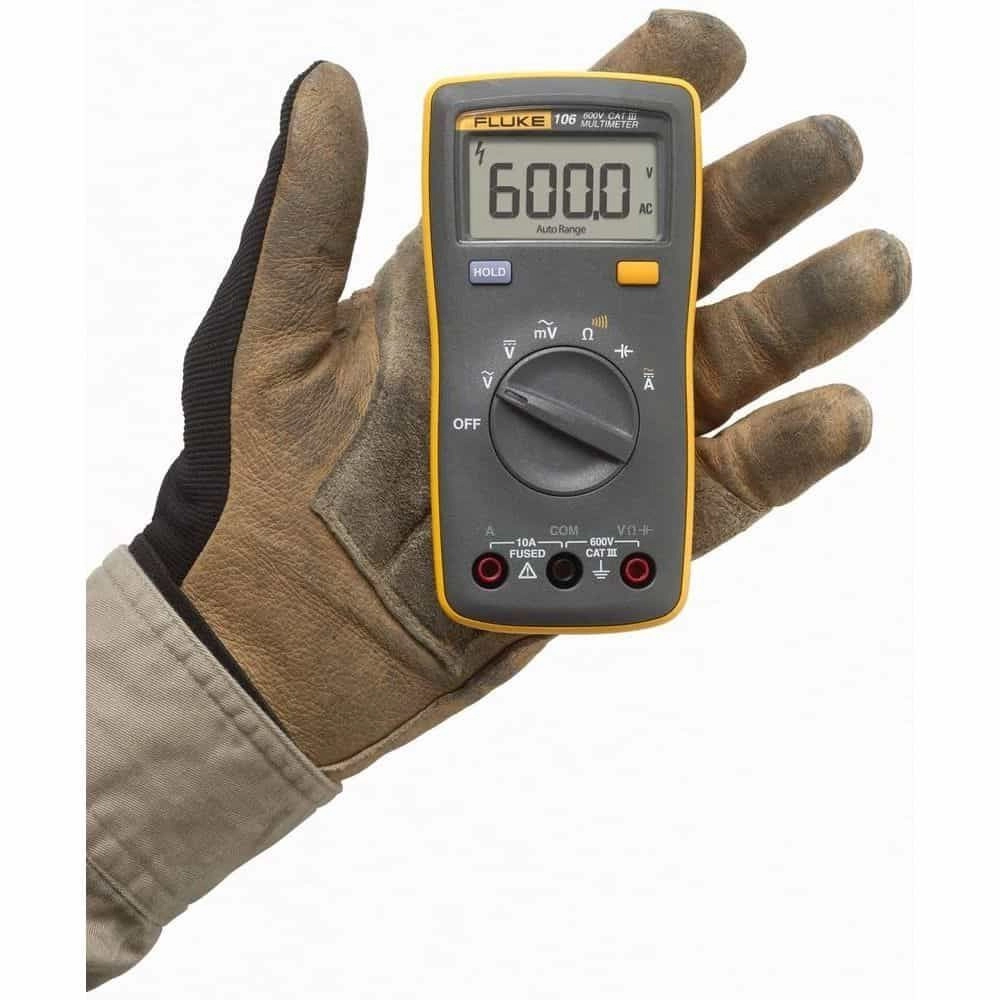

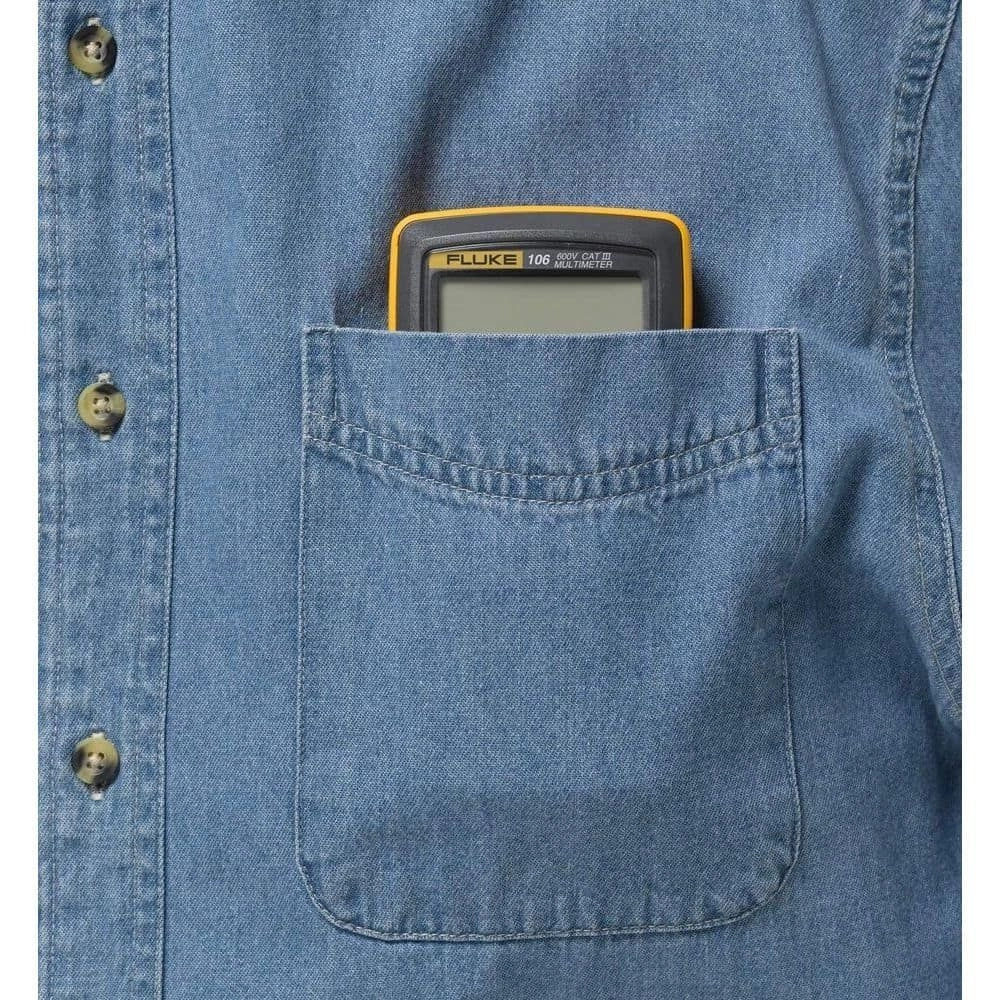

• The Fluke 106 digital multimeter is made to fit the way you work! It is designed to fit in the palm of your hand and go with you no matter where your job takes you.

Technical Information

• DC Voltage600V
• AC Voltage600V
• DC Current10A
• Resistance400Ω to 40MΩ
• Capacitance50nF - 1000μF
• Display (LCD)6000 counts, update 3/sec
• Battery Type2 AAA, NEDA 24A, IEC LR03
• Battery Life200 hours minimum
• Operating Temperature0°C to 40 °C
• Storage Temperature-30°C to 60°C
• Temperature Coefficient0.1 X (specified accuracy) /°C (<18 °C or >28 °C) :Size (HxWxL): 142 mm x 69 mm x 28mm
• Relative Humidity90 % at 10°C to 30°C; 75 % at 30°C to 40°C
• Temperature Coefficient0.1 X (specified accuracy) /°C (<18 °C or >28 °C)
• Size (HxWxL)142 mm x 69 mm x 28mm
• IP RatingIEC 60529: IP 40
• Weight200g

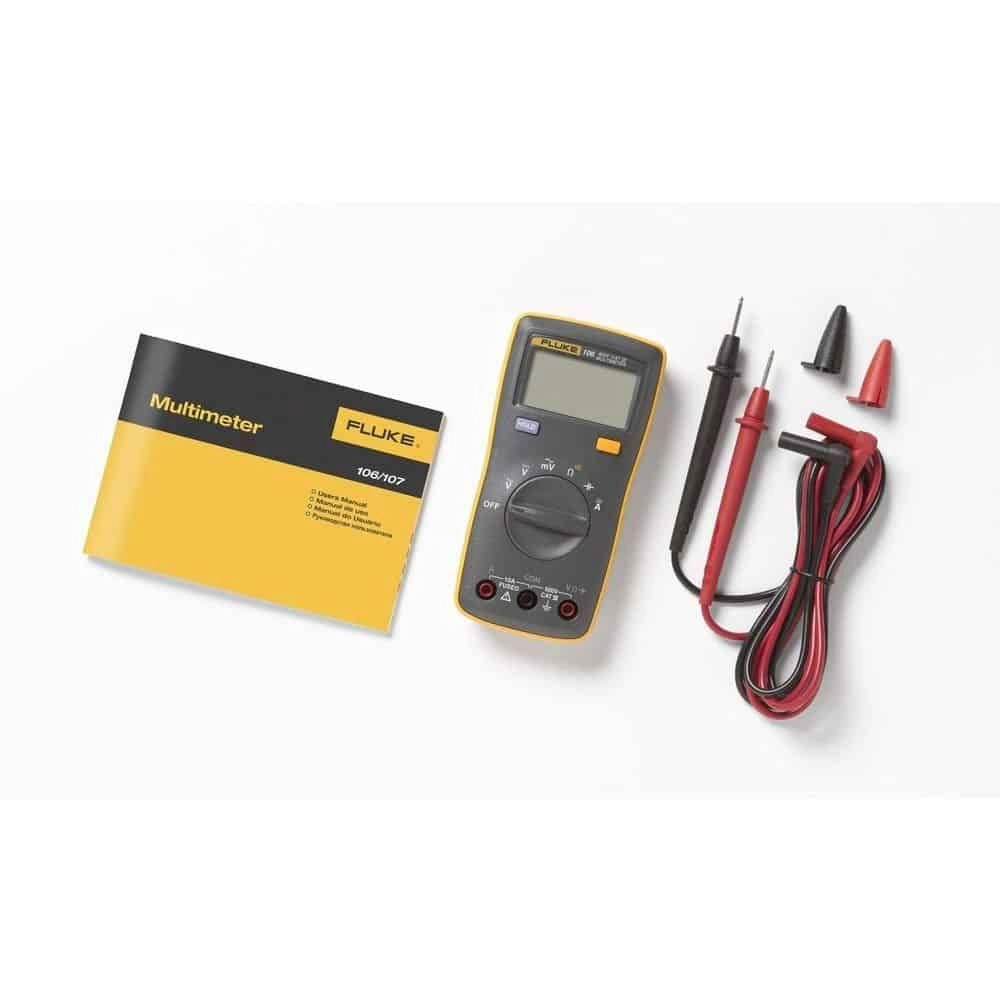

Items Included

• Fluke 106 Palm-sized Digital Multimeter
• Tl75 Hard Point Test Lead Set
• 2 AAA Batteries (Installed)
• User’s Manual

Downloads

Datasheet
