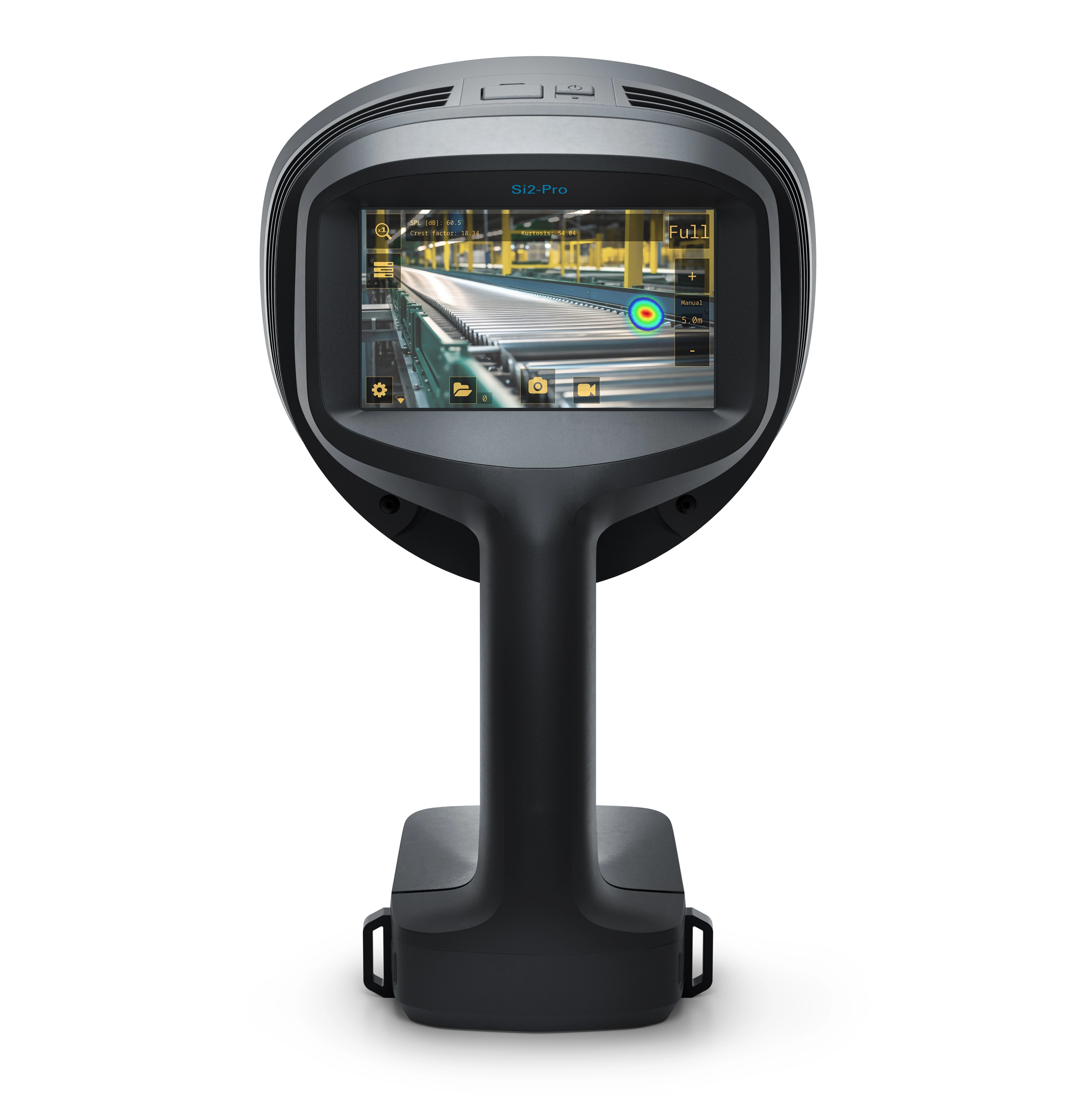

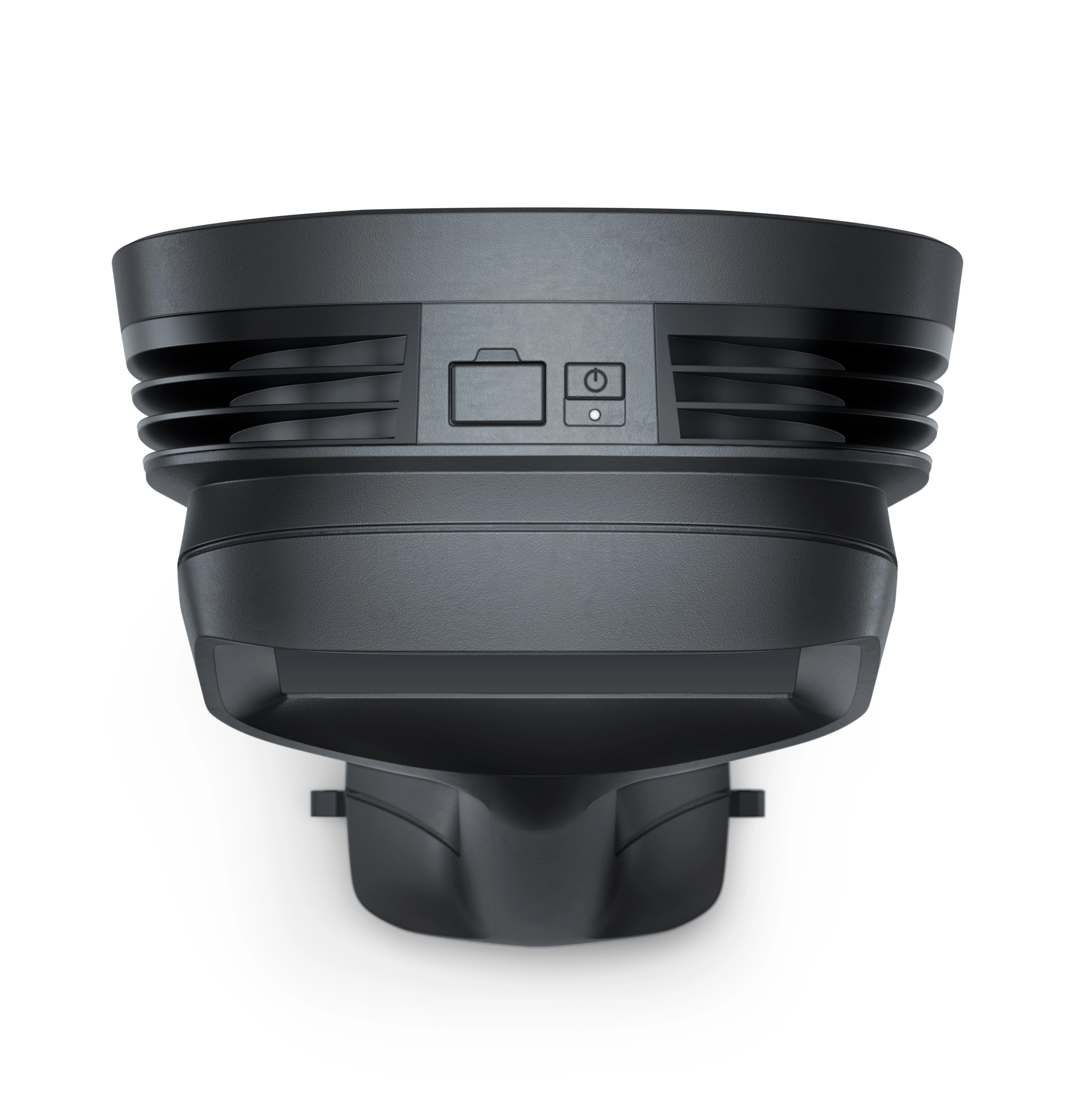

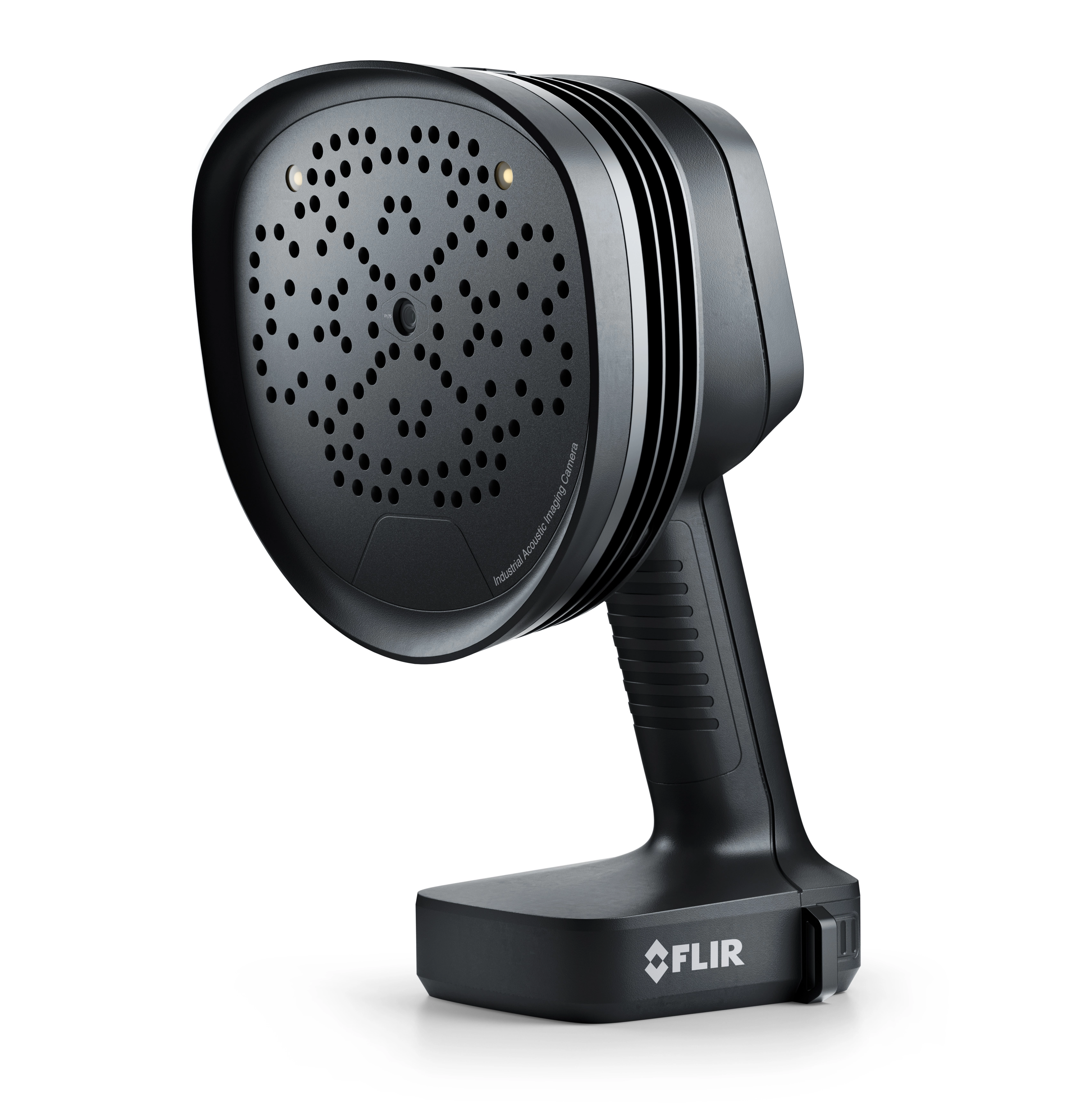

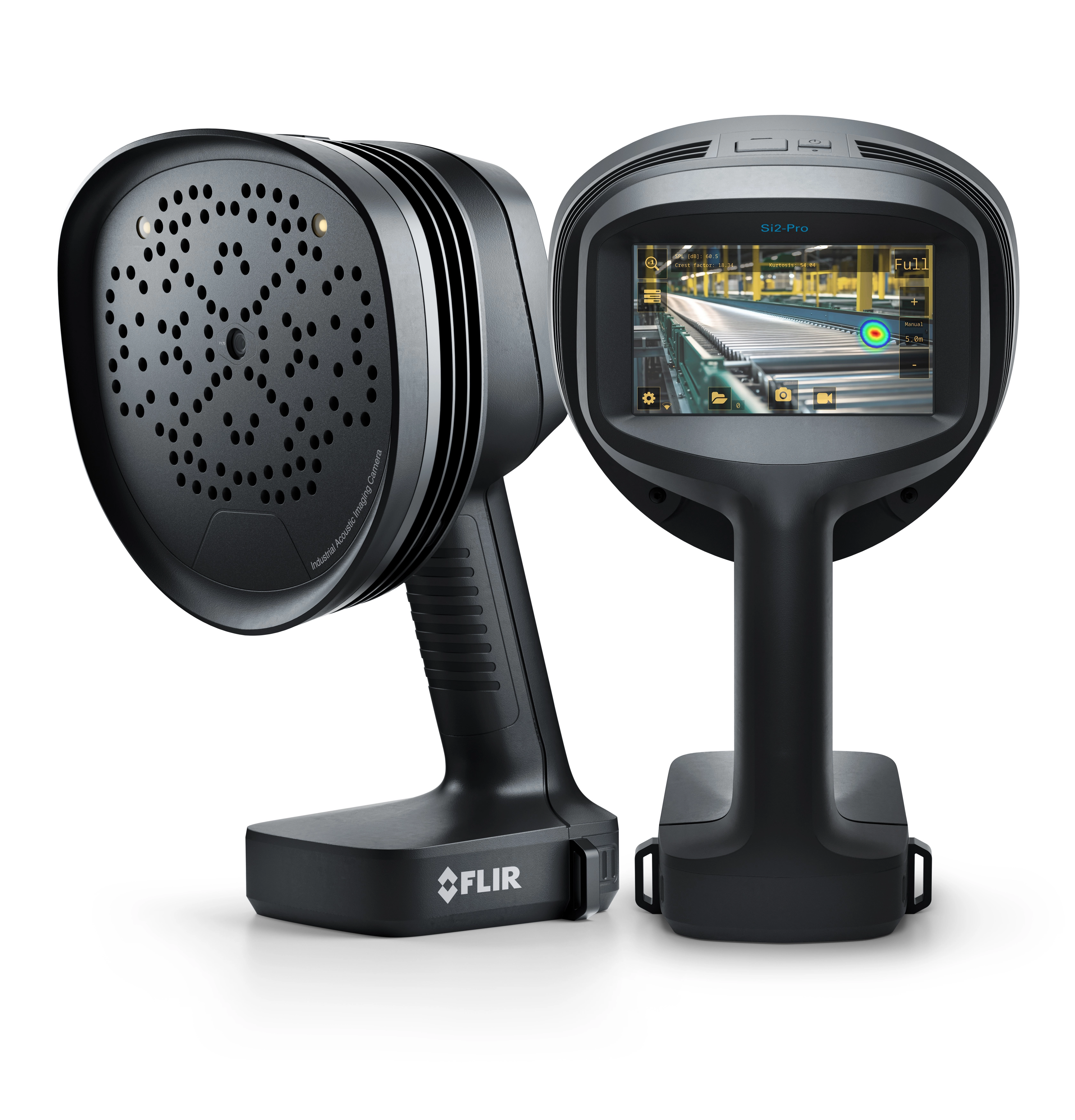

Flir Si2-Pro Industrial Acoustic Imaging Camera for Partial Discharge Detection, Pressurized Leak Detection and Mechanical Fault Detection

Features

• The FLIR Si2-Pro helps you significantly lower costs associated with mechanical bearing issues and partial discharge on electrical equipment.
• It also enables you to drastically reduce leaks in your facilities, cutting down expenses related to compressed air and gas leaks.
• With the Si2 series, you'll experience the best-in-class performance, decision support, fleet management, and enterprise data integration available.

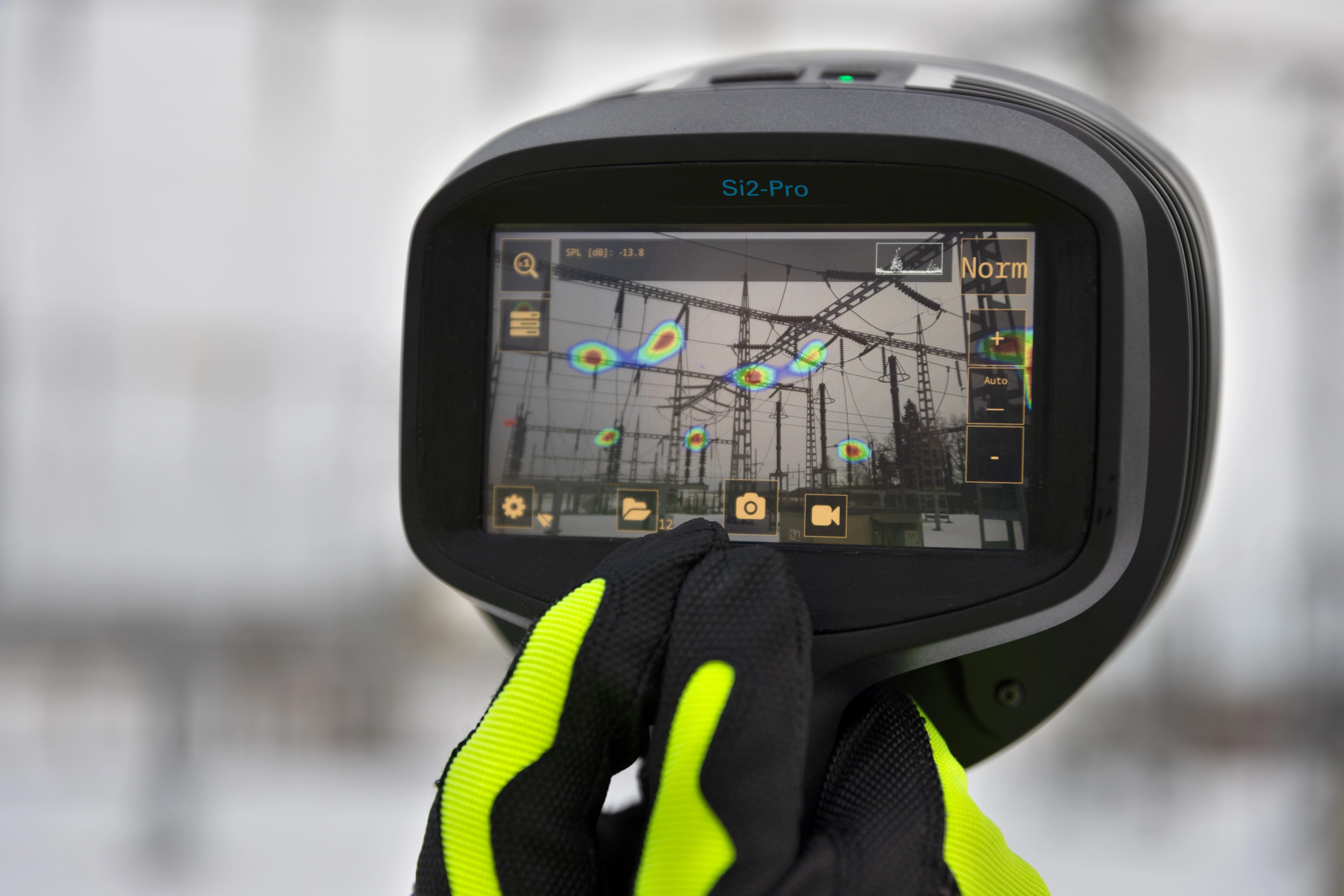

• ADVANCED LEAK DETECTION - Precisely detect, locate, and measure compressed air leaks, gas leaks, and partial discharges. Identify and quantify both minor and elusive issues from up to 200 m (656 ft) away—boosting operational efficiency and ensuring safety.
• BEARING FAULT ANALYSIS - Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing defects before they cause equipment failure.
• FLEET MANAGEMENT FUNCTIONALITY - Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.

Technical Information

• Severity AssessmentAutomatic AI-based severity assessment including recommended actions onboard camera
• DistanceFrom 0.3 m (1.0 ft) up to 200 m (656 ft)
• Leak Rate0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
• Wireless Data TransferWi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
• Camera software updateAutomatic Over The Air (OTA) wireless update or via USB connection
• Field of view (FOV)75° diagonal
• Video Frame RateCamera– 60 fps / Acoustic image– 30 fps / Screen– 70 fps
• Video Image Resolution1280 × 720
• Zoom8x Digital zoom
• Bandwidth2 kHz to 130 kHz
• DistanceFrom 0.3 m (1.0 ft) up to 200 m (656 ft)
• Leak Rate0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
• Severity AssessmentAutomatic AI-based severity assessment including recommended actions onboard camera
• DisplaySize– 5 in. 1280 × 720 Resistive touch screen, TFT LCD, MIPI DSI
• BatteryLi-Ion rechargeable battery pack (RRC 2054)–14.4 V DC, 3.45 Ah, 49.68 Wh; Max output– 16.8 V DC, 5 A
• Battery ChargerInput– 19-26 V DC, 2.8 A; Max output– 17.4 V DC, 4.8 A
• Battery weight~ 0.25 kg
• Nominal Input VoltageNominal input voltage– 12 V DC; Max input– 17 V DC , 3.3 A (limited)
• Operating And Storage Humidity0-90% recommended
• Operating Temperature Range–10°C to 50°C (14°F to 122°F)
• Protection ClassIP54
• Storage Temperature Range–20°C to 70°C ( –4°F to 158°F)
• Battery Size85 mm × 77 mm (RRC2504)
• WorklightsLEDs, three modes off, normal and bright
