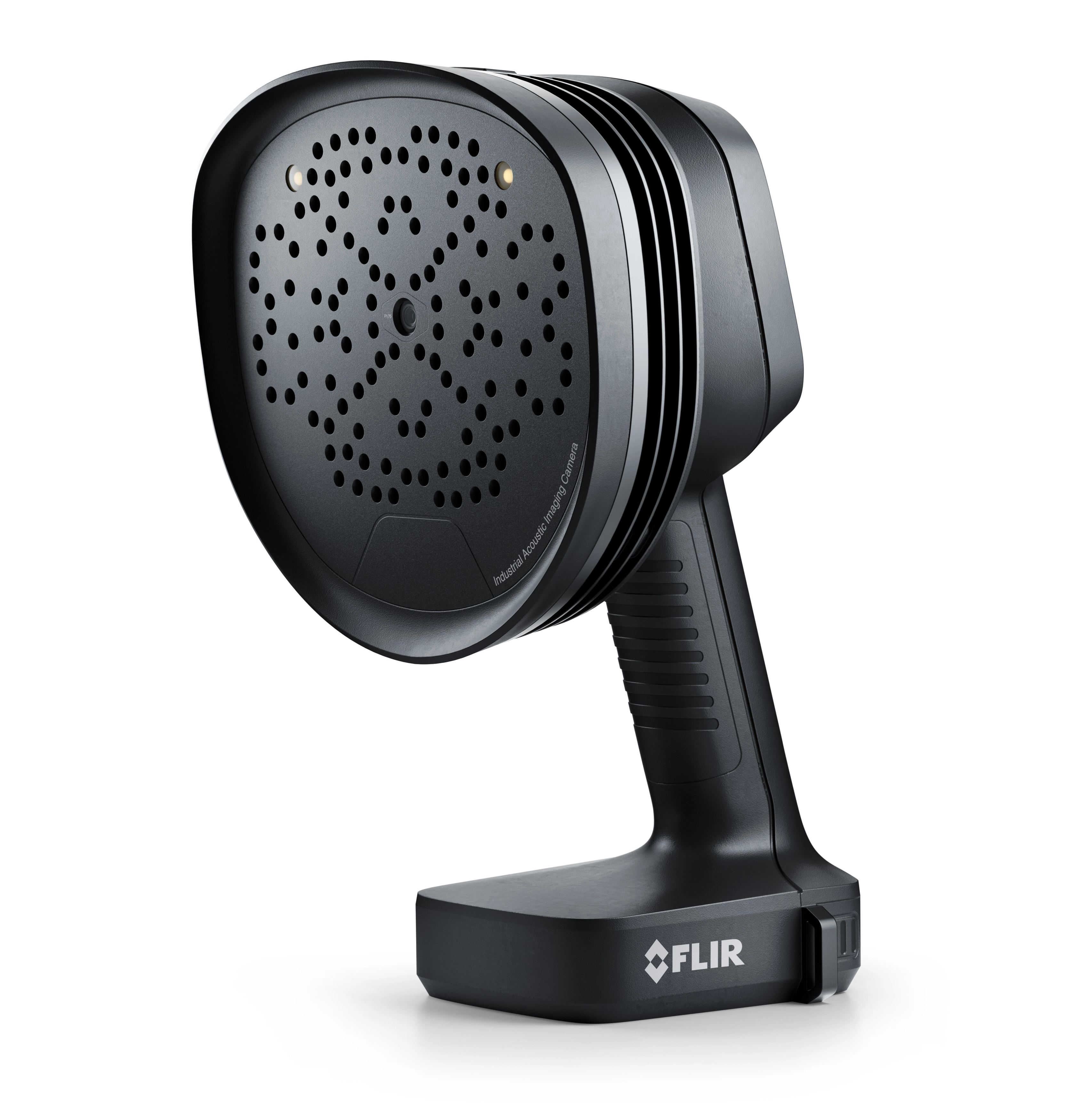

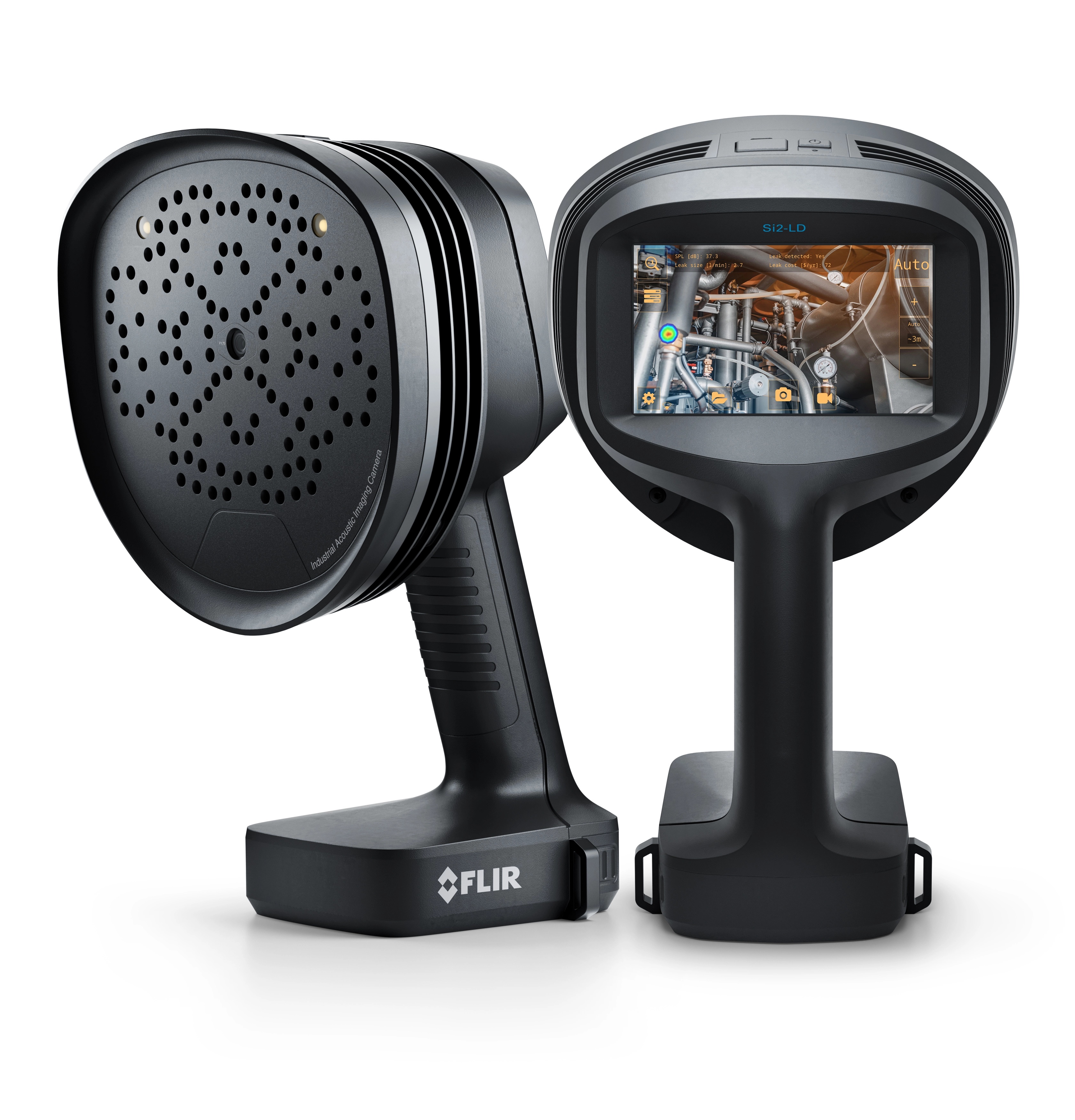

Flir Si2-LD Industrial Acoustic Imaging Camera for Pressurized Leak Detection and Mechanical Fault Detection

Features

• The FLIR Si2-LD acoustic imaging camera enables you to detect and reduce leaks in facilities, thereby cutting costs associated with compressed air and specialty gas leaks.
• Beyond these capabilities, it also identifies mechanical faults, such as bearing issues, facilitating preventative maintenance to avoid downtime.
• The Si2 series delivers unparalleled performance, enhances decision support, simplifies fleet management, and integrates seamlessly with enterprise data, setting a new standard in its class.

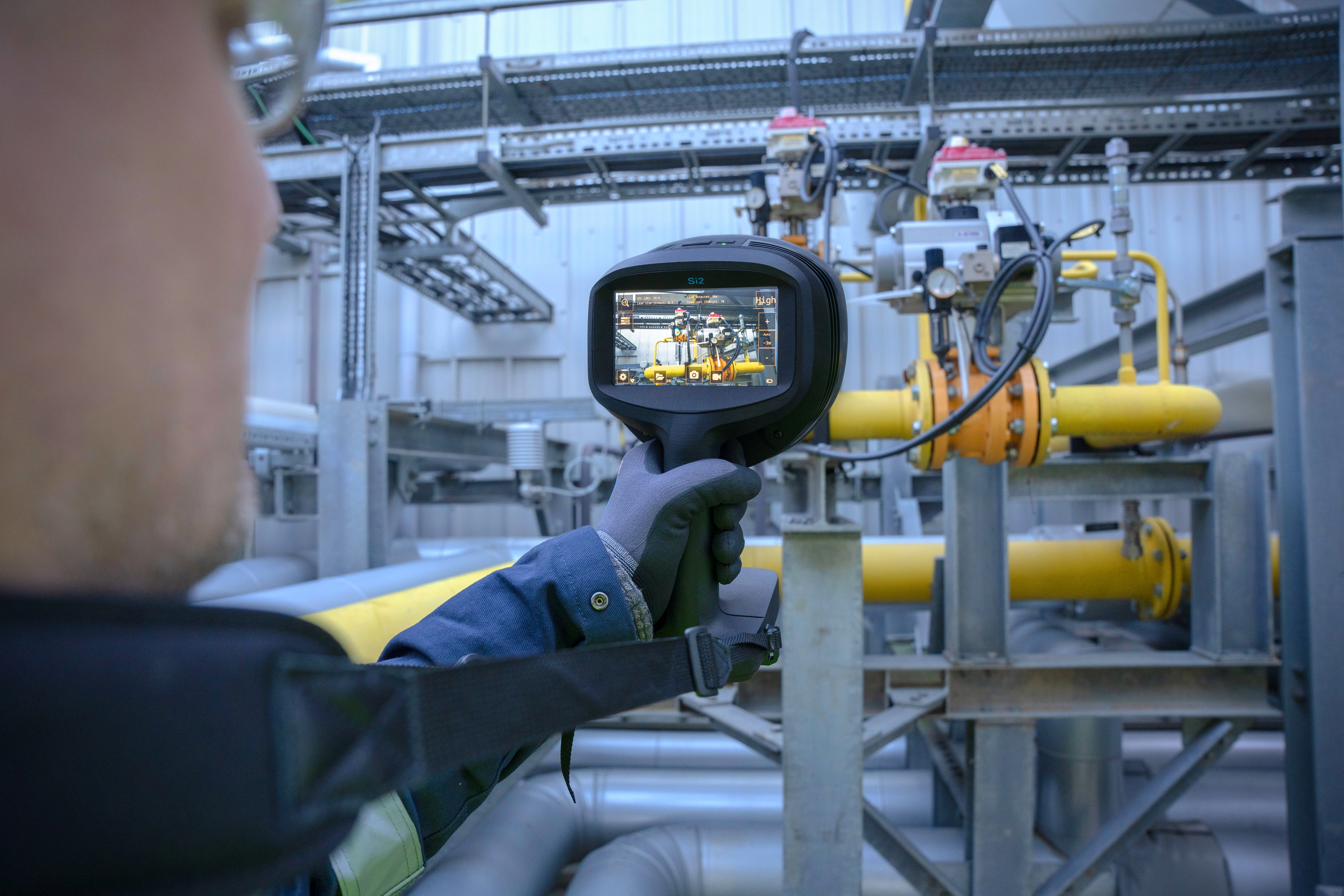

• ADVANCED LEAK DETECTION - Whether it’s a small hiss or a hard-to-find leak, this camera can identify and quantify compressed air and specific gas leaks from up to 200 m (656 ft) away, making it indispensable for ensuring operational efficiency and safety.
• BEARING FAULT ANALYSIS - Save on costly repairs, reduce downtime, and enhance maintenance efficiency by identifying bearing defects before they cause equipment failure.
• FLEET MANAGEMENT FUNCTIONALITY - Ensure optimal use and maintenance of equipment in large-scale industrial settings with fleet management, cloud data integration, and OTA software updates. Combine acoustic and thermal imaging in the same report.

Technical Information

• DistanceFrom 0.3 m (1.0 ft) up to 200 m (656 ft)
• Leak Rate0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)
• Wireless Data TransferWi-Fi 2.4 GHz and 5 GHz IEEE 802.11.b/g/n/ac wireless LAN
• Camera software updateAutomatic Over The Air (OTA) wireless update or via USB connection
• Field of view (FOV)75° diagonal
• Video Frame RateCamera– 60 fps / Acoustic image– 30 fps / Screen– 70 fps
• Video Image Resolution1280 × 720
• Zoom8x Digital zoom
• Bandwidth2 kHz to 130 kHz
• DistanceFrom 0.3 m (1.0 ft) up to 200 m (656 ft)
• Leak Rate0.0032 l/min from 2.5 m (8.2 ft), 0.0044 l/min from 6 m (19.6 ft)

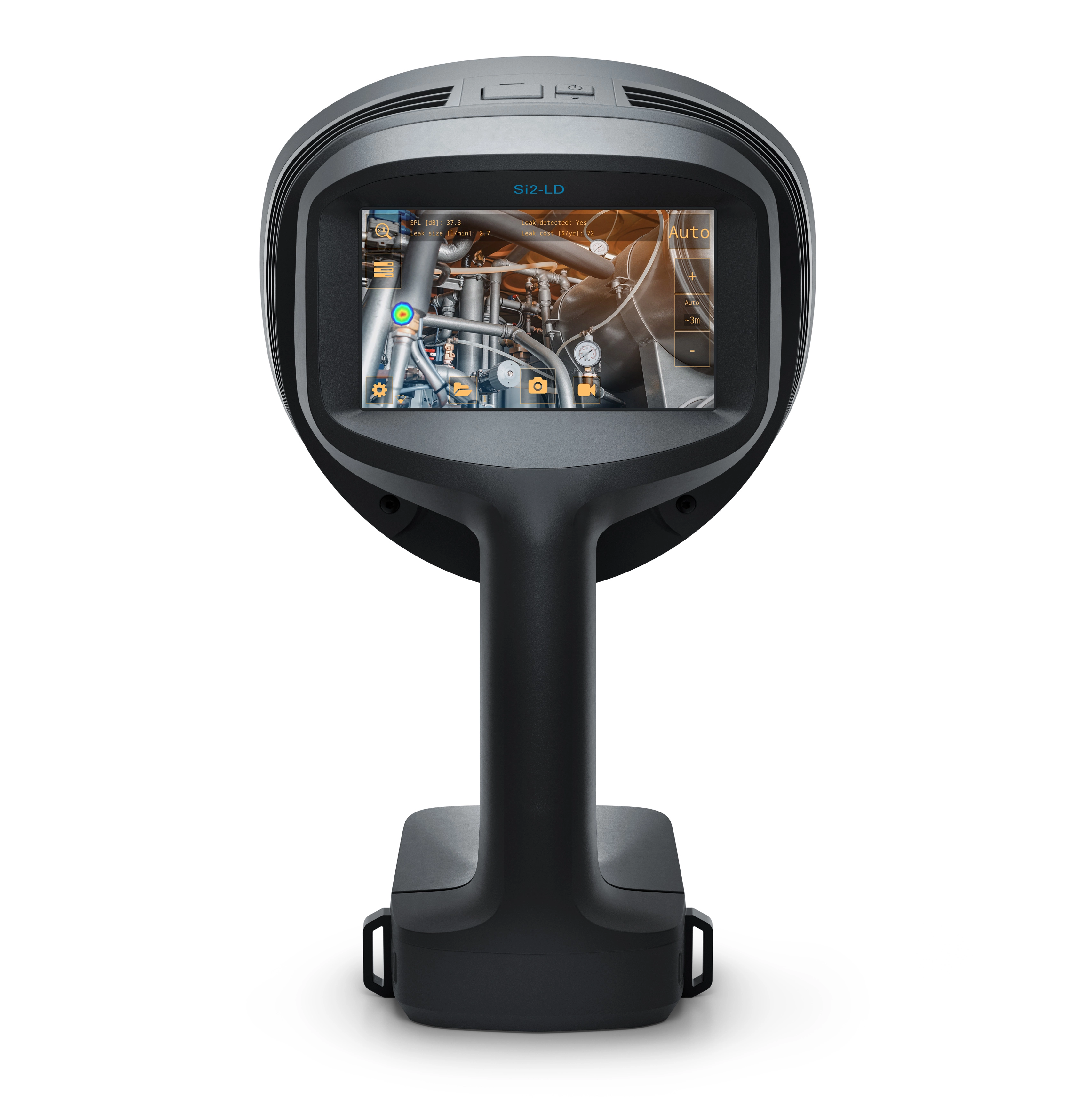

• DisplaySize– 5 in. 1280 × 720 Resistive touch screen, TFT LCD, MIPI DSI
• BatteryLi-Ion rechargeable battery pack (RRC 2054)–14.4 V DC, 3.45 Ah, 49.68 Wh; Max output– 16.8 V DC, 5 A
• Battery ChargerInput– 19-26 V DC, 2.8 A; Max output– 17.4 V DC, 4.8 A
• Battery weight~ 0.25 kg
• Nominal Input VoltageNominal input voltage– 12 V DC; Max input– 17 V DC , 3.3 A (limited)
• Operating And Storage Humidity0-90% recommended
• Operating Temperature Range–10°C to 50°C (14°F to 122°F)
• Protection ClassIP54
• Storage Temperature Range–20°C to 70°C ( –4°F to 158°F)
• Battery Size85 mm × 77 mm (RRC2504)
• WorklightsLEDs, three modes off, normal and bright
