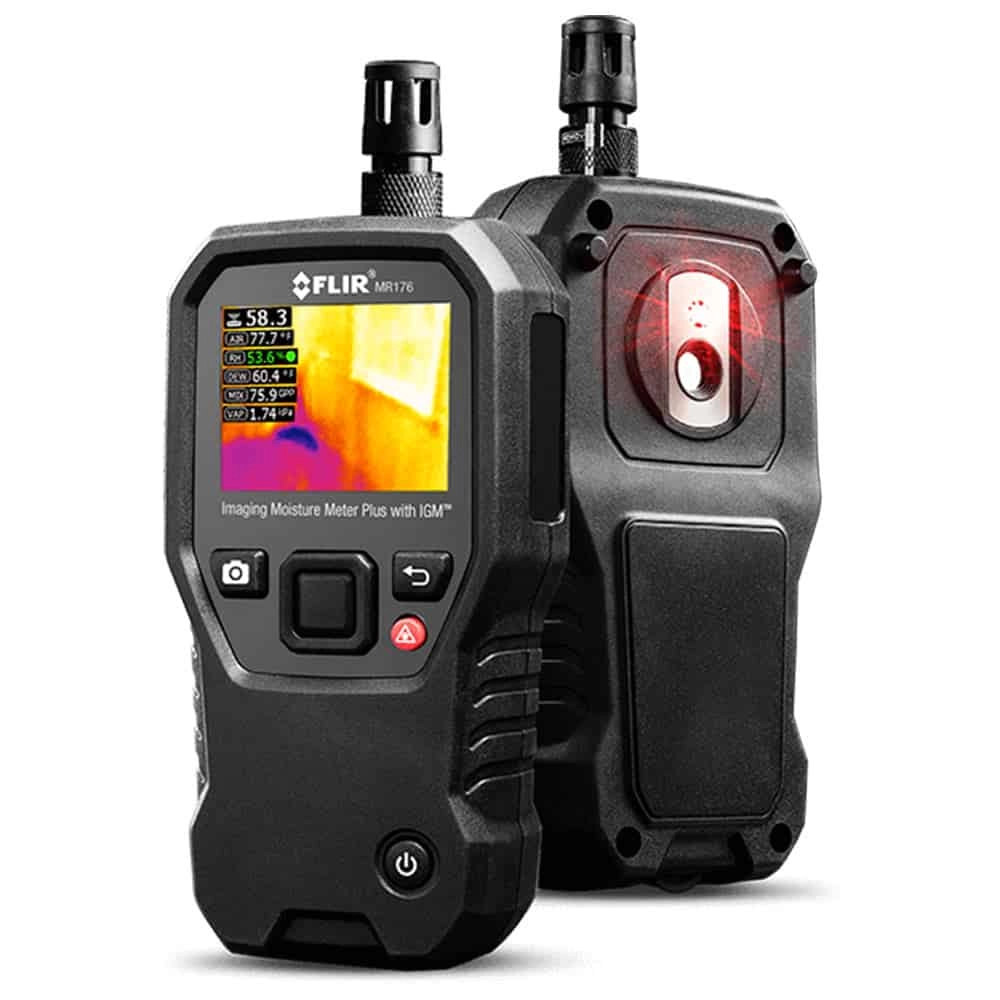

Flir MR176 Imaging Moisture Meter With Infrared Guided Measurement
Model # MR176Key Features
?
Question about this product?
Features
- Featuring Infrared Guided Measurement (IGM) technology powered by a built-in FLIR Lepton® 80 x 60 thermal imaging sensor and visually guides you to the precise spot that moisture may be hiding
- Integrated laser and crosshair to help pinpoint the surface location of the issue found with IGM
- An integrated pinless sensor and an external pin probe provide the flexibility to take either non-intrusive or intrusive measurements
- A field-replaceable temperature and relative humidity sensor delivers added convenience
Technical Information
- Moisture Measurement7 to 30%
- Thermal image palettesIron, Rainbow, Ice, Greyscale
- Pin Moisture Groups9 Material Groups
- Air TemperatureRange 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
- Relative HumidityRange 0 to 100% / Basic Accuracy 2.5%RH
- Dew PointRange -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
- IncludesMR01 Replaceable Temperature and Relative Humidity Sensor, MR02 Standard Pin Probe, Quick Start Guide,International USB Charger, USB Cable
- Display TypeQVGA (320 x 240 pixel) 2.3" color TFT graphical display
- Field of View [W x H]51° × 38°
- Gallery17540
- Image Update Speed Frequency9Hz
- Imaging DetectorFLIR Lepton microbolometer
- Laser OrientationSingle laser pointer to center of thermal image
- Sensitivity<150mK
- Spectral Response8 to 14µm
- Thermal image minimum focus distance4" (10cm)
- Thermal image palettesIron, Rainbow, Ice, Greyscale
- Thermal Image Resolution [W x H]4800 pixels (80 × 60)
- Air TemperatureRange 32 to 122°F (0 to 50°C) / Basic Accuracy ±1.1°F (±0.6°C)
- Detection Limit19.7in2 (49cm2) (Wet Area Detection @ 32ft (10m)
- Dew PointRange -22 to 122°F (-30 to 50°C) / Basic Accuracy ±1.8°F (±1.0°C)
- Image CalibrationAutomatic with manual lock scale option
- Measurement Resolution0.1
- Pin MoistureRange 7% to 30% / Basic Accuracy ±1.5% MC / Range 30% to 100% / Basic Accuracy Reference only
- Pin Moisture Groups9 Material Groups
- Pinless Measurement Depth0.75" (19mm) Max
- Pinless Moisture Range0 to 100
- Response Time Pin Mode750ms
- Response Time Pinless100ms
Items Included
- MR01 Replaceable Temperature and Relative Humidity Sensor
- MR02 Standard Pin Probe
- Quick Start Guide
- International USB Charger
- USB Cable
