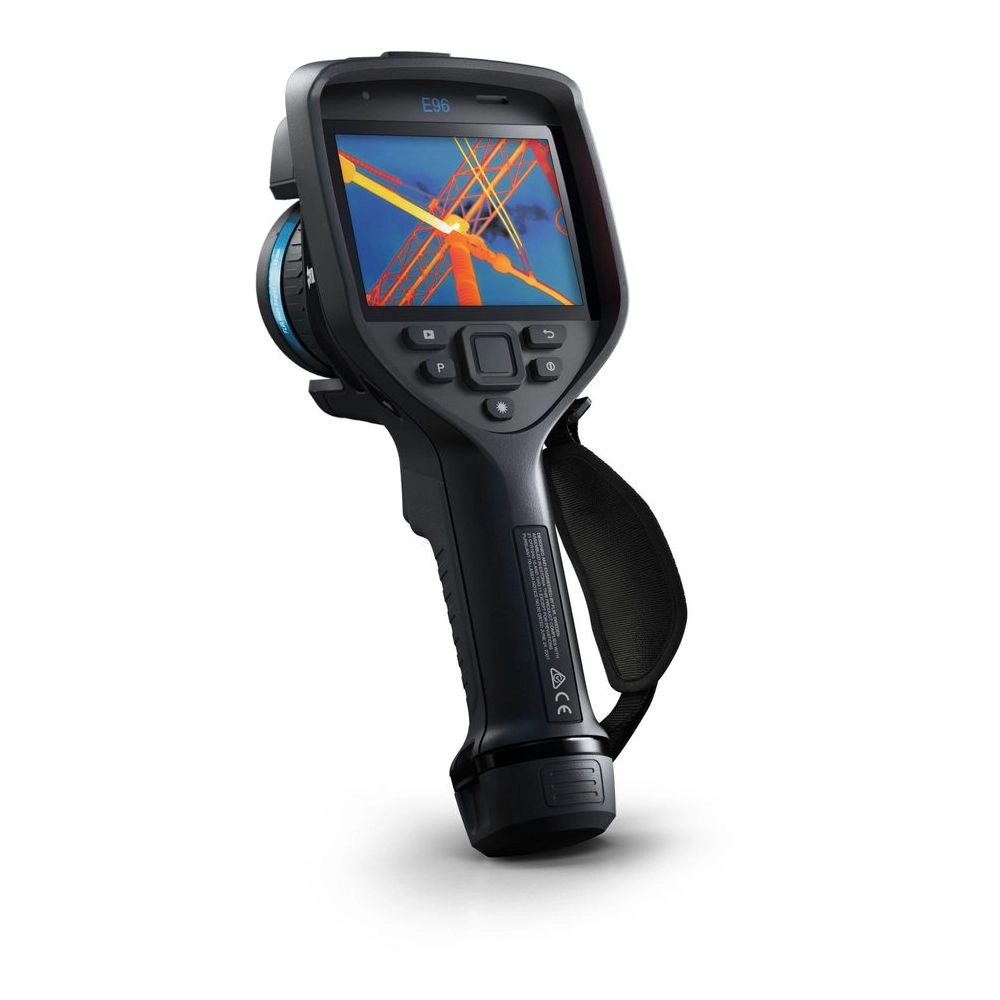

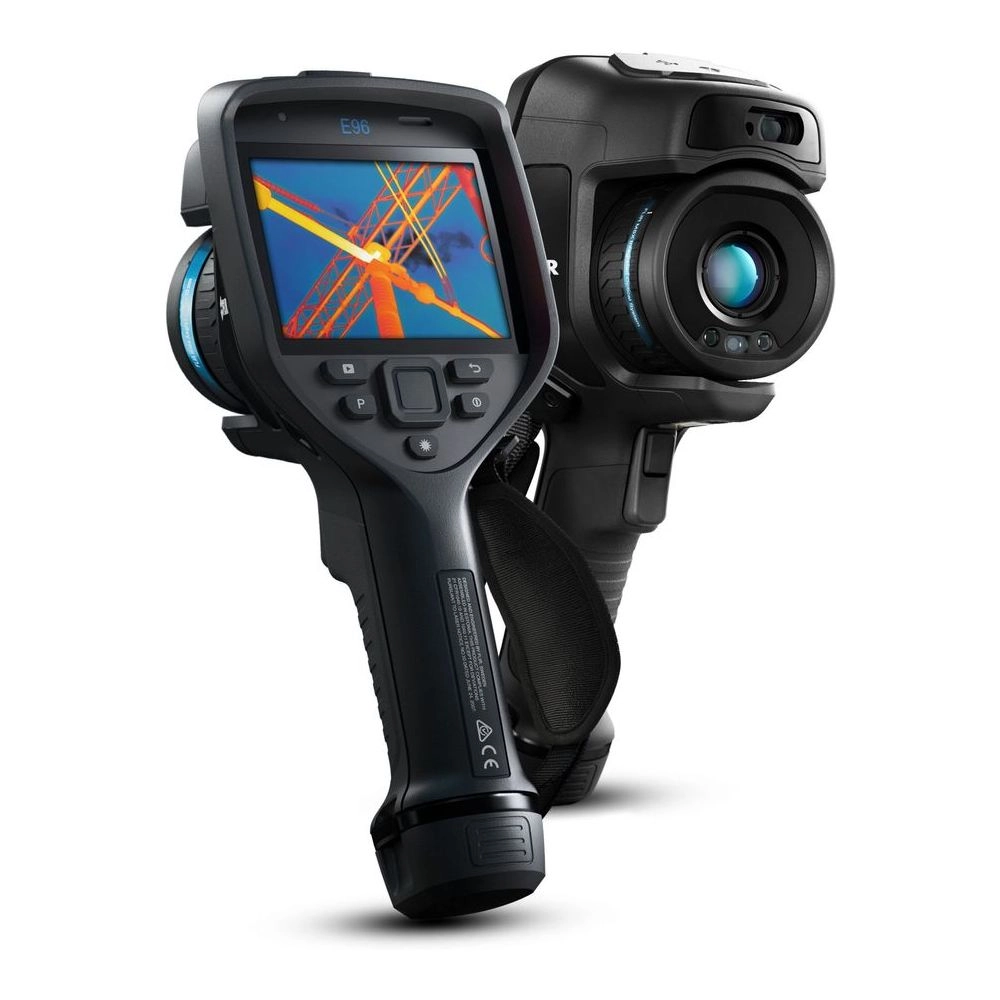

Flir 90208-0101 E96 30 Hz Thermal Imaging Camera with 14°/24° Dual FOV Lens, 640 x 480p IR, -20 to 120°C / 0 to 650°C

Model #   90208-0101

?

Question about this product?

Speak to an expert

Features

  • Outstanding Thermal Imagery - The 640 × 480 thermal resolution plus FLIR UltraMax® and MSX® image enhancement ensure the E96 produces the most virbrant, easiest-to-interpret images in its class.
  • Intelligent Autocal™ Optics - Interchangeable, auto-calibrating lenses—from telephoto to wide-angle—allow users to target electrical hot spots safely, check for mechanical faults, and survey roofs or building envelopes quickly.
  • The 640 × 480 thermal resolution allows inspectors to survey high-voltage, hazardous targets safely and quickly diagnose electrical and mechanical failures.
  • The onboard FLIR Inspection Route runs pre-planned routes to help inspectors stay organized when surveying large or multiple locations.

Technical Information

  • IR Resolution640 × 480 pixels
  • Thermal Sensitivity/NETD<40 mK at 30°C (86°F)
  • Accuracy±2°C (±3.6°F) or ±2% of the reading
  • Digital Camera5 MP, with built-in LED photo/video lamp
  • Display4", 640 × 480 pixel touchscreen LCD with auto-rotation
  • Storage MediaRemovable SD card
  • Color PalettesIron, Rainbow, Rainbow HC, White hot, Black hot, Arctic, Lava
  • Detector Type and PitchUncooled microbolometer, 12 µm
  • Digital Zoom1-8× continuous
  • f-number1.3
  • FocusContinuous LDM, One-shot LDM, One-shot contrast, Manual
  • Image Frequency30 Hz
  • Lens IdentificationAutomatic
  • Minimum Focus Distance0.15 m
  • Non-radiometric IR video streamingH.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
  • Picture-in-PictureResizable and movable
  • Radiometric IR video recordingReal-time radiometric recording (.csq)
  • Radiometric IR video streamingYes, over UVC
  • Spectral Range7.5-14 µm
  • UltraMaxYes
  • ViewfinderNo
  • Measurement PresetsNo measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
  • Object Temperature Range-20 to 120°C (-4 to 248°F); 0 to 650°C (32 to 1202°F); 300 to 1500°C (572 to 2732°F)
  • Spot Meter3 ea. in live mode
  • TextPredefined list or touchscreen keyboard
  • Voice60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth®
  • Battery operating time>2.5 hours at 25°C (68°F) and typical use
  • Battery typeRechargeable Li-ion battery
  • Operating Temperature Range-15 to 50°C (5 to 122°F)
  • SafetyEN/UL/CSA/PSE 60950-1
  • Storage Temperature Range-40 to 70°C (-40 to 158°F)
  • FLIR Inspection RouteEnabled in camera
  • Laser PointerYes
