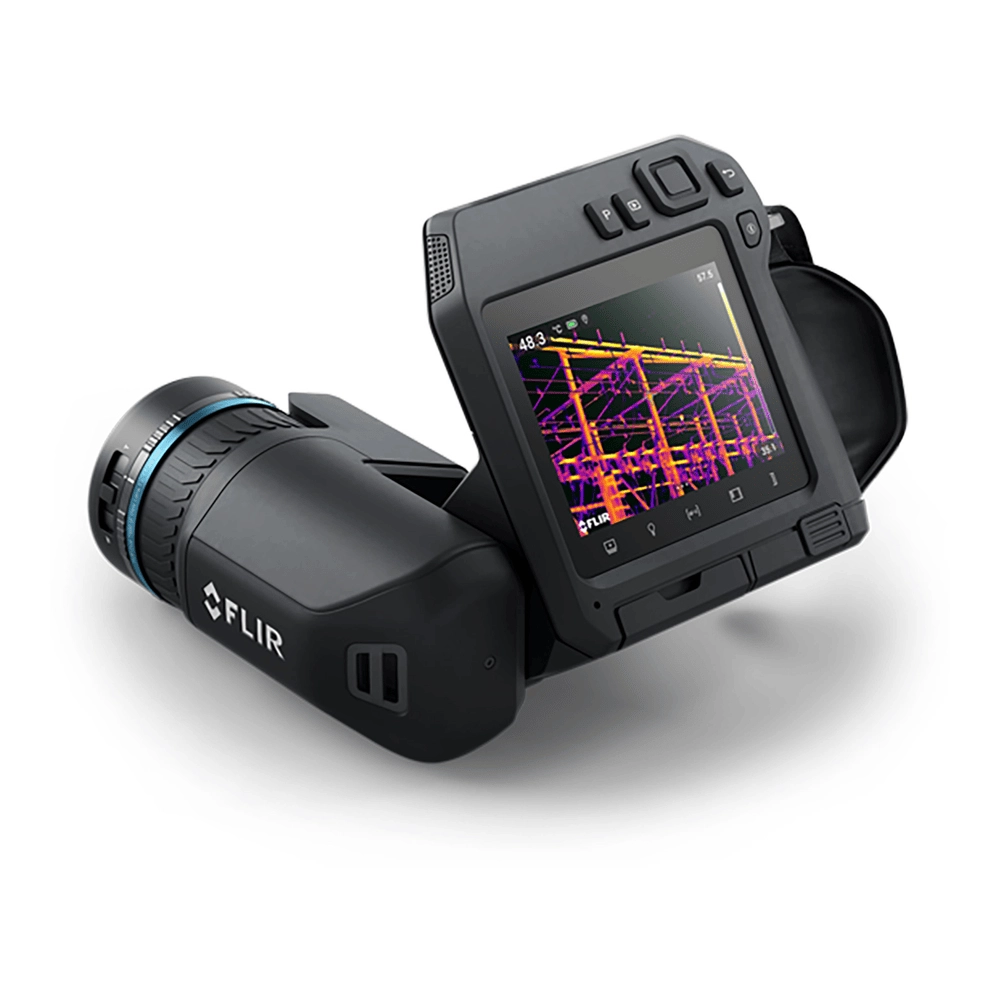

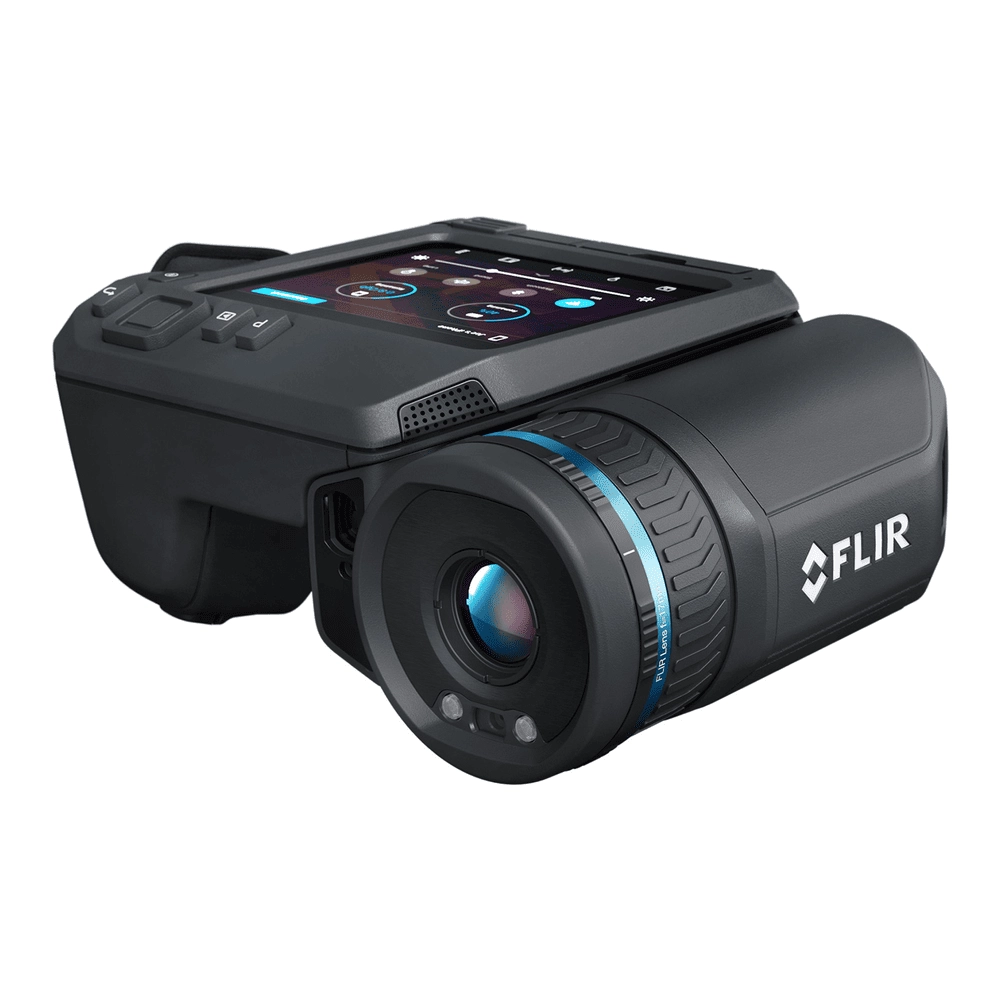

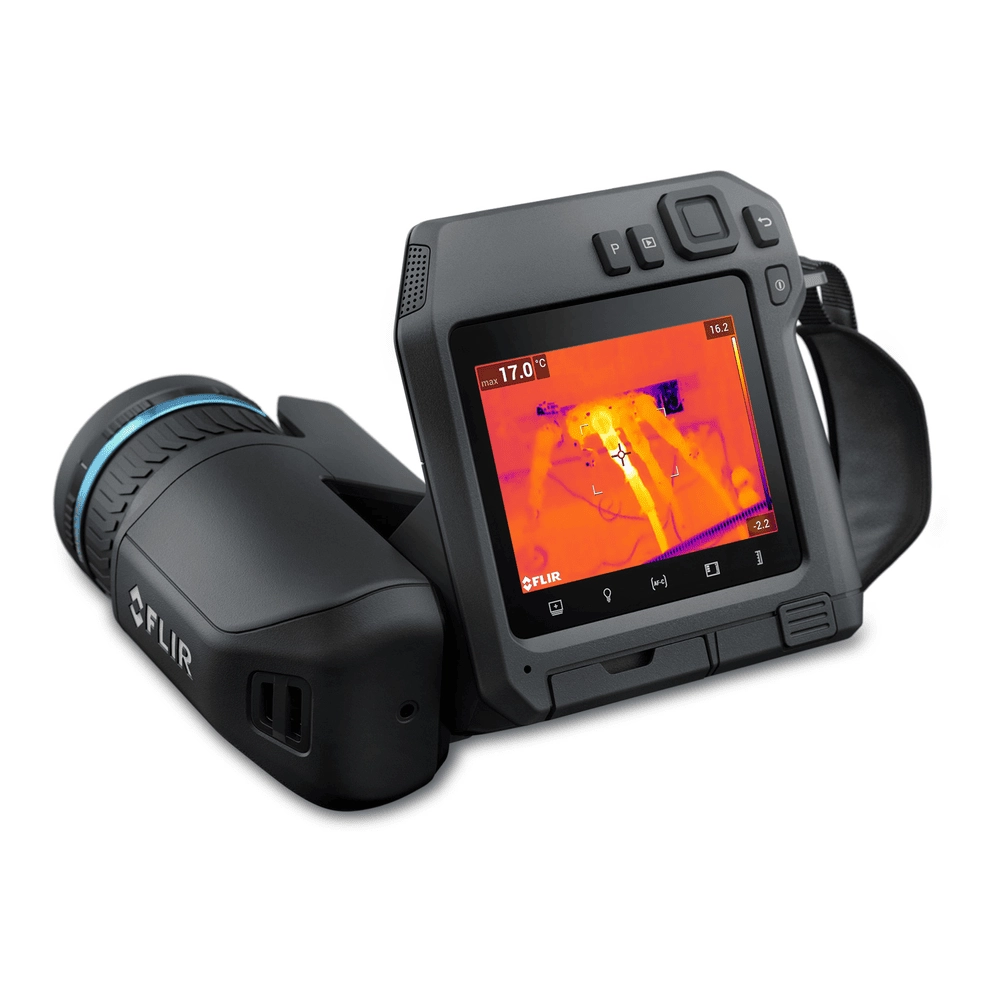

Flir 79305-0201 T540 30 Hz Thermal Imaging Camera with 24° and 42° FOV Lenses, 464 x 348p IR, -20 to 120°C / 0 to 650°C / 0 to 1500°C
Model # 79305-0201Key Features
?
Question about this product?
Features
- Make Critical Decisions Quickly - Laser-assisted autofocus guarantees you’ll get tack-sharp focus for accurate temperature readings that lead to quick but solid decisions.
- Flexible And Ergonomic - The T540's optical block rotates 180°, so you can image targets at any angle—comfortably—all day long.
- Intuitive User Interface - The capacitive touchscreen with intuitive menu is easy to navigate, plus you can customize with two programmable buttons.
- This portable, ergonomic thermal camera offers advanced features like 1-Touch Level/Span and continuous laser-assisted autofocus
- Perfect non-contact diagnostic tool for condition monitoring and research applications.
Technical Information
- IR Resolution464 × 348 pixels
- Thermal Sensitivity/NETD<30 mK, 42° @ +30°C (+86°F), <40 mK, 24° @ +30°C (+86°F)
- Accuracy±2°C (±3.6°F) or ±2% of reading
- Digital Camera5 MP, with built-in LED photo/video lamp
- Display4", 640 x 480 pixel touchscreen LCD with auto-rotation
- Storage MediaRemovable SD card
- Camera software updateUsing USB cable or SD card
- ColorBlack
- Color PalettesIron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Resolution464 x 348
- Detector Type and PitchUncooled microbolometer, 17 µm
- Digital Camera FOV53° × 41°
- Digital Zoom1-6x continuous
- Field of View42° × 32°, 24° × 18°
- f-number1.1, 42°, 1.3, 24°
- Focal Length10 mm (0.39 in.), 42°, 17 mm (0.67 in.), 24°
- FocusContinuous with laser distance meter (LDM), one- shot LDM, one-shot contrast, manual
- Frame Rate [Full Window]30 Hz
- GalleryYes
- Image Frequency30 Hz
- Laser AlignmentPosition is automatically displayed on the infrared image
- Lens24° + 42°
- Lens IdentificationAutomatic
- Minimum Focus Distance0.15 m (0.49 ft.), 42°, 0.15 m (0.49 ft.), 24°
- Minimum Focus Distance with MSX0.65 m (2.13 ft.), 42°, 0.5 m (1.64 ft.), 24°
- NETD<40mK
- Non-radiometric IR video streamingH.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-PictureResizable and movable
- Radiometric IR video recordingReal-time radiometric recording (.csq)
- Radiometric IR video streamingOver UVC
- Resolution464 × 348 pixels (VGA)
- Spatial resolution (IFOV)1.66 mrad/pixel, 42°, 0.90 mrad/pixel, 24°
- Spectral Range7.5 - 14 µm
- UltraMaxQuadruples pixel count; activated in menu and processed in FLIR Tools
- Video LampBuilt-in LED light
- ViewfinderNo
- Visual ImageYes
- Visual Video RecordingH.264 to memory card
- Visual Video StreamingYes
- Automatic hot & cold detectionAutomatic maximum/minimum markers within area
- Color Alarm (Isotherm)Above, Below, Interval, Condensation (moisture/humidity/dewpoint), Insulation
- Difference TemperatureYes
- Emissivity CorrectionYes, variable from 0.01 to 1.0 or selected from materials list
- Measurement CorrectionsYes
- Measurement Function AlarmAudible/visual alarms (above/below) on any selected measurement function
- Measurement PresetsNo measurements, Center spot, Hot spot, Cold spot, User preset 1, User preset 2
- Object Temperature Range-20°C to 120°C (-4°F to 248°F) 0°C to 650°C (32°F to 1202°F) 300°C to 1500°C (572°F to 2732°F) There are no optional ranges
- Reference TemperatureYes
- Display TechnologyIPS
- Languages21
- TextPredefined list or touchscreen keyboard
- Touch ScreenOptically bonded PCAP
- Voice60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Battery operating timeApprox. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery typeLi-ion battery, charged in camera or on separate charger
- Battery voltage3.6 V
- Battery weight195 g (6.89 oz.)
- Charging systemIn camera (AC adapter or 12 V from a vehicle) or two-bay charger
- Charging Temperature0°C to 45°C (32°F to 113°F)
- External Power OperationAC adapter 90–260 V AC (50/60 Hz) or 12 V from a vehicle (cable with standard plug, optional)
- Power ManagementAutomatic shut-down and sleep mode
- EMCETSI EN 301 489-1 (radio), ETSI EN 301 489-17, EN 61000-6-2 (immunity), EN 61000-6-3 (emission), FCC 47 CFR Part 15 Class B (emission)
- Humidity (Operating and Storage)IEC 60068-2-30/24 hours, 95% relative humidity, 25–40°C (77–104°F)/2 cycles
- Operating Temperature Range–15°C to 50°C (5°F to 122°F)
- Radio SpectrumETSI EN 300 228, FCC Part 15.249, RSS-247 Issue 2
- SafetyEN/UL/CSA/PSE 60950-1
- Storage Temperature Range–40°C to 70°C (-40°F to 158°F)
- Tripod MountingUNC 1/4"-20
- Compatible with FLIR softwareFLIR Thermal Studio Suite, FLIR Route Creator, FLIR Ignite, FLIR Research Studio, FLIR Atlas SDK
- Housing materialPCABS with TPE, magnesium
- Laser PointerClass 2, 0.05–40 m (0.16–131 ft.) ±1% of measured distance
- Size (L x W x H)Lens horizontal- 140 × 201.3 × 167.3 mm (5.5 × 7.9 × 6.6 in.)
