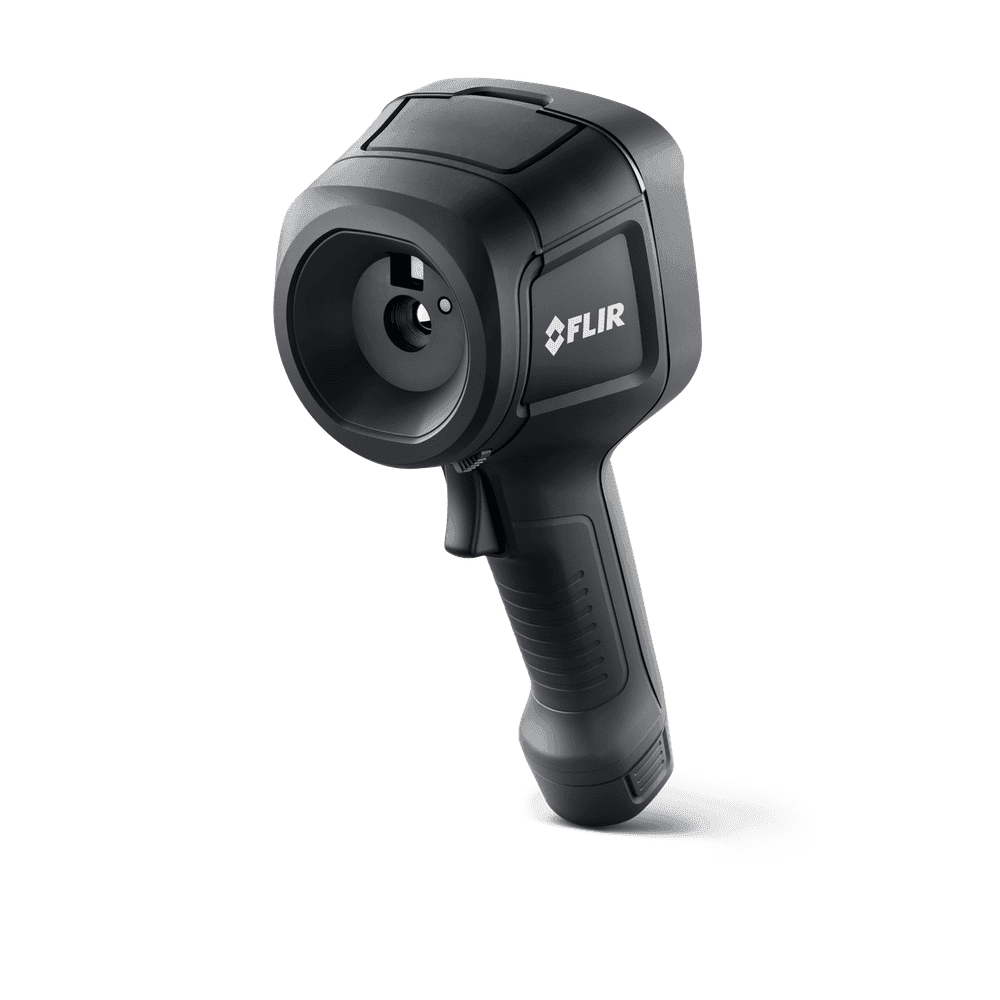

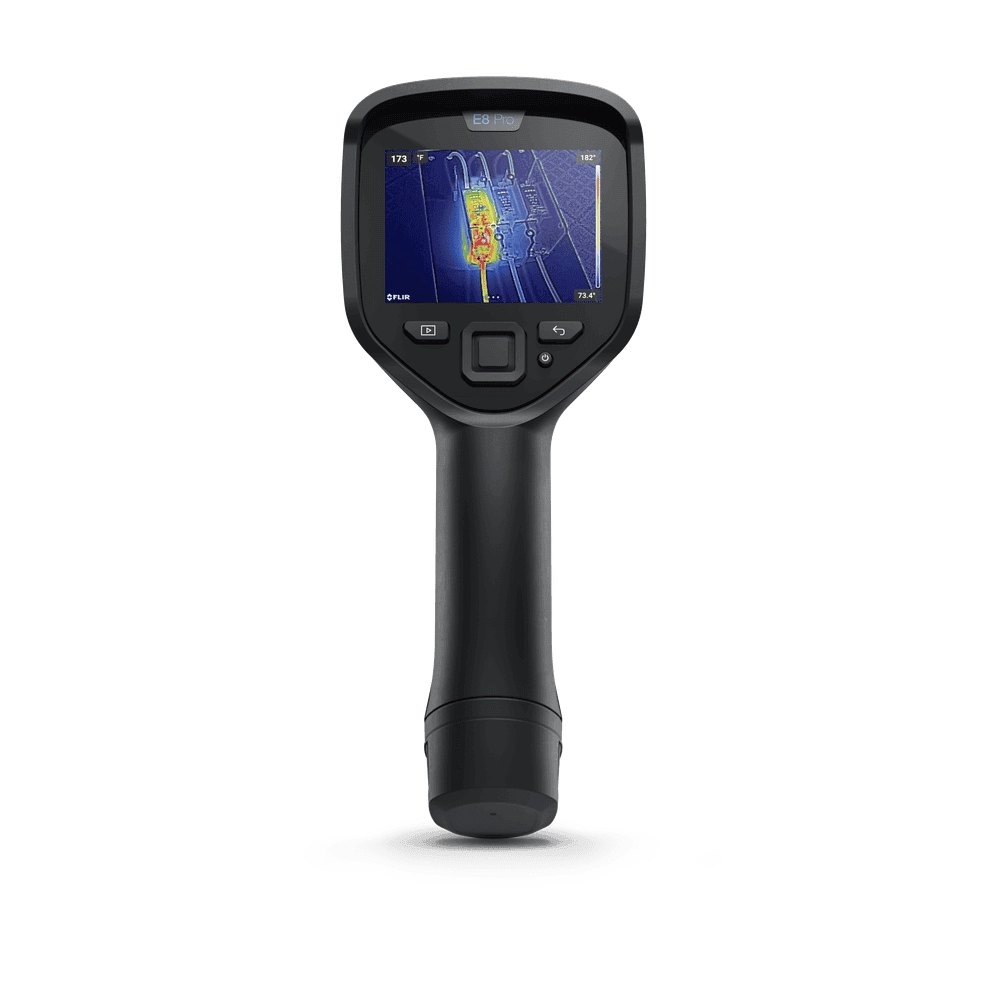

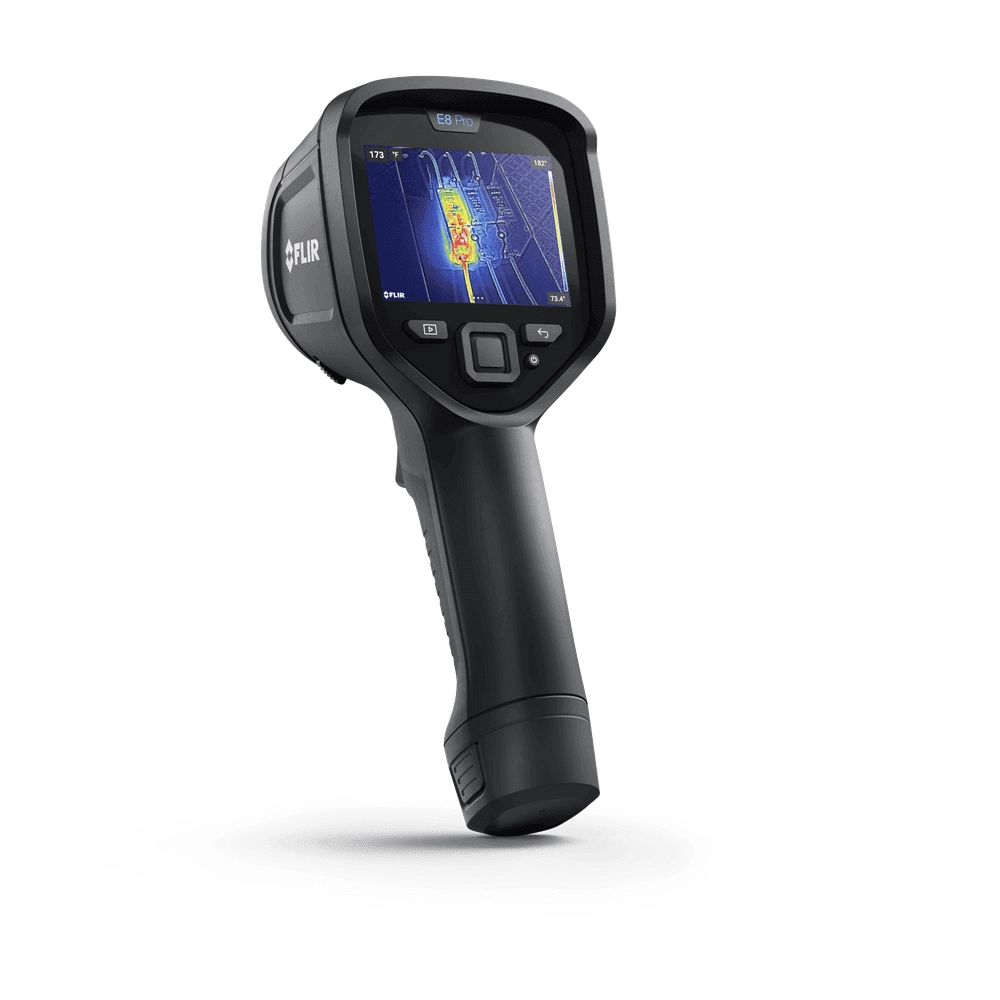

Flir 13303-0302 E8 Pro 9 Hz Thermal Imaging Camera, 320 x 240p IR, -20 to 550°C
Model # 13303-0302Key Features
?
Question about this product?
Features
- Quickly Identify Problems - FLIR-patented MSX® (Multi-Spectral Dynamic Imaging) enhancement provides highly detailed thermal images to help you quickly recognize where a problem is located.
- Do It All From The Touchscreen - Organize your photos, add detailed notes, and upload them directly to the FLIR Ignite cloud for convenient access from any device.
- Streamline Sharing And Reporting - Share images easily and create advanced client reports in FLIR Ignite or FLIR Thermal Studio.
- Add notes from the touchscreen - Featuring a 3.5-inch touchscreen, the FLIR E8 Pro allows you to add detailed annotations to images and save them to the cloud, making it simple to create reports.
Technical Information
- IR Resolution320 × 240 (76,800 pixels)
- Thermal Sensitivity/NETD<0.04°C (0.07°F) / <40 mK at 30°C (86°F)
- Accuracy±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
- Field of view (FOV)33°
- Digital Camera5 MP
- Image ModesThermal MSX, Thermal, Picture-in-Picture, Digital camera
- Display3.5 in, 640 × 480 color LCD
- Storage MediaInternal memory and onboard FLIR Ignite™ cloud connectivity (with Wi-Fi)
- Color PalettesIron, White hot, Black hot, Rainbow, Arctic, Lava, Rainbow HC
- Detector TypeUncooled microbolometer
- FocusFocus free
- Image Frequency9 Hz
- Minimum Focus Distance0.36 m (1.18 ft)
- Spectral Range7.5 µm to 13 µm
- Delta TYes, NFPA 70B compliant
- IsothermAbove alarm, below alarm
- Measurements correctionEmissivity; matt/semi-matt/semi-gloss + custom value, reflected apparent temperature, atmospheric compensation
- Object Temperature Range-20°C to 550°C (-4°F to 1022°F) in two ranges
- Spot MeterCenter spot; box with min/max
- TextText annotation on image using onscreen keyboard
- TouchscreenCapacitive touch
- Battery operating time4 hours
- Battery typeRechargeable Lithium-ion battery
- Charging systemBattery is charged inside the camera or in specific charger
- Charging Time2 hours
- Power ManagementAutomatic shut-down
- CertificationsUL, CSA, CE, PSE and CCC, WEEE 2012/19/EC, RoHs 2011/65/EC
- EMCEN 301 489-1, EN 301 489-17, EN 61000-6-3, EN 61000-6-2, FCC 47 CFR Part 15 Class B
- EncapsulationIP54 (IEC 60529)
- Operating Temperature Range-15°C to 50°C (5°F to 122°F)
- Shock25 g (IEC 60068-2-27)
- Storage Temperature Range-40°C to 70°C (-40°F to 158°F)
- Vibration2 g (IEC 60068-2-6)
- FlashlightBright LED
- List of ContentsInfrared camera, hard transport case, battery (inside camera) + extra battery, tabletop charger, power supply (with EU, UK, US and, AU plugs), micro USB adapter, FLIR Thermal Studio Starter, and printed documentation
