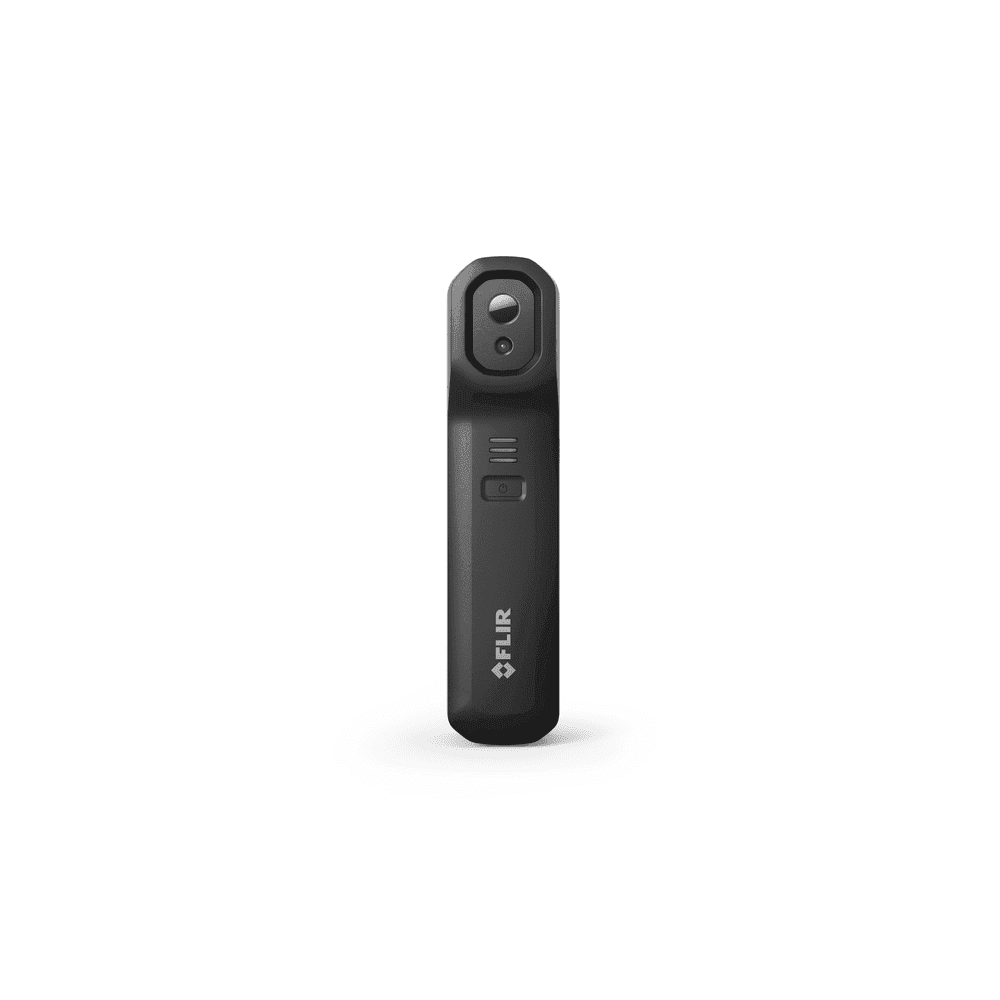

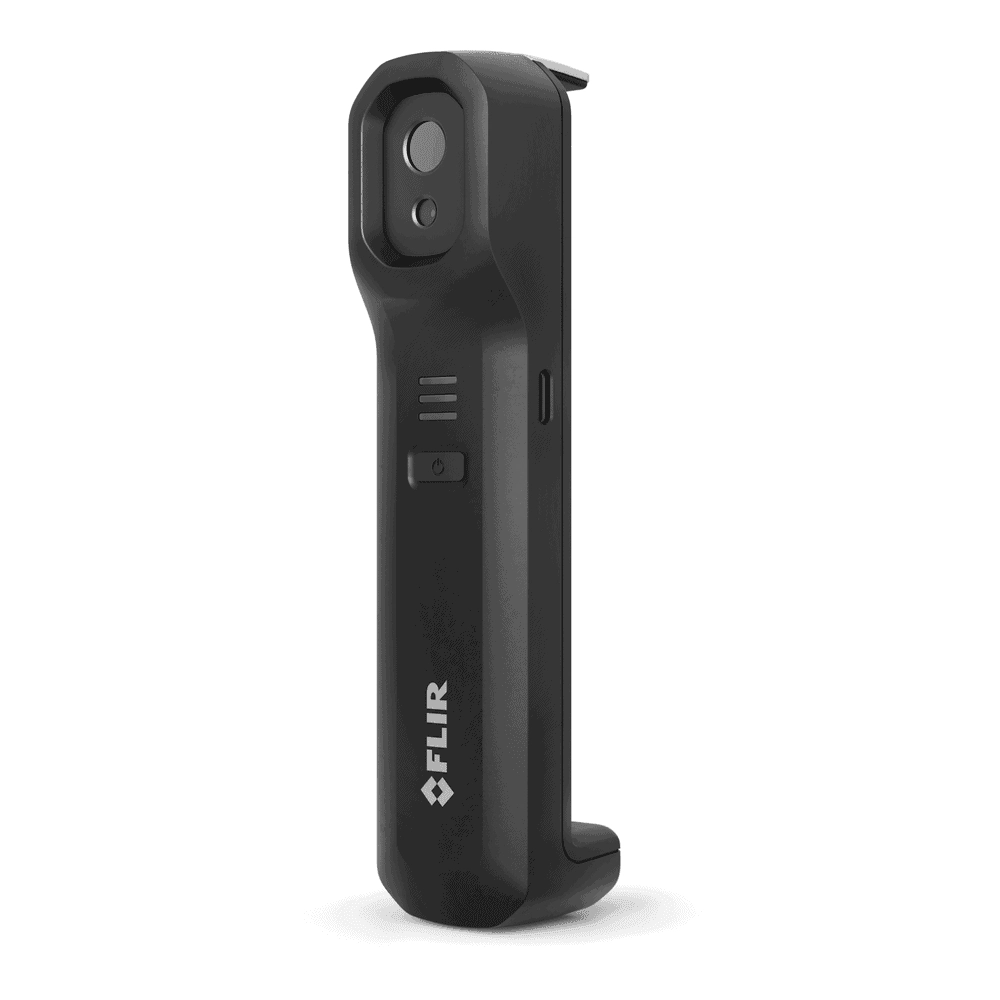

Flir 11002-0201 ONE® Edge Pro 8.7 Hz Thermal Camera for Smartphone, 160 x 120p IR, -20 to 400°C

Model #   11002-0201

?

Question about this product?

Speak to an expert

Features

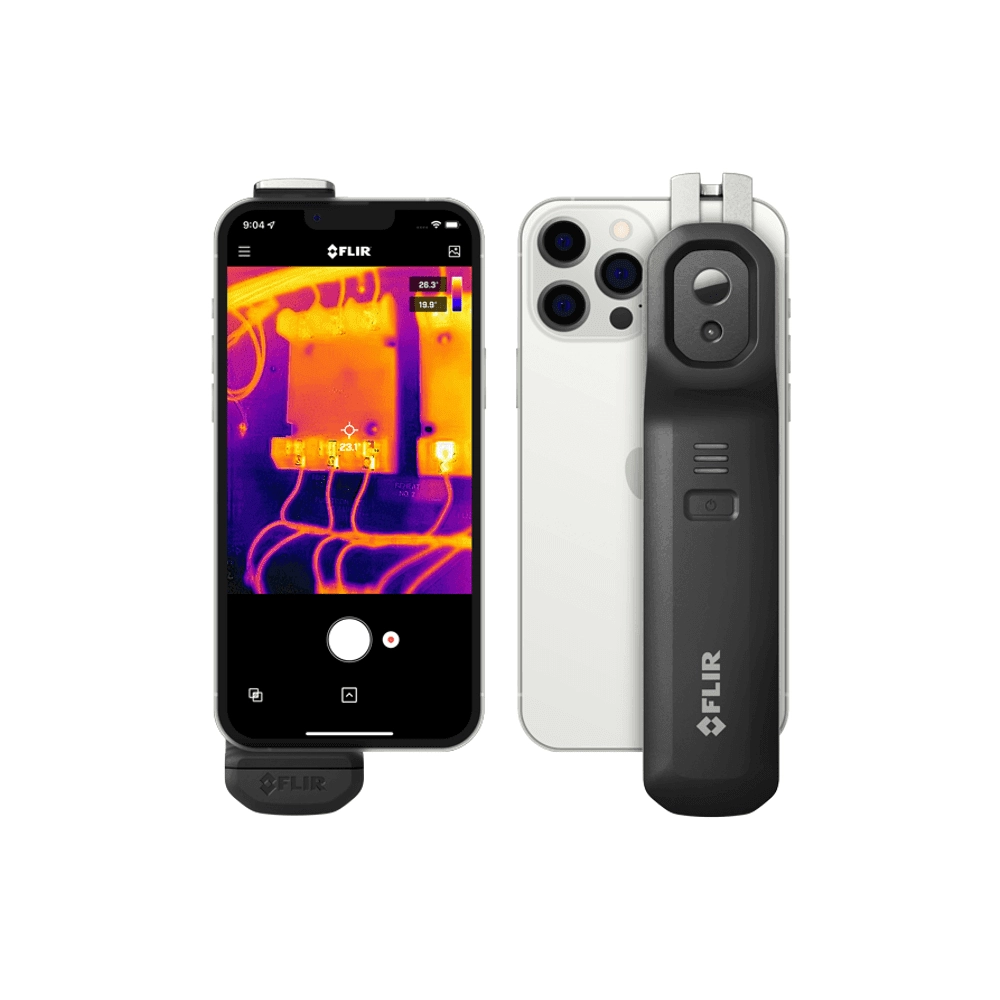

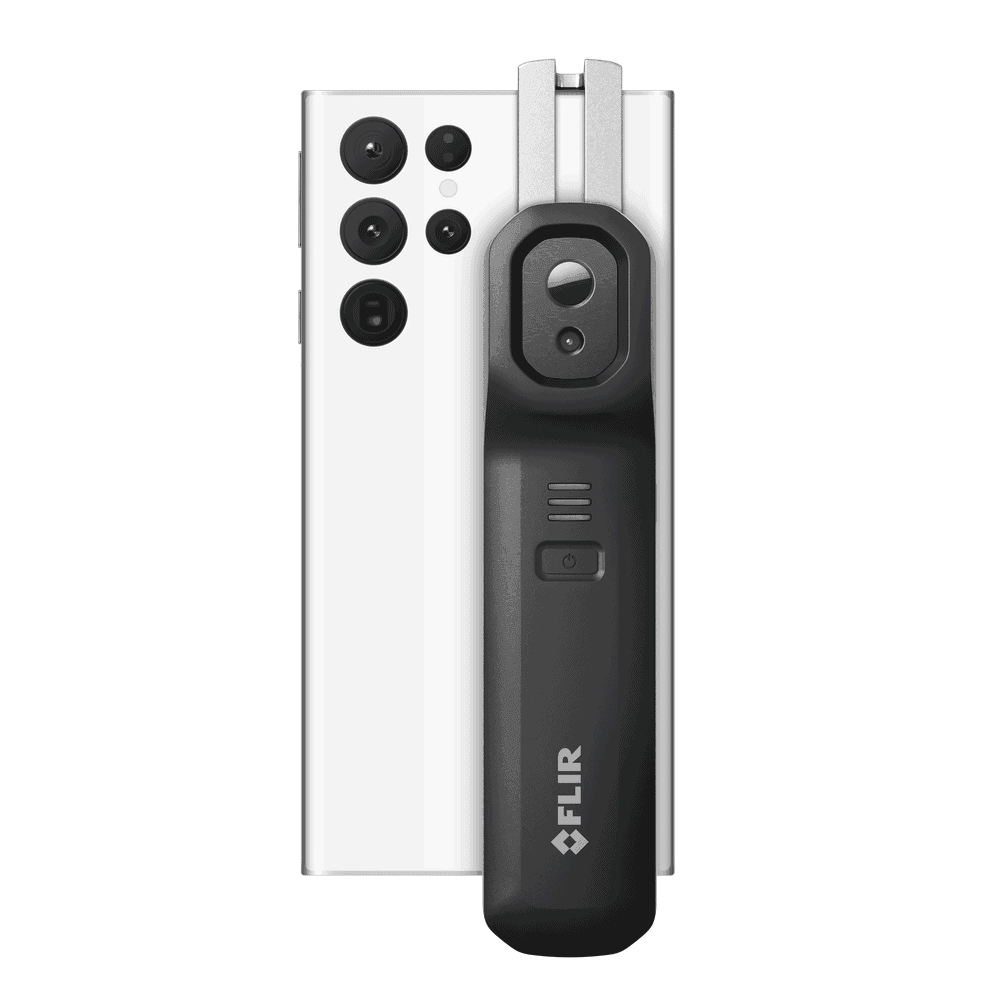

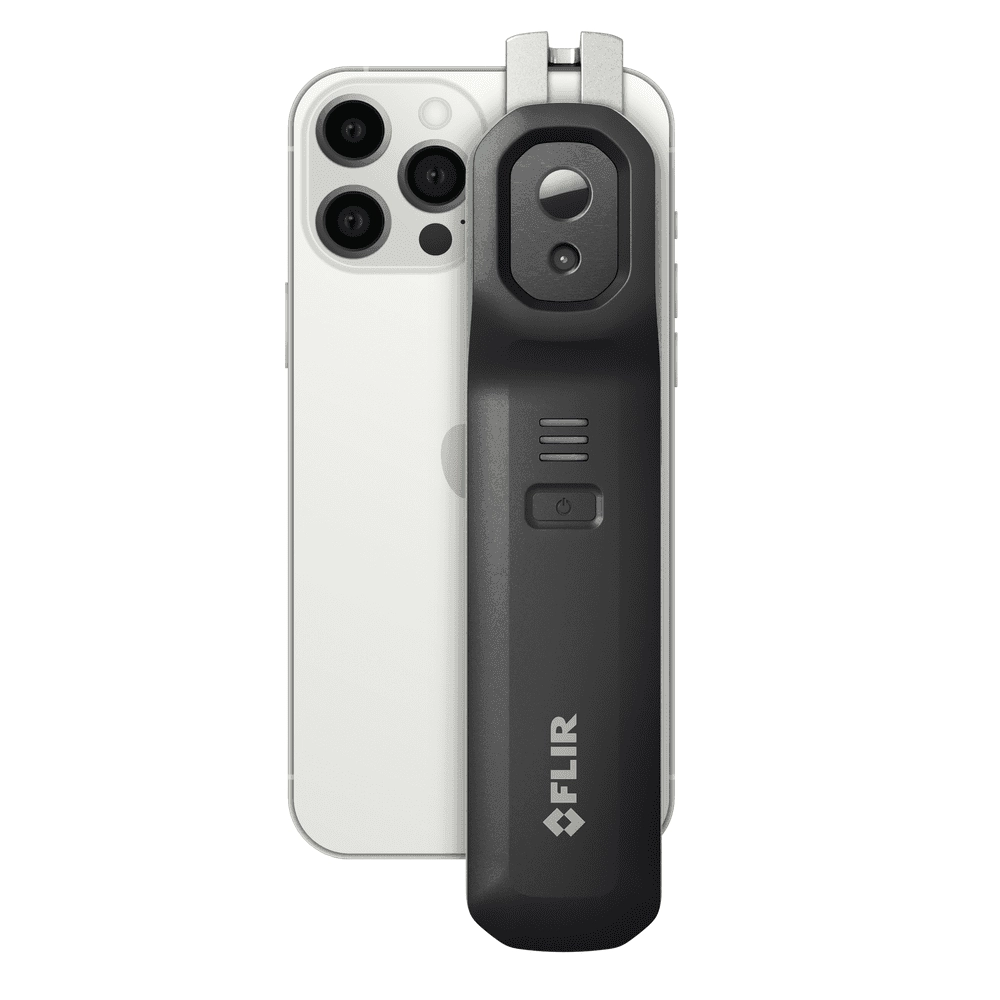

  • Easily inspect anywhere - Conveniently scan targets out-of-reach or out-of-view while comfortably viewing images from your mobile device, or clip the FLIR ONE Edge Pro to your smart device for one-handed operation with a natural grip.
  • High-Quality Images And Performance - Take high-quality thermal images, easily identify targets, and recognize where problems are located with FLIR MSX, VividIR, and 160 × 120 (19,200 pixels) thermal resolution.
  • A Professional Tool - With a battery time of up to 2.5 hours and fast-charging capabilities, the FLIR ONE Edge Pro is ready when you need it. This rugged camera is IP54 rated and drop-tested from 2 meters.
  • This rugged camera is IP54 rated and drop-tested from 2 meters.

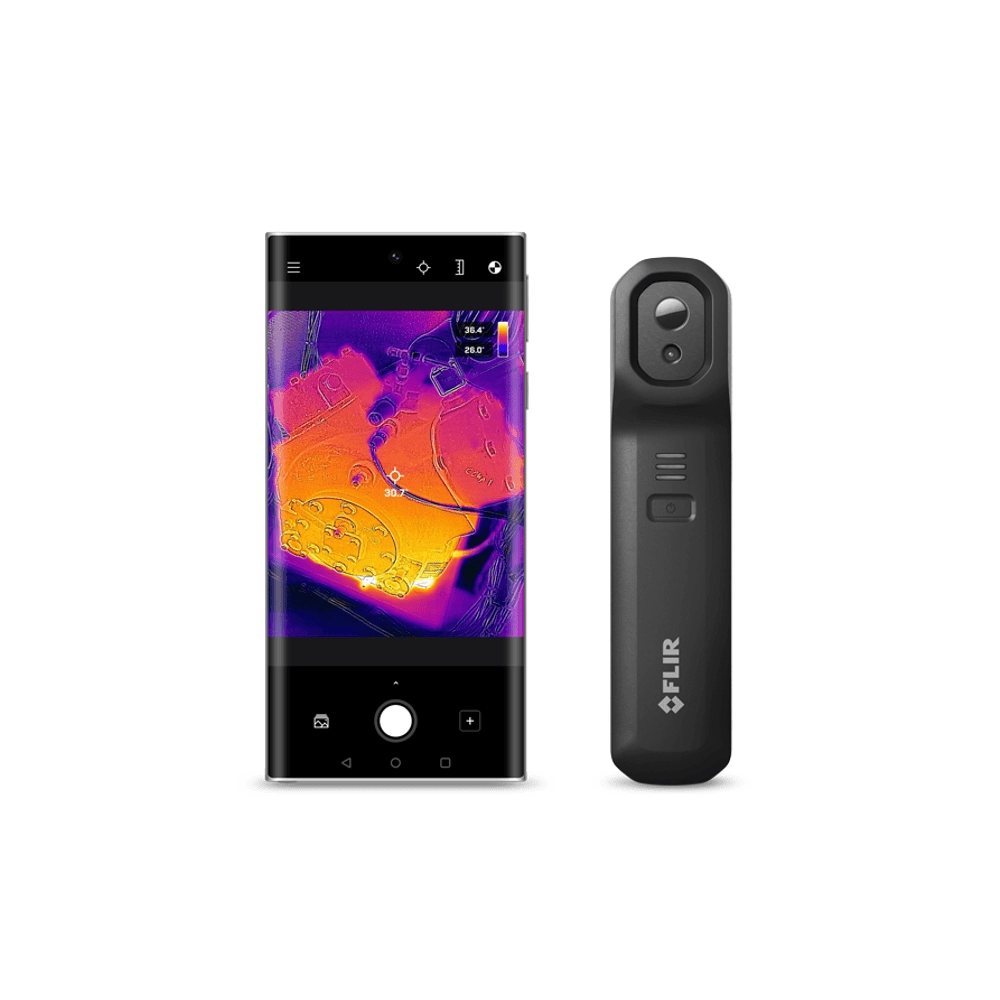

  • The wireless connection allows the same camera to be used with both Android and iOS devices.
  • All your thermal images and videos are saved directly to your mobile device making them easily accessible for further use.

Technical Information

  • Thermal Resolution160 × 120 (19,200 pixels)
  • Battery lifeApproximately 2 hours 30 minutes
  • Object Temperature Range-20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F)
  • Accuracy±3°C (5.4°F) or ±5%. Applicable 60 sec after start-up when the unit is within 15°C to 35°C (59°F to 95°F) and the scene is within 5°C to 120°C (41°F to 248°F)
  • Operating Temperature-10°C to 50°C (14°F to 122°F), battery charging 0°C to 45°C (32°F to 113°F)
  • Spot MeterHottest, Coldest and 3 spot measurement
  • Adjustable MSX distance30 cm — Infinity
  • FocusFixed 30 cm — Infinity
  • Frame Rate8.7 Hz
  • HFOV/VFOV54° ±1° / 42° ±1°
  • Image ModesInfrared, visual, MSX
  • PaletteGray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel
  • ShutterAutomatic/Manual
  • Thermal Sensitivity/NETD70 mK
  • Thermal SensorPixel size 12 µm, 8 — 14 µm spectral range
  • Visual Resolution640 × 480
  • VividIRYes
  • Battery charge time60–90 min for fully charged15 min charging, from empty battery, gives 40 min, operating time
  • Charging MethodFemale USB-C (5V/1A)
  • Measurement CorrectionsEmissivity; Reflected apparent temperature (22°C / 72°F)
  • Battery charge monitor0 — 100%
  • Clip Span130 mm (min) / 195 mm (max)
  • Compatible with FLIR softwareFLIR ONE app, FLIR Ignite, FLIR Thermal Studio
  • Device CompatibilityiOS (version 15 and later) or Android (version 11 and later) smartphones and tablets
  • Dimensions (H x W x D)37.5 mm × 35 mm × 149 mm (1.5 in × 1.4 in × 5.9 in)
  • Remote OperationUp to 5 m (16.4 ft) from smart device via Wi-Fi
  • Weight153 g (5.4 oz)
  • CertificationsRoHS, CE/FCC, CEC-BC, EN62133, UL1642, WEEE 2012/19/EU, IP54
  • Drop testDrop from 2 m (6.56 ft)
  • Emissivity SettingsMatte- 95%, Semi-Matte- 80%, Semi-Glossy- 60%, Glossy- 30%
  • Non-Operating Temperature-40°C to 70°C (-40°F to 158°F)
  • BluetoothUses Bluetooth to set up the peer-to-peer Wi-Fi network that the camera creates to connect to the mobile device
  • Capture modesVideo, Still image
  • ChargingFemale USB-C (5V/1A)
  • File FormatsRadiometric JPG, MPEG-4 (file format MOV (iOS), MP4 (Android))
  • WiFiIEEE 802.11 a/b/g/n
