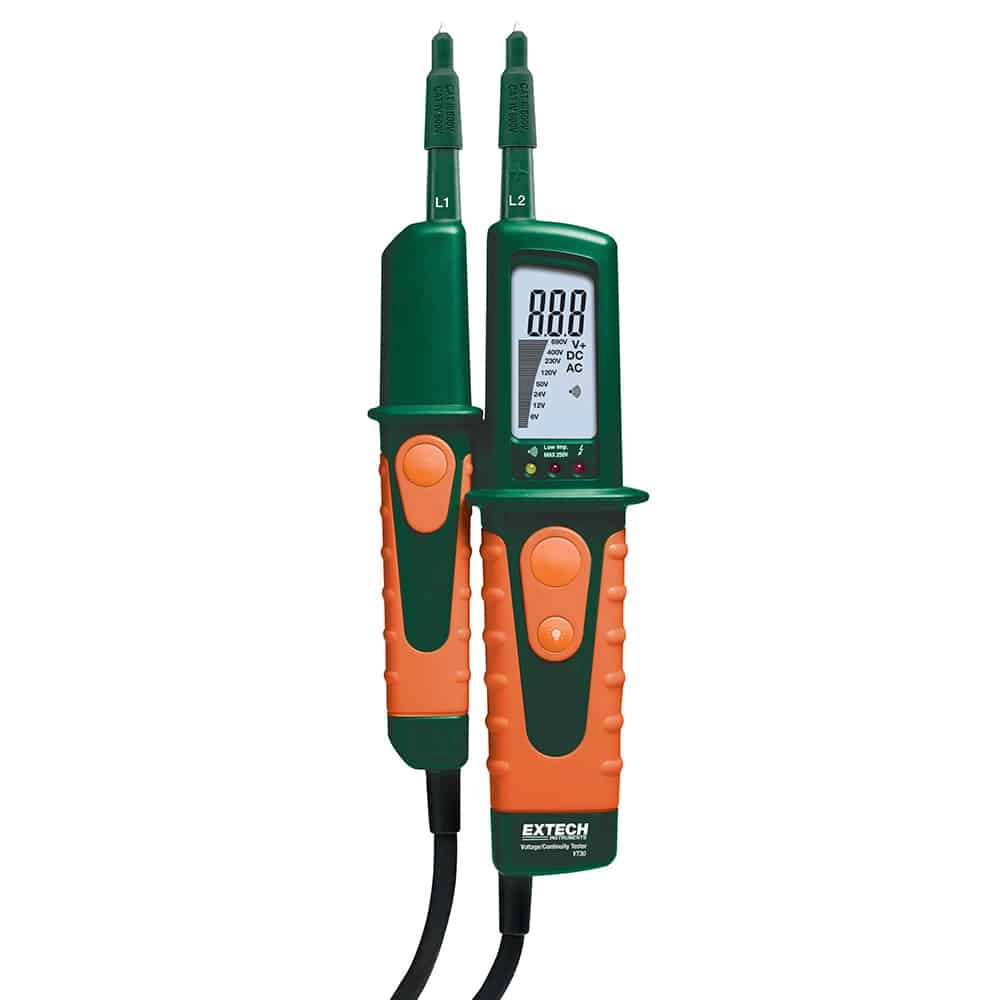

Extech VT30 LCD Multifunction Voltage Tester, 0 to 480V AC, 0 to 690V DC
Model # VT30Key Features
?
Question about this product?
Features
- LCD AC/DC voltage indication: 6V, 12V, 24V, 50V, 230V, 400V, 690V
- Polarity detection with LEDs for positive and negative DC
- Continuity Test with audible tone
- Two handed operation for low impedance testing
- Phase rotation test for motors
- Built-in flashlight for testing in tight areas
- Rubberized double-molded IP64 housing
- Large backlit LCD display
Technical Information
- Voltage0 to 480V AC, 0 to 690V DC
- LCD Display1999 counts (3-1/2 digits)
- Accuracy±(1.5%rdg + 5d): DCV ±(1.0%rdg + 3d)
- Max Measuring Current1.0mA (400VAC); ≤1.5mA (690VDC)
- Overvoltage protection480VAC/690VDC
- Power Supply2 x "AAA" 1.5V alkaline batteries
- Operating Temperature14 to 131° F (-10 to 55° C)
- Storage Temperature22 to 140° F (-30 to 60° C)
- Dimensions9.4 x 3 x 1.6in(240 x 78 x 40m)
- Weight9.2oz (260g)
Items Included
- 2 AAA batteries
- protective cap
- pouch case
