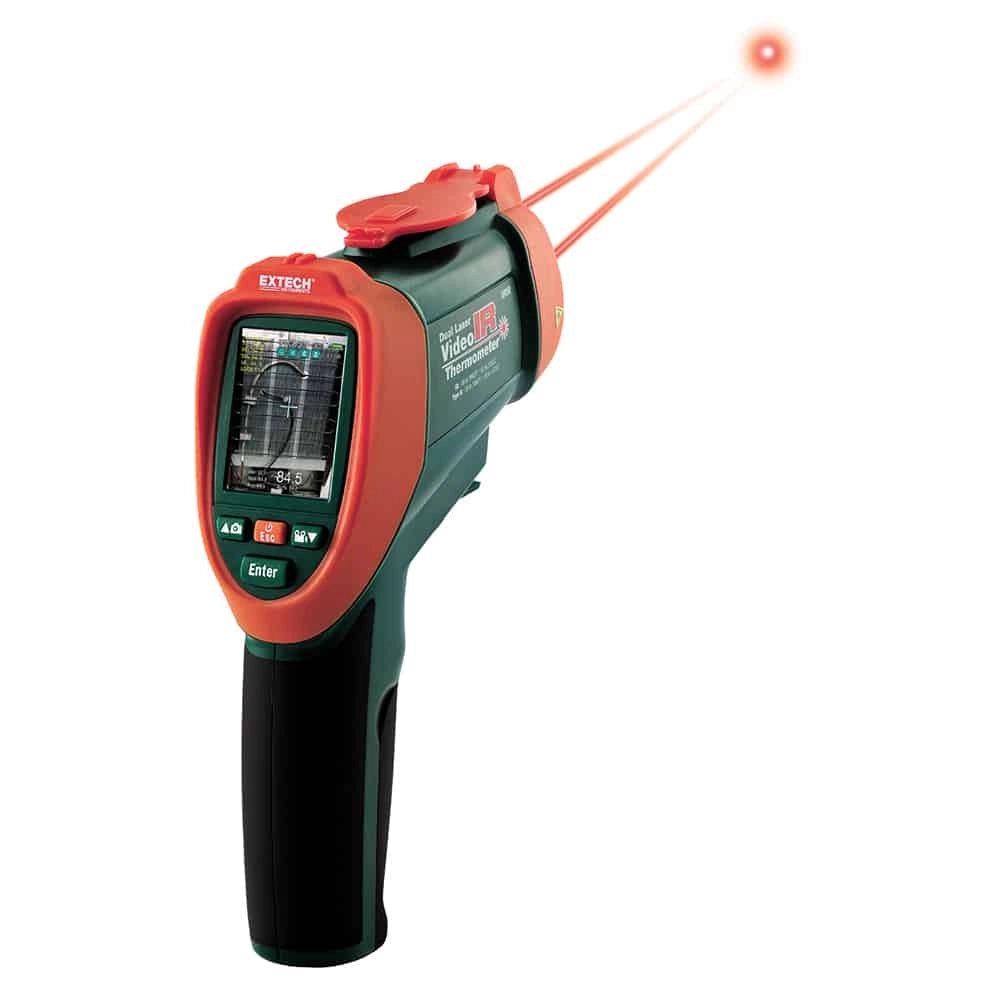

Extech VIR50 IR Video Thermometer, -50 to 2200°C, Dual Laser, 50:1 Distance-to-Spot Ratio, 3.7V Battery and Case
Model # VIR50Key Features
?
Question about this product?
Features
- Non-contact IR Temperature measurement from -58 to 3992°F (-50 to 2200°C) with 50:1 distance to target ratio
- Built-in VGA (640 x 480) Camera
- MicroSD card for capturing images (JPEG) and video (3GP) for viewing on your PC
- Dual laser indicates ideal measuring distance where the two laser points converge to a 1 Inch target spot
- Fast 150 millisecond response time, color LED bargraph for viewing trends
- Type K Thermocouple input, USB interface
- Air Temperature and Relative Humidity measurement
- Adjustable emissivity increases measurement accuracy for different surfaces
- Adjustable High/Low set points with audible alarm alerts user when temperature exceeds the programmed set points
Technical Information
- Camera Resolution640 x 480 pixels
- IR Temperature Range (Metric)-50 to 2200 °C
- IR Temperature Range (Imperial)-58 to 3992 °F
- IR Temperature Resolution±(1% of reading + 4 °F/2 °C) 31 to 212 °F
- Distance to Target Ratio50:1
- Emissivity0.10 to 1.00, adjustable
- Repeatability±0.5% or 1.8 °F/1 °C
- TargetingDual Laser
- Temperature (RTD)0.1 °F/ °C
- Temperature (Air)0 to 50 °C (32 to 122 °F)
- Temperature (Contact)-50 to 1370 °C (-58 to 2498 °F)
- Display2.2" TFT LCD, 320 x 240 pixels
- Relative Humidity0 to 100%
- Dimensions189 × 152 × 57mm
- CertificationsCE
- Power1× 3.7V Rechargeable Battery
- Weight494g
Items Included
- 1x IR Thermometer
- 1x MicroSD Card
- 1x General purpose Type K beadwire probe
- 1x USB cable
- 1x Rechargeable 3.7V battery
- 1x Carrying Case
