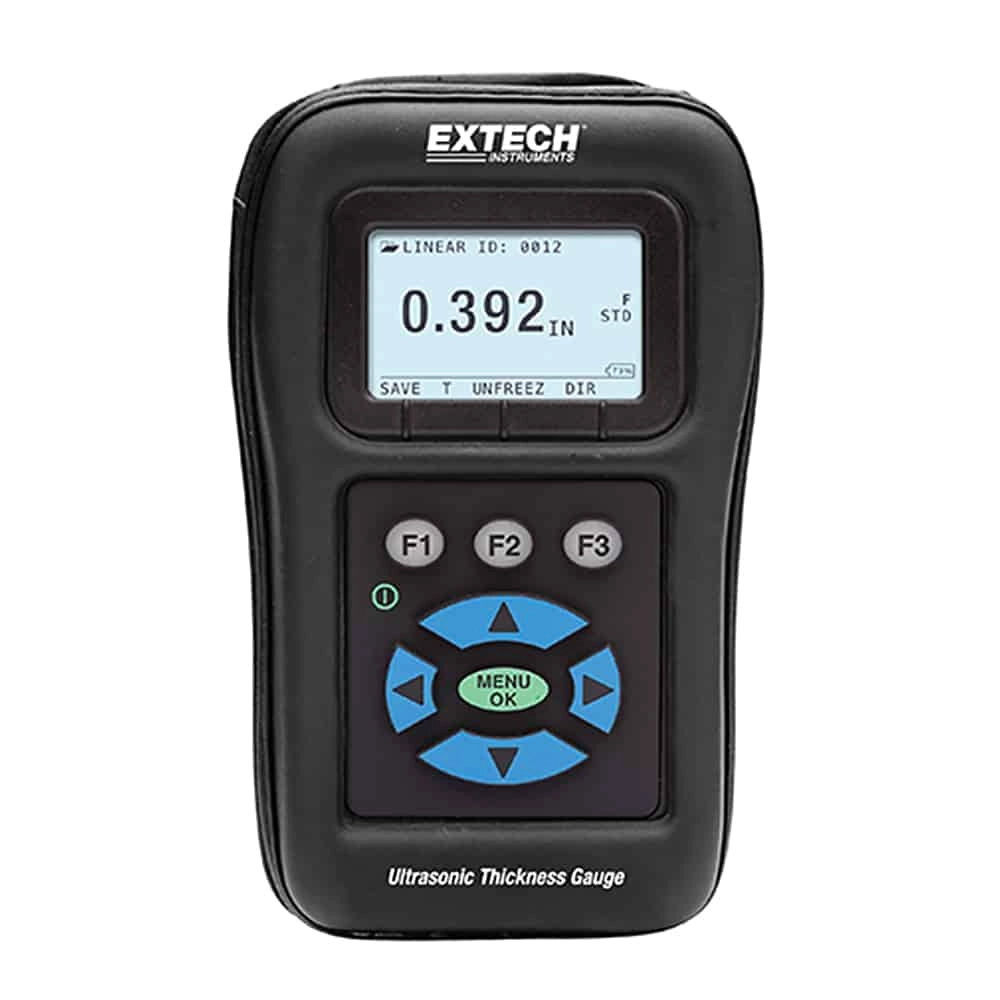

Extech TKG150 Digital Ultrasonic Thickness Gauge/Datalogger, 1 to 508mm
Model # TKG150Key Features
?
Question about this product?
Features
- Wide measurement range: 5MHz probe: 0.040 to 20 of steel, 10MHz probe: 0.020" to 20 of steel (optional)
- Sunlight readable dot-matrix display with backlight
- 100K internal datalogger with export to Excel
- Echo to Echo option to reduce coating errors
- B-scan (visual cross section of test piece)
- Vibrates on alarm
- Multiple transducer options for high temperature and difficult to measure materials
- Fast minimum feature to capture minimum thicknesses
Technical Information
- Steel Thickness Range5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm
- Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
- Hold ModeHolds display to retain last thickness reading with reverse video display
- Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
- UnitsInches/Millimeters/Microseconds
- Illuminating KeypadF1 = Red, F2 = Yellow, F3 =green for easy,go/no-go testing
- Battery Life50 hrs (20hrs w/backlighting)
- DataloggerStores 50k readings (expandable to 100k) and 5,000 waveforms file names up to 20 characters long and theincluded Extech XPorter software extracts .csv data files that can be opened for viewingin MS Excel, Notepad, or Wordpad.
- Differential ModeDisplays the difference from the actual thickness measurement and a user entered reference value.
- Velocity ModeDisplays acoustic sound speed to measure thickness of unknown materials.
Items Included
- 2oz bottle of couplant
- 2 AA batteries
- Transducer (5MHz
- 0.375" diameter ) with potted cable
- hard case
- certificate of calibration to NIST
- protective holster
- USB cable
- Extech XPorter software
