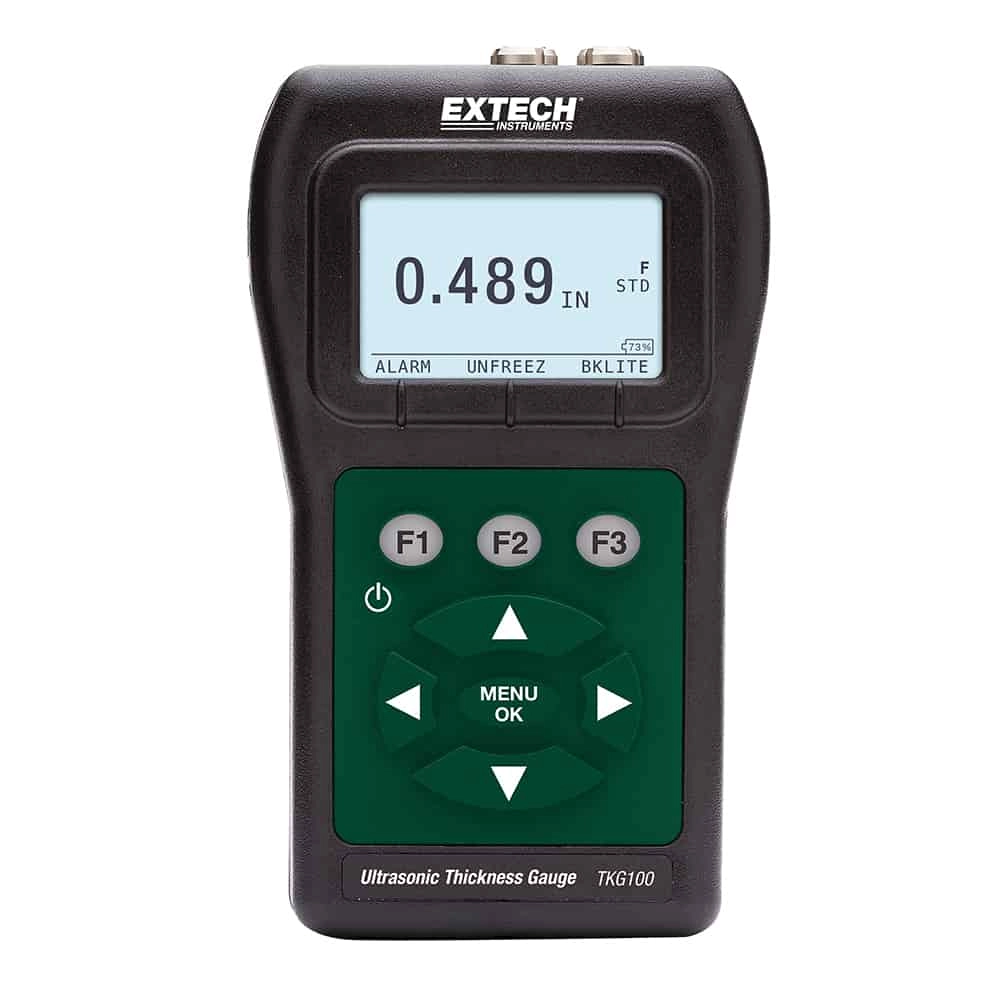

Extech TKG100 Digital Ultrasonic Thickness Gauge, 1 to 508mm
Model # TKG100Key Features
?
Question about this product?
Features
- Wide measurement range: 5MHz probe: 0.040 to 20 of steel, 10MHz probe: 0.020" to 20 of steel (optional)
- Suitable for use both indoors and outdoors
- Measures the thickness level of steel-based structures and other materials
- Sunlight readable dot-matrix display with backlight
- Multiple transducer options for high temperature and difficult to measure materials
- Fast minimum feature to capture minimum thicknesses
Technical Information
- Steel Thickness Range5MHz probe: 0.040 to 20" (1.0 to 508mm); 10MHz probe: 0.030" to 2" (0.76mm to 50.8mm
- Material velocity calibration range0.200 to 0.7362in/μS (0.508 to 18.699mm/μS)
- Hold ModeHolds display to retain last thickness reading with reverse video display
- Fast Min/Max ModeDisplays Min or Max and actual thickness value at 20 measurements/sec
- UnitsInches/Millimeters/Microseconds
- Illuminating KeypadF1 = Red, F2 = Yellow, F3 =green for easy,go/no-go testing
- Battery Life50 hrs (20hrs w/backlighting)
Items Included
- 2oz bottle of couplant
- 2 AA batteries
- Transducer (5MHz
- 0.375" diameter ) with potted cable
- hard case
- certificate of calibration to NIST cable
