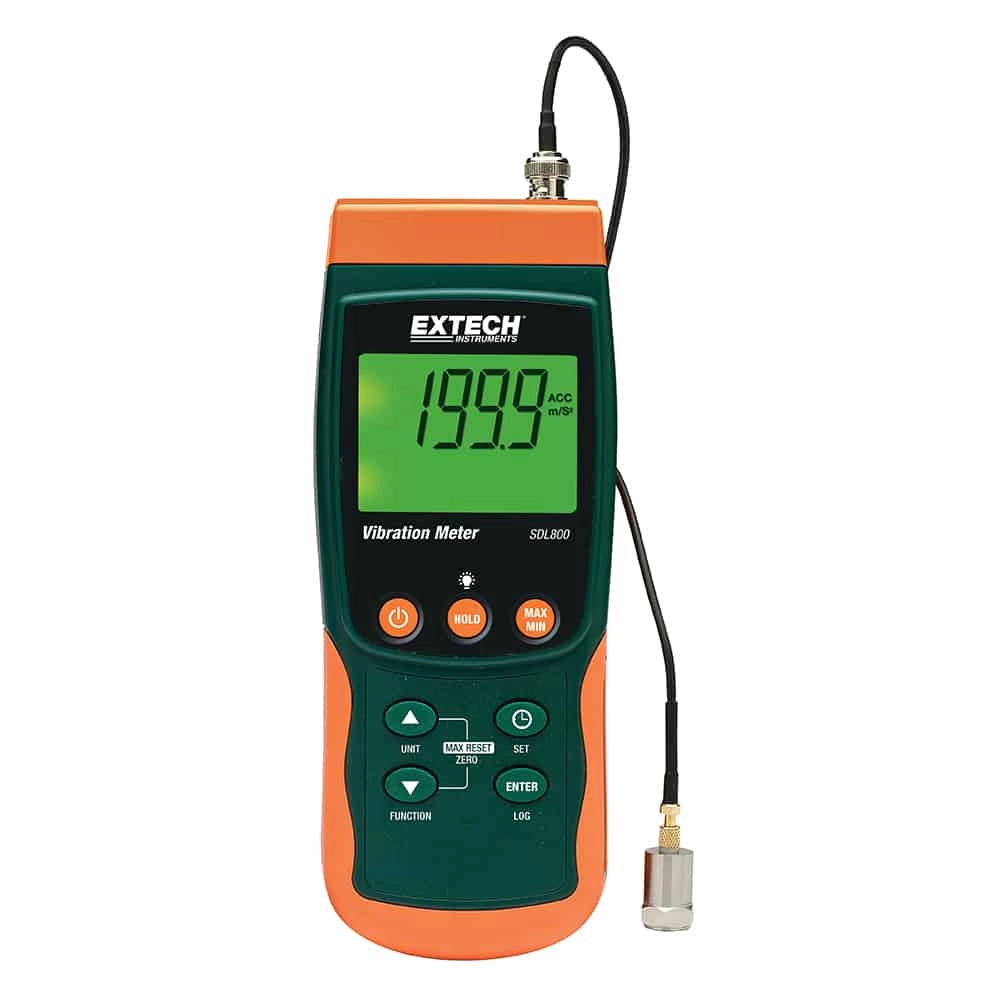

Extech SDL800 Vibration Meter and Datalogger With SD Card, 10 to 1000Hz
Model # SDL800Key Features
?
Question about this product?
Features
- Remote vibration sensor with magnetic adapter on 47.2 Inch(1.2m) cable
- Wide frequency range of 10Hz to 1kHz
- Basic accuracy of ±(5% + 2 digits); Meets ISO2954
- RMS, Peak Value or Max Hold measurement modes
- Adjustable data sampling rate
- Offset adjustment used for zero function to make relative measurements
- Large backlit LCD
- Stores 99 readings manually and continuous datalogging via SD memory card
- Record/Recall MIN, MAX, Data Hold and Auto power off
Technical Information
- Acceleration656ft/s2 , 200m/s2 , 20.39g
- Velocity7.87in/s, 200mm/s, 19.99cm/s
- Displacement0.078in, 2mm (peak-to-peak)
- Resolution1ft/s2 , 0.1m/s2 , 0.01g; 0.01inches/s, 0.1mm/s, 0.01cm/s; 0.001inches, 0.001mm
- Accuracy±(5%+2 digits)
- Memory20M data records using 2G SD card
- Dimensions7.2 x 2.9 x 1.9 inches (182 x 73 x 47.5mm)
- Weight21.1oz (599g)
Items Included
- Remote sensor
- Magnetic mount
- 6 x AA batteries
- SD card
- Hard carrying case
