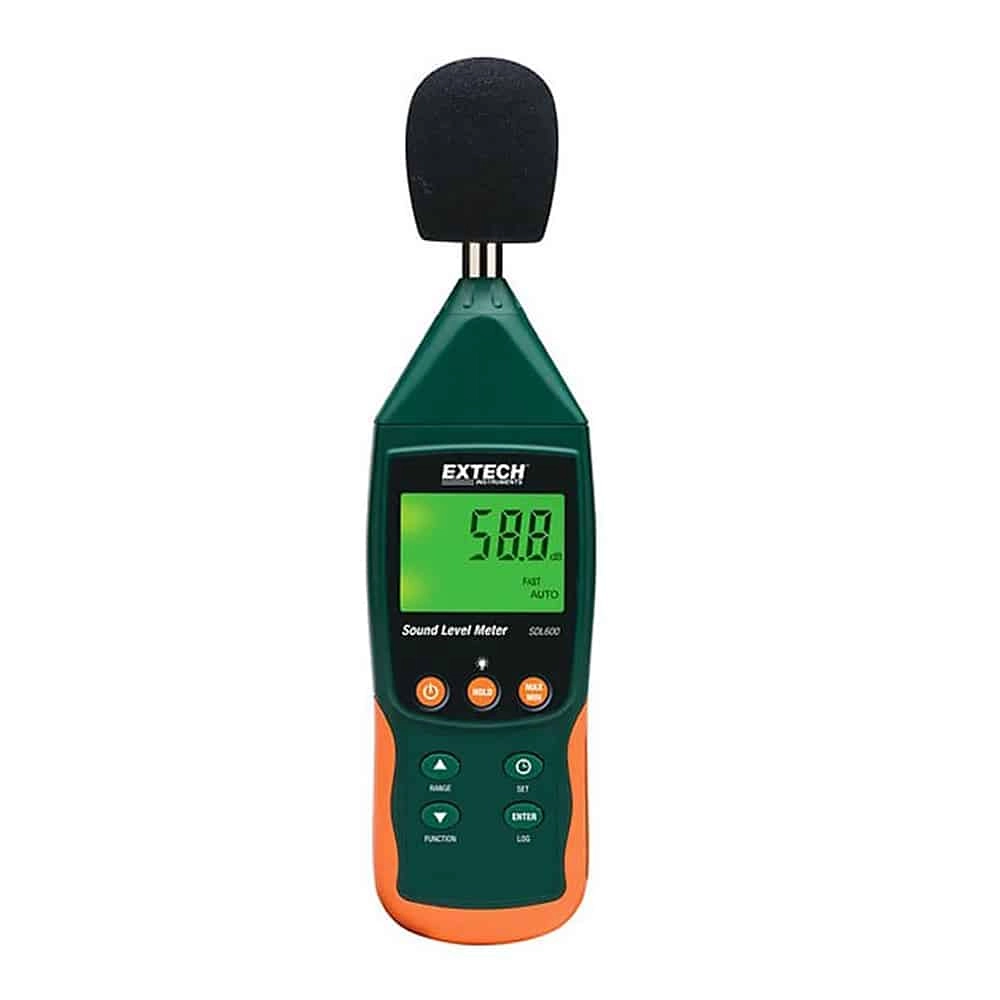

Extech SDL600 Sound Level Meter / Datalogger, 30 to 130 dB
Model # SDL600Key Features
?
Question about this product?
Features
- High accuracy ±1.4dB meets ANSI and IEC 61672-1 Type 2 standards
- 30 to 130dB measurement range
- Auto or Manual ranging
- AC analog output for connection to an analyzer or recorder
- Large backlit LCD display
- Stores 99 readings manually and 20M readings via 2G SD card
- Datalogger date/time stamps and stores readings on an SD card in Excel® format for easy transfer to a PC
- User programmable sampling rate: 1 to 3600 seconds
- Min/Max, Data Hold, Auto Power Off
Technical Information
- Noise Range30 to 130dB (3 ranges)
- Accuracy±1.4dB
- Frequency Range31.5 to 8000Hz
- WeightingA and C
- Response TimeFast (125ms) / Slow (1s)
- Memory20M data records using 2G SD card
- Analog OutputAC
- Dimensions9.8 x 2.9 x 1.9in (250 x 73 x 48mm)
- Weight18.3oz (520g)
Items Included
- 6 AA batteries
- SD Card
- wind screen
- hard carrying case
