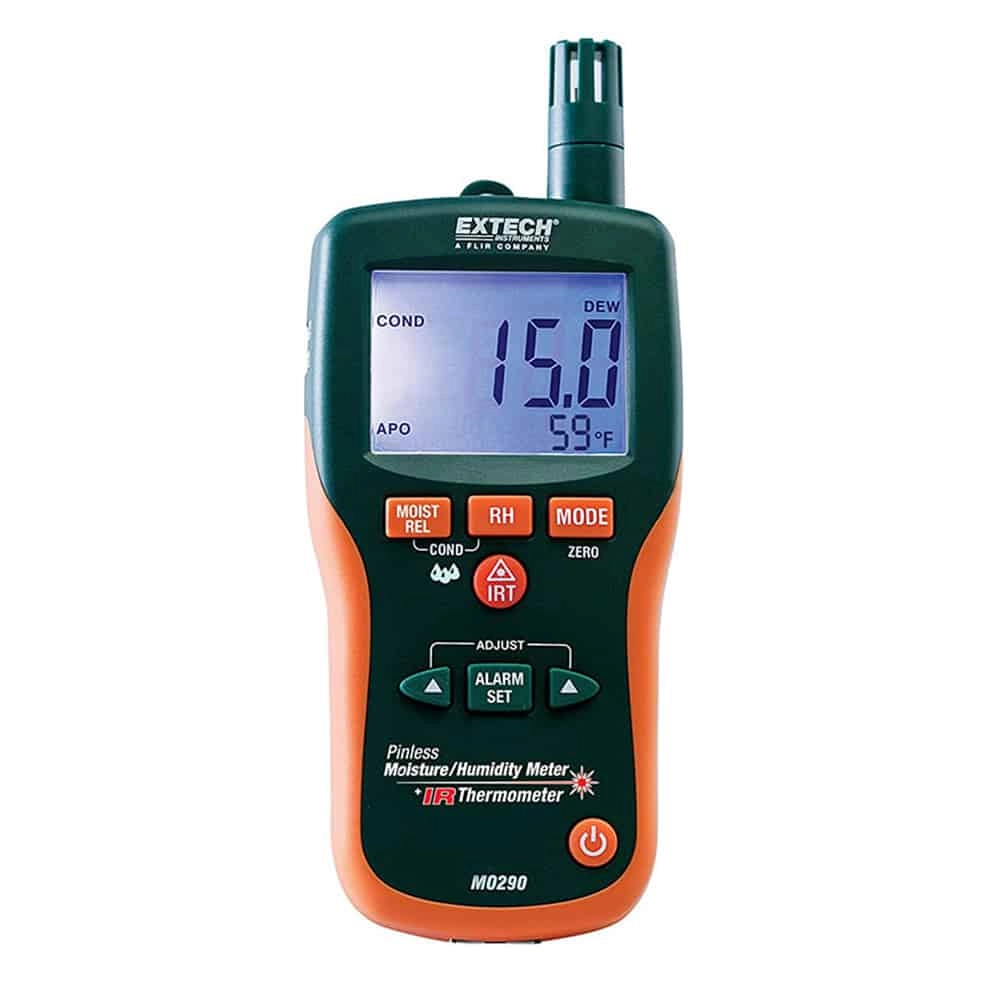

Extech MO290 Pinless Moisture Psychrometer + IR Thermometer, -29 to 77°C Air, 0 to 100%RH

Features

• Measure Humidity, Air Temperature (with built-in probe) plus non-contact InfraRed Temperature
• Pinless moisture sensor allows to monitor moisture in wood and other building materials with no surface damage
• Remote pin-type probe (MO290-P) for contact moisture readings (3ft/0.9m cable length)
• Built-in Humidity/Temperature probe measures Relative Humidity, Air Temperature plus Grains Per Pound (GPP), Dew Point (DP), and Vapor Pressure
• Select from multiple wood types and measurement ranges
• Easy to read, large dual display with backlit feature
• Simultaneously displays % moisture of wood or material being tested and Air Temperature, IR Temperature, or Humidity
• Pinless measurement depth to 0.75" (19mm) below the surface
• Non-Contact InfraRed Thermometer with 8:1 distance to spot ratio and 0.95 fixed emissivity

Technical Information

• Pinless Moisture6 to 99.9
• Pinless Depth0.75in (19mm)
• Max. Resolution0.1, 0.1°F/°C
• Temperature (Air)20 to 170°F (29 to 77°C)
• Temperature (IR)4 to 392°F (20 to 200°C)
• Vapor Pressure0 to 20.0kPA
• Mixing Ratio0 to 999GPP (0 to 160g/kg)
• Dew Point22 to 199°F (30 to 100°C)
• Dimensions6.5x2.8x1.5in (165x70x38)
• Weight7.4oz (210g)

Items Included

• pin moisture probe with cable
• 9V battery
• case
