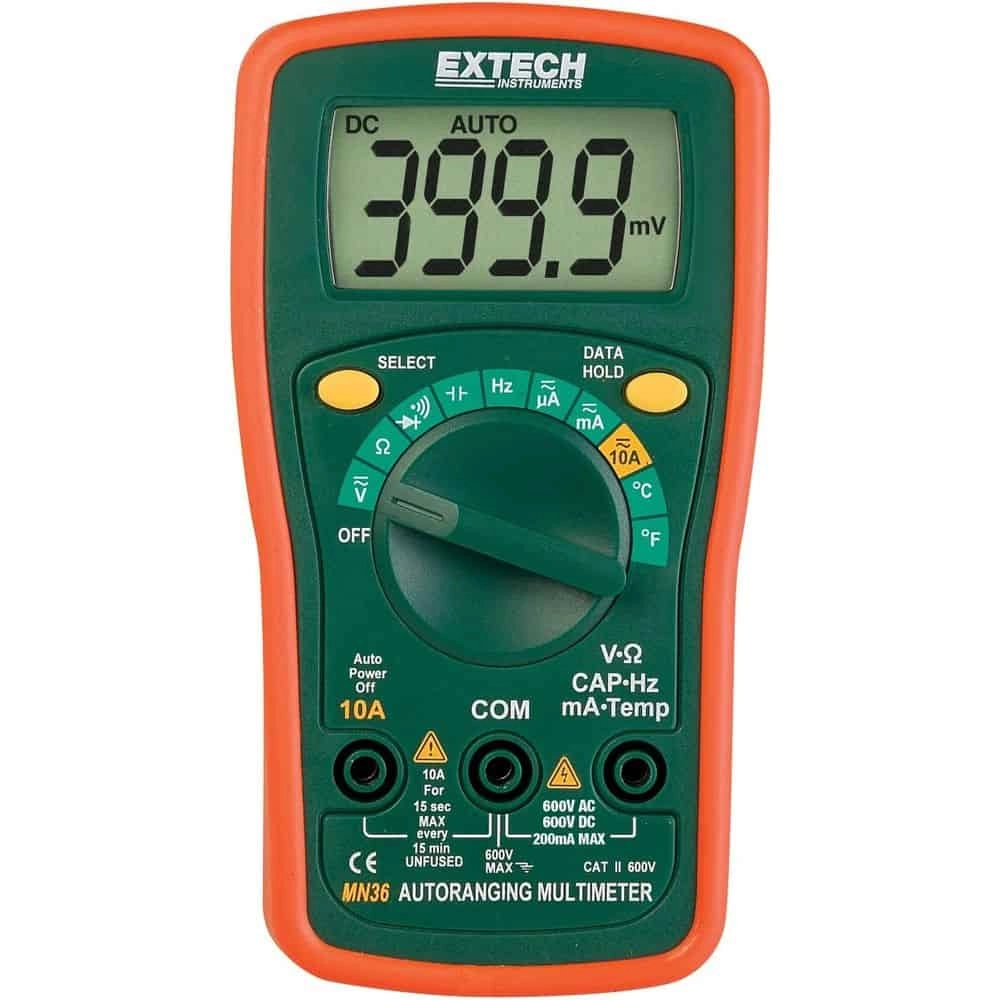

Extech MN36 Mini Digital Multimeter, 10A, CAT II 600V, Autoranging, Capacitance and Frequency Measurement

Features

• Large easy to read digital display
• AC/DC Voltage, DC Current, Resistance, Capacitance, Frequency, Type K Temperature, Continuity/Diode
• Convenient mini size with protective rubber holster and tilt stand
• Data Hold locks reading in the display

Technical Information

• DC Voltage600V (0.1mV)
• AC Voltage600V (0.1V)
• DC Current10A (0.1µA)
• AC Current10A
• Resistance40MΩ (0.1µΩ)
• Capacitance100µF (0.001nF)
• Frequency5MHz (0.01Hz)
• Temperature-4 to 1400°F (1°) -20 to 750°C
• Display4000 Counts
• Safety RatingCAT II 600V
• Power2 x AAA
• Dimensions5.43x2.83x1.5in(138x72x38mm)
• Weight5.4oz (153g)

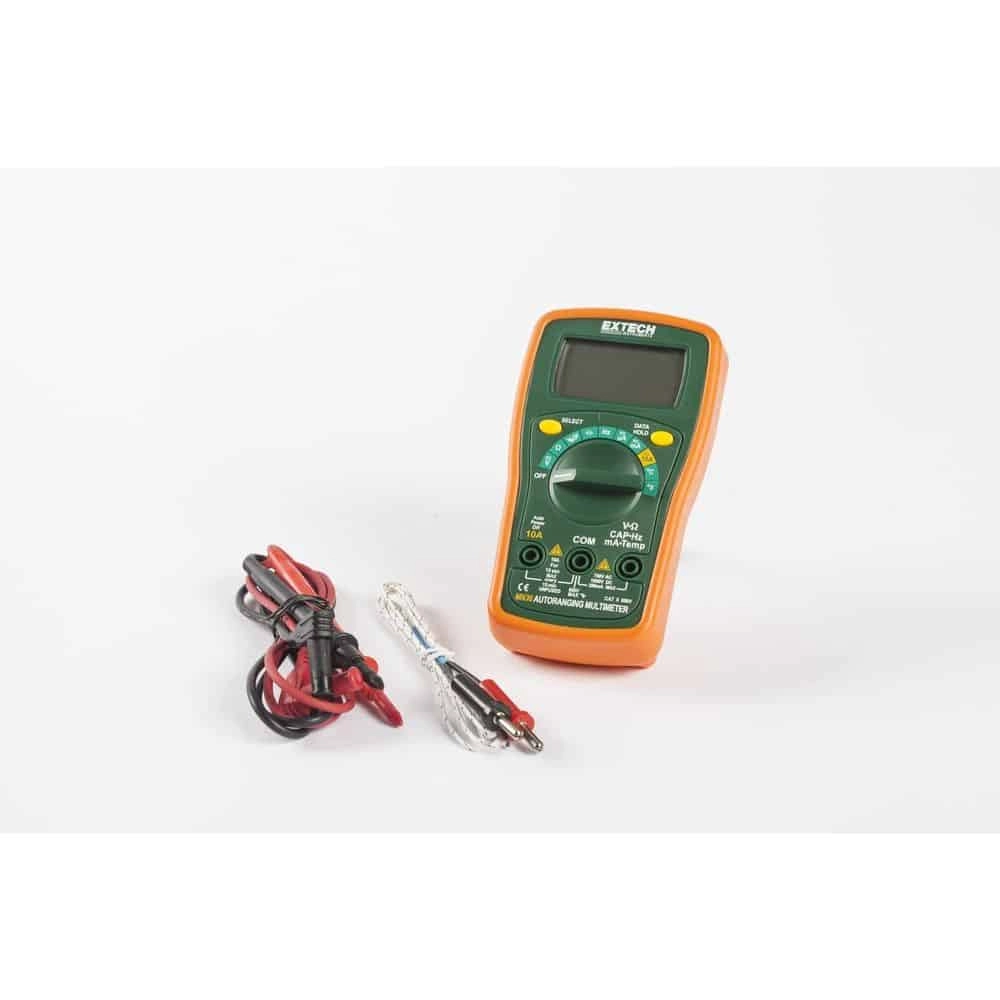

Items Included

• Includes protective rubber holster
• 2xAAA batteries
• bead wire Type K temp. probe and test leads

Downloads

Datasheet
