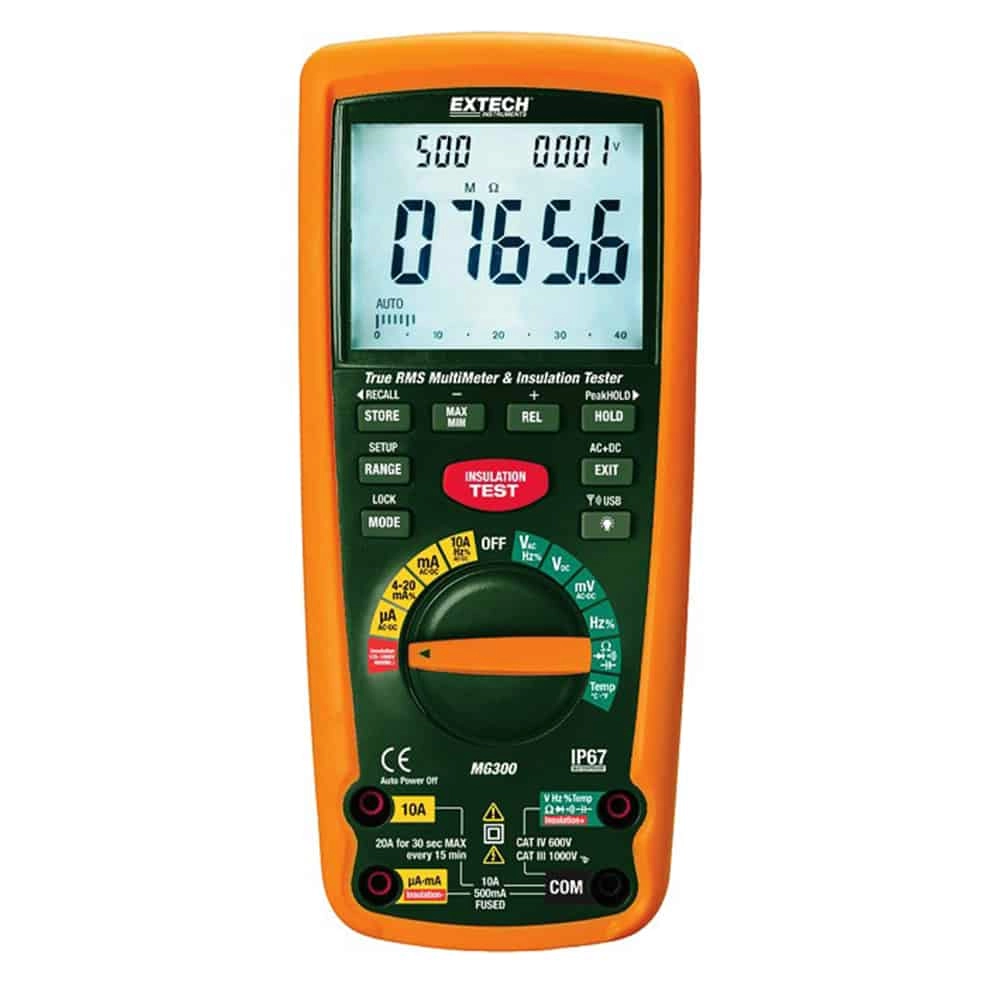

Extech MG302 True RMS Insulation Tester, CAT IV 600V, 1000V
Model # MG302Key Features
?
Question about this product?
Features
- Wireless USB interface transmits measurement data to a PC
- Backlit super large triple display
- 125V, 250V, 500V, and 1000V test voltages
- Insulation Resistance from 0.001MOhm to 4000MOhm
- Auto discharge of capacitive voltage
- Lock Power On Function for hands-free operation
- Data Hold, Min/Max, Relative mode, Auto power off
- Complete with USB receiver, Windows® software, test leads & alligator clips, bead wire temperature probe, carrying case and batteries
Technical Information
- DC Voltage1000V
- AC Voltage1000V
- DC Curent10A
- AC Current10A
- Resistance40MΩ
- Frequency100MHZ
- Capacitance40mF
- Temperature-58 to 2192°F (50 to 1200°C)
- Insulation Resistance4MΩ, 40MΩ, 400MΩ, 4000MΩ
- Safety RatingCAT IV 600V
- Duty Cycle0.1 to 99.9%
- Dimensions7.8 x 3.6 x 1.9in(200 x 92 x 50mm)
- Weight20.5oz (582g)
Items Included
- remote receiver with USB cable
- Windows® compatiblesoftware
- heavy duty test leads
- alligator clip test lead
- Type K bead wiretemperature probe with adapter
- carrying case
- 6 x AA batteries
