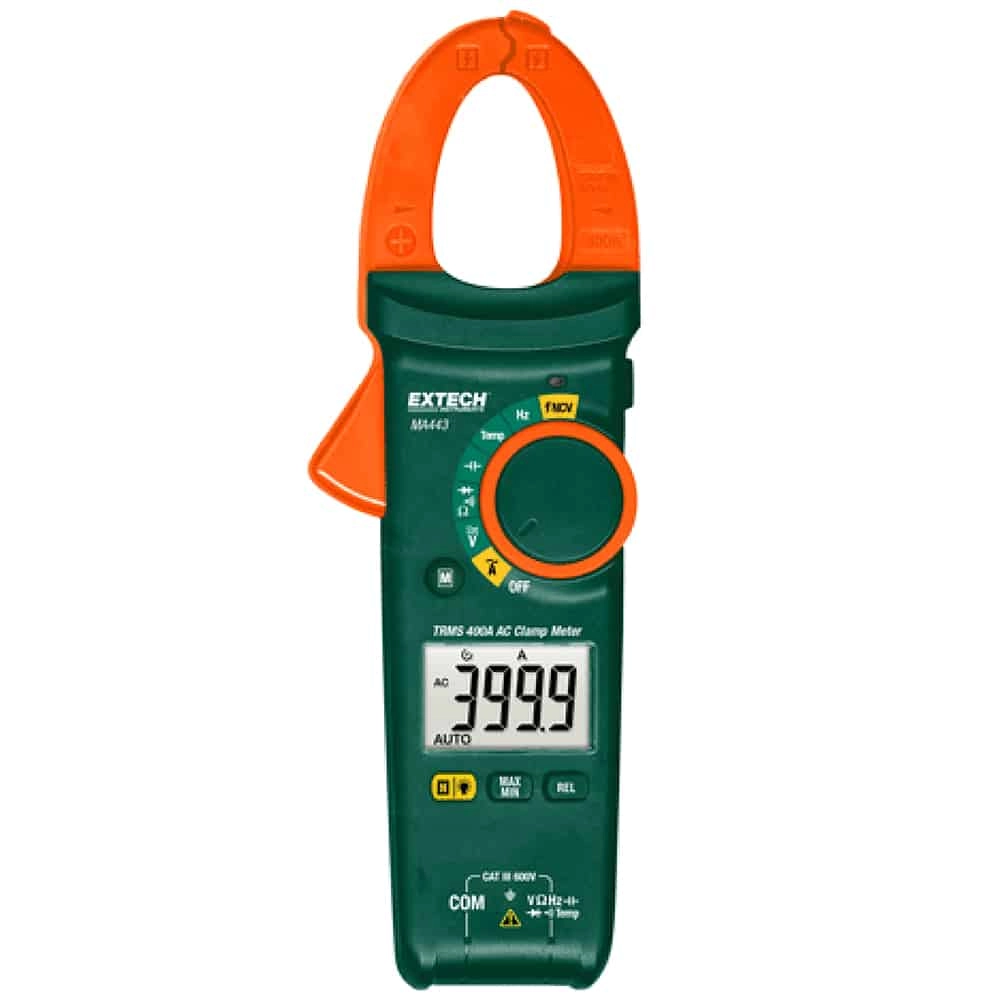

Extech MA443 True RMS AC Clamp Meter Non-Contact Voltage, 400A, 30mm Jaw, CAT III 600V

Model # MA443

Key Features

Brand: Extech
Model: MA443
AC Current:400A
AC Voltage:600V
Jaw Size:30mm
Safety Rating:CAT III 600V
Warranty: 1 year

Qty:

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

?

Question about this product?

Speak to an expert

Features

True RMS feature for accurate readings regardless of waveforms
1.2 Inch (30mm) jaw size fits conductors up to 500MCM
Built-In Non-Contact Voltage Detector (NCV)
Large backlit LCD display and built-in Flashlight
Functions include: NCV, AC/DC Voltage, AC Current, Resistance, Capacitance, Frequency, Type-K Temperature, Diode Test, Continuity
Relative mode for Capacitance, Data Hold, Max/Min, Auto Power Off and Low Battery Indicator
Complete with test leads, three AAA batteries, general purpose Type K temperature probe and pouch

Technical Information

AC Current400A
AC Voltage600V
Jaw Size30mm
Safety RatingCAT III 600V
Basic Accuracy±1.8%
DC Voltage600V
Resistance40MΩ
Capacitance40mF
Frequency1MHz
Temperature-40° to 1000°C
Dimensions9x3x1.6in(228x77x41mm)
Weight9.3oz (265g)
Weight9.3oz (265g)

Items Included

test leads
three AAA batteries
pouch
MA443 and MA445 also includes a generalpurpose Type K Temperature probe
