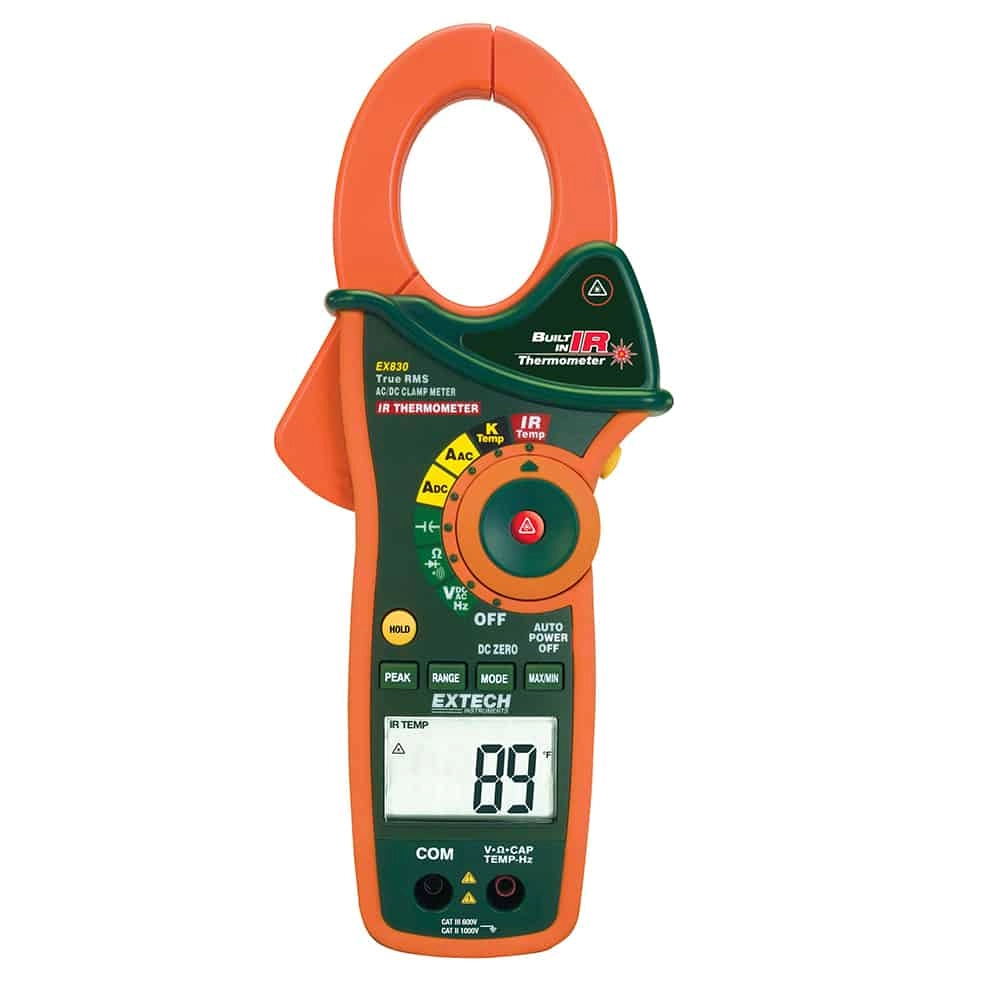

Extech EX830 True RMS AC/DC Clamp Meter With IR Thermometer, 1000A, 43mm Jaw, CAT III 600V

Model # EX830

Key Features

Brand: Extech
Model: EX830
AC Current:1000A
AC Voltage:600V
Jaw Size:43mm
Safety Rating:CAT III 600V
Warranty: 1 year

Qty:

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

?

Question about this product?

Speak to an expert

Features

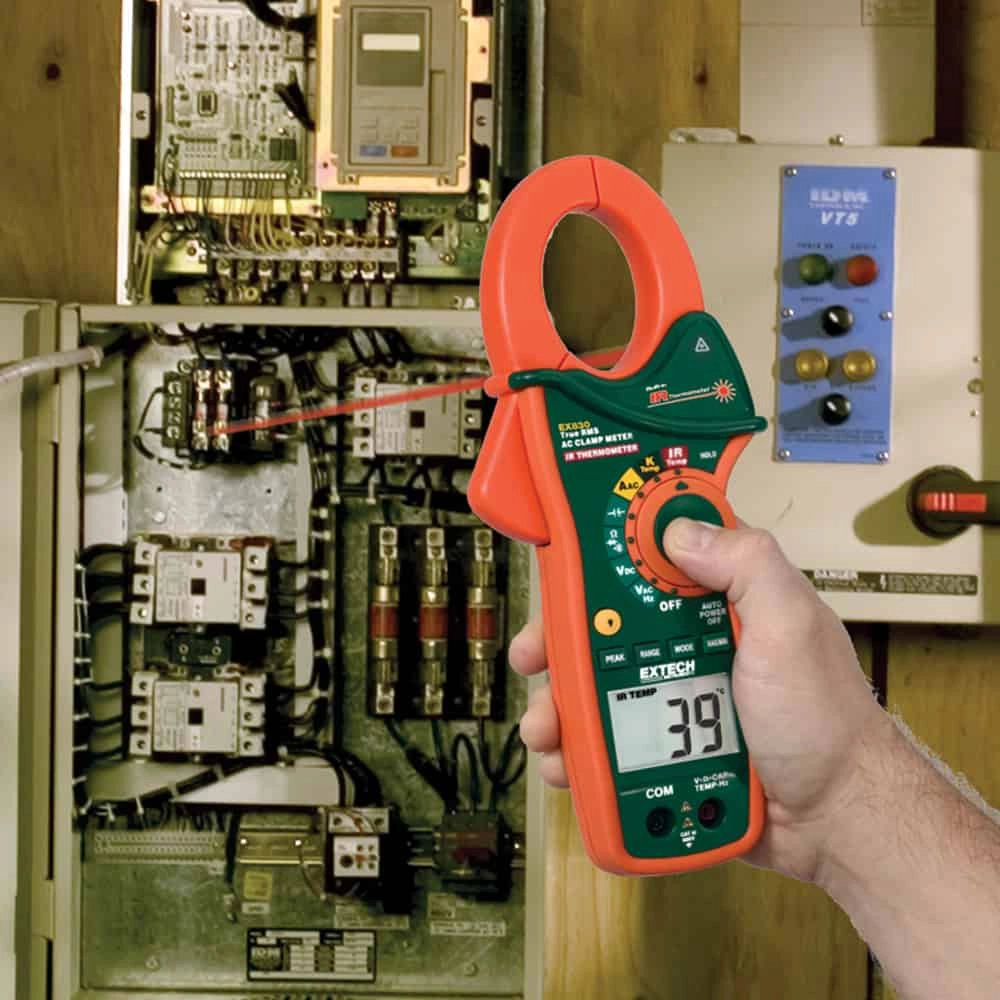

Non-contact InfraRed Temperature measurements with laser pointer
True RMS Current and Voltage measurements
Peak hold captures inrush currents and Transients
MultiMeter functions include AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Diode, Continuity and Type K Thermometer
1.7" (43mm) jaw opening for conductors up to 750MCM or two 500MCM
Autoranging with manual range button
Features include Data Hold and Min/Max, DC Zero, Auto Power off
Complete with test leads, 9V battery, general purpose Type K probe and case

Technical Information

AC Current1000A
AC Voltage600V
Jaw Size43mm
Safety RatingCAT III 600V
DC Current1000A
DC Voltage600V
IR Temperature-58 to 518°F (-50 to 270°C)
Resistance40MΩ
Capacitance0.001nF to 40,000μF
Frequency0.001kHz to 4kHz
Type K Temp4 to 1400ºF/-20 to 760ºC
Dimensions10.6x4.3x2In (270x110x50mm)
Weight13.6oz (386g)

Items Included

test leads
9V battery
generalpurpose Type K probe (EX820/EX830)
case
