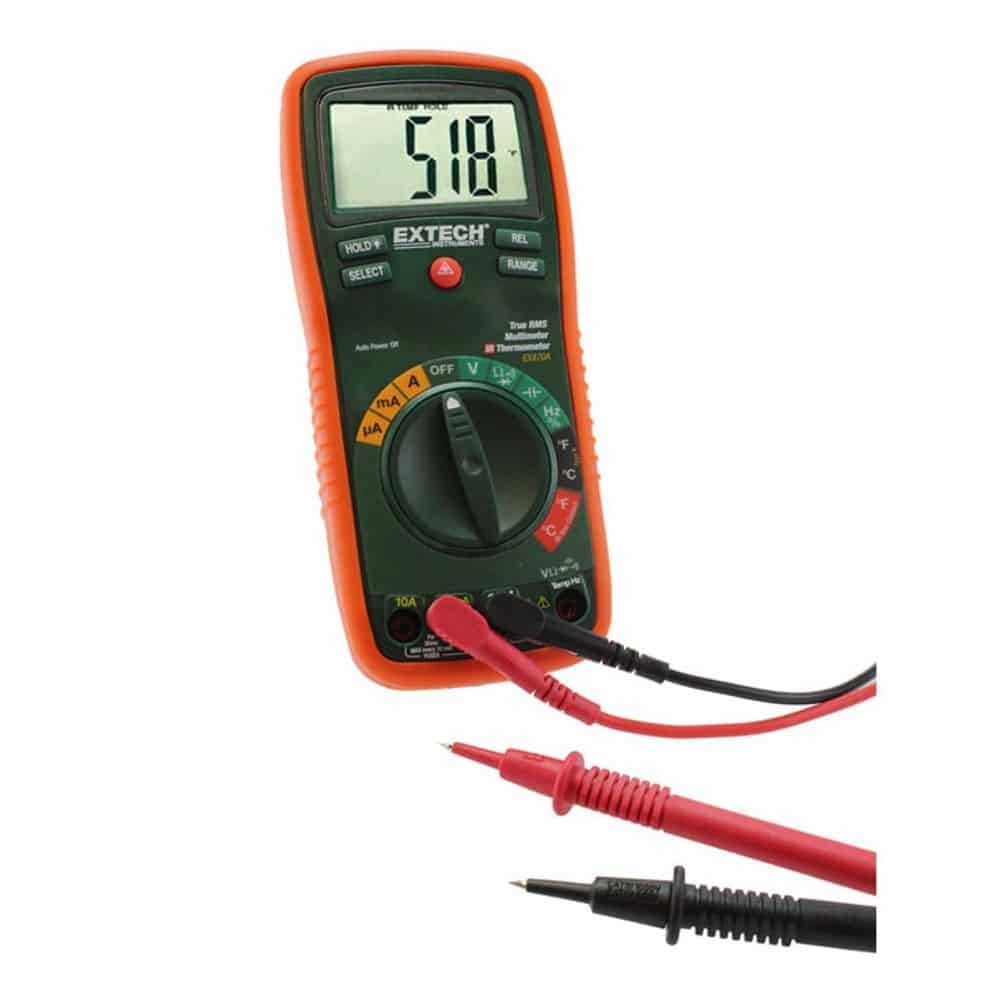

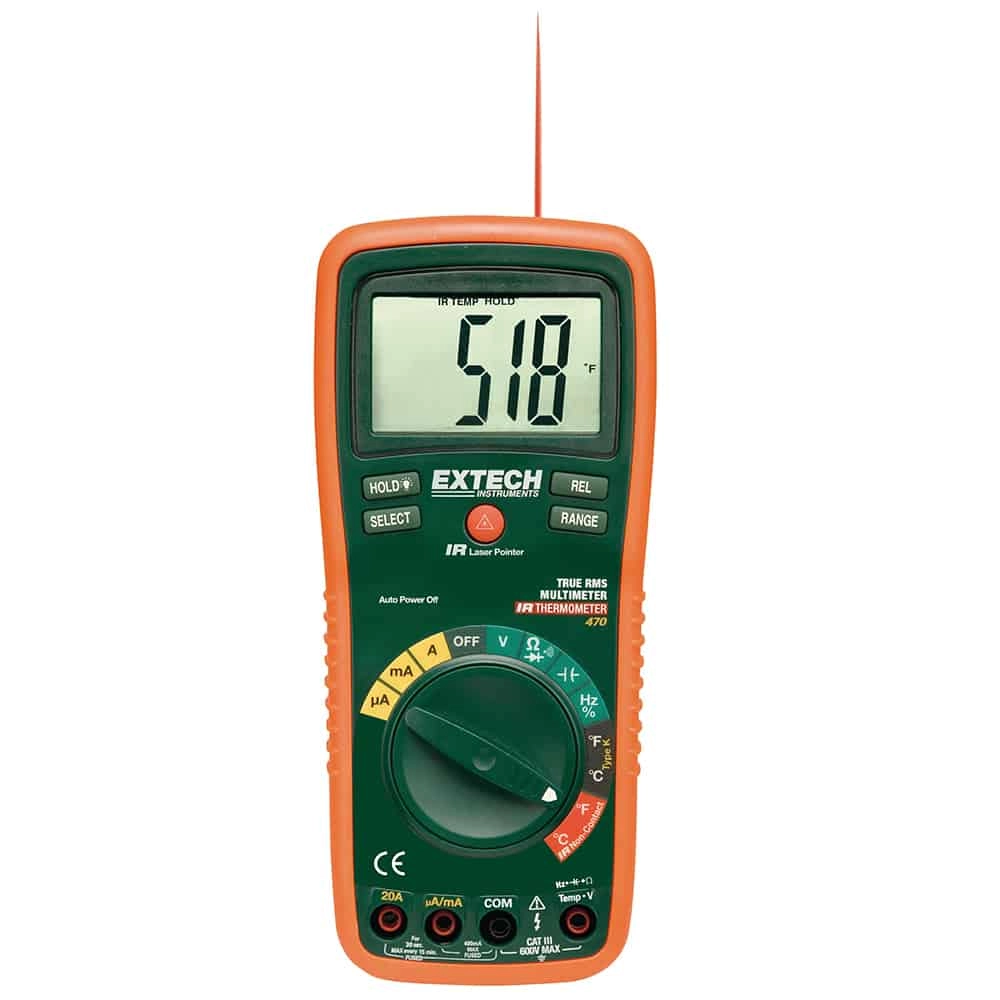

Extech EX470A True RMS Professional Multimeter, 20A, CAT IV 600V, with Built-in IR Thermometer, Autoranging, Capacitance, Frequency, Relative Function

Features

• True RMS DMM with 12 functions and 0.3% basic accuracy.
• AC/DC Voltage & Current, Resistance, Capacitance, Frequency, TypeK & IR Temperature, Diode/Continuity, Duty Cycle.

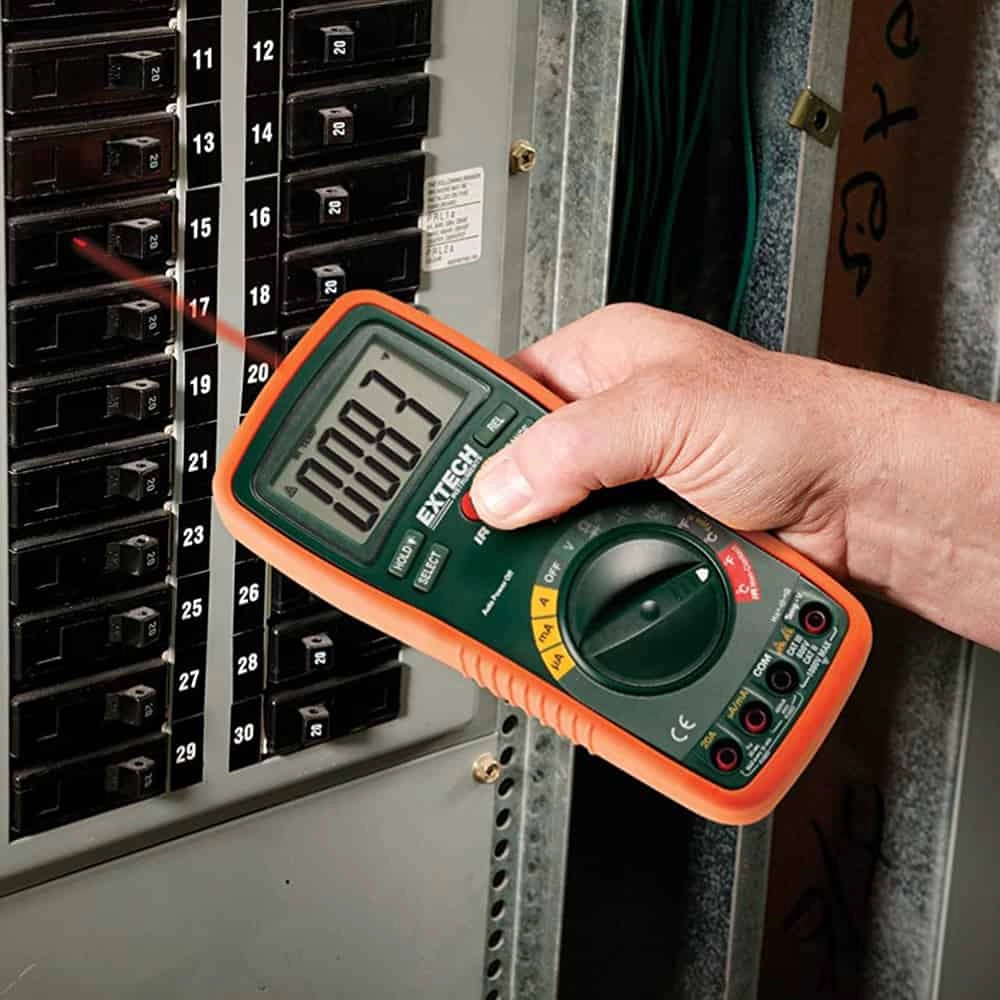

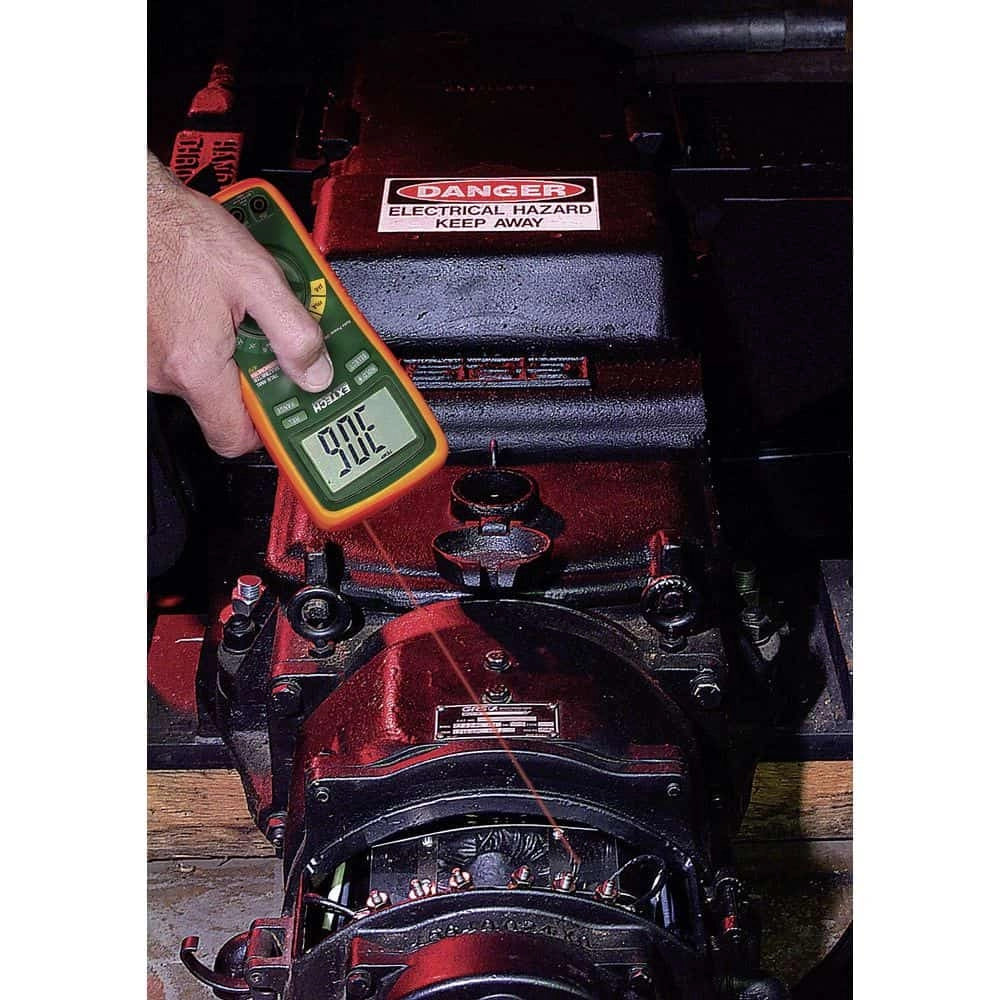

• Built-in non-contact InfraRed Thermometer with 8:1 distance to target ratio with 0.95 fixed emissivity. Input fuse protection and mis-connection warning.
• 10A max Current.

Technical Information

• DC Voltage0.1mV to 600V
• AC Voltage0.1mV to 600V
• DC Current0.1μA to 10A
• AC Current0.1μA to 10A
• Resistance0.1Ω to 40MΩ
• Capacitance0.01nF to 100μF
• Frequency0.001Hz to 10MHz
• Temperature (Type K)-20 to 750°C
• Temperature (IR)-50 to 270°C
• Safety RatingCAT IV, 600V, CAT III 1000V
• Duty Cycle0.1% to 99.9%
• Dimensions7.4x3.2x2in(187x81x50mm) 0.75lbs (342g)
• Weight0.75lbs (342g)

Items Included

• CAT III test leads
• multi-position tiltstand and velcro strap for hanging
• protective holsterwith test lead holder
• bead wire temperature probe
• 9V battery

Downloads

Datasheet
