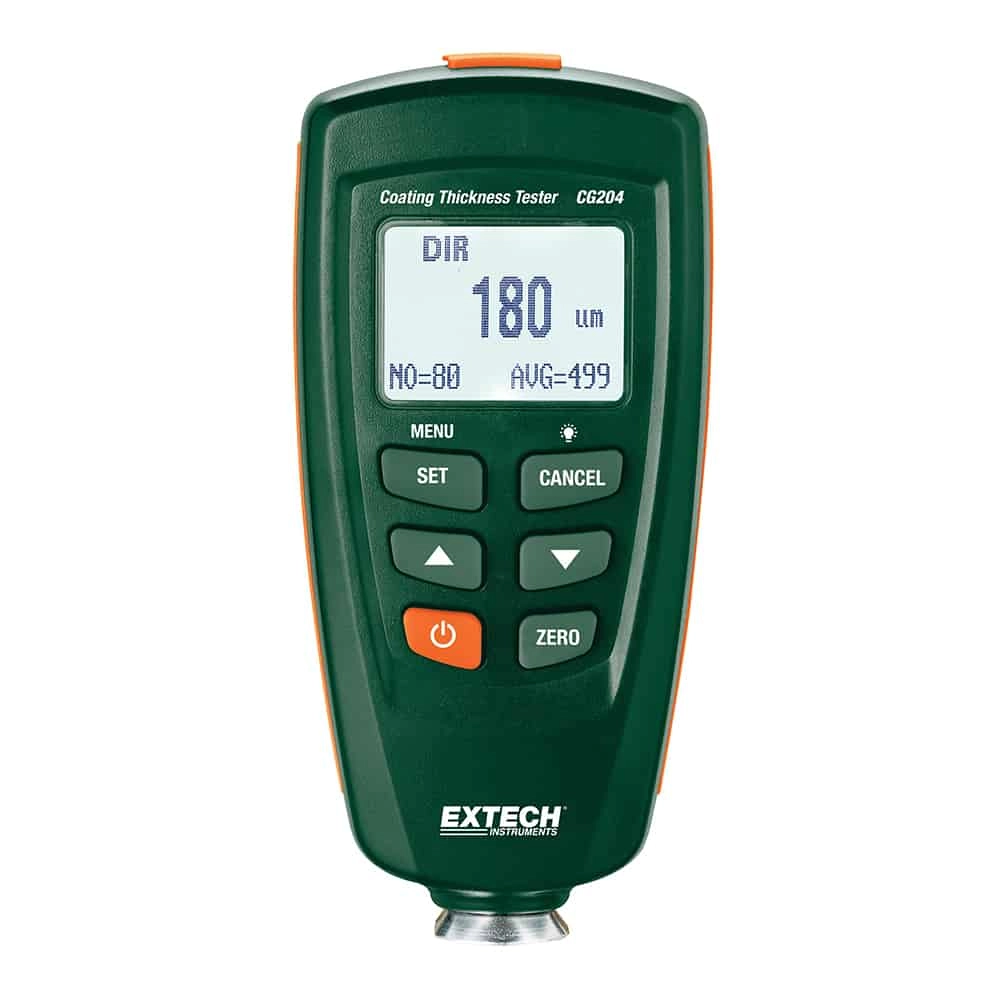

Extech CG204 Coating Thickness Tester, 0 to 1250µm
Model # CG204Key Features
?
Question about this product?
Features
- Automatic substrate recognition
- Magnetic induction for ferrous substrates
- Eddy current measurement for non-ferrous substrates
- Easy-to use menu system
- Two measuring modes: Single and Continuous
- Two working modes: Direct and Group
- Memory stores 400 readings: 80 Direct and 320 Group
- User-programmable high/low alarms
- Min/Max/Average, one or two point calibration
Technical Information
- Range (Max Res)0 to 1250µm (0.1µm); 0 to 49mils (0.004mils)
- Basic Accuracy±3%
- Minimum Curvature Radius1.5mm (59.06mils)
- Minimum Diameter7mm (275.6mils)
- Minimum Thickness0.5mm (19.69mils)
- Dimensions4.7x2.4x1.25 Inches(120x6 x32mm)
- Weight6.17oz (175g)
Items Included
- two AAA batteries
- USB cable
- software
- Calibration Iron
- Calibration Aluminum
- Precision Standards
- pouch case
