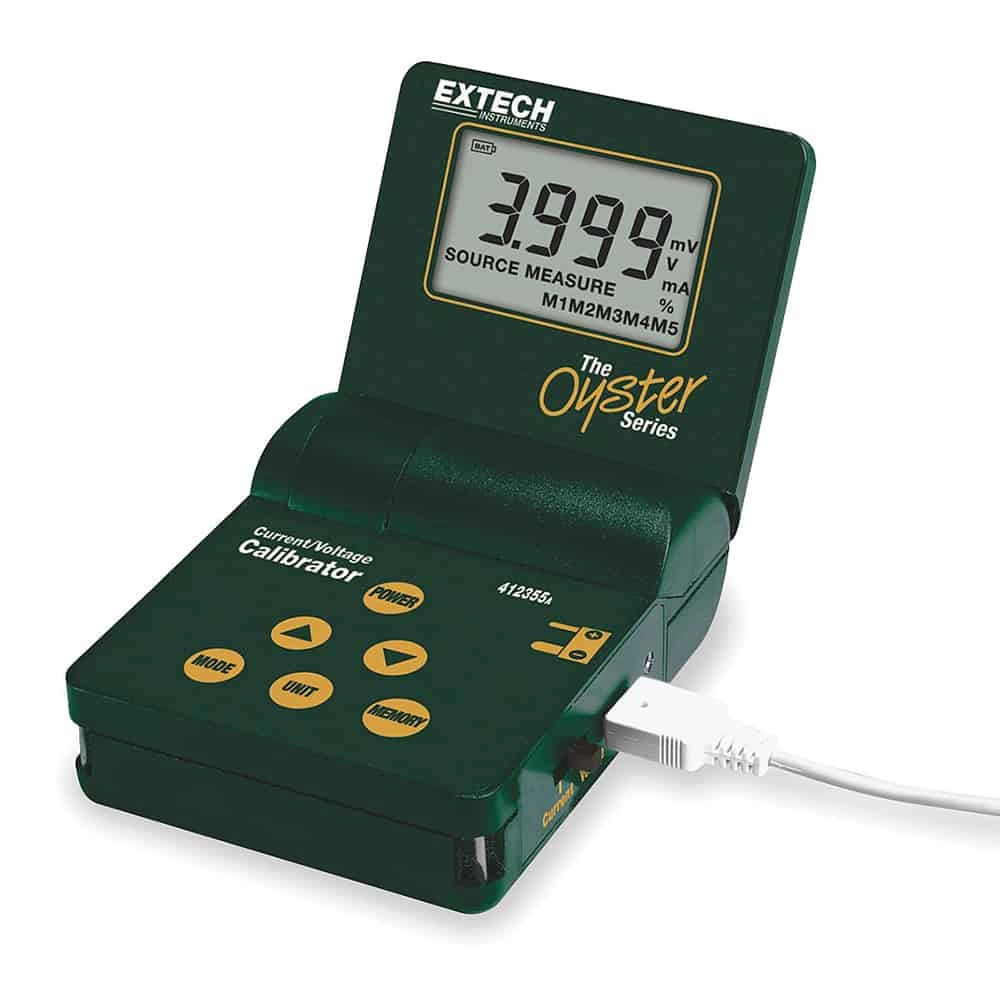

Extech 412355A Precision Source Current And Voltage Calibrator, 0 to 24mA, 0 to 20V
Model # 412355AKey Features
?
Question about this product?
Features
- Oyster case with flip-up display is ideal for handheld or benchtop applications
- Large 3-1/2 digit LCD display and touch keypad
- Display readings in mA or as a % of the 0 to 24mA range or as mV in voltage ranges
- Provides adjustable 0 to 24mA and 0 to 20V calibration source
Technical Information
- SourceOutput 0 to 24mA current for loads up to 1000 ohms
- Measure0 to 50mA current signal
- Power/MeasureProvides power (24VDC) to loop & measures current (412300A only)
- Accuracy0.075% ±1 digit
- Power9V battery or AC adaptor
- Dimensions3.8 x 4.2 x 1.8in (96 x 108 x 45mm) folded
- Weight12oz (340g)
Items Included
- 9V battery
- calibration cable withspade lug terminals
- carrying case
- 100V-240V AC Universal Adaptor (50/60Hz)
