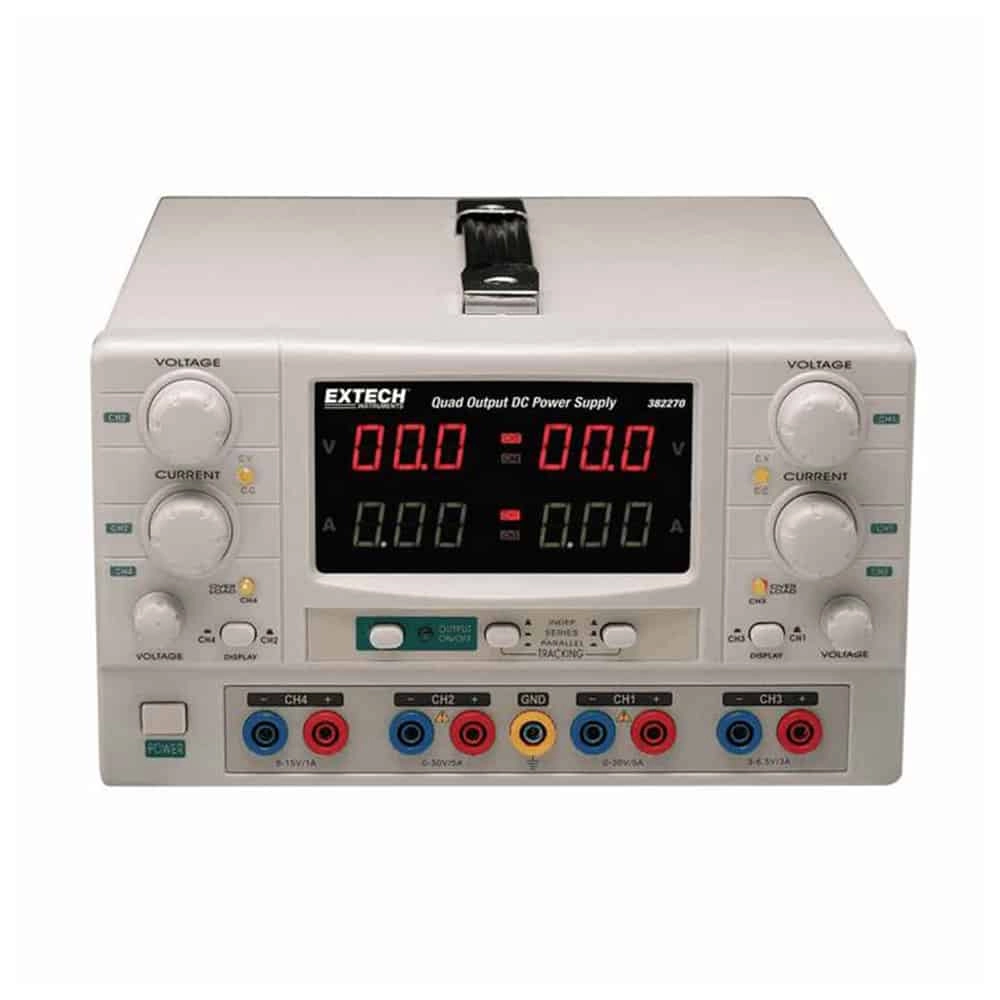

Extech 382270 4-In-1 Quad Output DC Power Supply
Model # 382270Key Features
?
Question about this product?
Features
- Two fully adjustable supplies combined with two auxiliary outputs
- Two 0 to 30V/0 to 5A outputs with selectable Constant Voltage and Constant Current modes
- Two auxiliary outputs with fixed current of 3 to 6.5V/3A and 8 to 15V/1A
Technical Information
- Output Voltage 0 to 30V, 0 to 30V, 3 to 6.5V,8 to 15V
- Output Current 0 to 5A, 0 to 5A, 3A (fixed), 1A (fixed)
- Load Voltage Regulation 0.5mV ±3mV
- Line Voltage Regulation 0.1mV ±3mV
- Load Current Regulation 2mA ±5mA
- Line Current Regulation 2mA ±3mA
- Ripple and Noise <0.5mVrms
- Power 110 to 240VAC, 50/60Hz (Switchable)
- Dimensions 10.2 x 6.3 x 14.5in (260 x 160 x 370mm)
- Weight 26.5lb (12kg)
Items Included
- power cord
- 4 pairs of test leads (banana plug to alligator clip)
